Arkham Horror LCG: Large Path Markers

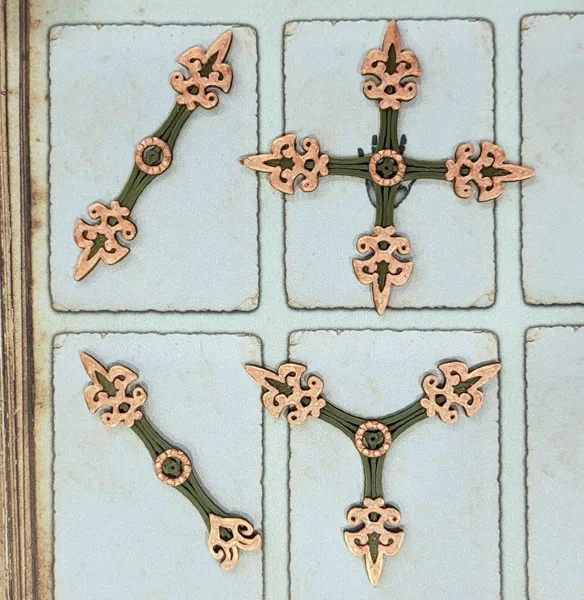

These are large map path connecters in a gothic art style for the board game Arkham Horror LCG. Each arrow is about 9 cm from tip to tip, allowing one to spread the cards out more if space allows on the table or playmat.

Printer Brand:

Creality

Printer:

Ender 5

**Rafts:**

No

Supports:

No

**Resolution:**

0.8 mm Nozzle; 0.2 mm Layer Height

Infill:

20%

**Filament:** Overture; Amolen PLA
Army Green; Silk Red Bronze

Notes:

A filament swap was done to highlight the arrowheads.

How I Designed This
===================

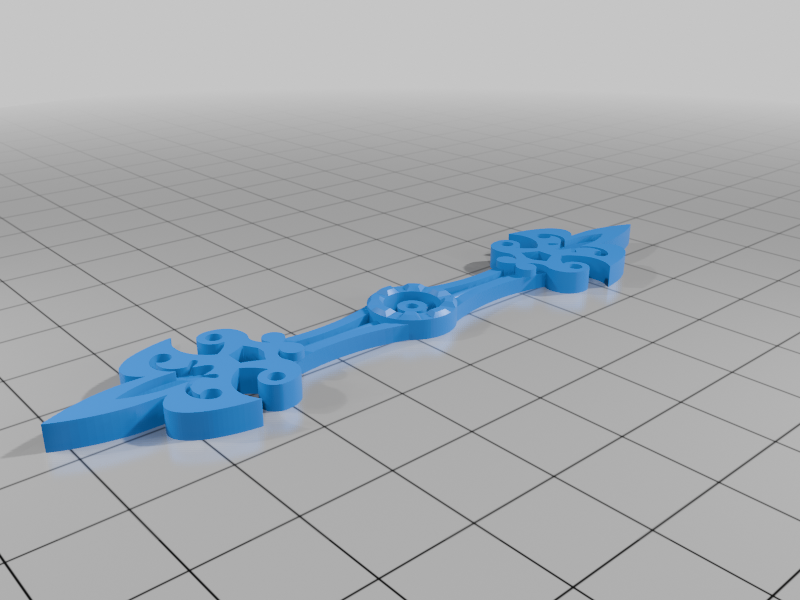

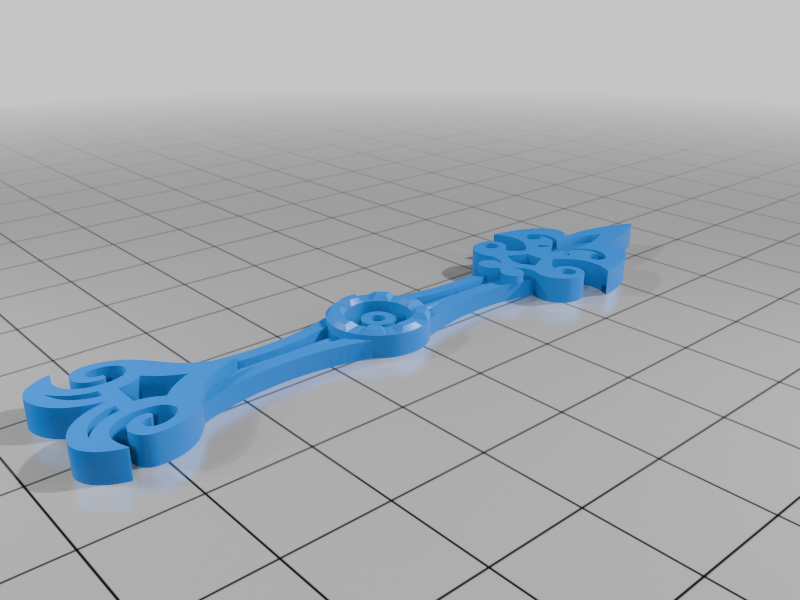

Gothic arrowhead art images were downloaded from the web and edited in Gimp. The images were converted to .SVG files using Inkscape and then uploaded into Fusion 360. The remainder of the design work was completed in Fusion 360, and the final objects were exported as .STL files using MeshMixer.
