Gaia Project: Game Play and Storage Trays

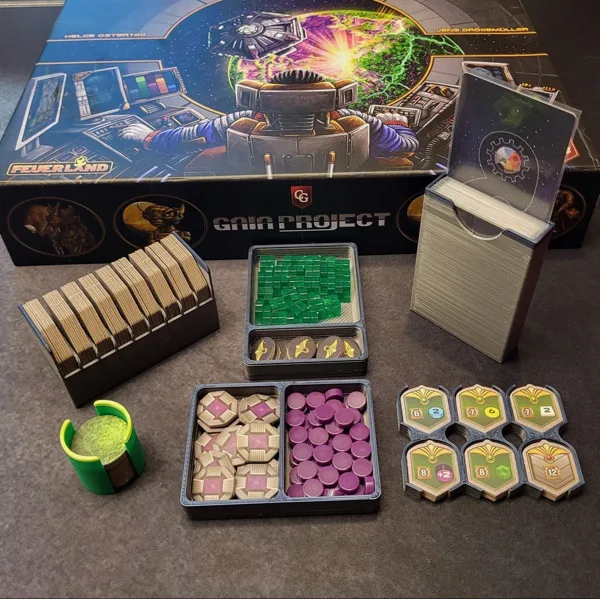

These are game play and storage trays for the board game Gaia Project that speed up initial set up while still providing compact storage. There are six items:

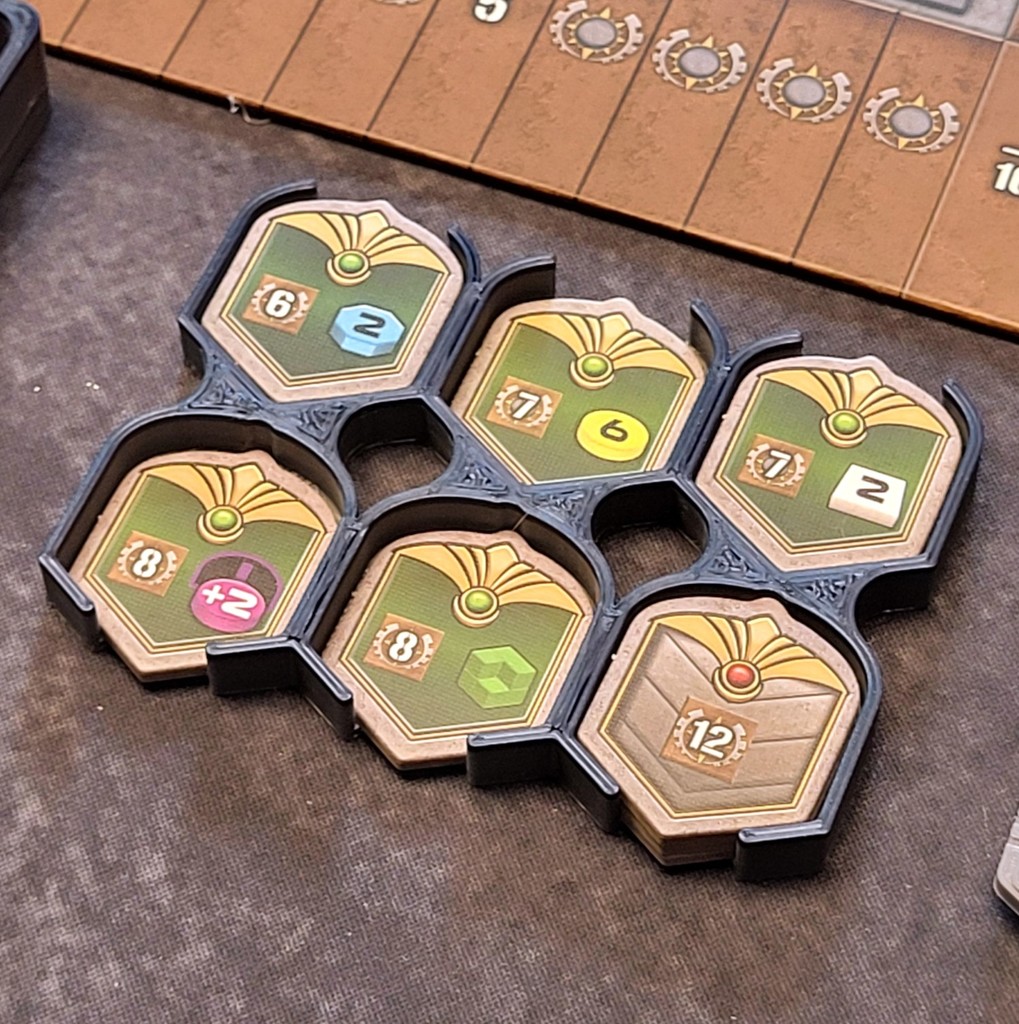

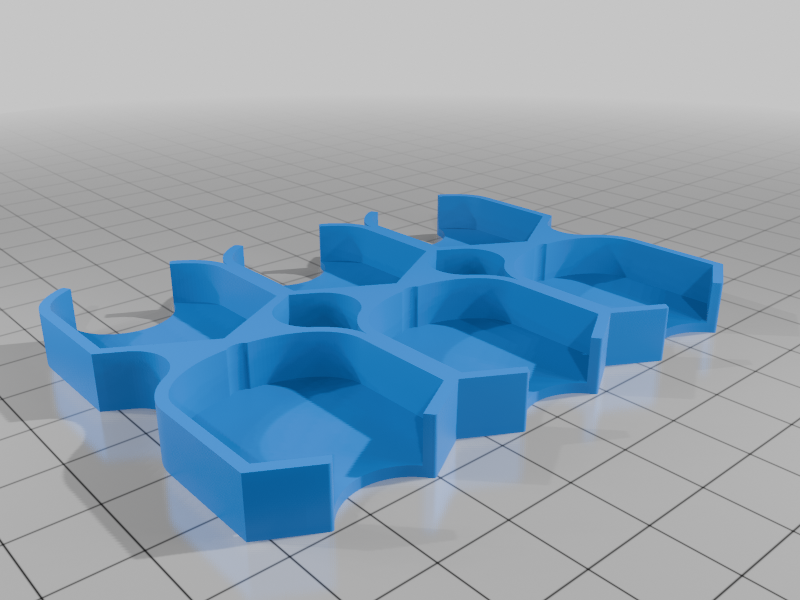

• A tray for Federation tokens

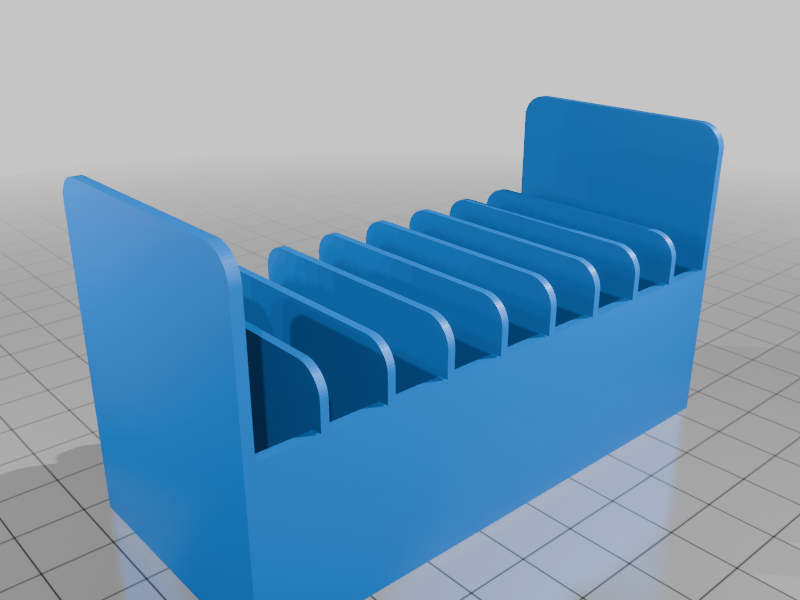

• A tray for Tech Tiles, sorted

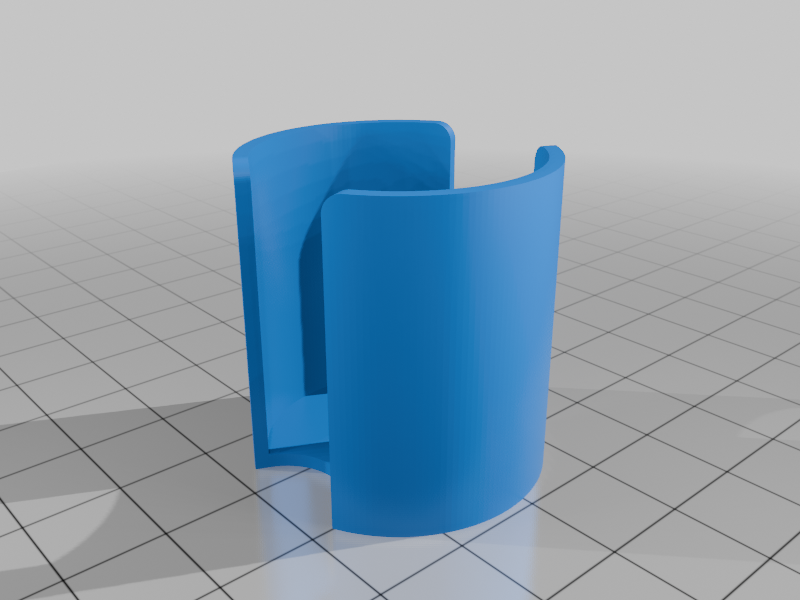

• A holder for Gaia Planet tokens

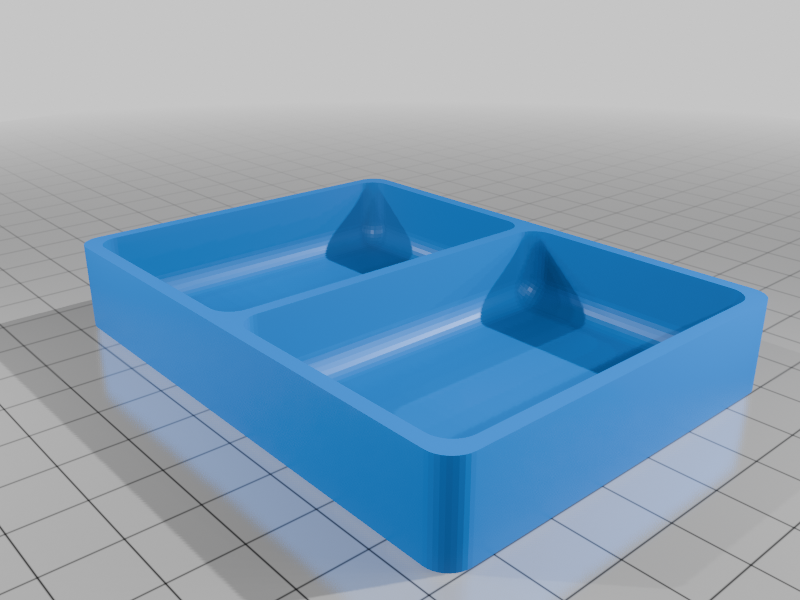

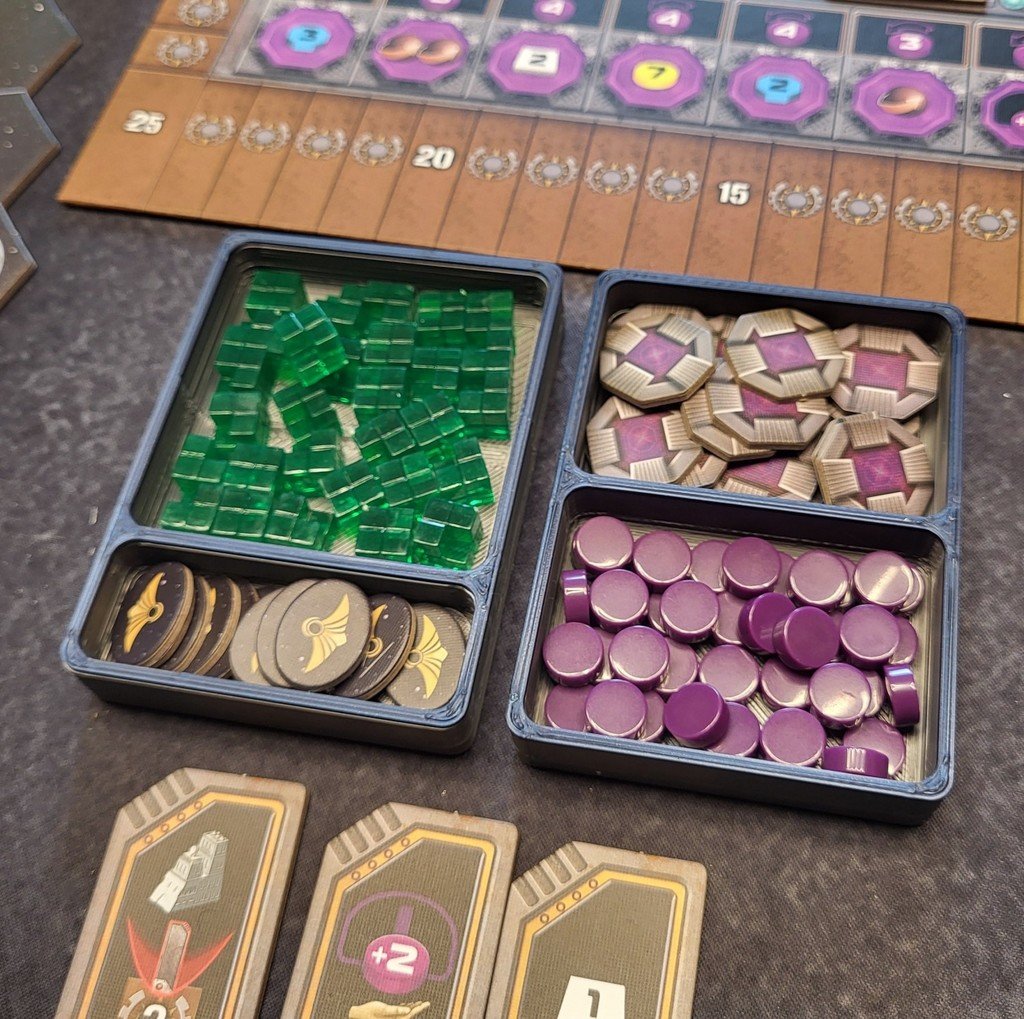

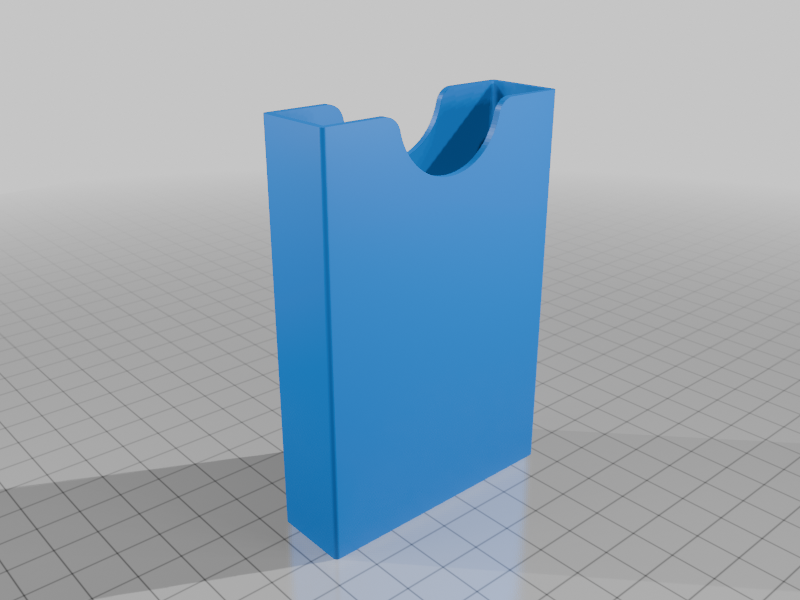

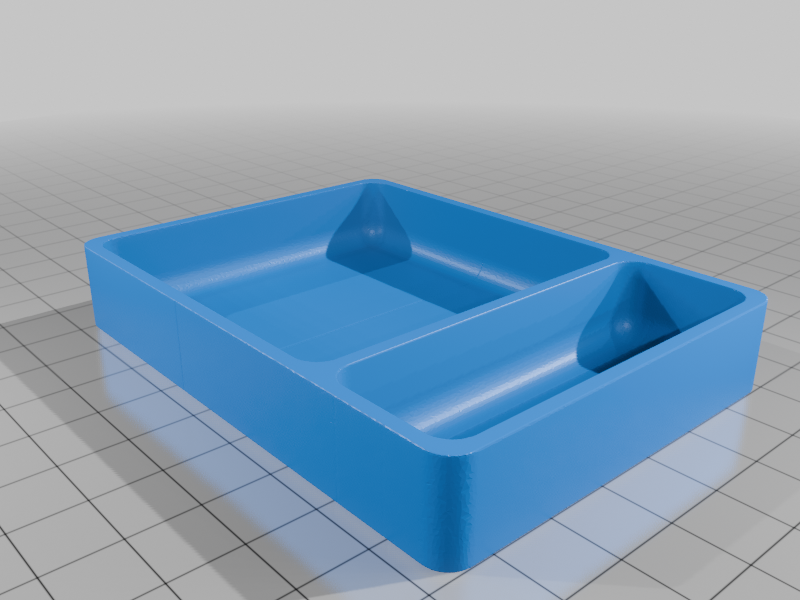

• A deck box for the automa cards, large enough to hold sleeved cards 5+6) Two storage trays for QIC tokens, Power tokens, Action tokens, and Record tokens. These two trays have been remixed from Nizmox's posting on Printables (and traces back to asuahsahua on Thingiverse). They are more compact, and more efficient.

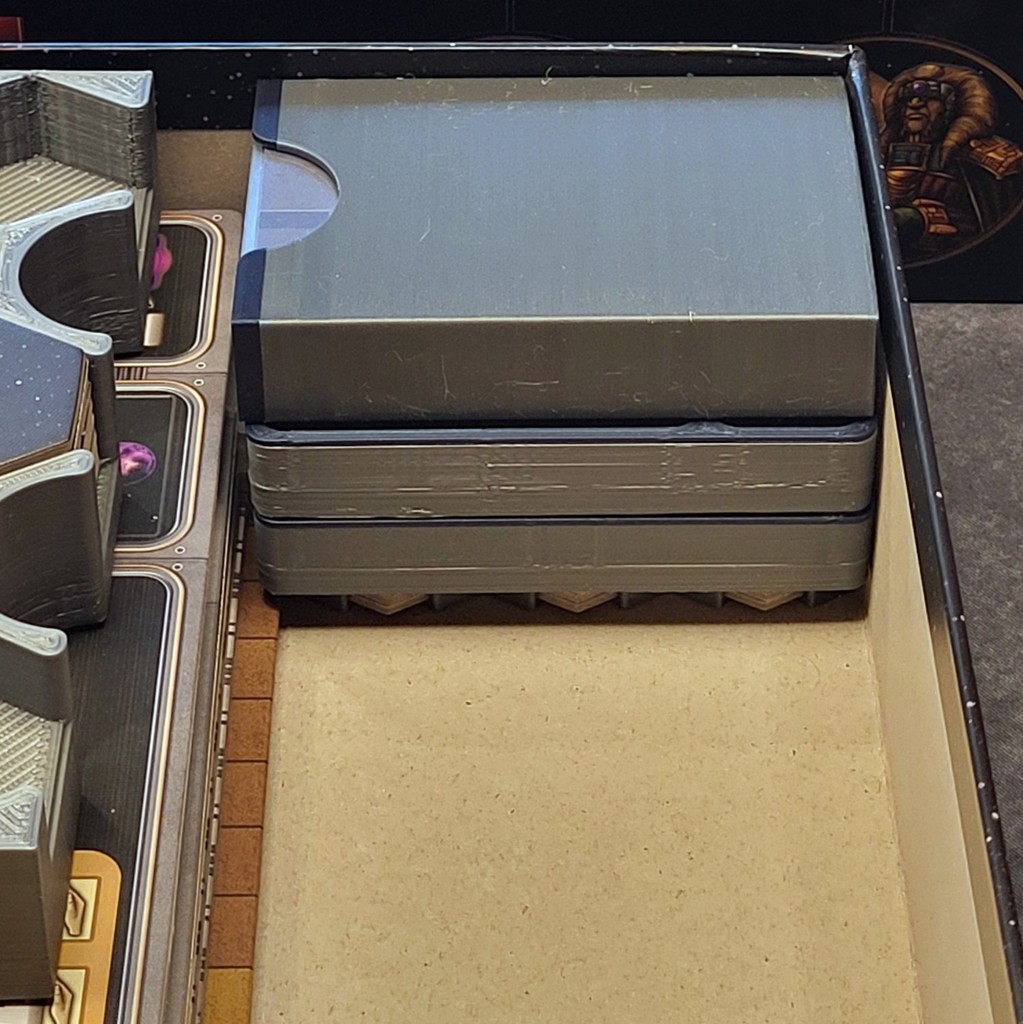

As seen in one of the accompanying photos, the Federation token tray, pair of storage trays, and automa deck box stack nicely on top of each other beside the Research Board and Faction Boards in the box. The Federation token tray goes on the bottom; the others on top with the automa deck serving as a lid of sorts. The Tech Tile tray also fits in that gap between the Research Board and the box wall.

Printer Brand:

Creality

Printer:

Ender 5

Rafts:

No

Supports:

No

Resolution:

0.8 mm Nozzle; 0.2 mm Layer Height

Infill:

20%

Filament: Polymaker; Hatchbox; Prusament PLA Steel Grey, Metallic Blue; True Green; Lime Green

Notes:

Most pieces were printed with filament swaps to create the accent colors.

How I Designed This ===================

The four pieces that I designed from scratch were created in Fusion 360 and exported as .STL files to MeshMixer. The two trays shared by Nizmox were remixed in MeshMixer
