Lost Ruins of Arnak: Fear Card and Tile Tray

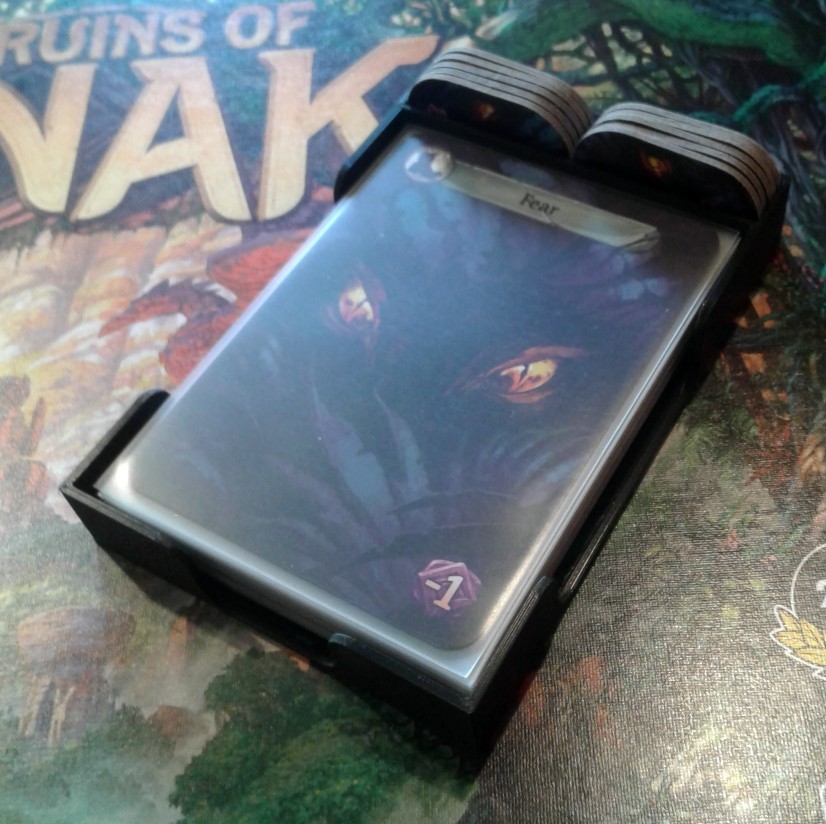

This is a storage tray holding both Fear Cards and Fear Tiles for the board game Lost Ruins of Arnak. The tray is big enough to hold sleeved cards, and the Fear Tiles sit in slots in the back of the tray.

I had fun generating the Fear Card image for the base, so there are two versions of the tray posted here:

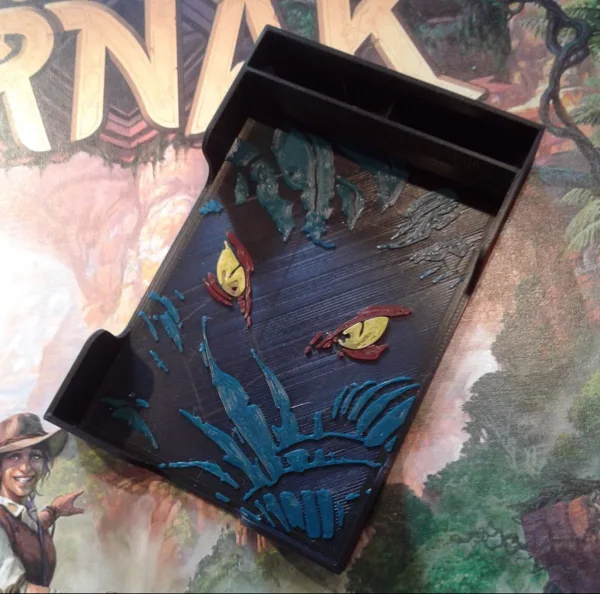

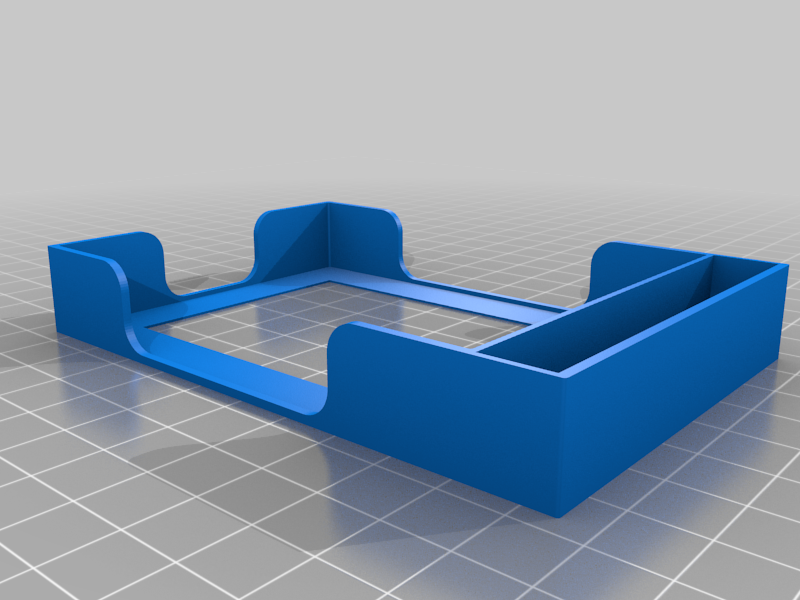

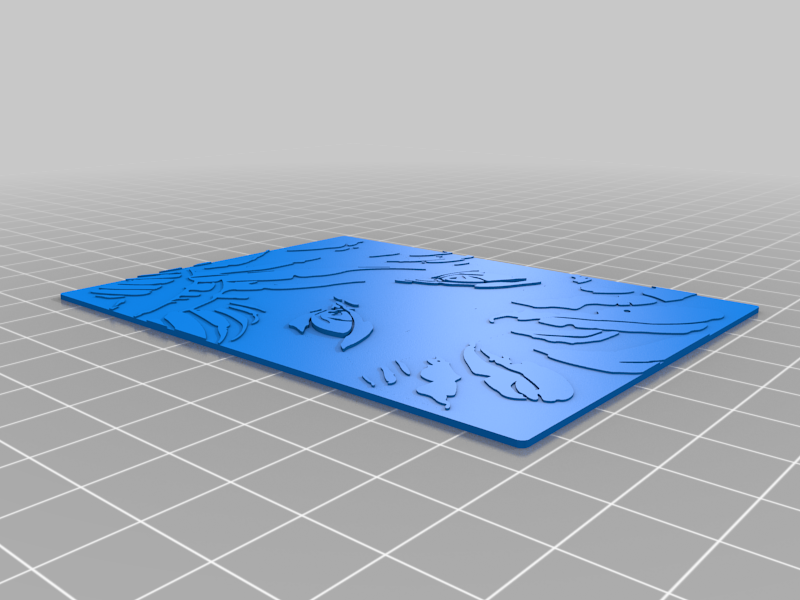

Version 1: Separate tray and Fear Card base to the tray. The Fear Card image has been extruded to different heights, allowing the color variation seen in the images. This is the version I actually printed. The base of the tray is thin (only 0.5 mm thick), but then strengthened when the Fear Card base is superglued into the bottom of the tray.

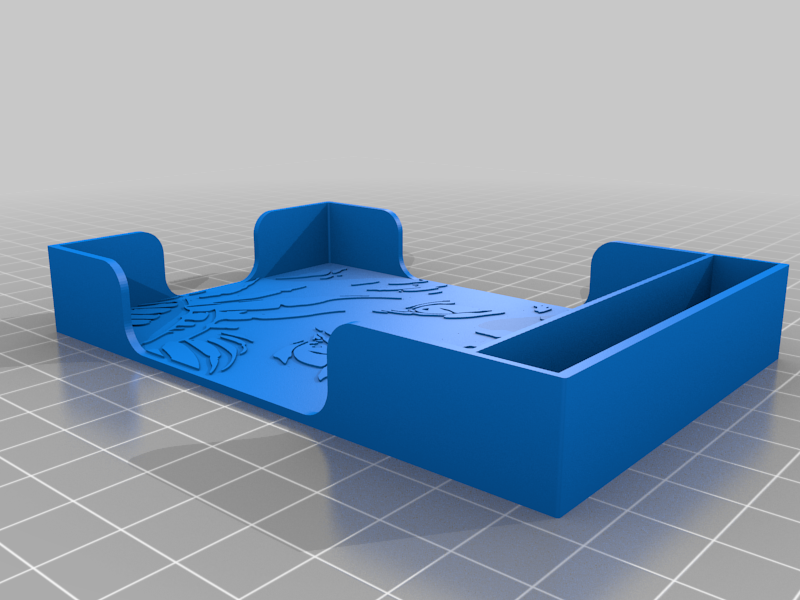

Version 2: One piece tray. The Fear Card image has been extruded to a constant height of 0.4 mm up from the base of the tray.

Printer Brand:

Creality

Printer:

Ender 5

Rafts:

No

Supports:

No

Resolution:

0.4 mm

Infill:

35%

Filament:
eSun PLA+
Black; eSun's "Green", which is really the dark turquoise and worked perfectly for this; Fire Engine Red; Yellow

Notes:

The Fear Card base was printed with three filament swaps.

How I Designed This
===================

The tray was designed in Fusion 360. To create the Fear Card background, an image was downloaded from the web, converted to black and white, and edited with Gimp. The black and white image was then converted to a .SVG file using Inkscape and imported into Fusion 360 for extrusion. The final model in Fusion 360 was exported as a .STL file into MeshMixer.

Category: Games
