Voidfall: Joint and Heroic Focus Offer Tray

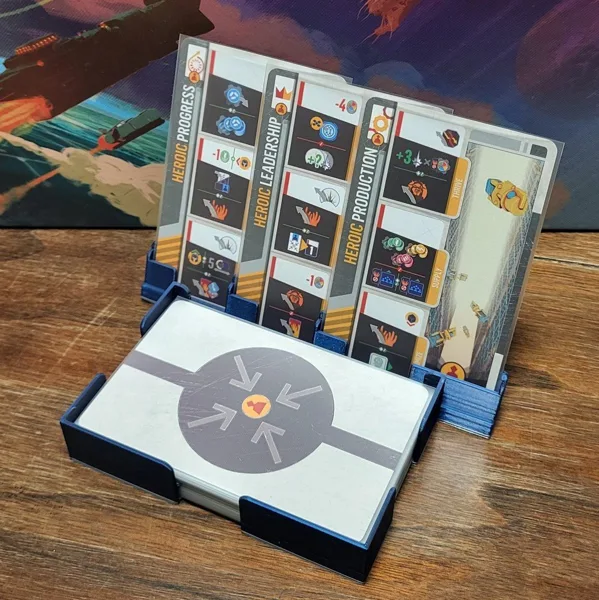

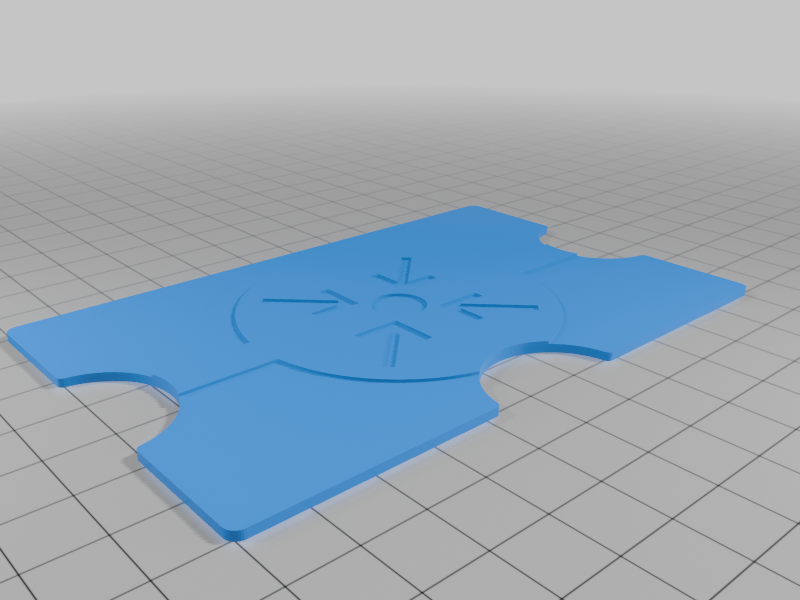

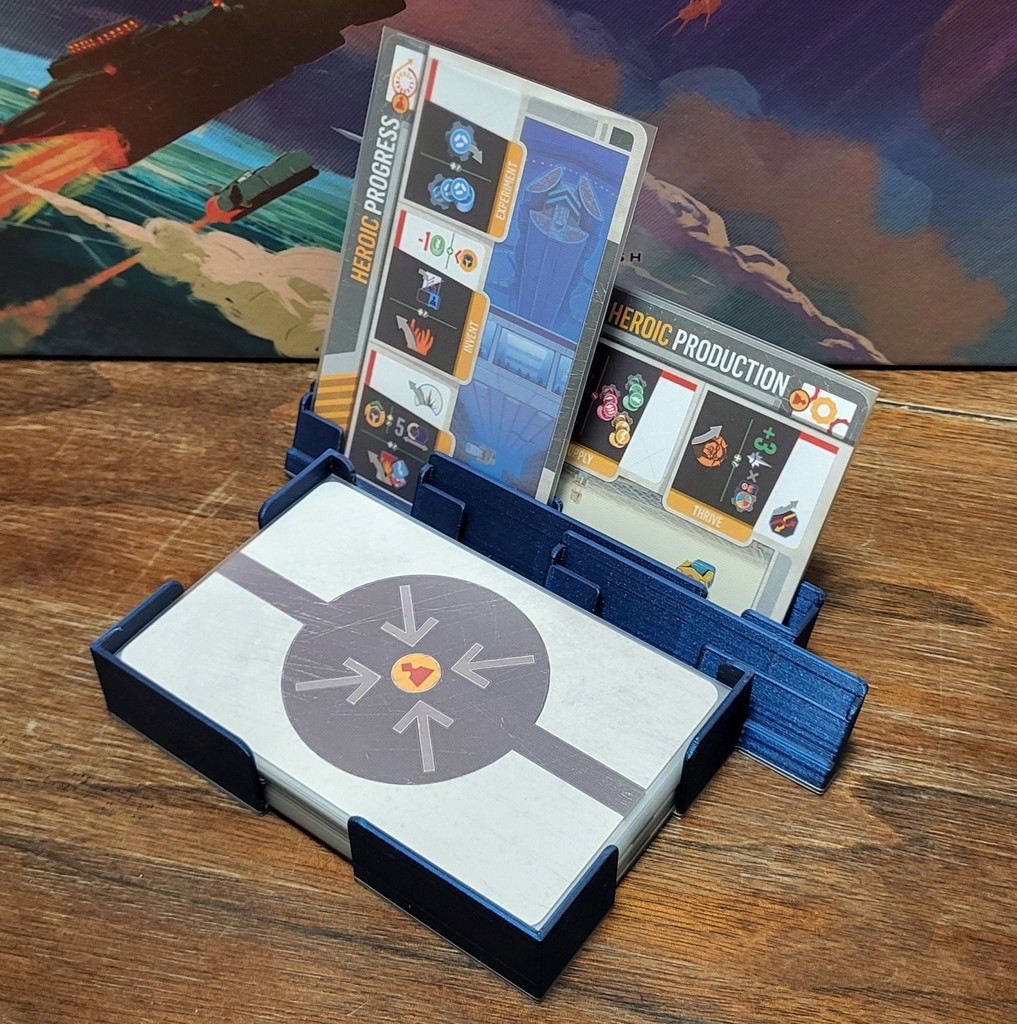

This tray holds and displays the Joint and Heroic Focus cards for the board game Voidfall. The objective in the design is visibility, saving table space, and ease of setup and storage. The available three Focus cards are displayed vertically in the stand, and there is a slot behind them to put discarded Focus cards. A divider is available to separate in the tray the Focus deck being used from the one not being used in the game. The tray doubles as a storage container, and has room to store the three Difficulty Setup Aid cards as well. The tray is designed for Gamegenic sleeved cards.

Printer Brand:

Creality

Printer:

Ender 5

Rafts:

No

Supports:

No

Resolution:

0.8 mm Nozzle; 0.2 mm Layer Height

Infill:

20%

Filament: Polymaker PLA Steel Grey; Metallic Blue

Notes:

Both the tray and the divider were printed with one filament swap.

The stands were designed in Fusion 360 and exported as .STL files to MeshMixer. The Voidfall logo was taken from an image found on the web, edited to bring the letters closer together, and then converted to an .SVG file using Inkscape. The .SVG file was then uploaded into Fusion 360 for extrusion.

Category: Games
