Voidfall: Crisis and Alert Card Tray

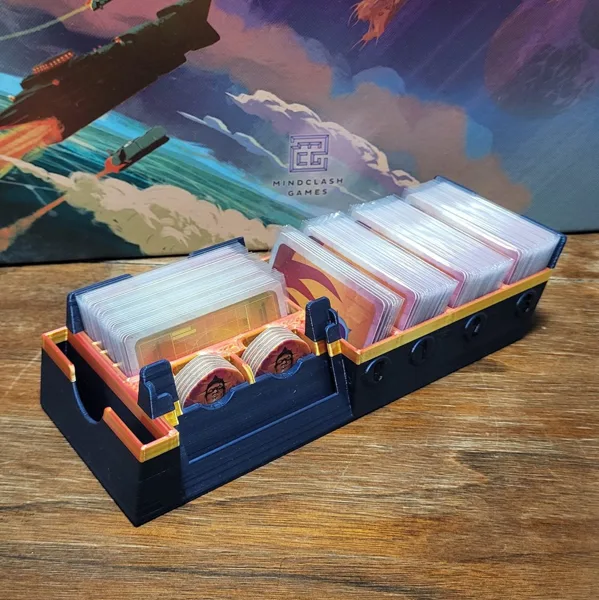

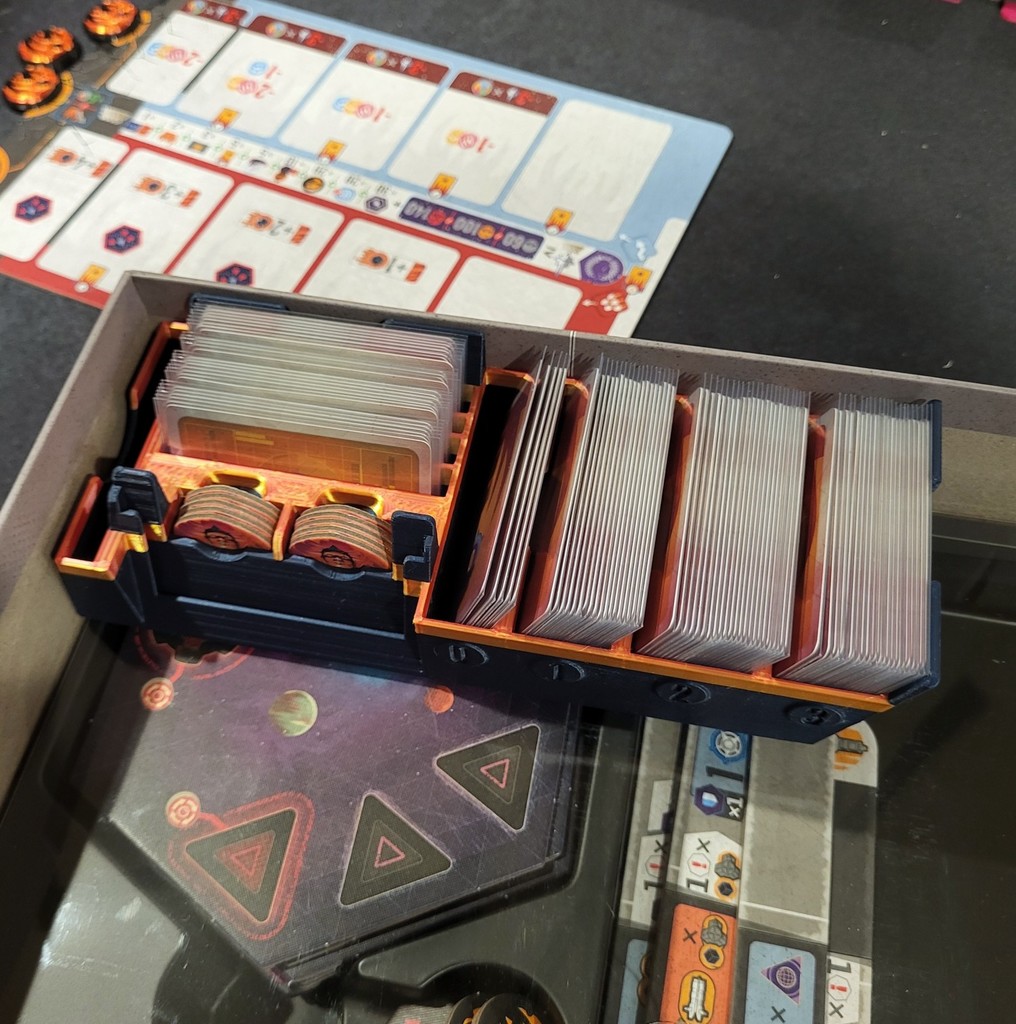

This tray holds the Crisis and Alert cards for the board game Voidfall, and greatly reduces necessary table space and setup time. What would be NINE separate stacks of cards on the table (five Alert card decks and four Crisis card decks) is now consolidated to one tray. A slot on the end of the tray holds the Alert card draw deck for the current Cycle, and there is also a slot to display the current Difficulty Setup Aid card. The Crisis cards are easily drawn as needed midgame. The tray also holds the ten Harbinger tokens. All of these components and tokens (except for the Difficulty Setup Aid card) are stored in the tray itself which fits in the upper part of the retail edition of the box. Just pull the tray out of the box, put it by the Crisis Board, make up the current Alert Card draw deck, and you are good to go! The tray is designed for Gamegenic sleeved cards.

Printer Brand:

Creality

Printer:

Ender 5

Rafts:

No

Supports:

No

Resolution:

0.8 mm Nozzle; 0.2 mm Layer Height

Infill:

20%

Filament: Polymaker; Sunlu PLA Metallic Blue; Silk Dual Red Gold

Notes:

The tray was printed with two filament swaps.

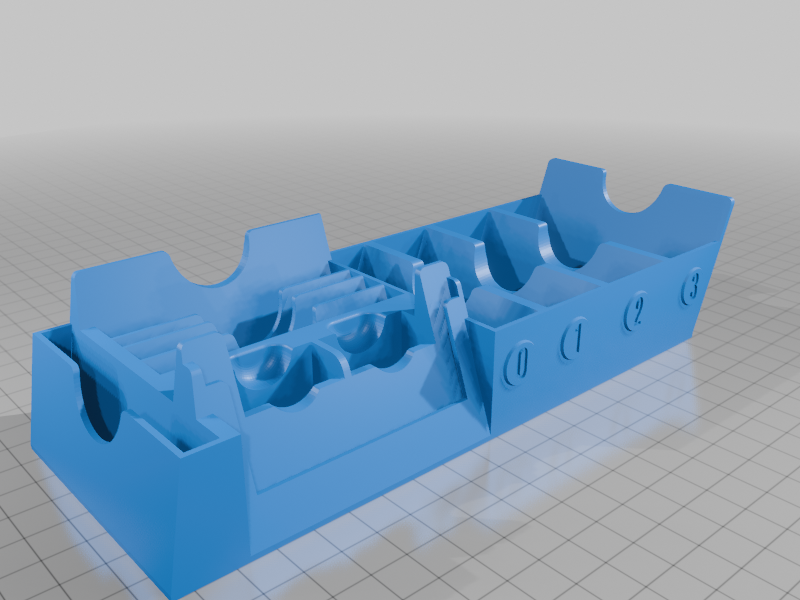

The tray was designed in Fusion 360 and exported as an .STL file to MeshMixer. The Voidfall logo was taken from an image found on the web, edited to bring the letters closer together, and then converted to an .SVG file using Inkscape. The .SVG file was then uploaded into Fusion 360 for extrusion.

Category: Games
