Weather Machine: Chemical Warehouse Trays

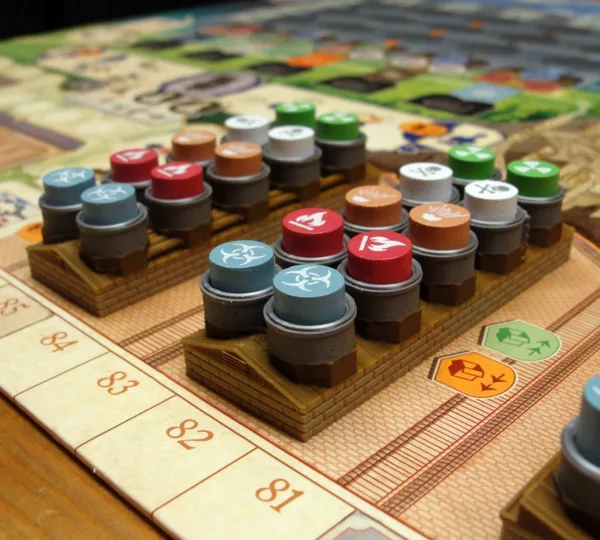

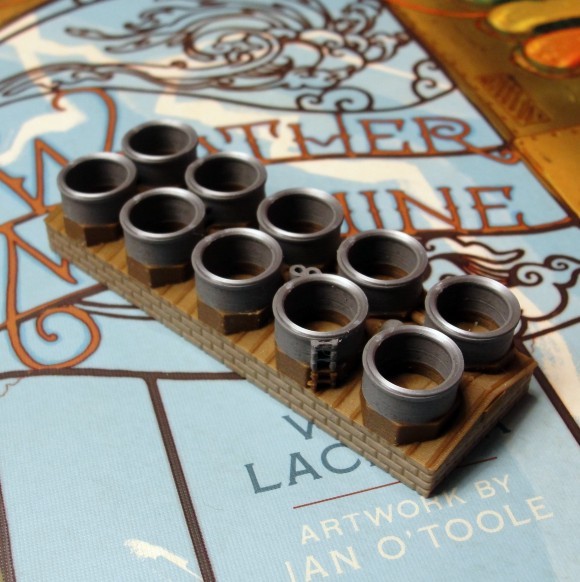

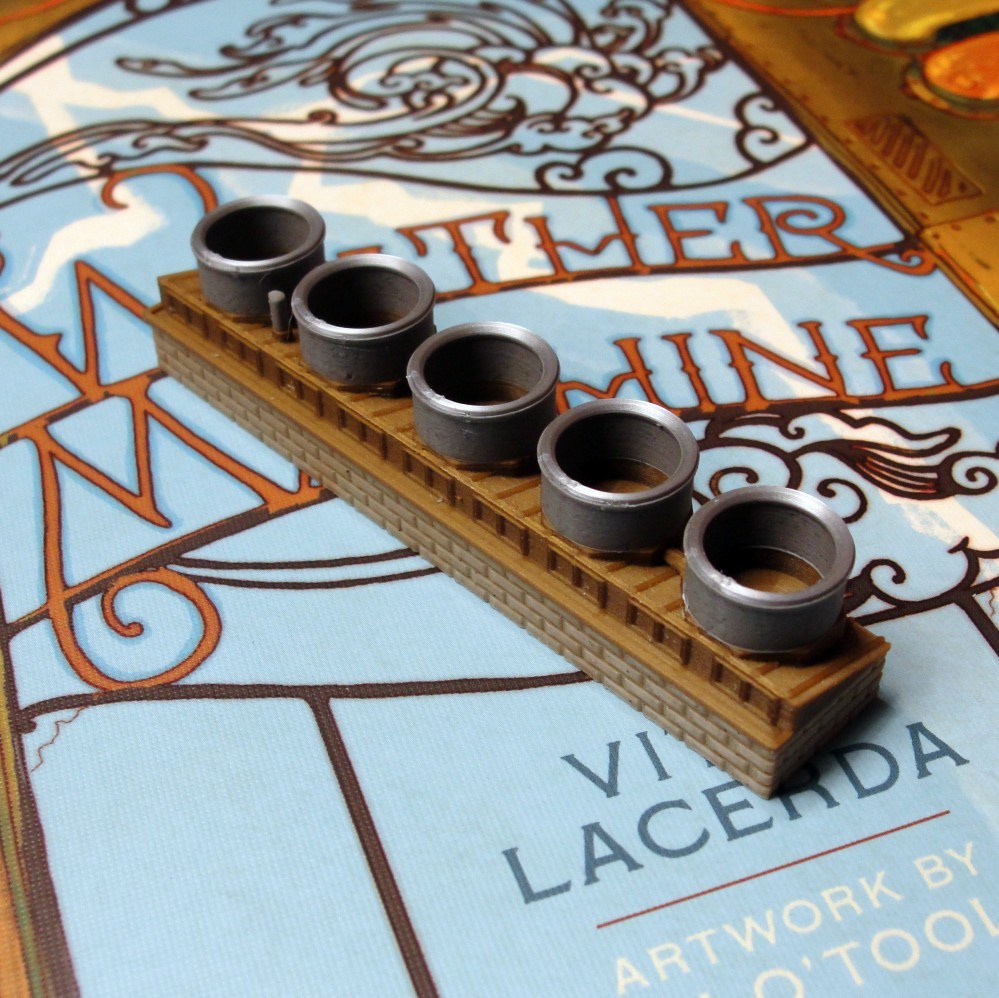

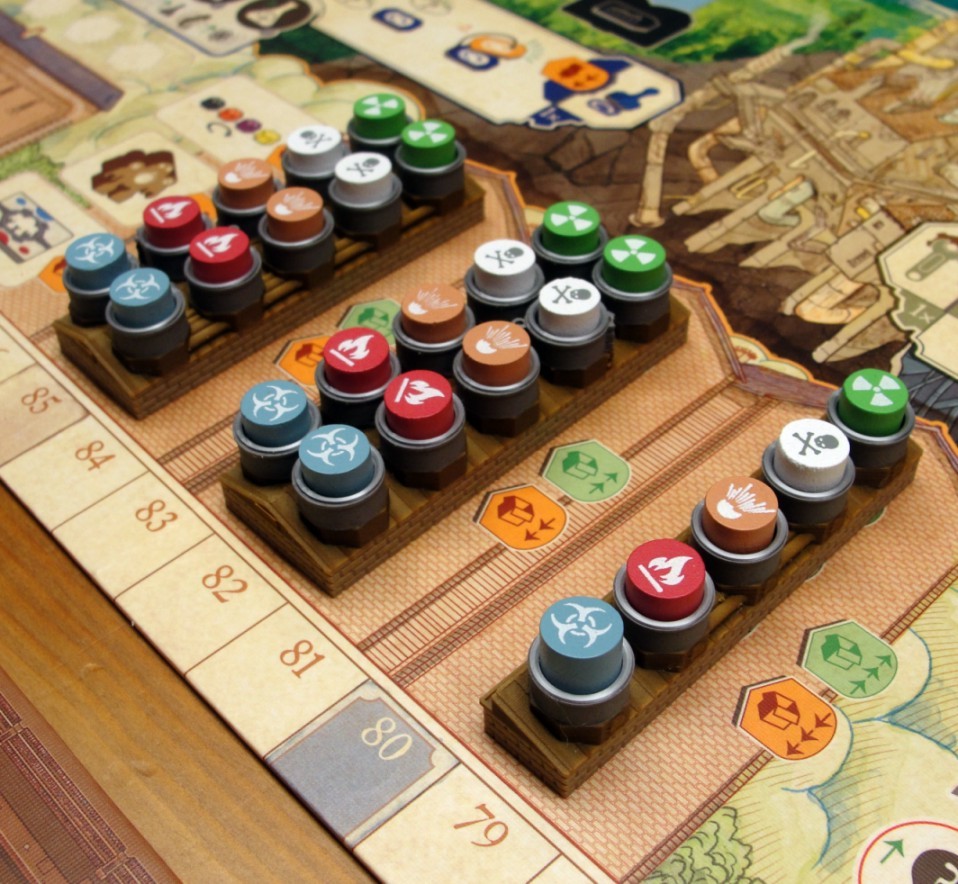

The board game Weather Machine has twenty-five cylindrical chemical tokens that are to be placed in three neighboring regions on the board. The cylinders are small, easily knocked over, and roll quite well. I have created two types of thematically-consistent "chemical warehouses" to store these cylinders, both on the board and in the box. Three warehouses are to be printed - two of the type that holds ten chemicals, and one that holds five.

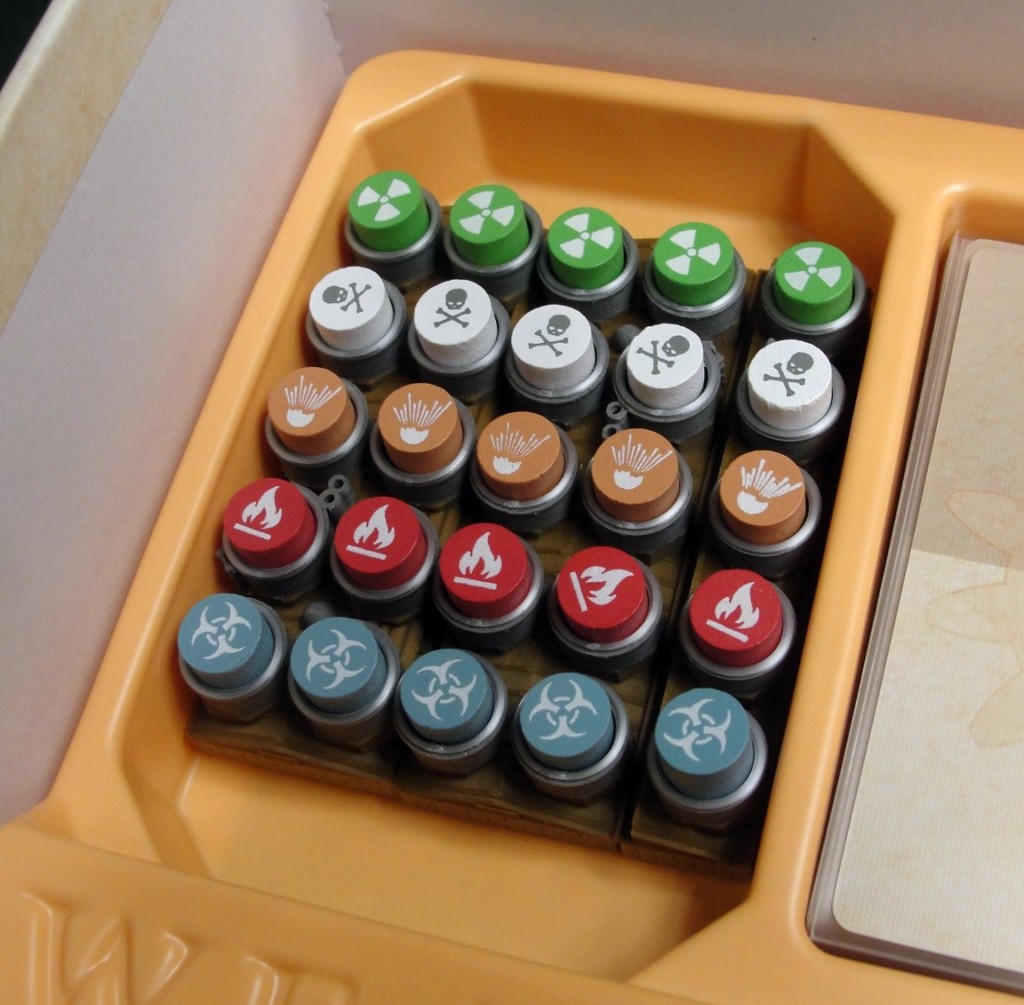

The three warehouses are designed to fit in one of the extra storage regions in the plastic insert in the box. (I think the extra region was intended for the metallic gears, but I never bothered to punch out the cardboard gears, and instead store the metallic gears where the cardboard ones go using the excellent storage tray by s9732.)

Printer Brand:

Creality

Printer:

Ender 5

Rafts:

No

Supports:

No

Resolution:

0.4 mm

Infill:

20%

Filament:
Hatchbox; Amolen; Paramount 3D PLA; PLA and Wood
Cement gray; Silk Silver, Walnut; Karnak Sandstone

Notes:

I chose colors to match the theme of the board and did three filament swaps while printing.

How I Designed This
===================

The warehouses were designed in Fusion 360 and exported as .STL files to MeshMixer.
