Harry Potter: Hogwarts Battle Box Organizer

This Harry Potter: Battle Box organizer includes a home for all of the cards and pieces for the base game, the Monster Book of Monsters, and the Charms and Potions expansion all in the original base game box.

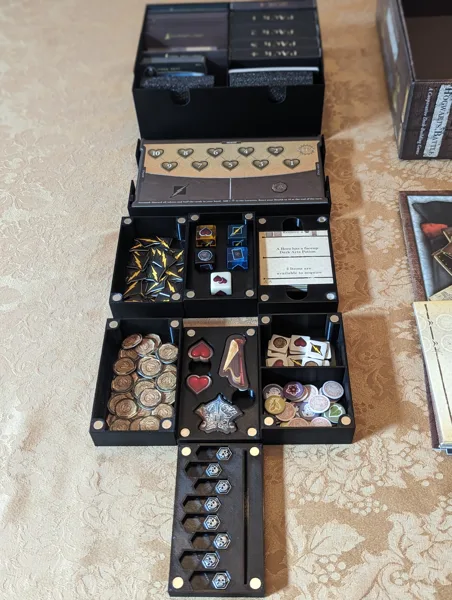

There are places to cover all of the content from all of the boxes, and some of the containers are playable (e.g. the control / location holder allows you to slide the control tokens back and forth without having to take them out). The design goals were to fit everything into the box from all expansions, make setup and breakdown easier, and to have everything remain in place and not float all over the box while traveling. For this reason, there are places for magnets on the tops and bottoms of the boxes. The bottom of one box becomes the top/lid, with the player board holder becoming the top to all the stacks.

For this reason, the stacks should go in a specific order:

• Stack 1 (left or center)
• Attack

• Influence

• Stack 2 (left or center)
• Dice

• Harp / Petrificus / Hearts

• Control

• Stack 3 (right only - wider to accommodate the potions boards)
• Potions

• Potion Ingredients / Roll Indicators

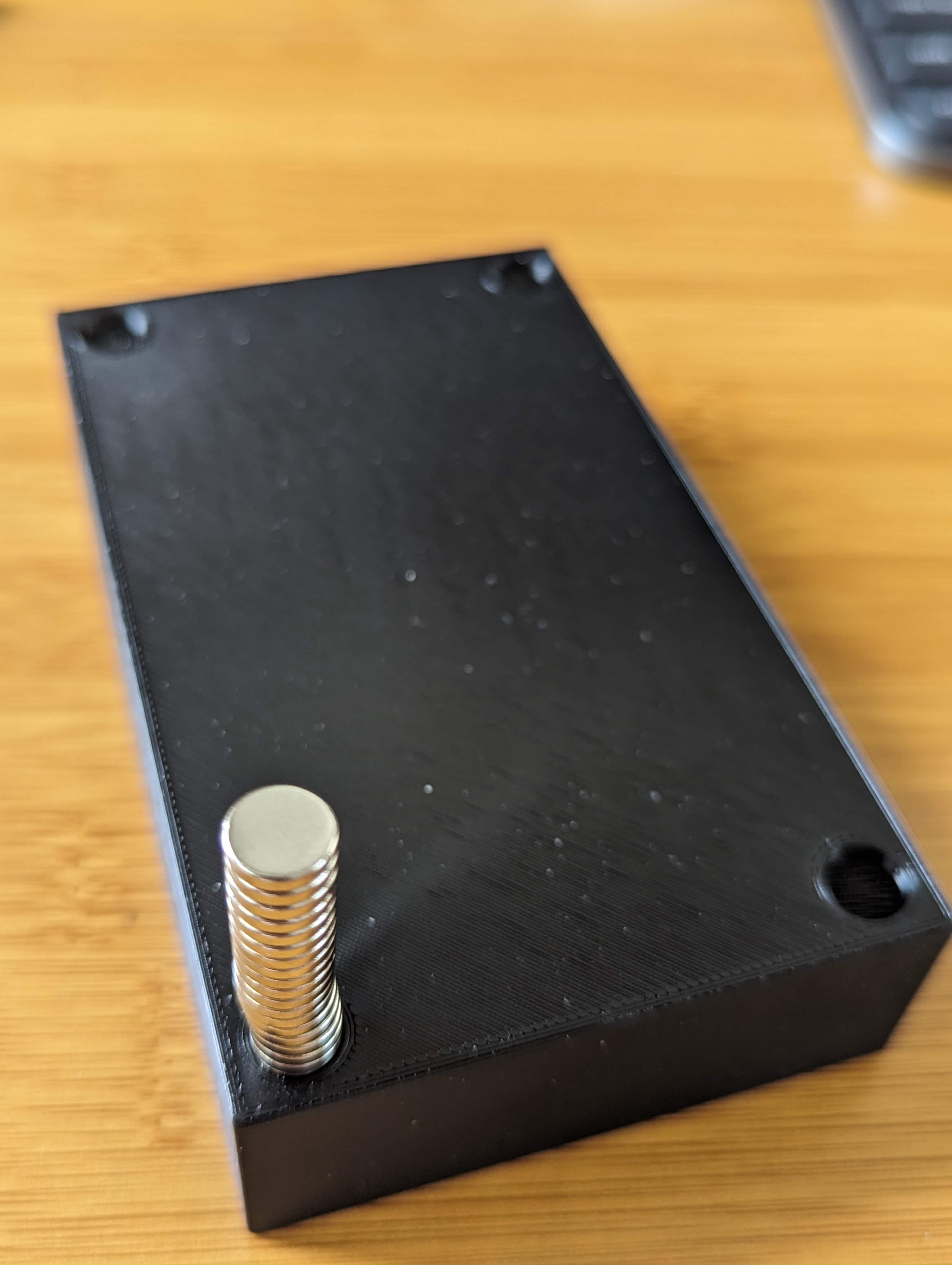

Within a stack, order is unimportant if you put magnets on the tops and bottoms of each. Please check your magnet orientation prior to using a drop of glue to hold in place.

My method after messing up a print was to do all the pieces at once:

• Place all boxes one side up (I started with the bottom so I could do the player board holder bottom as well)

• Glue one magnet in place

• Stack of magnets on that one to keep orientation

• Drop glue in socket

• Pull off the top of the stack of magnets, place into socket

• Repeat

• Remember when flipping the boxes over to flip the magnets as well to keep the orientation so they'll stick together

The magnets I personally used (8mm x 2mm round) are here: https://www.amazon.com/dp/B08C4SQSM3

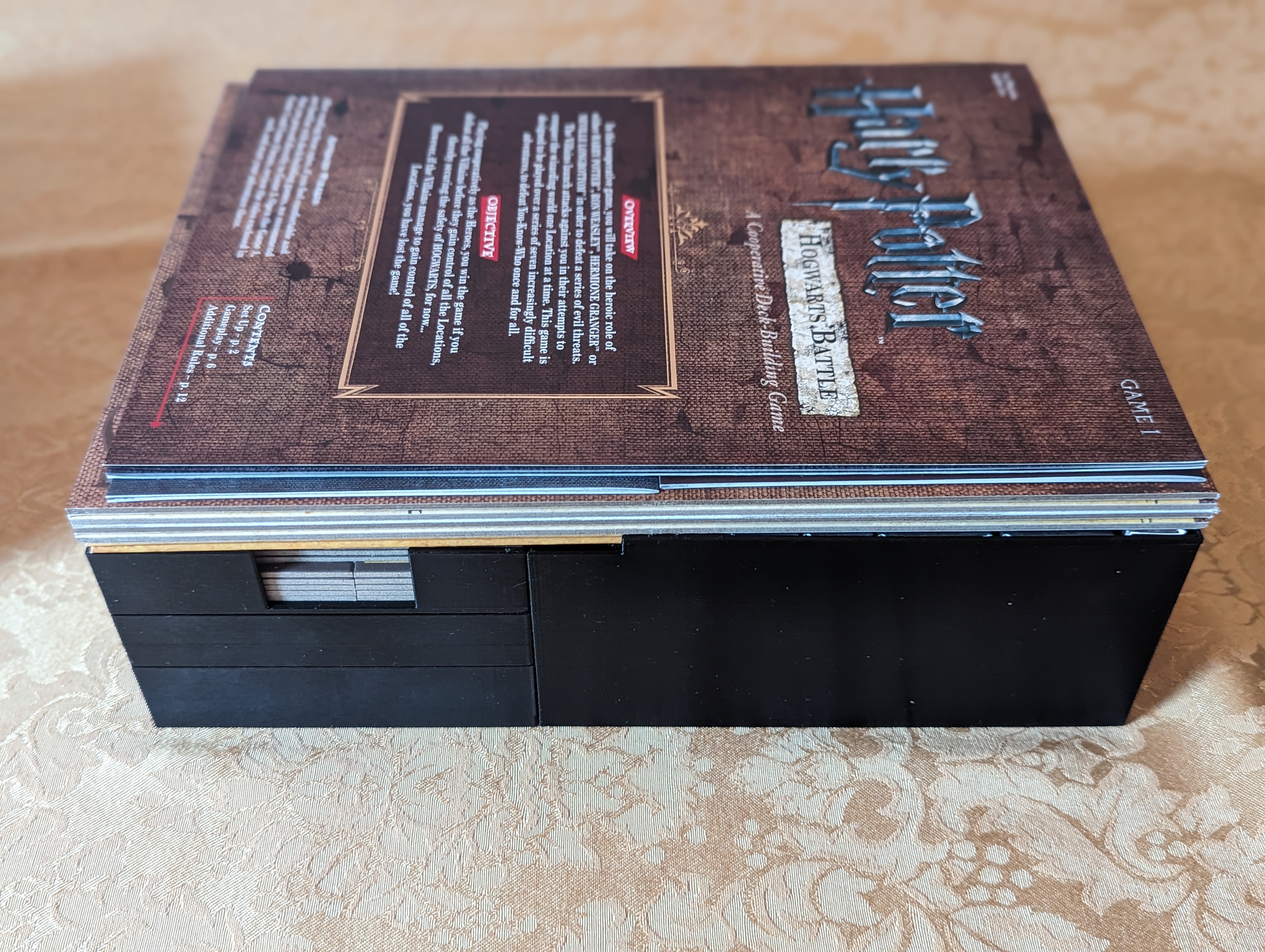

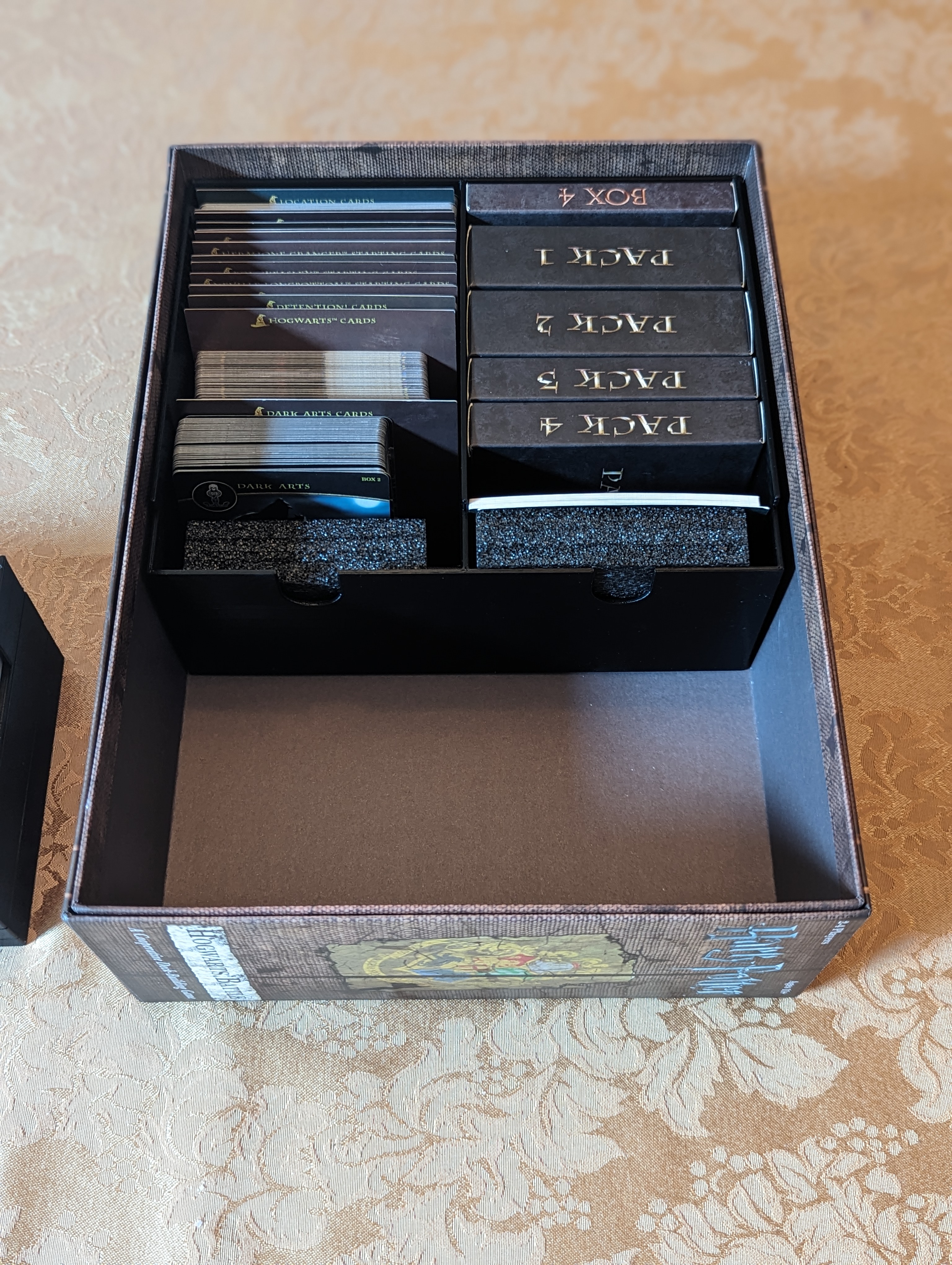

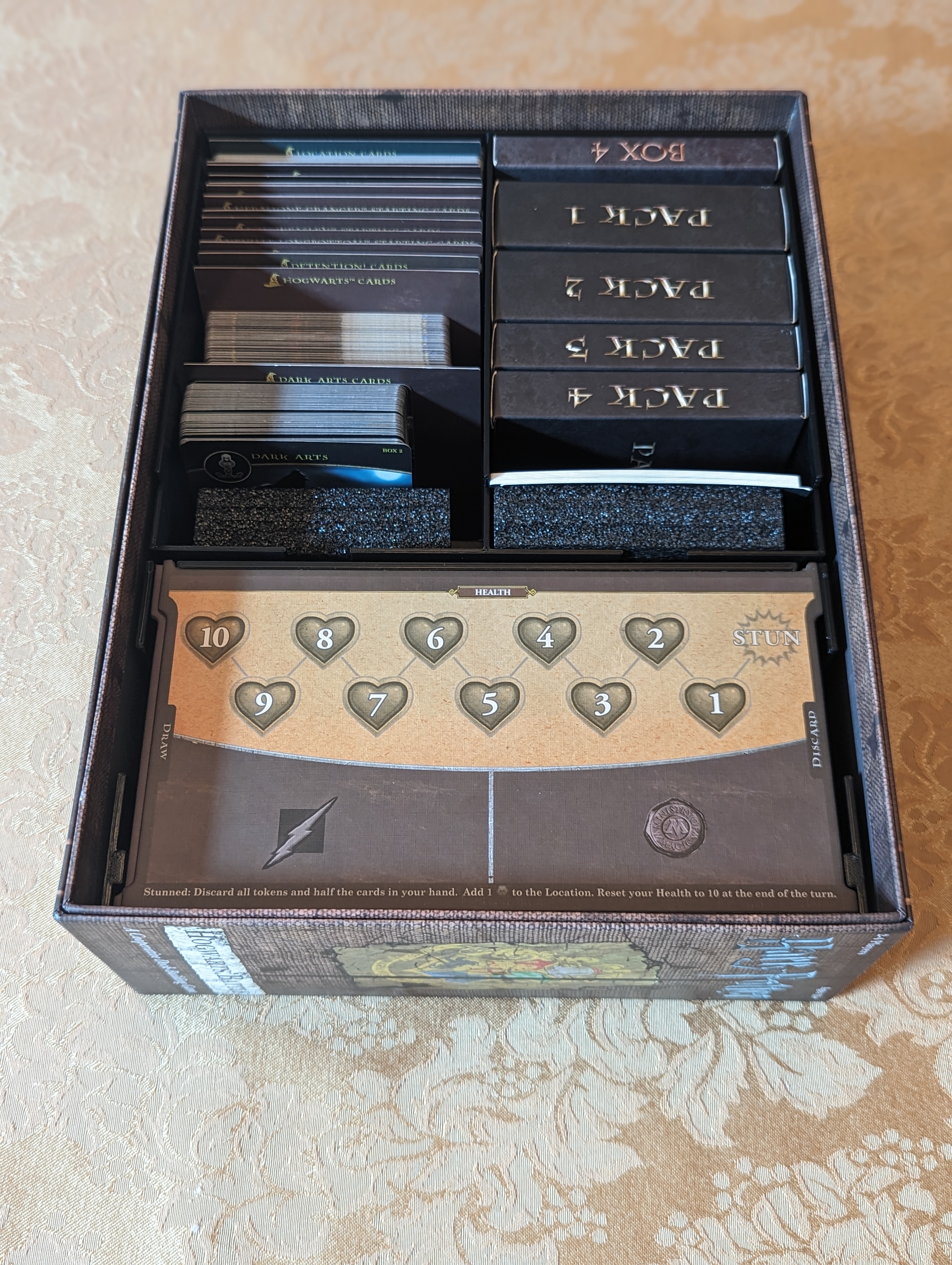

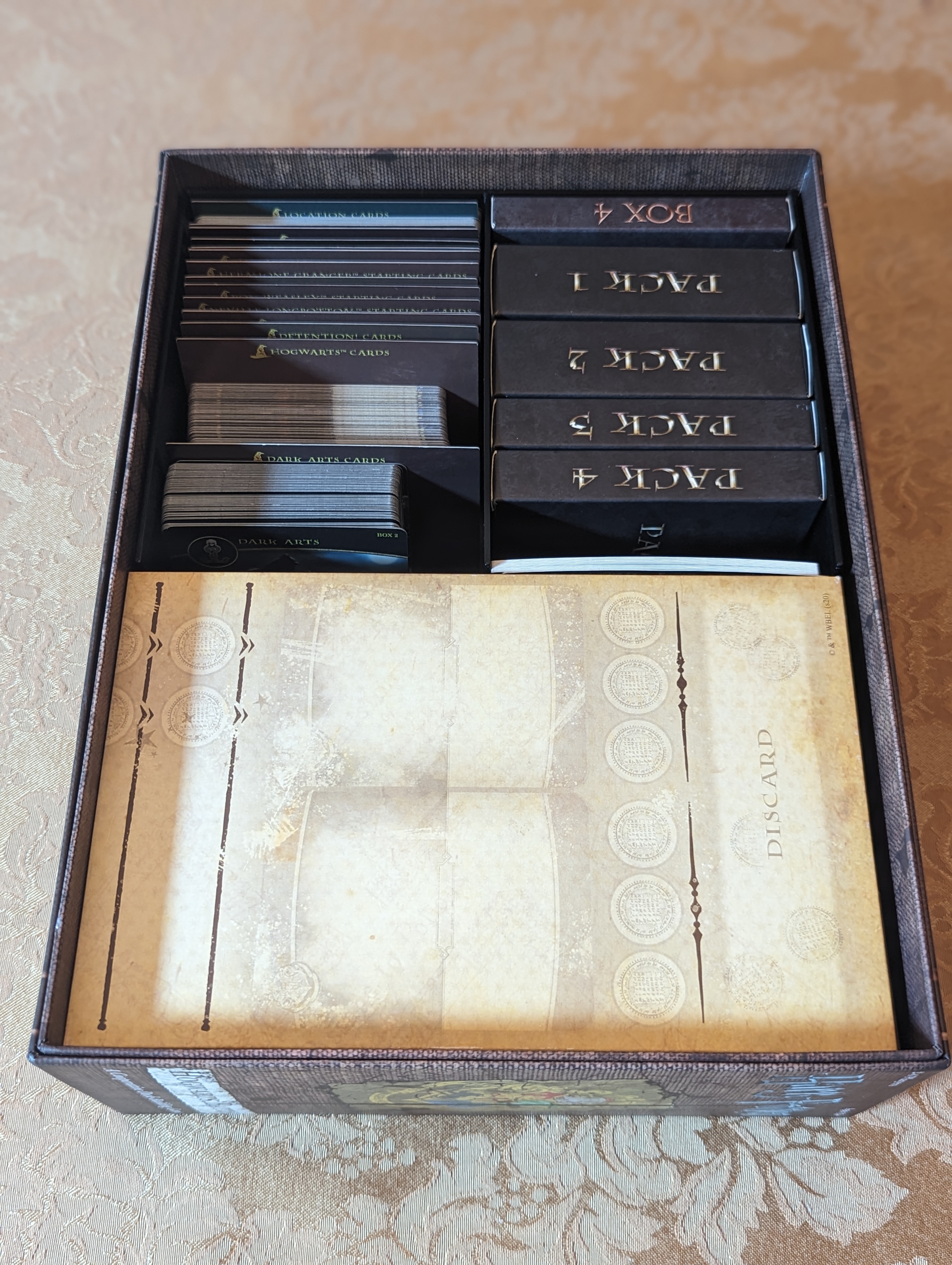

We haven't played through all the expansions yet, that's why I still have some of the boxes in there, but was pleased to see they fit as well. I would recommend keeping your foam as I believe I may have too much room. The end of the card box has a cut down to support the Potions expansion board, ordering the smaller cards (pretty much anything but location, player, etc. should fit) towards the end may be important. Also, I do not use any sleaves, so your milage may vary.

This was my first attempt with Fusion 360 and a multipart construct, so I hope you enjoy.
