Blood on the Clocktower Token Boxes (for Prusa Mk3/4)

From the original model's page:

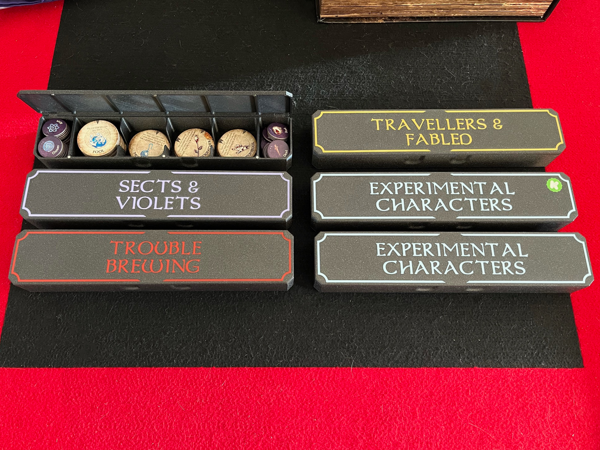

These are token boxes for the game Blood on the Clocktower. The base game comes with 3 scripts and the travelers/fabled, and at the recent convention they amazingly gave all the attendees a copy of every character released thus far. I wanted to have a box to store them in, and decided to make one for all of the scripts.

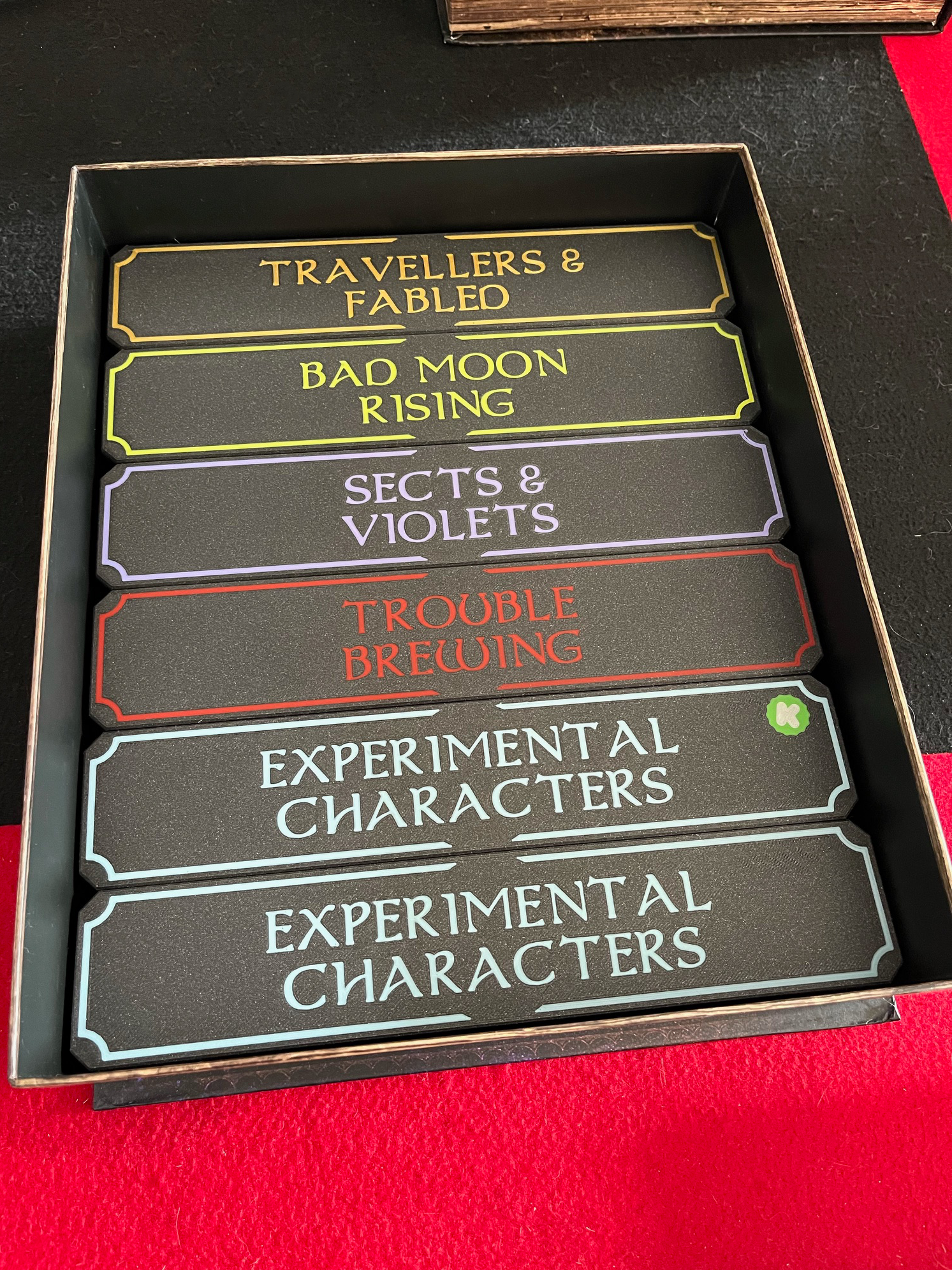

These will fit in the grimoire, and are a bit narrower than the cardboard boxes included so 6 will be able to fit without removing anything.

These latch with magnets, press fit in. For the hinges you can use a bit of leftover filament on each side. It should be a very tight fit, but depending on how well you have your tolerances dialed in on your printer you may need to either carefully run a #50 (0.070") drill to open them up, or if they are a touch loose you can use a soldering iron to melt the inserted filament to the top of the box on the sides.

For this remix:

I've adjusted the boxes to fit on a Prusa Mk3/Mk4. As a KS backer, I received a copy of all experimental characters up to that point and I've made homemade versions of the characters released afterward. To store these separately, I've added an Experimental Characters lid with a Kickstarter-style logo.

Because of the sharper corner angles and slight changes to the inner compartments, I've resized the magnet slots to fit Ø 3mm x 3mm magnets (which I had leftover from MagHex terrain).

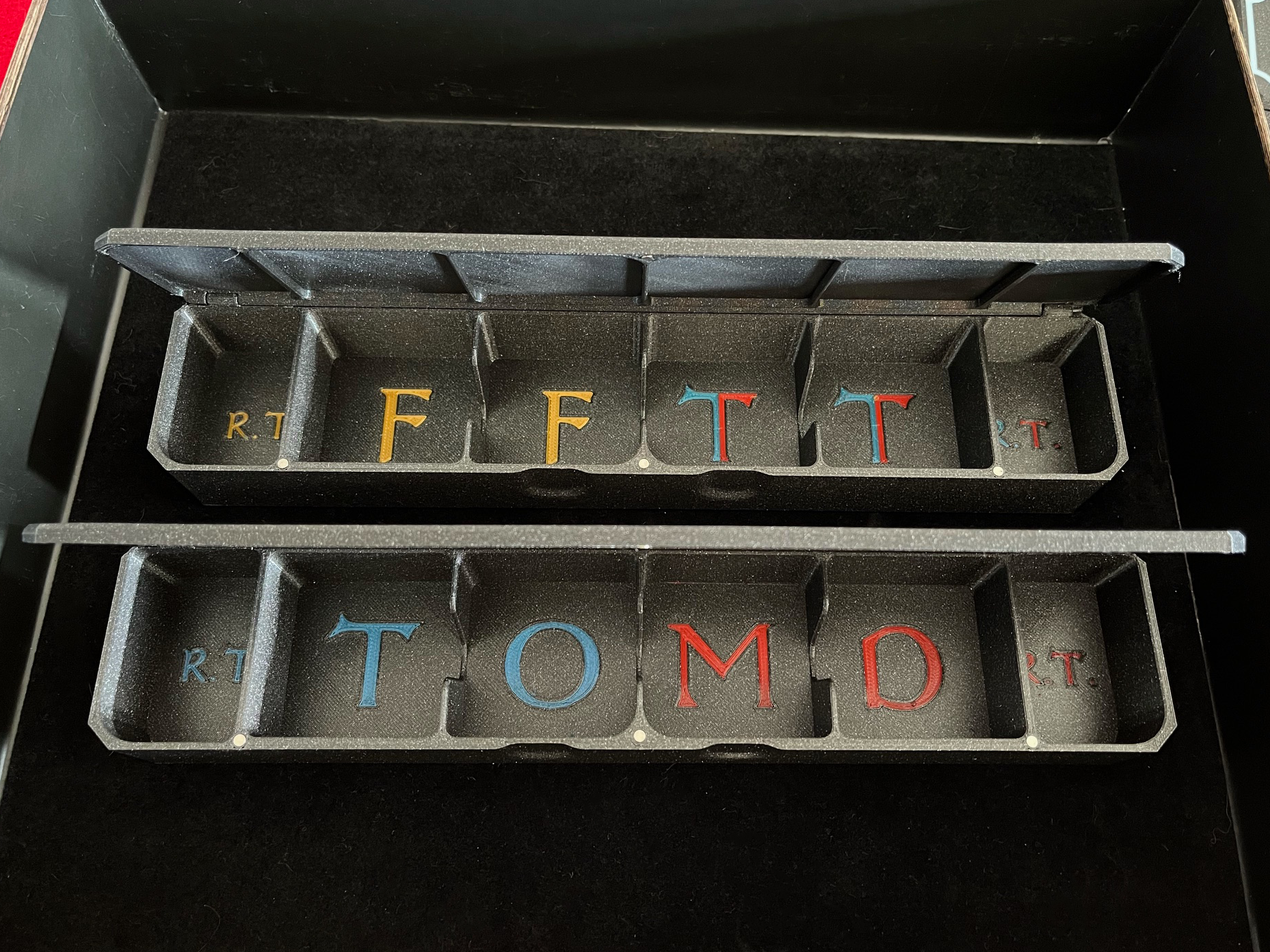

I’ve also modified both the top and inner texts, so they can be printed in multicolor.

Recommended print settings:

• Rotate the box/lid 38° on the Z-axis to fit the build plate.

• Set the Fill angle to 173° under infill settings to compensate for the rotation.

• Set the Bottom fill pattern to monotonic lines under infill settings for a nicer result.

Todo:

Create lids for Garden of Sin , The Tomb , and other upcoming expansions once they are released.
