Sea of Legends board game insert (plus all expansions)

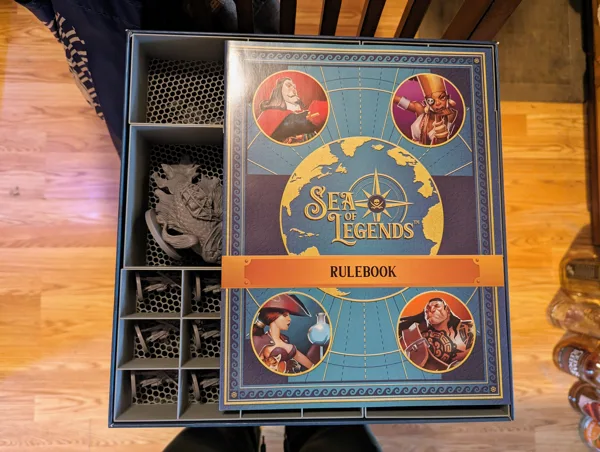

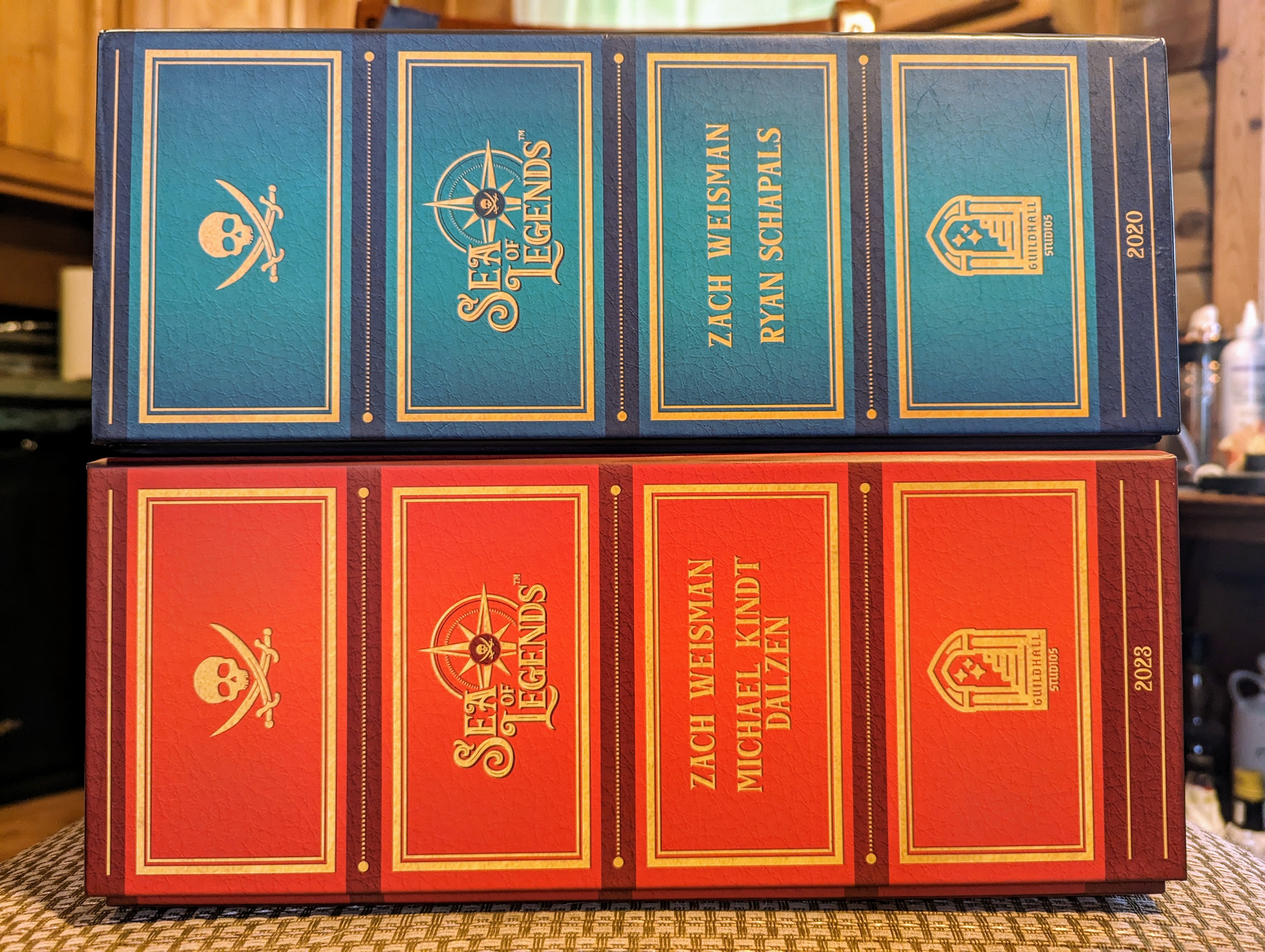

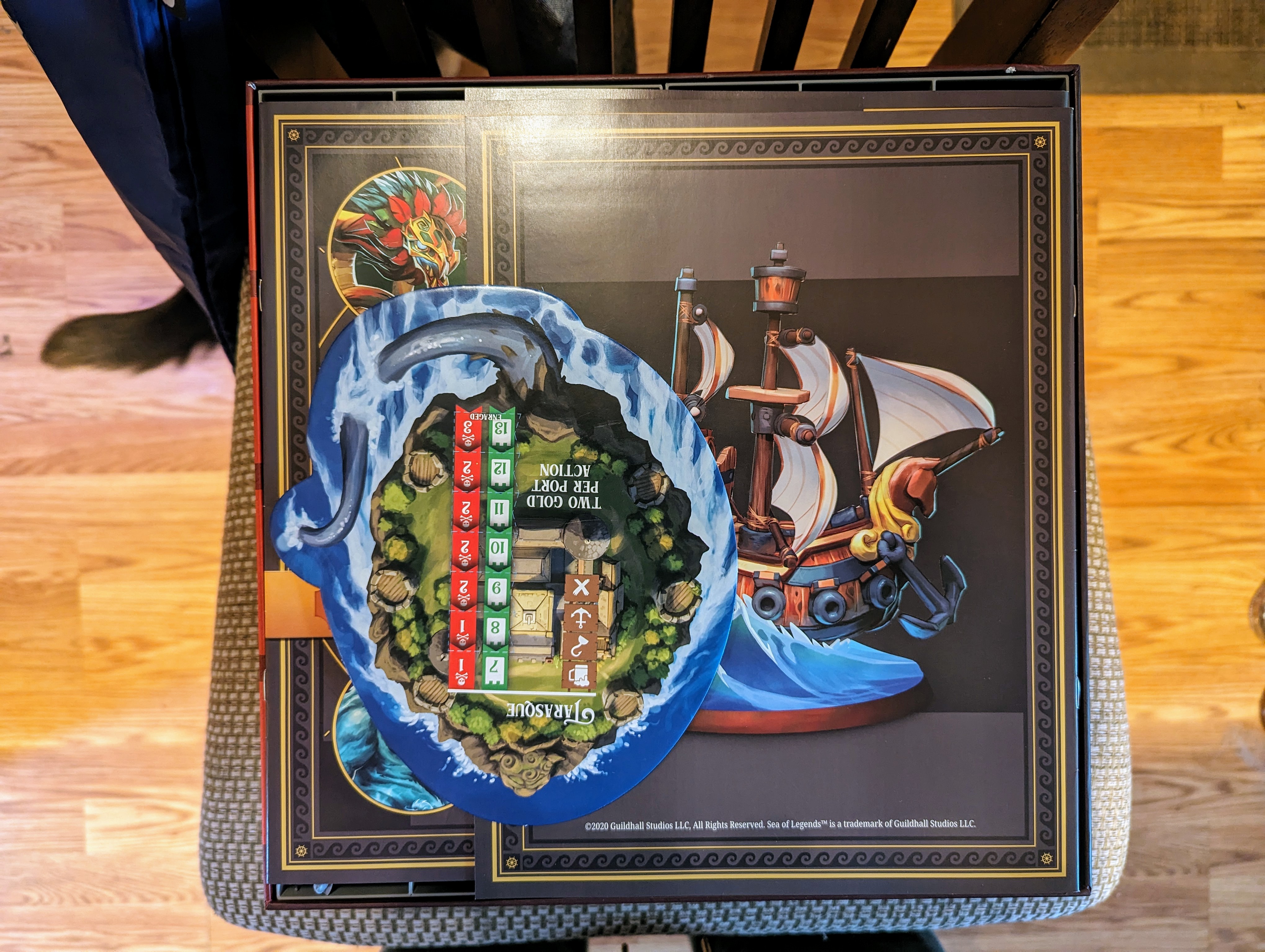

I'm a huge fan of the pirate themed sandbox board game Sea of Legends, but setup/teardown and storage is an absolute nightmare. Everything, including both full expansions, now fits nice and tidily in two of the game boxes, except for the game board as I use the bigger neoprene playmat. Also I foolishly did not take into consideration the rulebook and faction guides, so there's a 1-2mm lid lift on each box (or you could throw them all in the same box and have one be completely flush with the other having ~3-4mm of lift). Both boxes pass the upside down shake test.

This is my first ever insert, so I wanted to try out some things. Everything was made using the fantastic insert toolkit from @rainers (https://www.thingiverse.com/thing:3239814).

Some notes:

• The insert utilizes 5x2 neodymium magnets for all of the factions and other card boxes.

• All of the boxes or lids are labeled to quickly identify what you need for each game.

• A few of the minis had to get doubled up in the trays in order to ensure everything fit.

• There are a few open spots left in the trays.

• As mentioned above, the only thing that does not fit is the game board.

• I printed with zero bottom layers for all of the trays in order to save some filament, as this insert uses a ton thanks to the magnetic faction and card boxes.

• The pure card boxes were designed with finger slots on all sides to save some filament - the faction boxes are completely solid due to all of the tokens being stored in each box.

• I did not test for sleeve compatibility, but there should be room in the faction boxes (there's definitely not room in the regular card boxes)

Print the following:

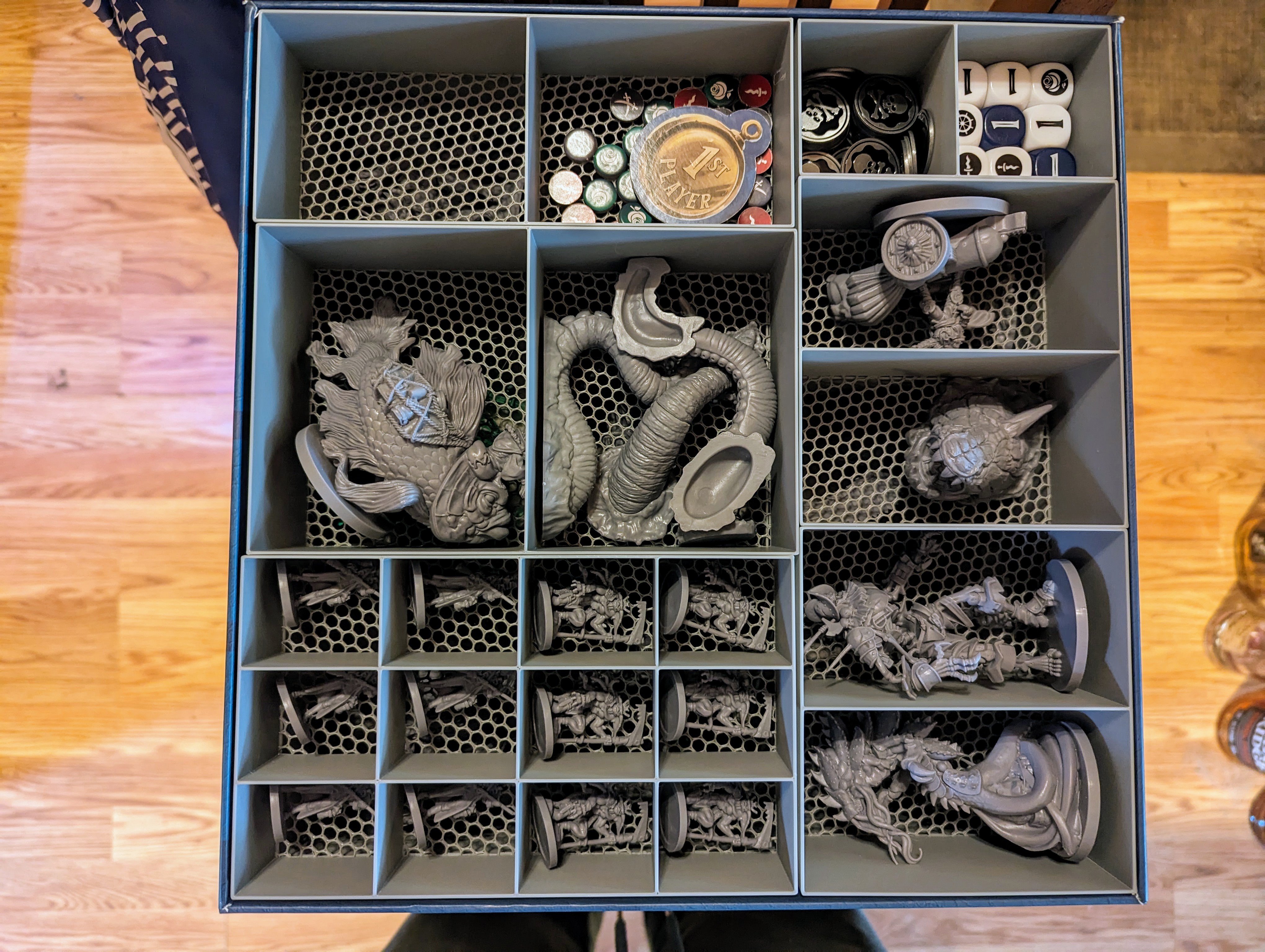

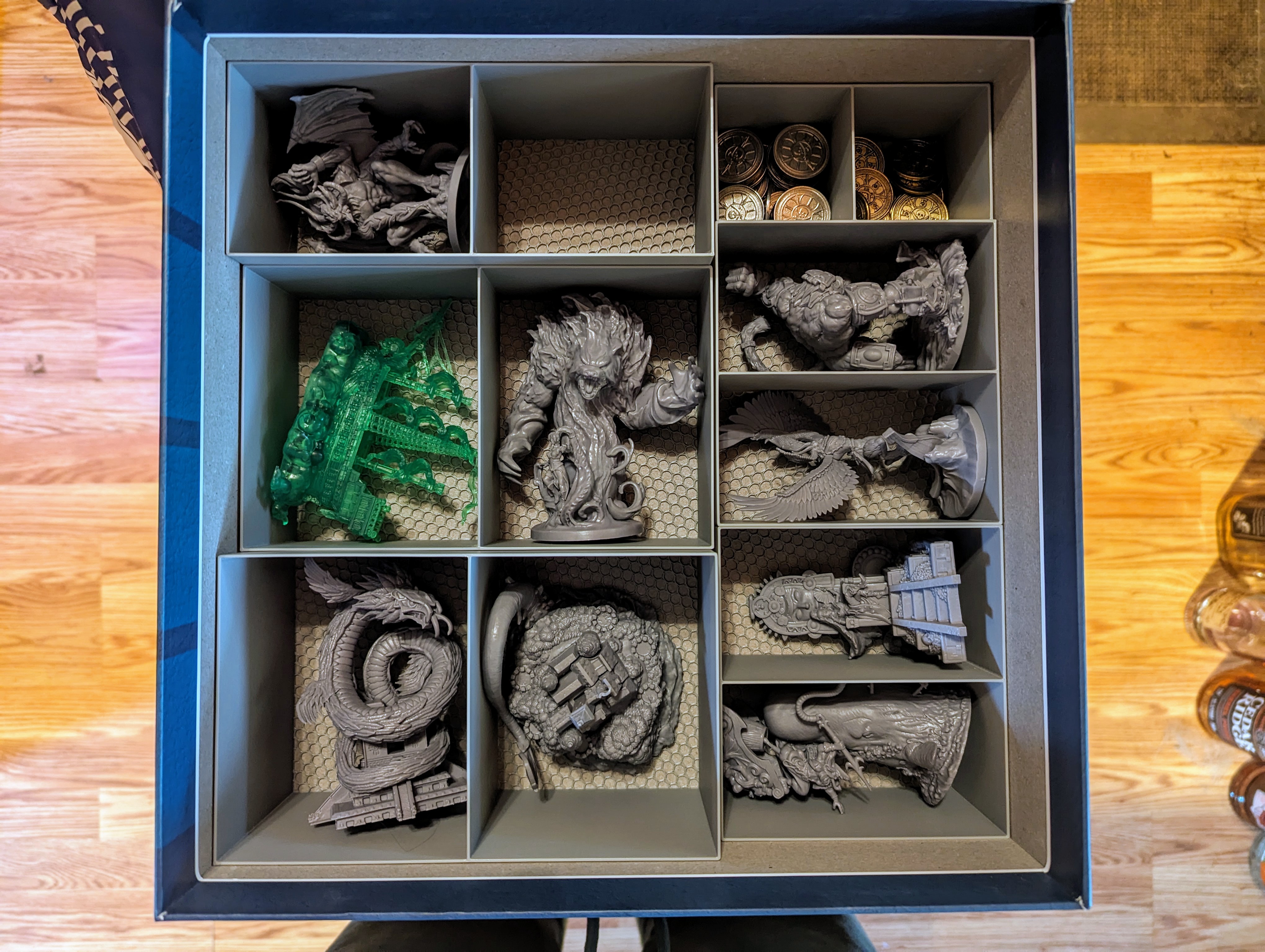

Box 1:

• 1x of each size bossminis_tray1

• 2x of each size bossminis_tray2

• 1x of each size bossminis_tray3

• 2x of the dice/coin trays

• 1x of the factionminis_tray

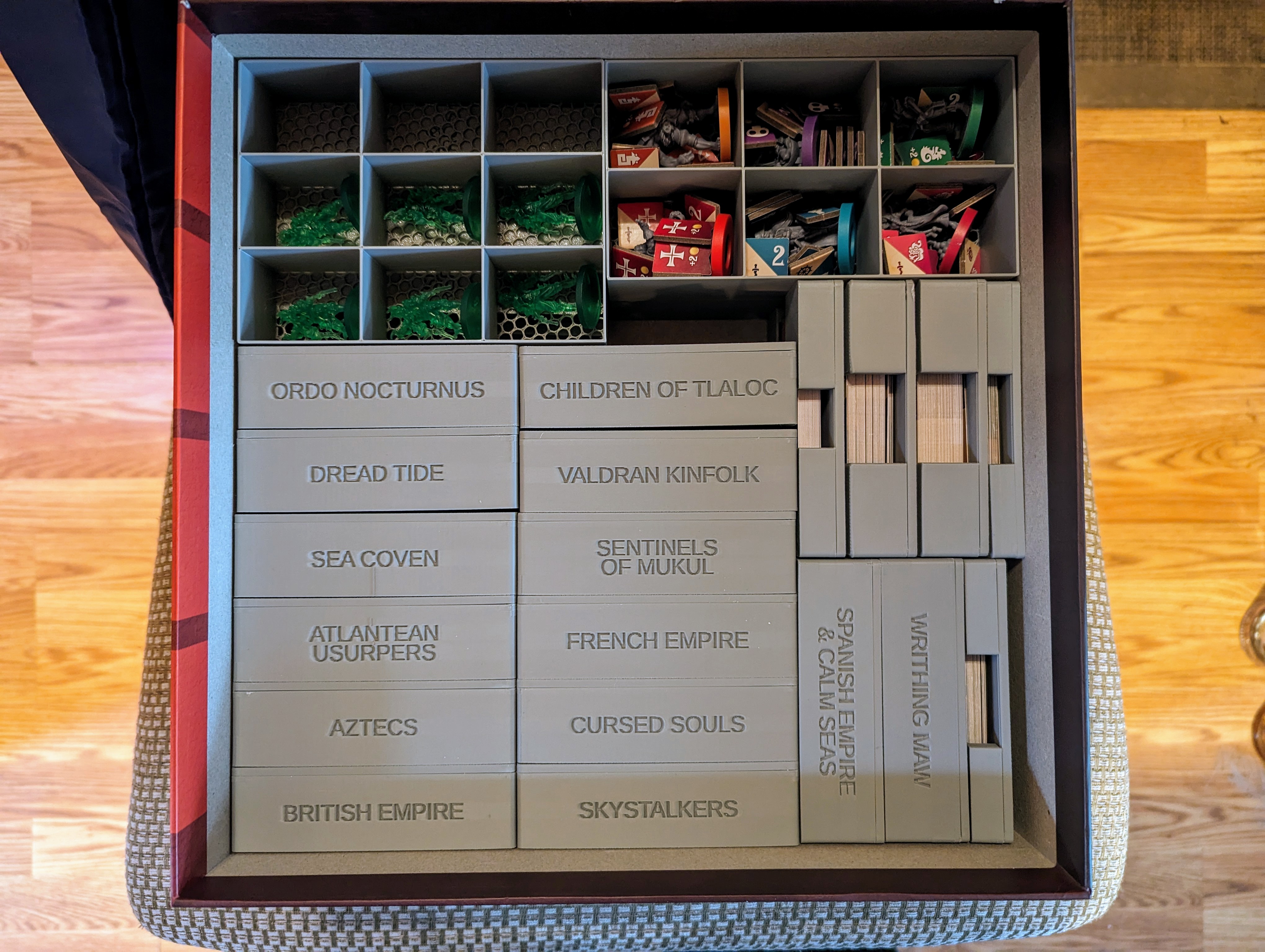

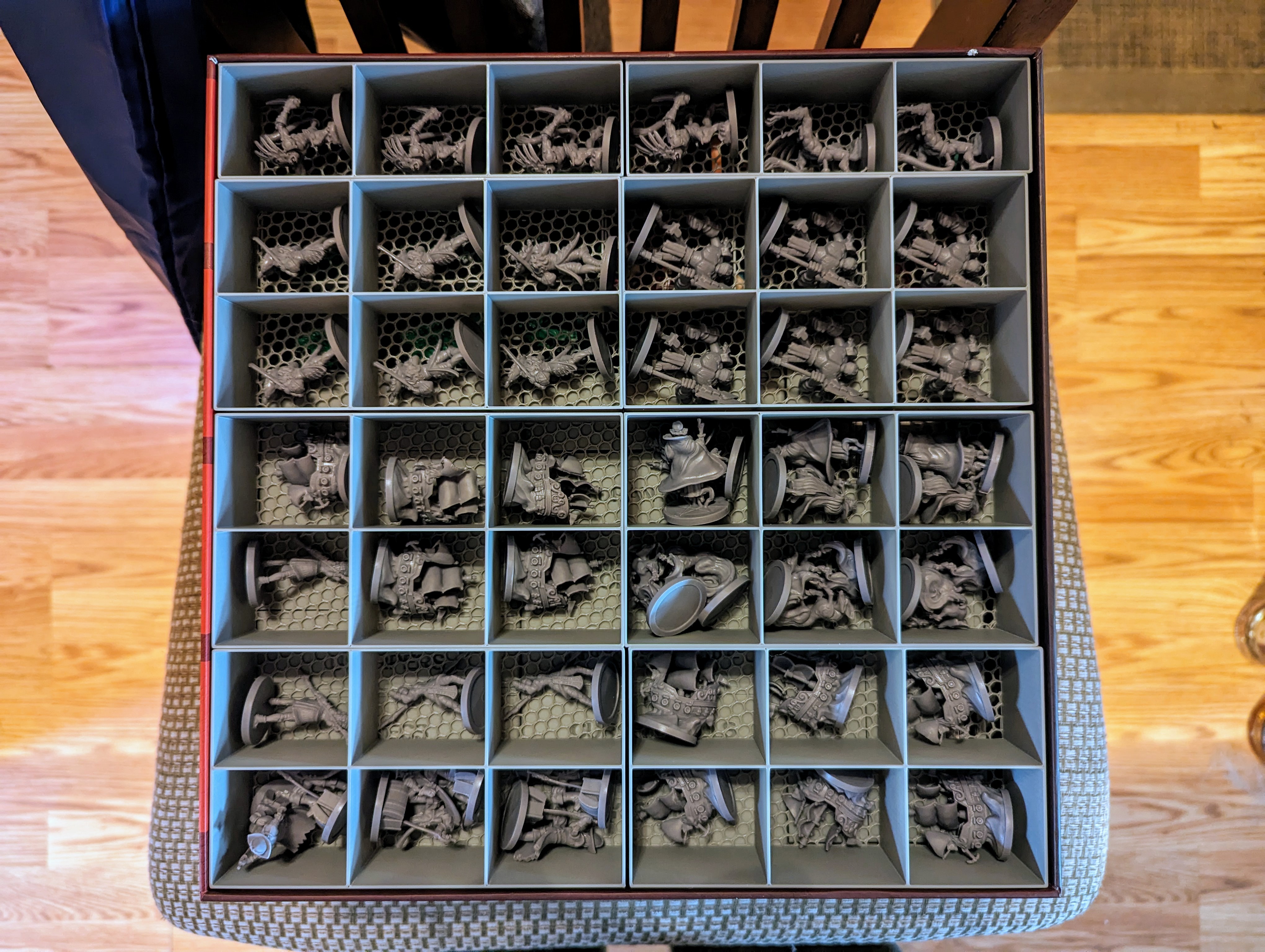

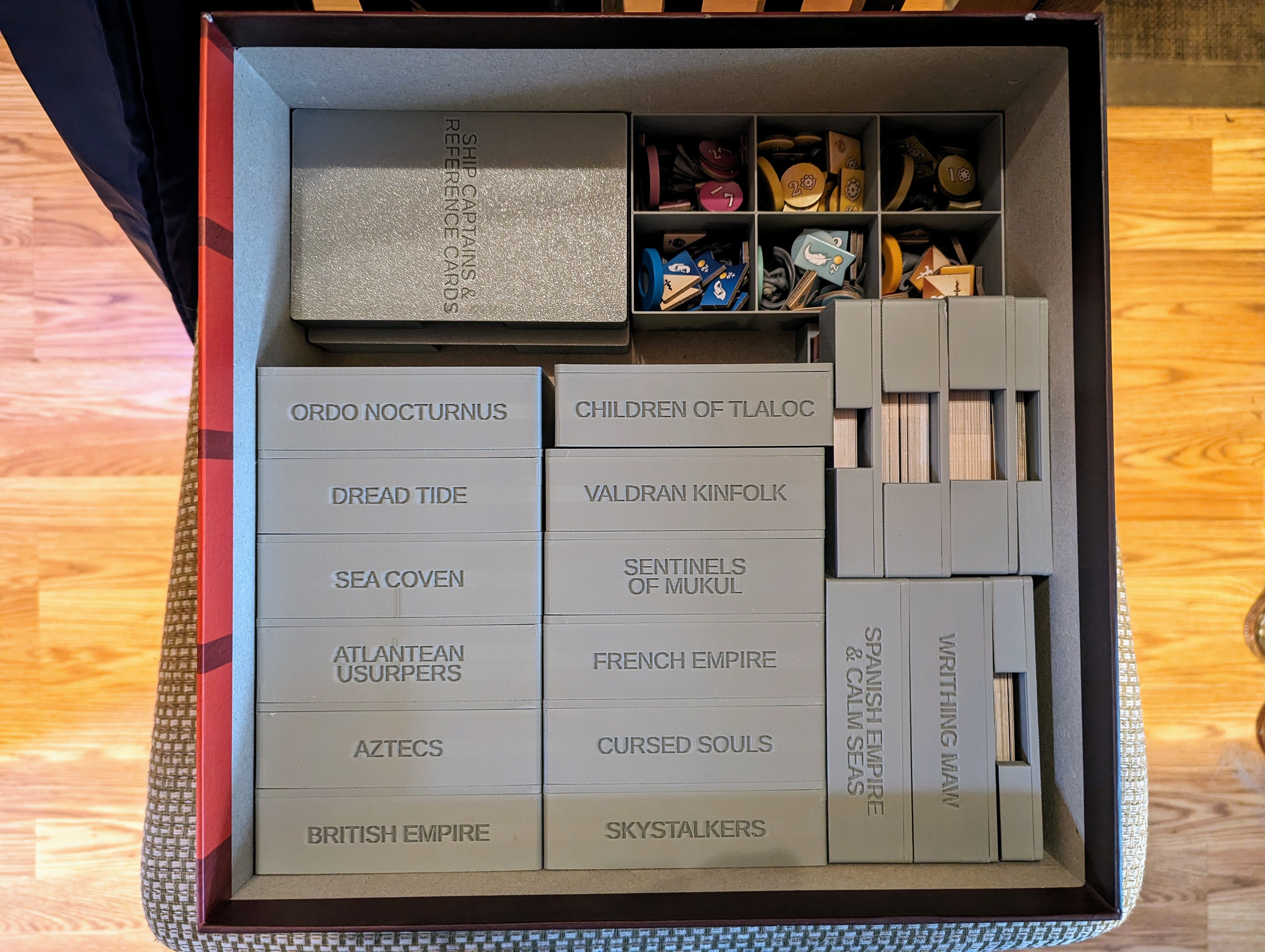

Box 2:

• 6x of the factionminis_tray1

• 2x of the factionminis_tray2

• 1x of the factionminis_tray3

• 1x of each size captainminis_tray

• 1x of each faction box (14 total)

• 14x of the blank lids (for each faction box)

• 2x of the crew_tavern box

• 1x of the crew lid

• 1x of the tavern lid

• 1x of each corresponding box/lid (lover/nemesis, starter, ships, legendary crew, captains/reference cards)
