Insert Harry Potter Hogwarts Battle + both expansions

UPDATE 10/12/2021: Walls are made smaller and the Small parts box has a larger side for the board te rest on.

For the game Harry Potter Hogwarts Battle and the two expansions: Monsters Box of Monsters and Charms and Potions I was searching for an insert so everything would fit the base game box. I found some nice options but sometimes the game wouldn't fit in the box with the expansions ore the boxes would be to big for my printer or would take to long. I don't print at night.

So I designed one myself and it's my first design. The prototype is still printing so I'll update the pictures and files as soon as my print is done.

The insert is made up similar to the plastic one that the base game comes with. Only there are all seperate boxes and there is a plce for all the board pieces from Charmes and Potions box as wel.

Print the following parts:

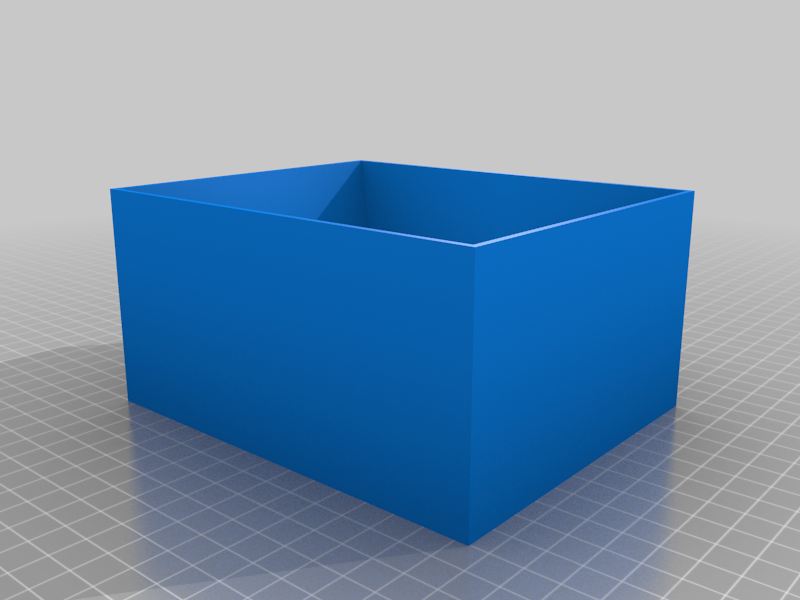

• 1 x Big Box

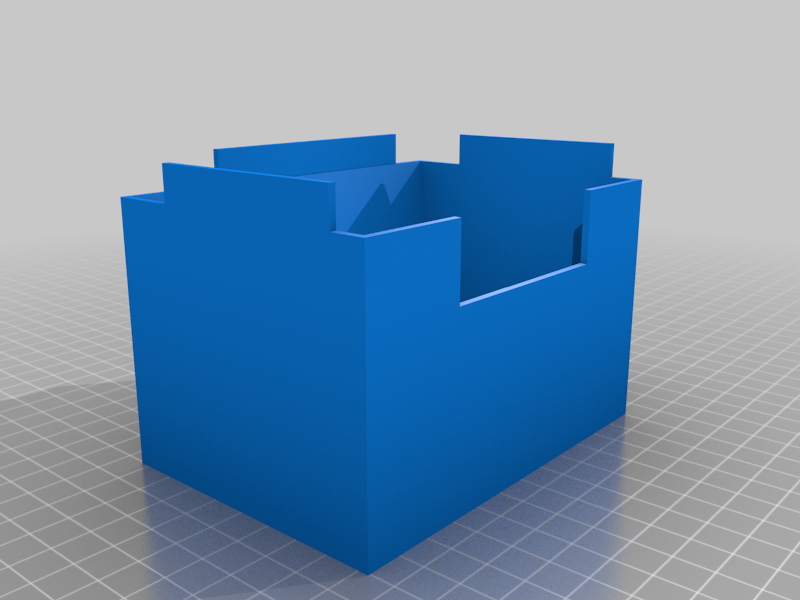

• 1 x Characters

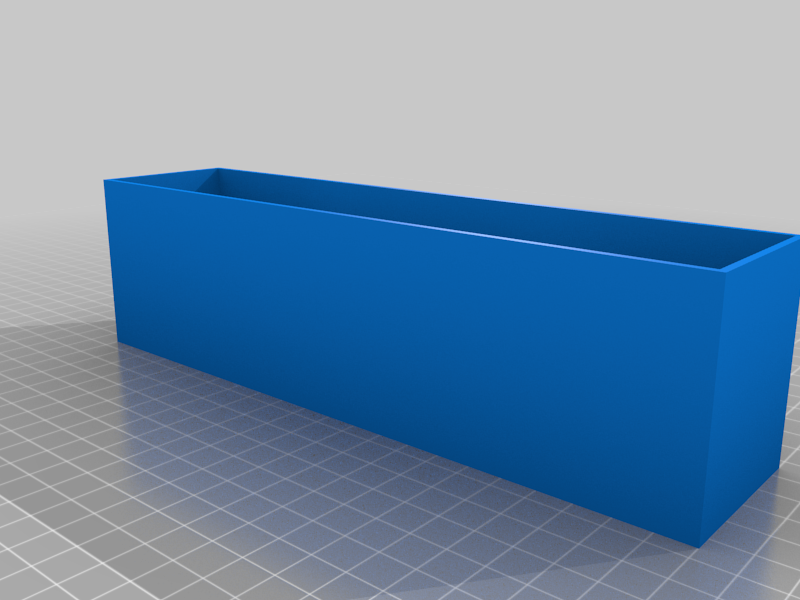

• 1 x Charms Boards

• 1 x Expansions

• 1 x Small parts

• 3 x Tokes - Dice - Coins

The Big Box, Characters and Expansions have a beveld side so the cards lay down a bit and the player boards an potions board can fit on top.

I found the missing divider cards made by xicluna on BBG ( https://boardgamegeek.com/filepage/212179/dividers-charms-potions-and-dividers-encounters )
THANKS

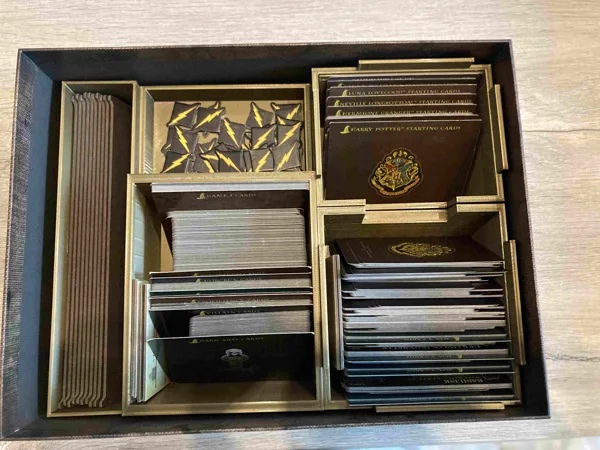

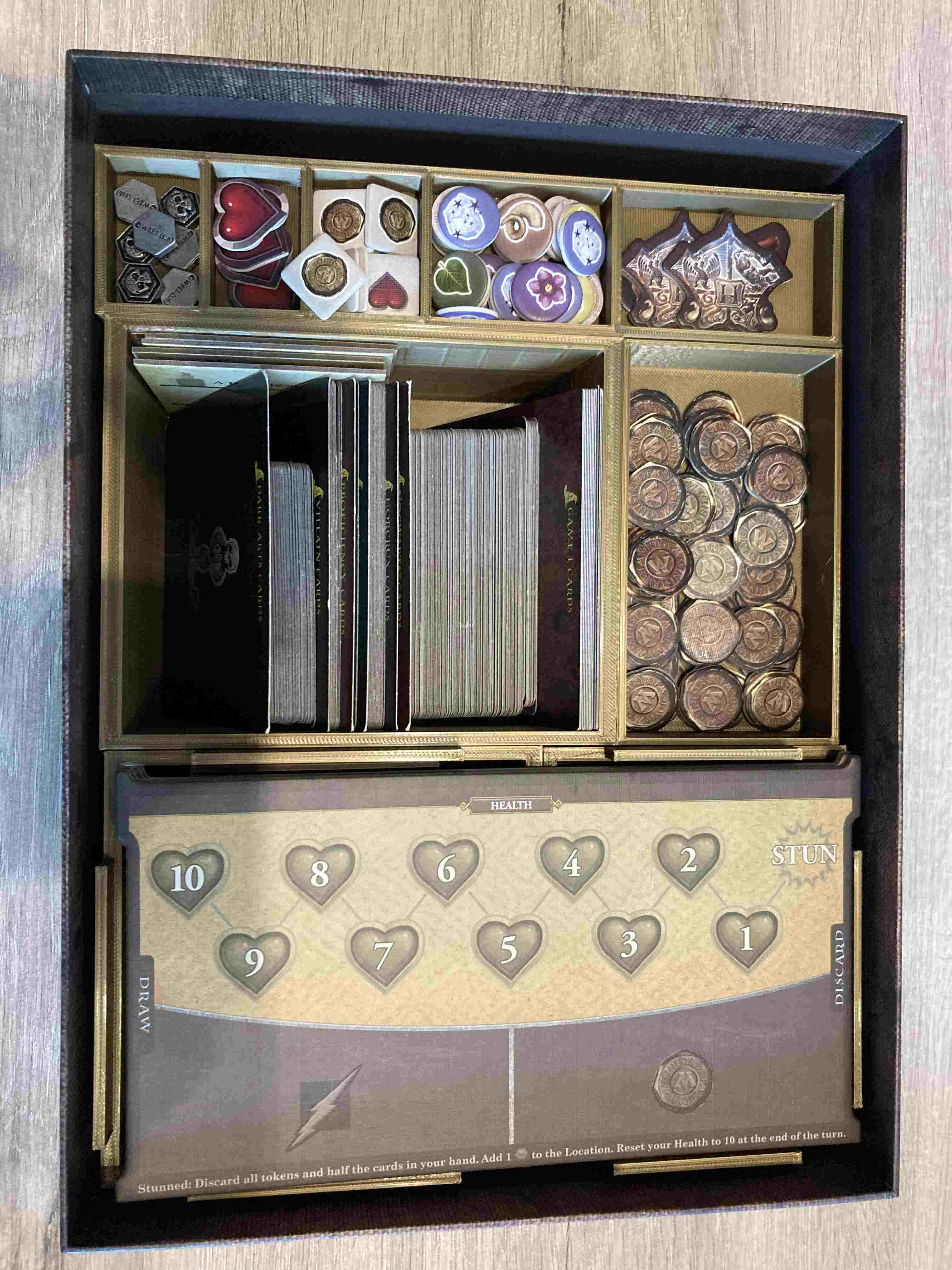

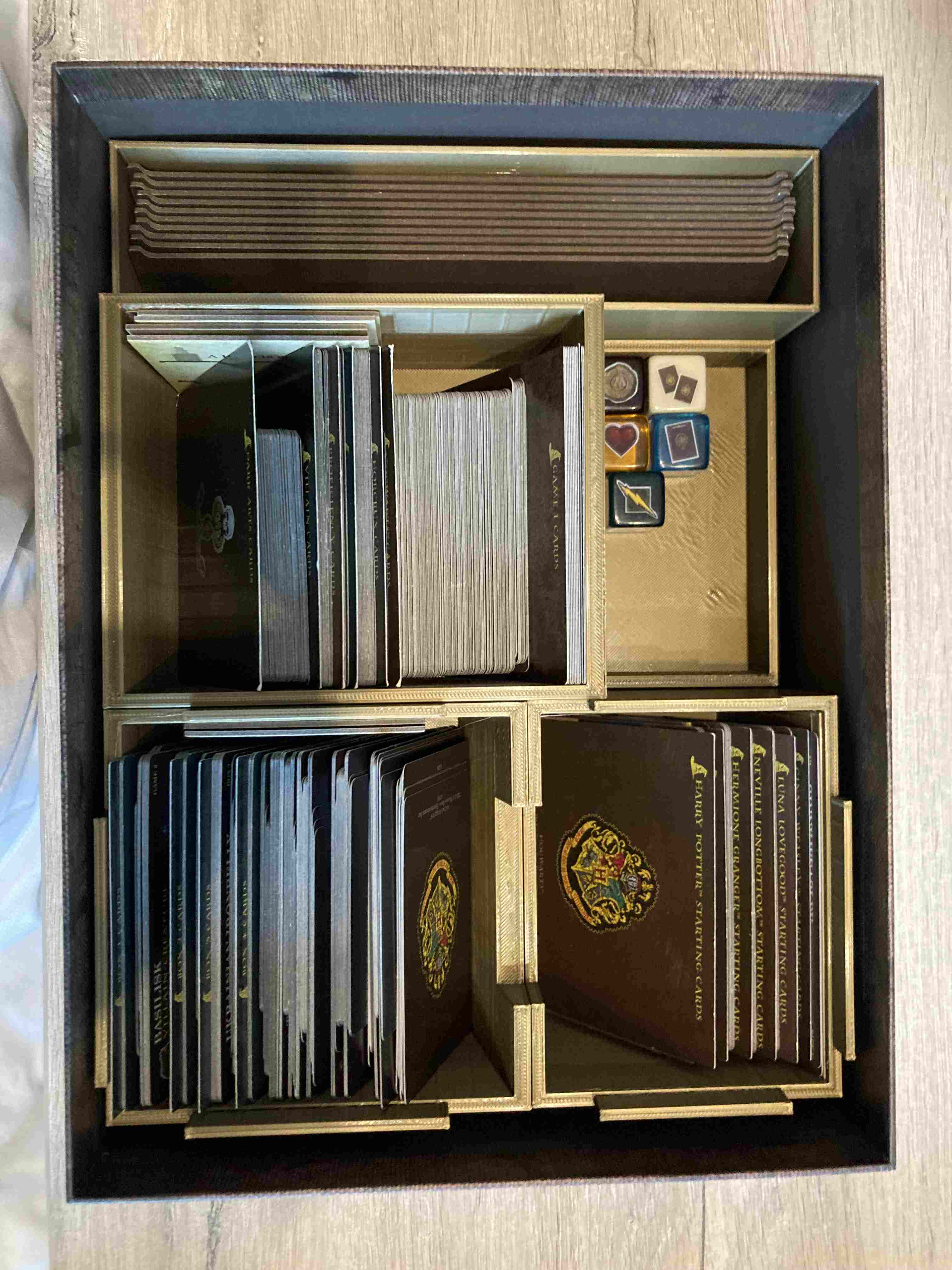

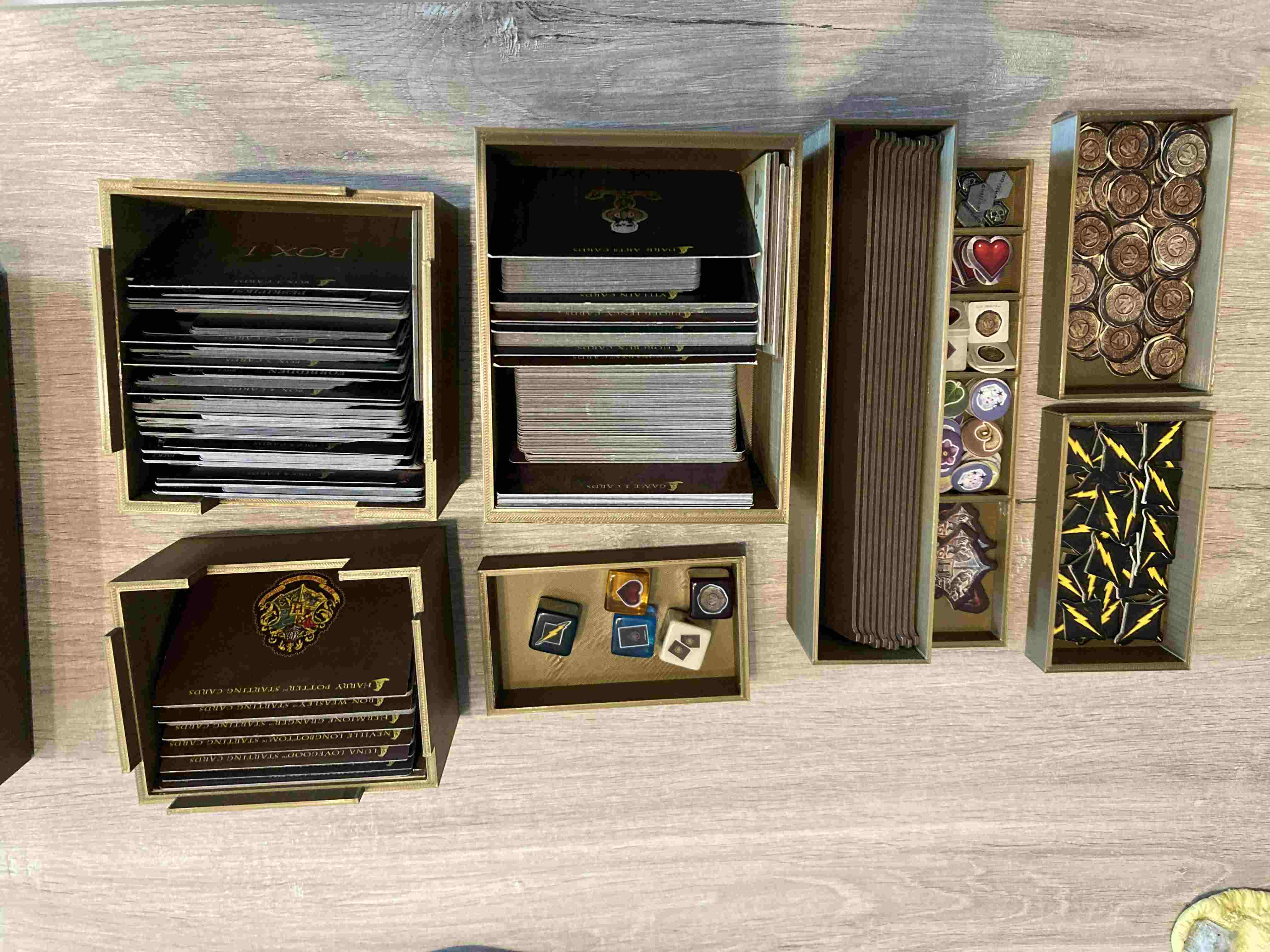

All picture are from the prototype so the new update has smaller walls and fits even better in the box with less space in between.

Please post a picture if you make one for yourself!

• Rafts: No

• Supports: No

• Resolution: 0.3

• Infill: 10-100

• Filament material: PLA

You can print with almost any infill from 10-100%.
I make the bottom and walls solide by making them 2 mm in my slicer.
The infill is mostly for the beveld side.
