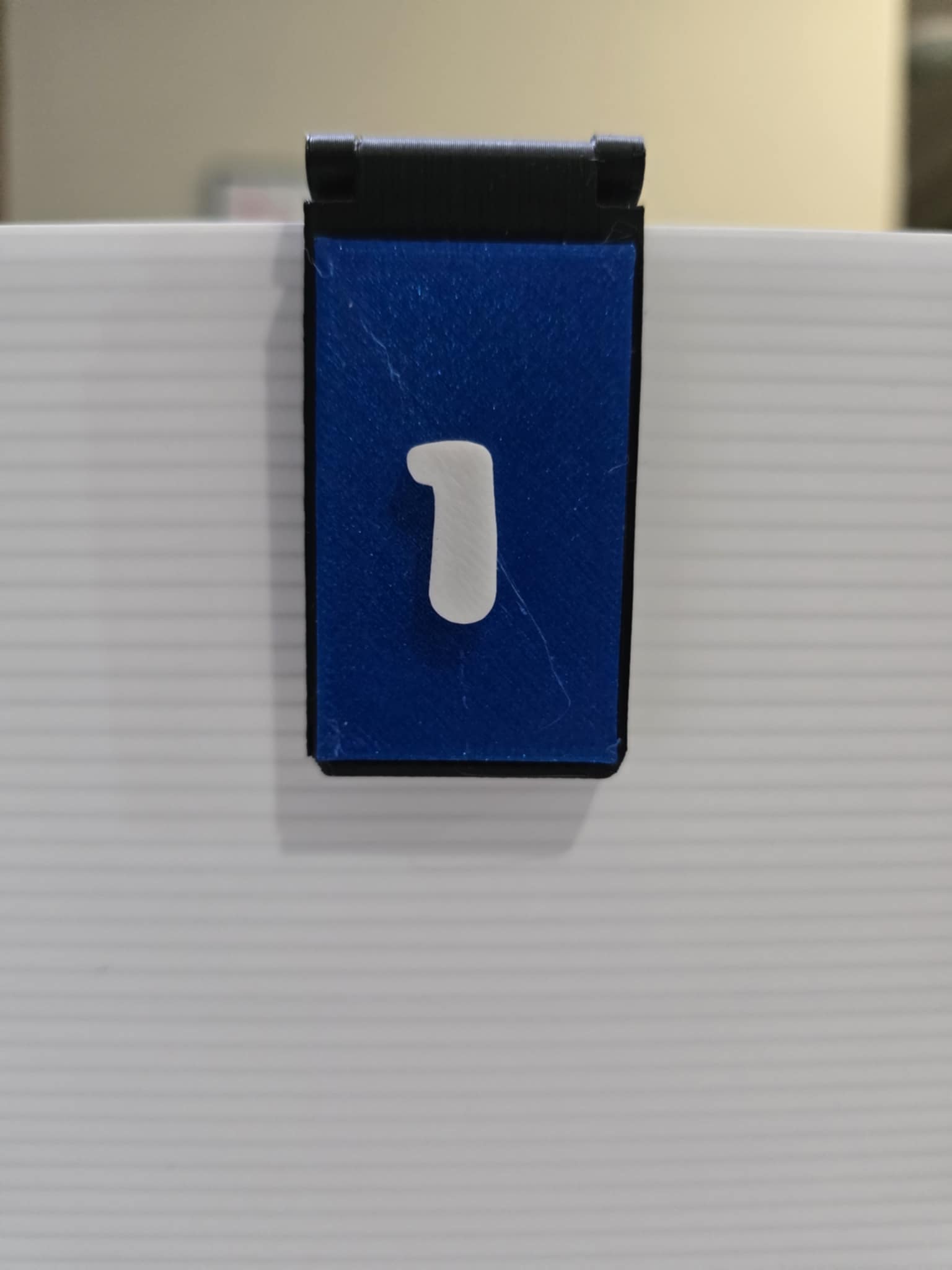

DND initiative trackers

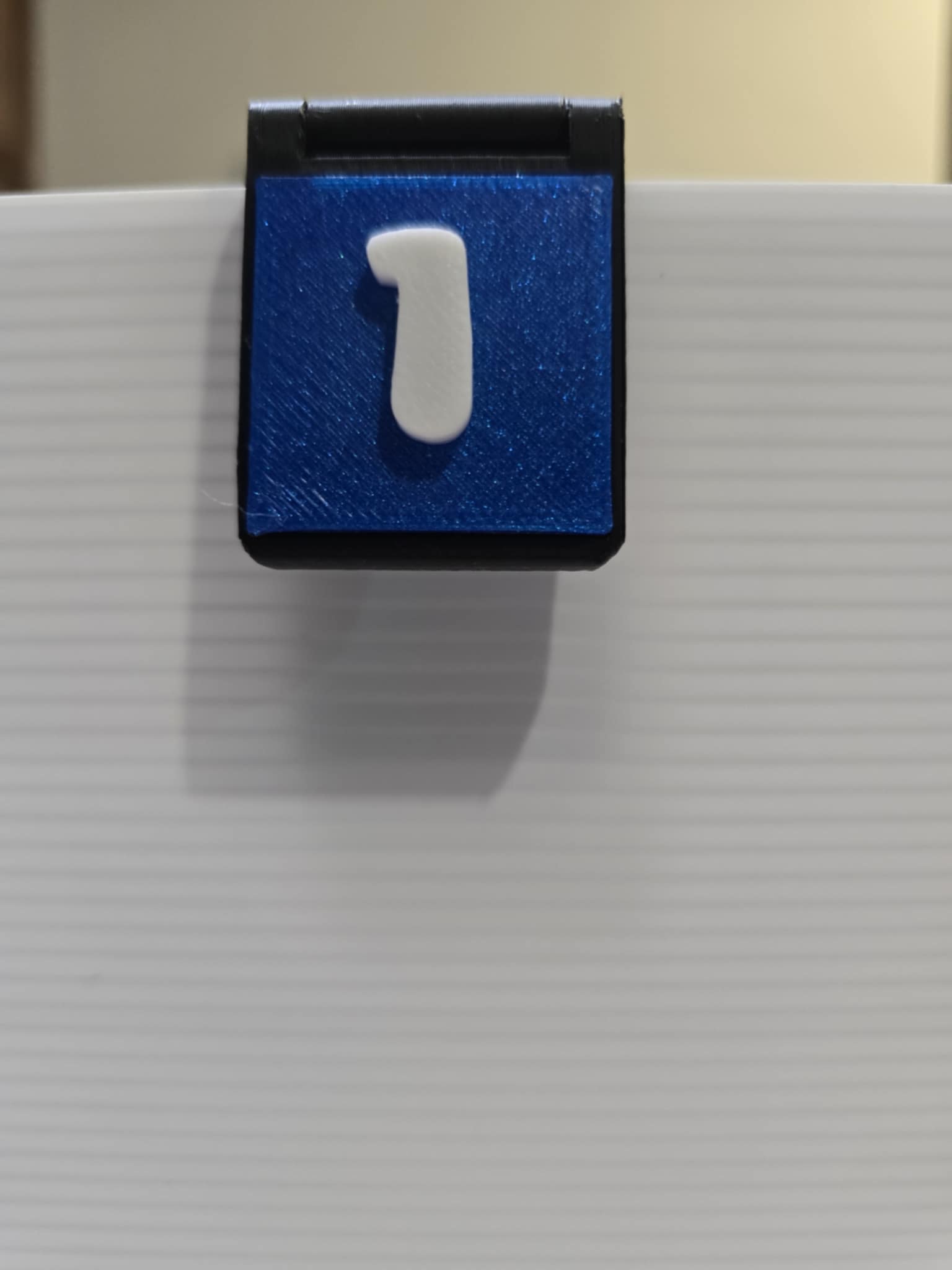

This is a basic but versatile initiative tracker that is designed to sit over your DM shield.

This is designed to hang over your DM shield, and will accommodate any thickness of shield and is sturdy and durable with press fit tabs for front / back [front for the players, back for the DM]

The frame you print on its side as it is modelled, and add a PAUSE at layer 153 [assuming 0.2mm print height or 30.8mm]

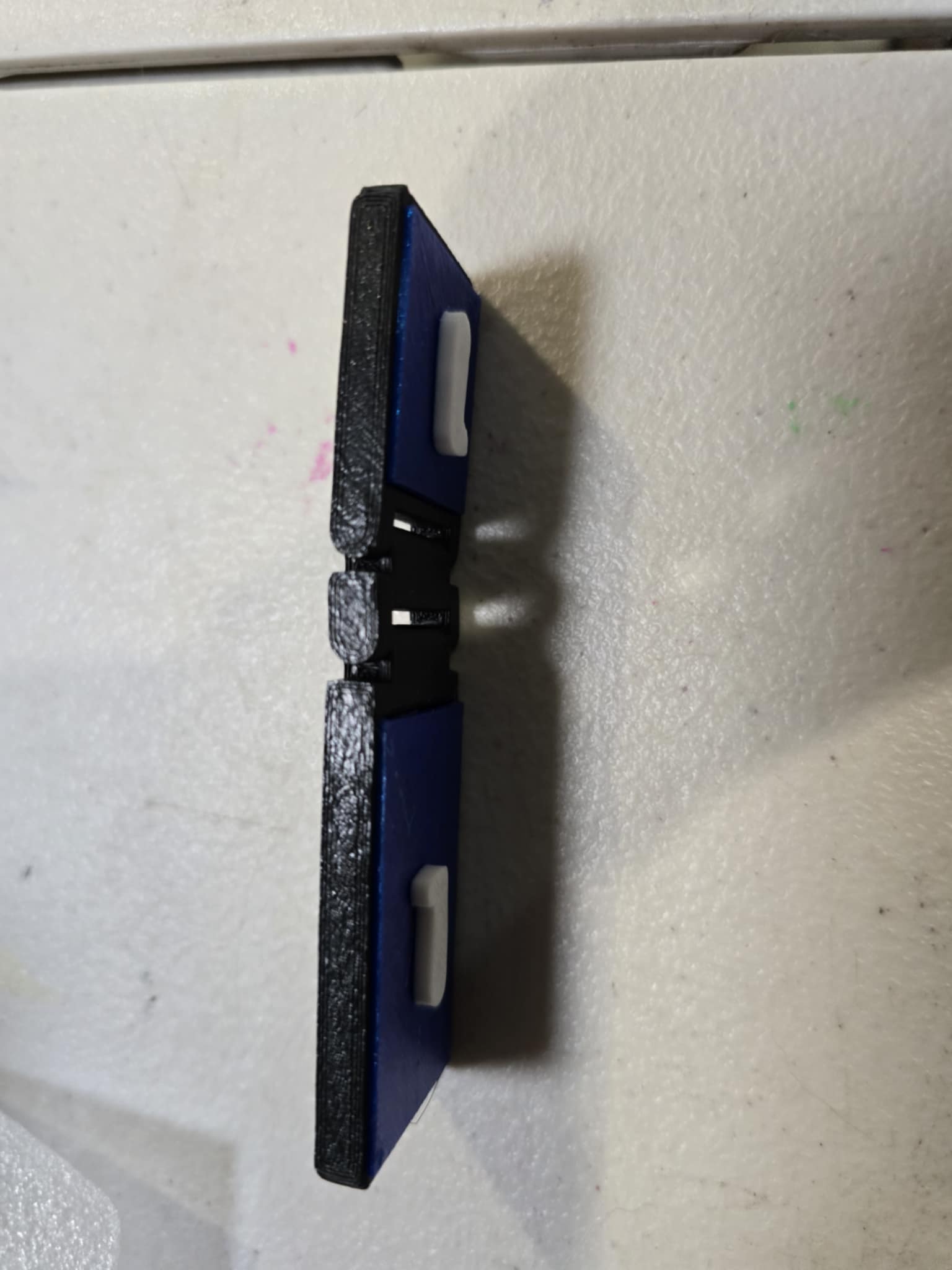

You will need for each tracker 2x 2mm x 30mm preferably steel pins, when the print pauses, there will be 2 holes perfectly aligned to take the pins, then resume and finish your print - this will give you a good strong hinge that wont wear like a plastic one would over time.

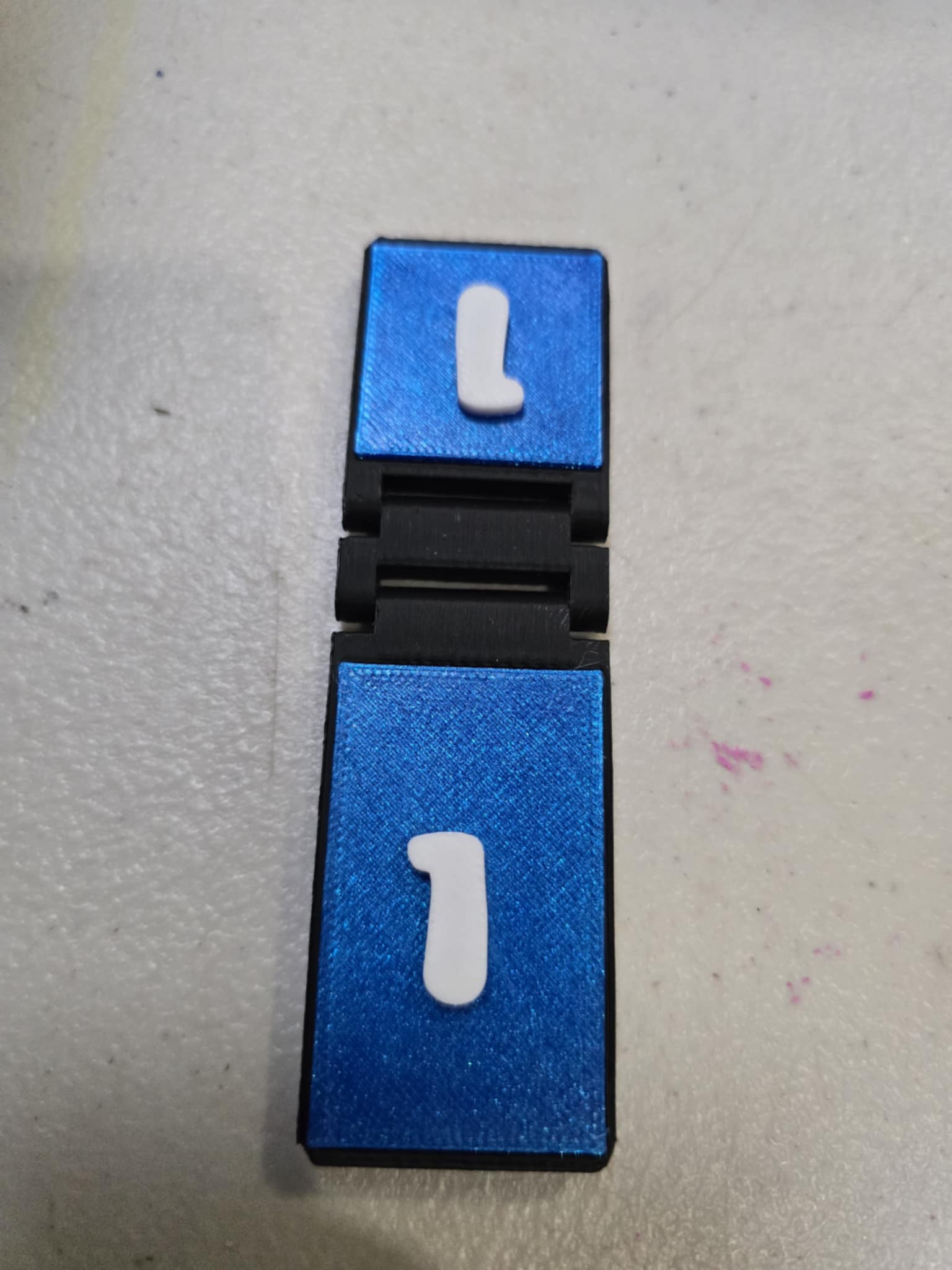

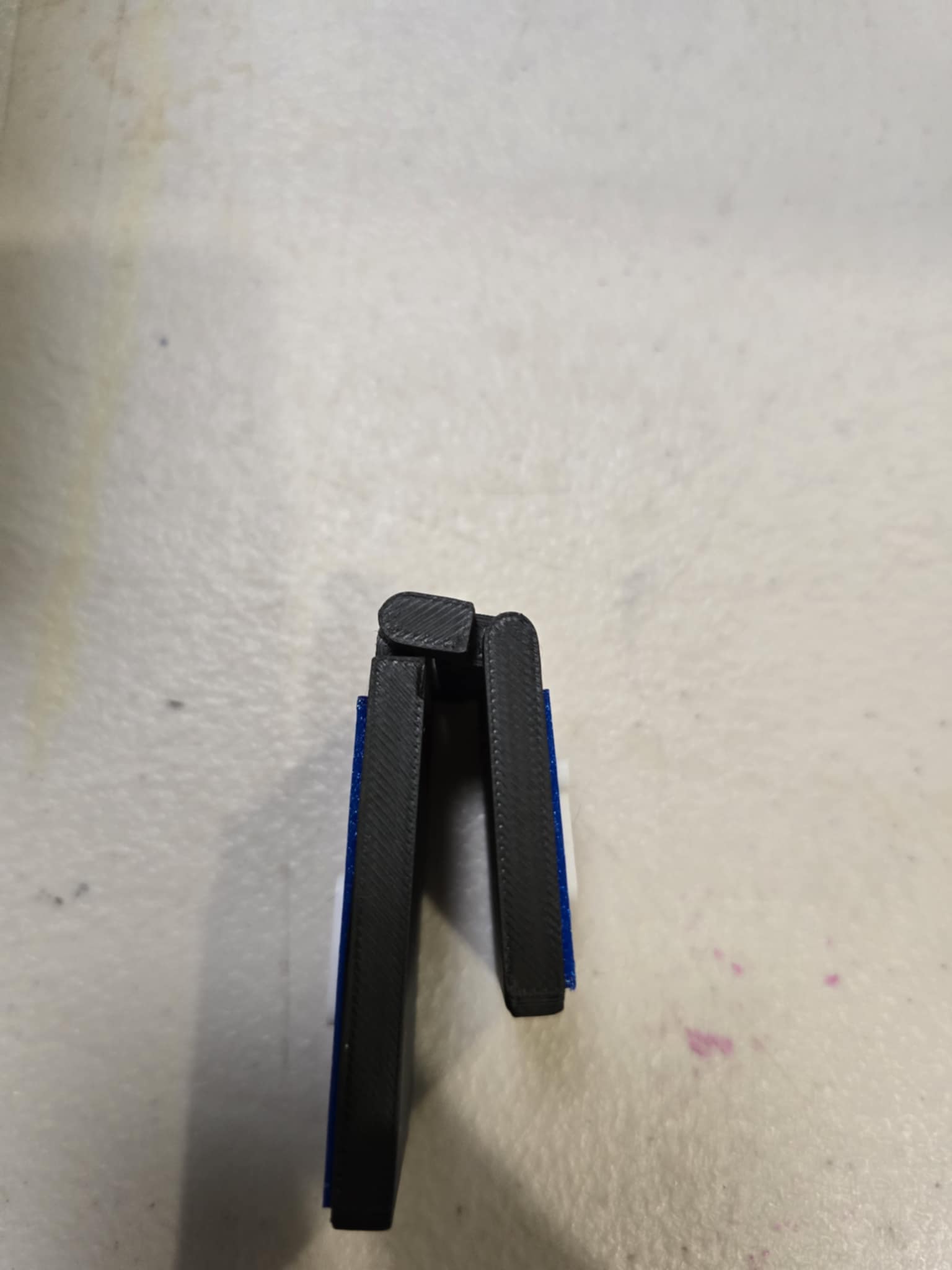

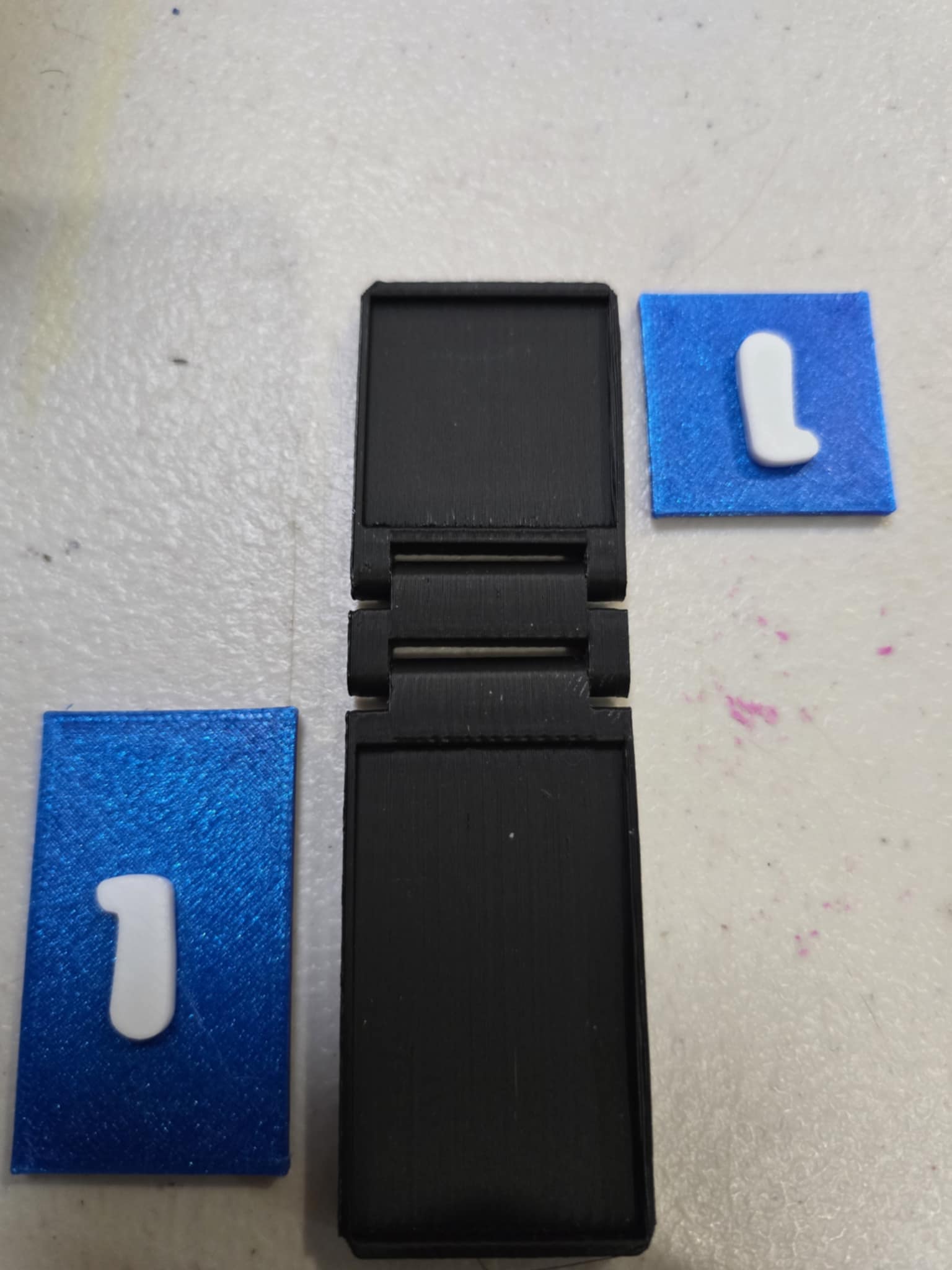

To use, simply press fit one of the panels into the front, and the corresponding one into the back of the holder, then fold the unit and place it on your DM shield. Included are 1, 2 and 3 and a blank set of inserts so you can add your own designs to them!

IF YOU RESIZE THESE, you will need to measure and adjust the pins accordingly.

Please DO NOT sell these models, you are welcome to share and remix as you wish but again, nothing commercial!

Recommended print settings:

0.2mm layers
15% infill
4 layers [to make them long lasting]
Supports YES - build plate only - organic tree

REMEMBER THE PAUSE OR IT WONT fold like its supposed to!

I have included a single holder, the set of 1-3 inserts and blank insert and a group set which has enough for 4 [and will print on anything ender 3 or larger!]

I printed these in matte black PLA for the frames, and noctiluna blue/matte white for the inserts.
