3D Catan "Big Three" Organizer & Carrying Case

🏰 3D Catan "Big Three" Organizer & Carrying Case

The Ultimate Storage for Base + Seafarers + Cities & Knights (incl. 5-6 Player)

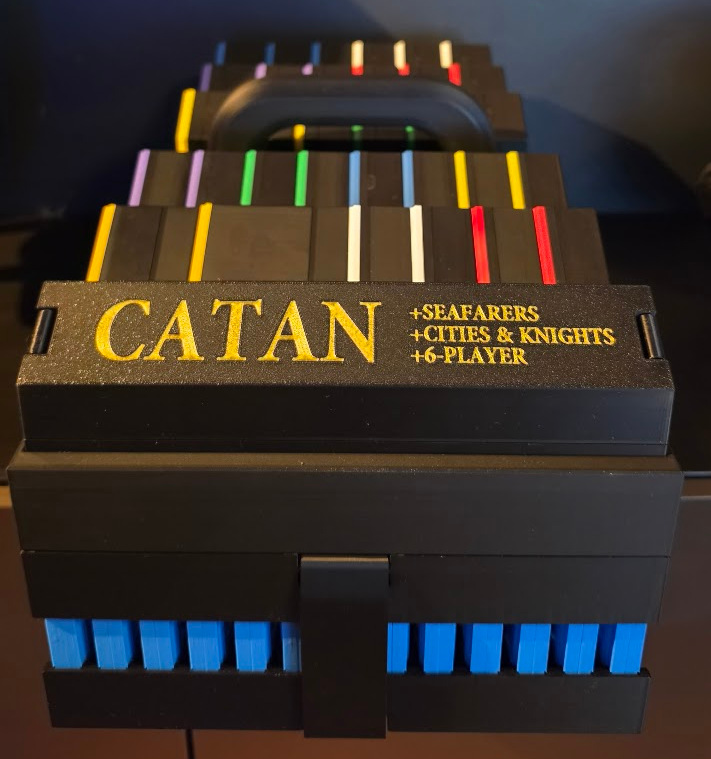

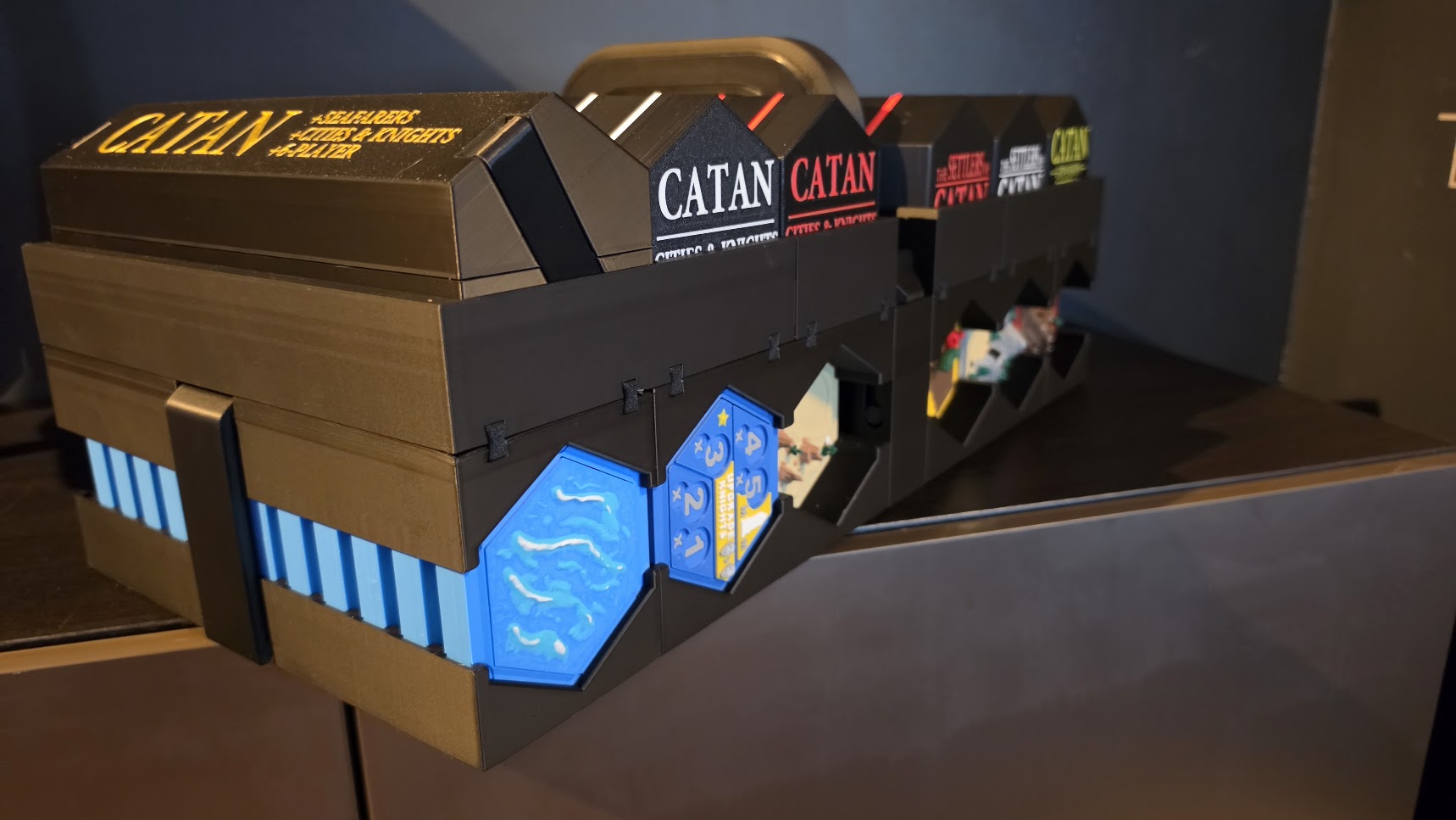

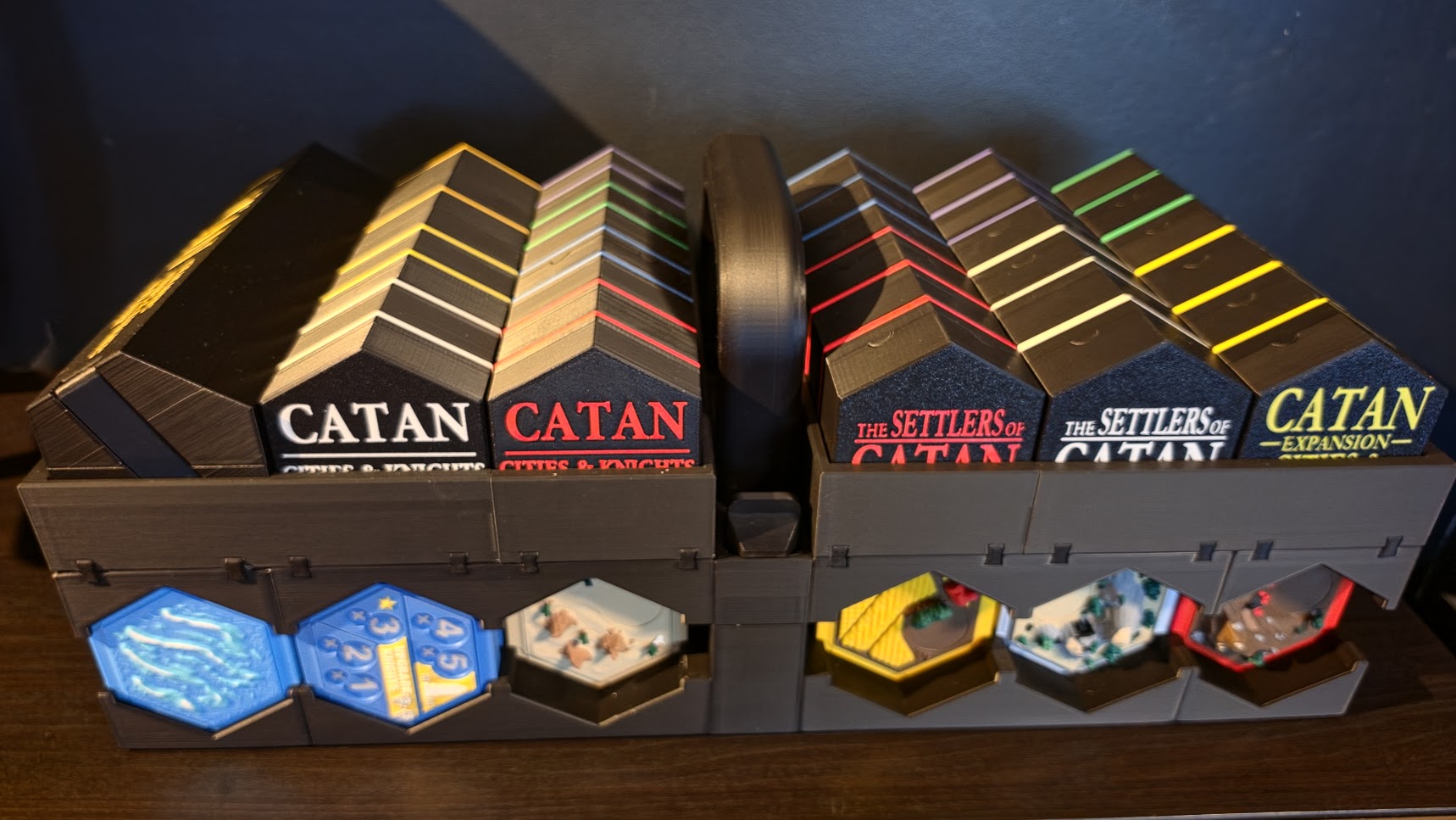

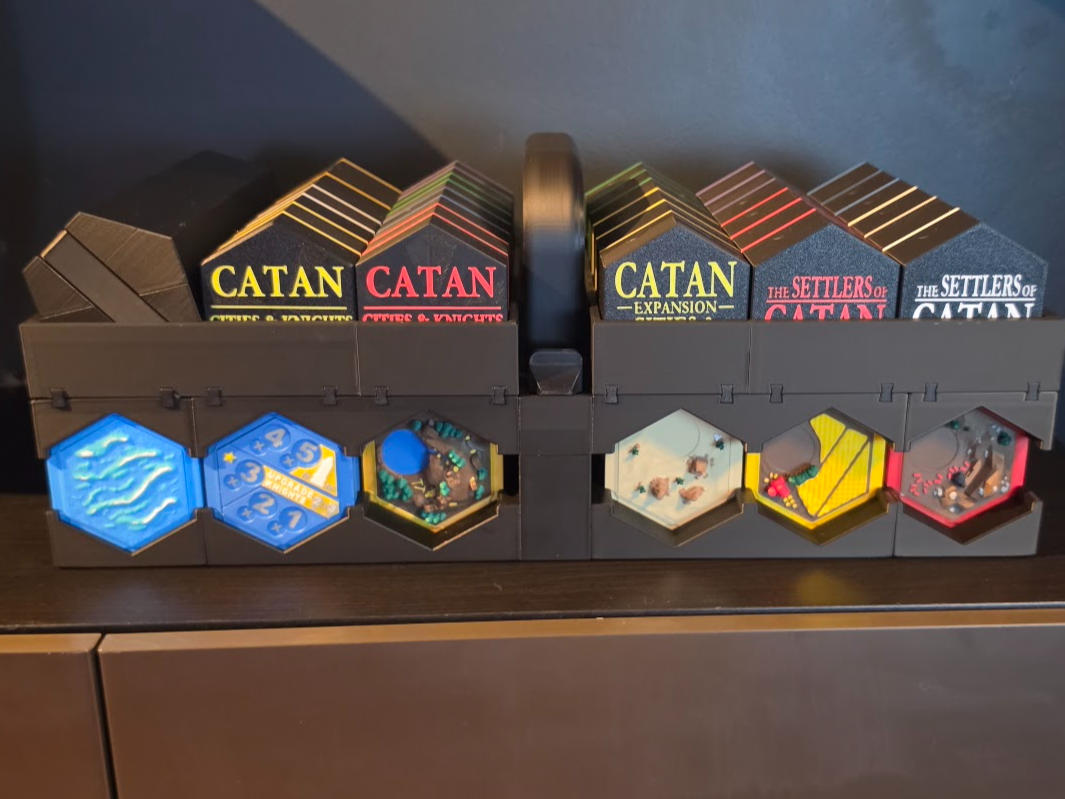

Stop hauling a stack of boxes to every game night! This custom-engineered "Master Case" is the definitive storage solution for 3D Catan. Designed from the ground up but heavily inspired by FrostyDK's original case , for maximum protection and a footprint that actually fits on your shelf, this design is the final home your 3D-printed collection deserves.

Boost Me 🚀 If you appreciate the dozens of hours of design, iteration, and plastic that went into perfecting this case, please consider dropping a BOOST! It’s a huge help to the creators in this community. 🚀

✅ What’s Supported:

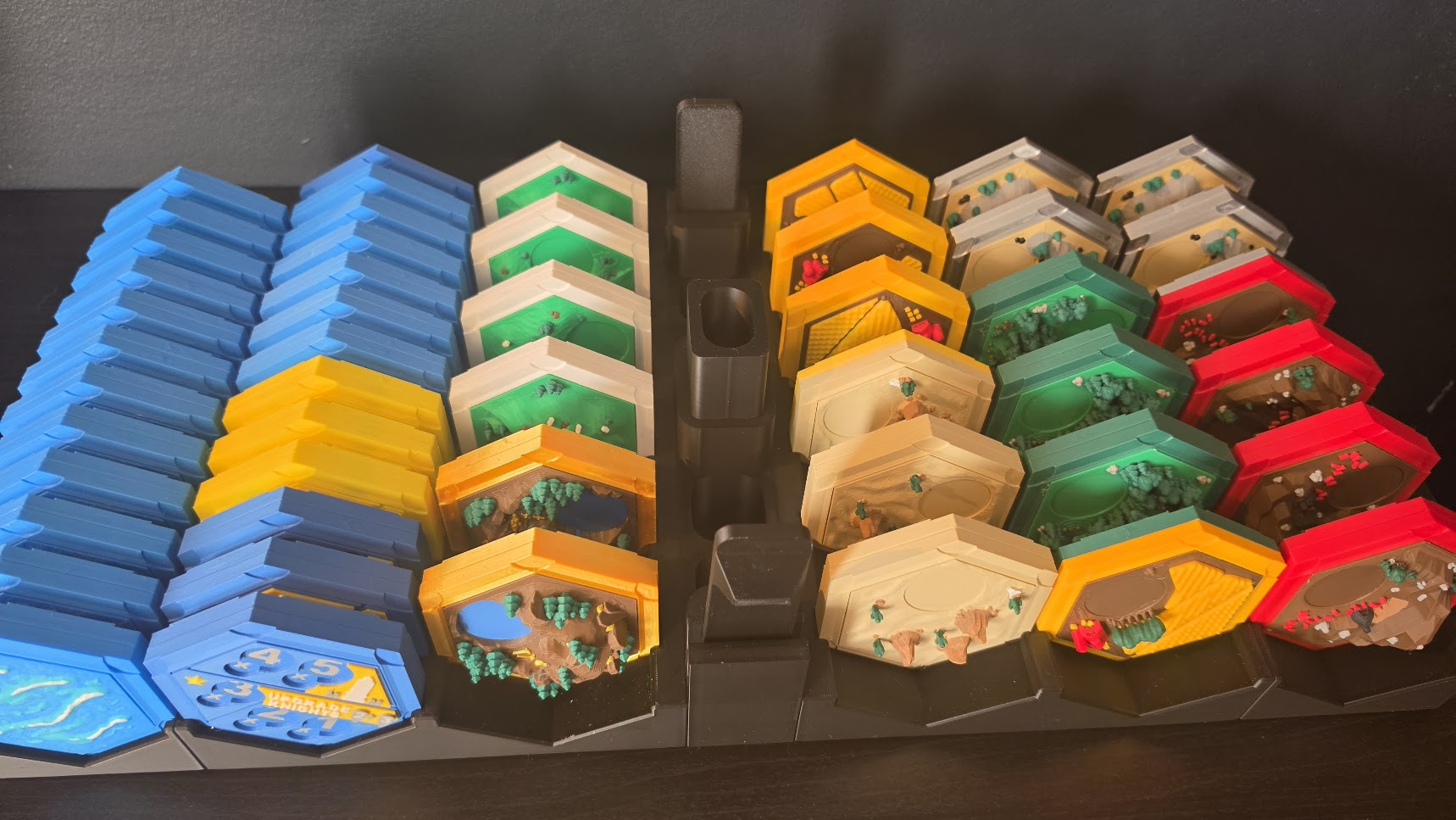

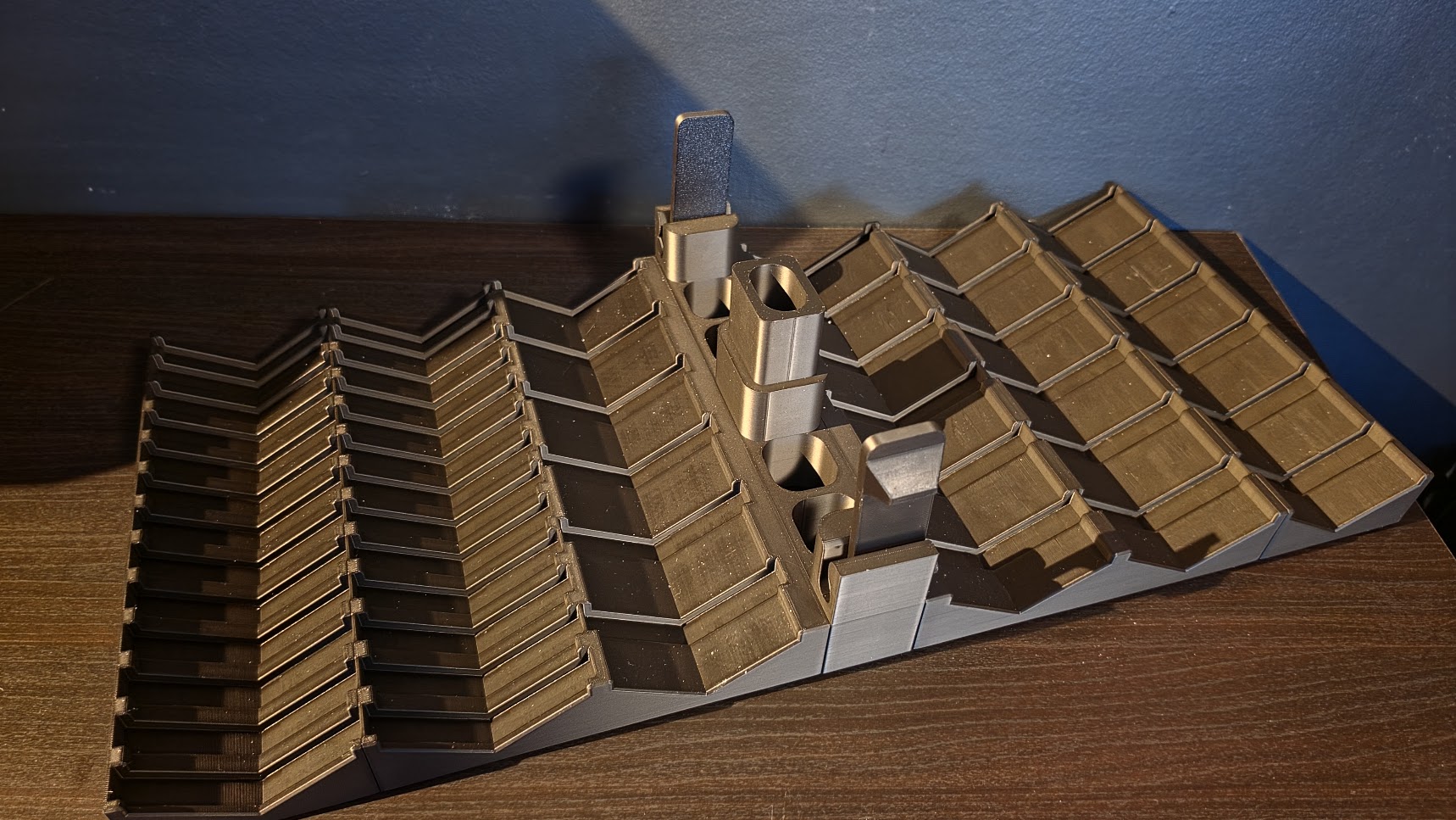

This case is precision-fit for holding the terrain hexes from the 3D-printed versions of:

• Catan Base Game (+ 5-6 player expansion)

• Seafarers (+ 5-6 player expansion)

• Cities & Knights (+ 5-6 player expansion)

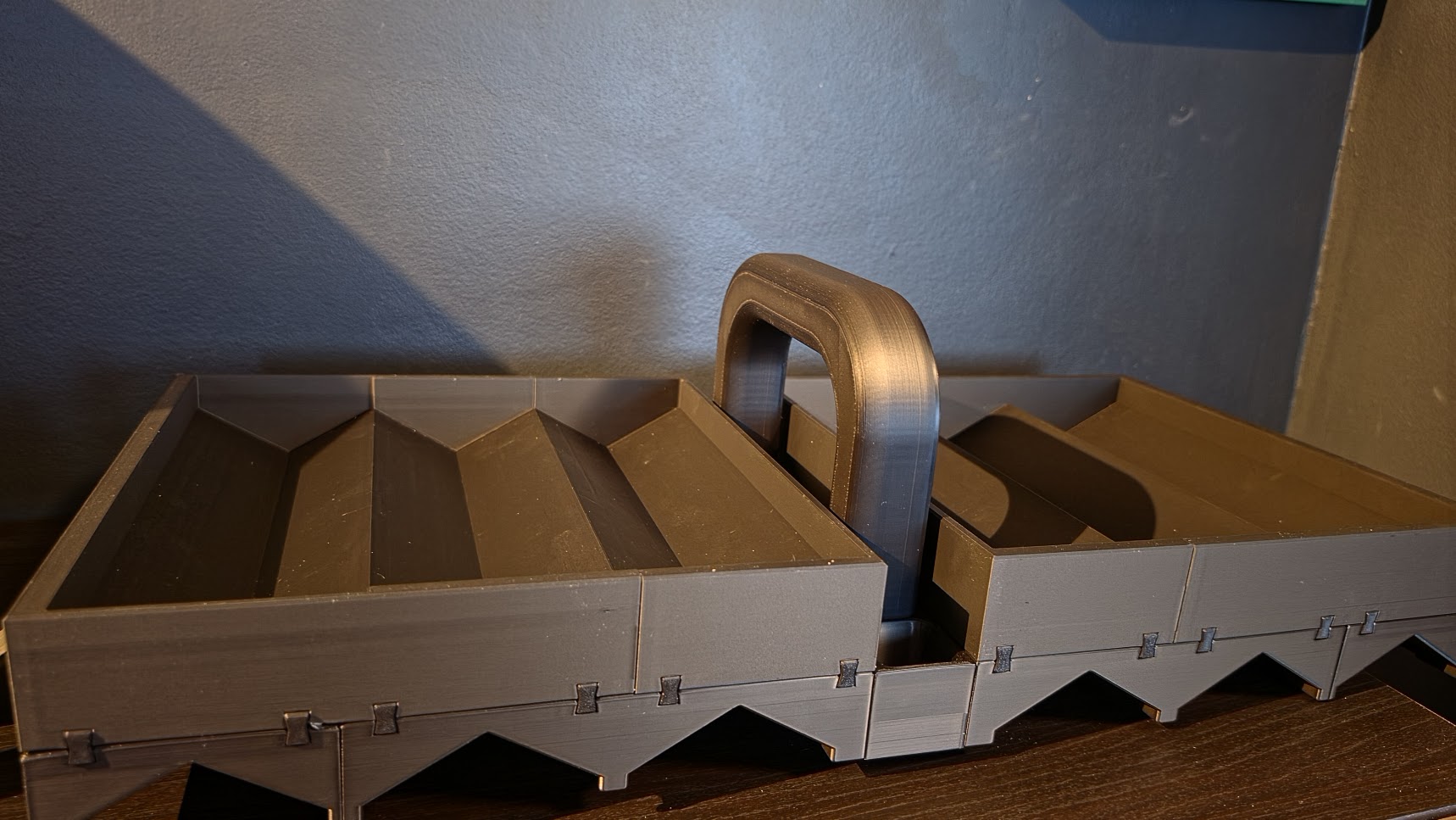

The top trays are specifically recessed to house the following modular organizers (available separately):

• 🃏 The "Rotate-to-Play" Card Organizer & Stand

• 🛶 Catan & Seafarer Player Piece Boxes

• 🏰 Cities & Knights Player Piece Boxes

• ⚔️ Cities & Knights Upgrades & Crown Boxes

• 🎲 “ The Big Box for Everything Else” & Number Token Vaults

To maintain a portable size, this case does not have dedicated space for Scenario-specific pieces.

• 3D Catan Development Cards

• 3D Catan Resource Cards

• 3D Catan C&K Commodity Cards

• 3D Catan C&K Progress Cards

•

3D Catan Victory Token Cards

🛠️ Printing & Assembly (Read Before Starting!)

These are large, bed-filling parts that can be hard to print. To ensure success:

• Turn OFF your AUX Fan: High-speed cooling will cause these large parts to warp and lift close to the AUX fan.

• Clean the Plate: Use dish soap and warm water for maximum adhesion.

• Make sure the first few layers come out fine before leaving the printer.

• Precision Dovetails: The tolerances for the connecting "dovetail" joints are very tight to ensure the case stays together with no glue needed. You will need to use some force to slide them together.
• Technique: Place the pieces on a flat, hard floor to join them. Once you have started joining the dovetails and you meet heavy resistance, apply pressure to one joint at a time, alternating between them a few millimeters at a time until they are flush. Avoid pushing on the thinner underside of the base to prevent punching a hole or cracking the floor of the case.

🛠️ Changelog

1.1: Added slots for 6 missing tiles. Reduced width of side-clamps to not collide with outer trays. Increased height of center column of the lower center piece, to make assembly easier.

1.2: The upper center piece has been slightly reworked to allow more clearance and guiding for the connectors with the lower center piece and clips
