Dice Mini Book Storage
Please support Telcon by Liking/Boosting their Print on MakerWorld.

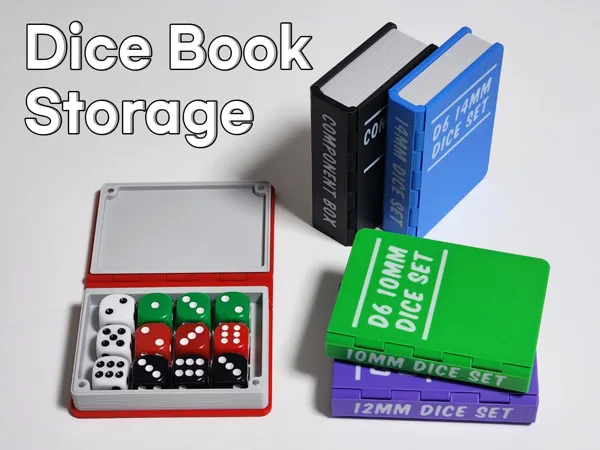

This is a dice book storage box made in the shape of a book.
[Key Features]
• Fold or unfold into a book shape to use as a tray for storing dice.
• Efficient foldable structure (magnetically fixed when folded)
• Assembly using adhesive is required, but parts are divided for relatively easy output
• When using SVG files, you can freely customize the book cover.
• (When folded into a book shape) Size 65x90mm, excluding thickness, fits standard cards with sleeves and can also be stored in Deck boxes
[Output Profile Options]
• Dice book 10/12/14/16mm print
• Component box prin
• normal cover (blank): An empty cover without any text displayed. (AMS not required)
• Cover sample: The cover with the corresponding text displayed on each box. (AMS required)
• Tray Part Set (3x2 magnet): A tray accessory assembled with adhesive on the cover.
Printing can be done without support,
It has an added chin to hold it so it doesn't twist when folded.
To help with smooth movements,
To produce a smoother curved surface on the hinge
I have set the 0.12mm high-quality output setting by default, so please refer to it. (Recommended output for 0.08~0.12mm layers)
※ If the bottom part appears to be stuck when printing the cover,
If you carefully fold the hinge part, the attached part is thin and comes off relatively easily.
Translated from Korean - show original
책 모양으로 만들어진 주사위 보관용 박스 (Dice book storage) 입니다.
[주요 특징]
• 책 모양으로 접거나 펼쳐서 주사위 보관용 트레이로 사용할 수 있습니다.
• 효율적인 접이식 구조 (접었을 때 자석으로 고정)
• 접착제를 활용한 조립이 필요하지만, 비교적 쉬운 출력을 위한 부속 분할
• SVG 파일을 활용 시 책 커버 부분을 마음대로 꾸밀 수 있습니다.
• (책 모양으로 접었을 때 기준) 두께를 제외한 65x90mm 사이즈로 슬리브를 끼운 스탠다드 카드와 함께 Deck box 등에도 수납 가능
[출력 프로필 옵션]
• Dice book 10/12/14/16mm print
• Component box prin
• normal cover (blank) : 글자가 표시되어 있지 않은 빈 커버입니다. (AMS 불필요)
• cover sample : 각 박스에 맞는 글자가 표시된 커버입니다. (AMS 필요)
• tray part set (3x2 magnet) : 커버에 접착제를 활용해 조립하는 트레이 부속입니다.
서포트 없이 출력 가능하며
턱이 추가되어 있어 접었을 때 틀어지지 않게 잡아줍니다.
부드러운 동작에 도움이 되도록,
힌지 부분의 곡면을 좀더 부드럽게 출력하기 위해
0.12mm 고퀄리티 출력 설정을 기본으로 설정해놓았으니 참고 바랍니다. (0.08~0.12mm 레이어 출력 권장)
※ 커버 출력 시 바닥 부분이 붙어있는 것처럼 나온 경우,
조심스럽게 힌지 부분을 활용해 접어주면 붙어 있는 부분이 얇아 비교적 쉽게 떨어집니다.
