Compact Dice Box with Mini Storage - magnetic

For a while now, I have wanted to design a relatively compact dice storage box. I really love a lot of the designs out there, but seeing that im mainly running a very small printer (Voron v0.2), most of them simply do not fit in the small print volume.

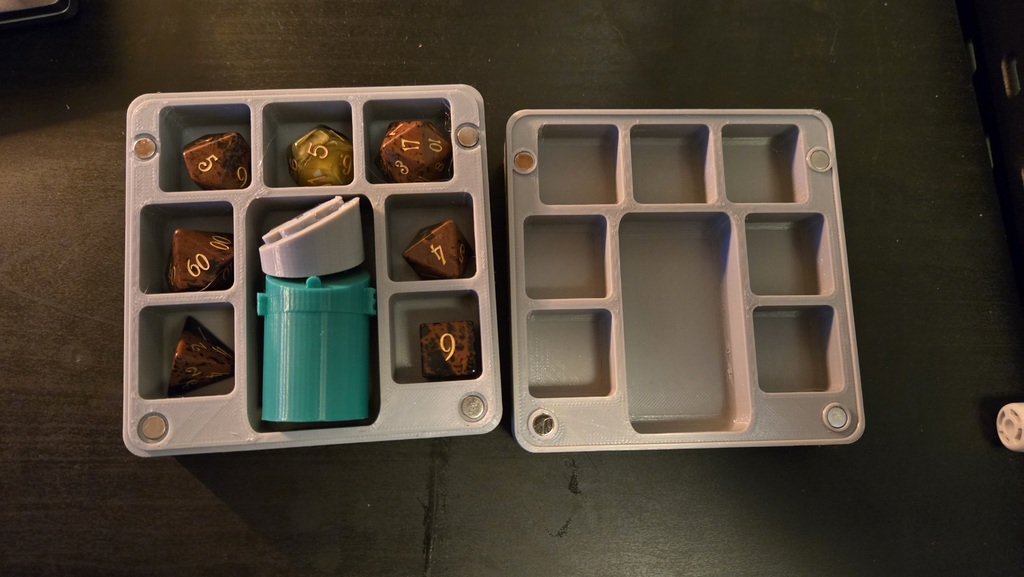

So i finally designed my own. When I set out to make this design, I wanted to make sure it would hold all the dice in a standard set, and the compartments were large enough to also fit my custom stone/mineral set (which are a touch larger than the typical dice, as well as have room for a mini (I have a set of simple minis available here .

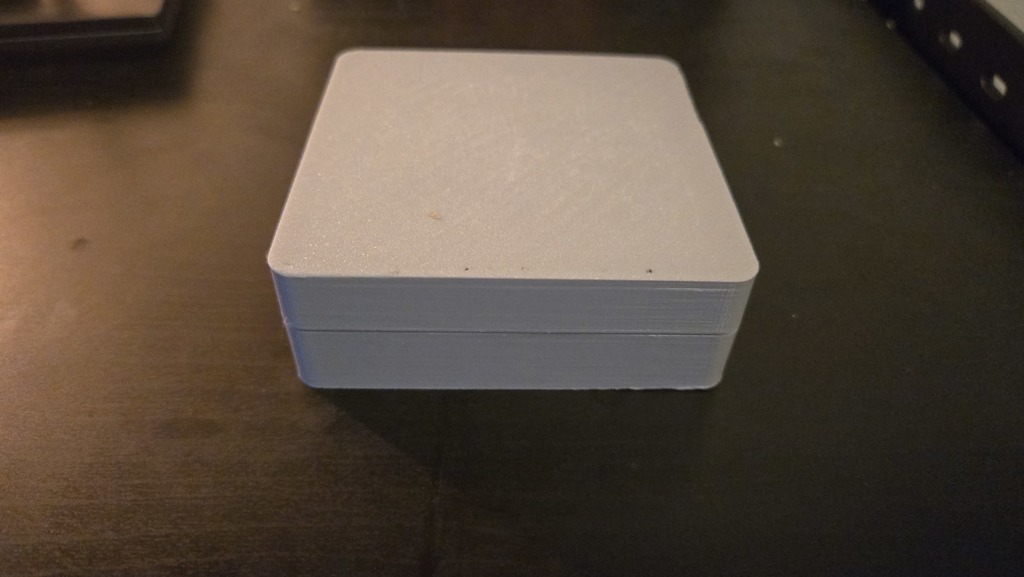

So Behold, a nice pretty compact storage box, that is magnetic! The two pieces are held together by 6x3mm magnets, that can be found for pretty cheap around the internet. The magnets are strong enough to ensure it stays closed, even if you pick it up by just the top.

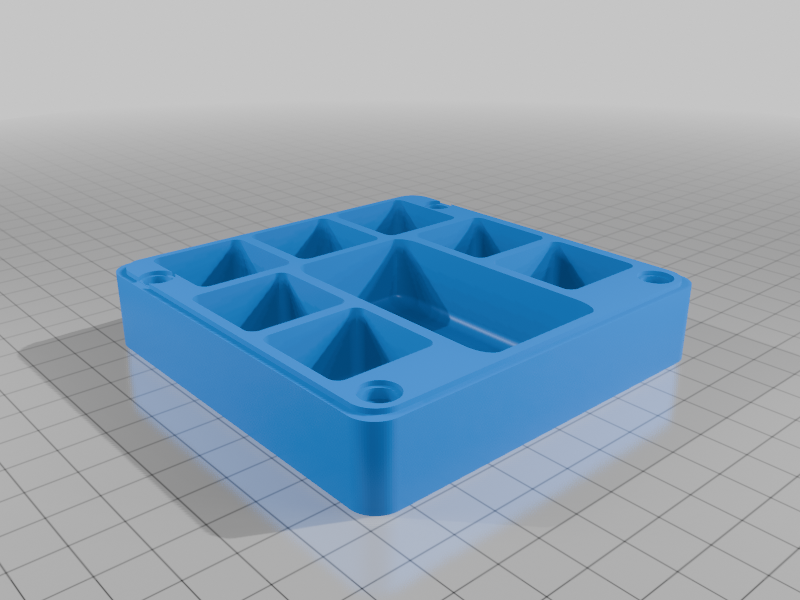

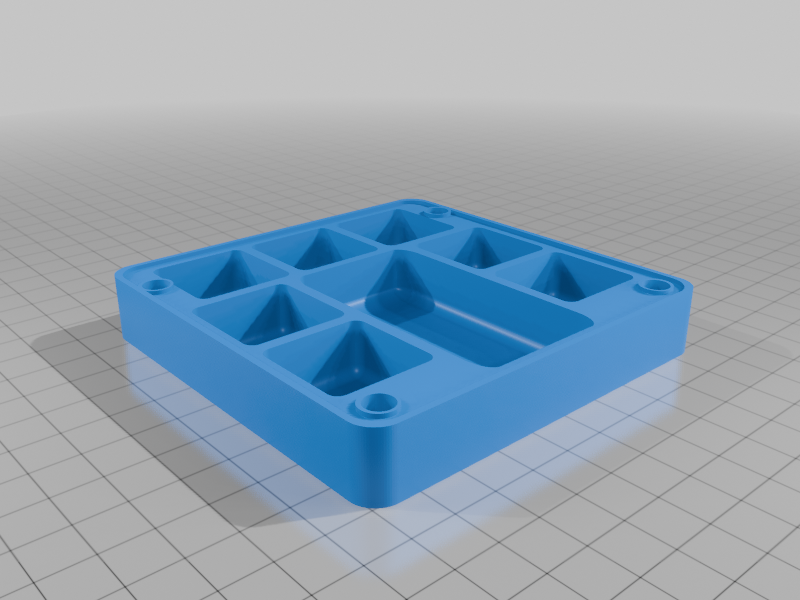

UPDATE/NOTE: upon further testing, and because i have somewhat larger hands/fingers, i found some dice to be a bit difficult to remove from the "bottom piece" but found that using what marked as the "top" in the stl as the bottom piece, i have a much easier time removing the dice. It makes no functional difference, but figured it was worth noting that the design is, in effect, reversable, and that may work better for some folks.

Printer Brand:

VoronDesign

Printer:

Voron 0

**Rafts:**

No

Supports:

No

**Resolution:**

0.2

Infill:

20%

Notes:

I printed it at a layer height of 0.15, but 0.2 or anything else will be fine. Recommended to use two walls, couls go with more, but probably not less. No supports or rafts necessary. The one pictured in printed in grey Elegoo Rapid PETG, but PLA or any other material should be fine (wouldn't recommend TPU though). I just really like Elegoo's Rapid PETG and have tons of it.

Category: Dice
