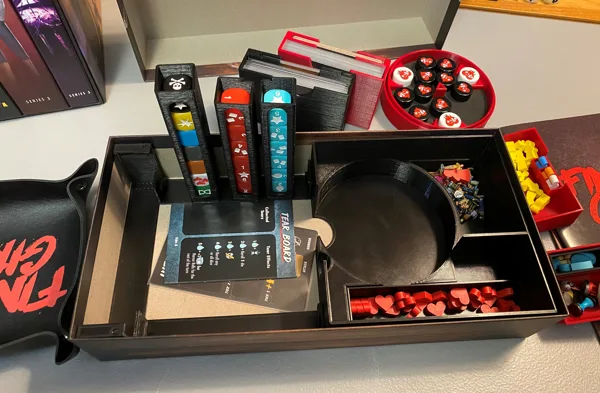

Final Girl "Mega Core Box" Insert

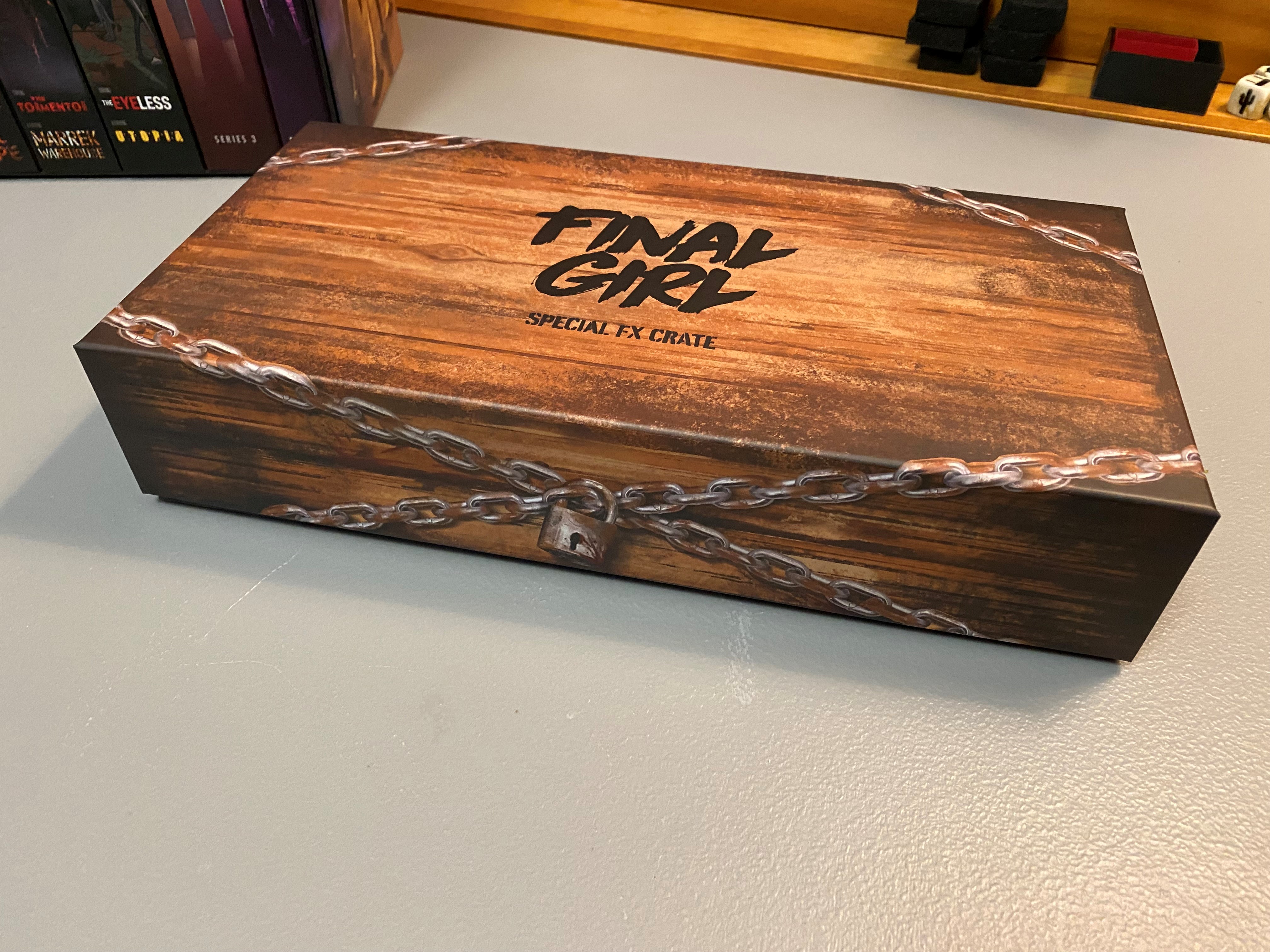

This is a modular insert to use an empty FX Crate or VCR box to organize all of the Core components from Van Ryder Games’ Final Girl, through Series 3, to include the dice tray, supplemental mat and tear dice released with S3. If using the FX Crate, the Guest Stars content can be moved to the Box of Props from S2, or the Core Box emptied in making this "Mega Core Box".

The largest file is 164.7mm X 147.2mm (X/Y) and 53.9mm (Z).

The complete build uses approximately 600g of filament, depending on your infill settings - infill can be kept low (~10-20%)

For a complete set, print one-each of the numbered files.

Component orientation was taken as-assembled from my CAD program, so you will have to rotate individual components in your slicer for best orientation.

The following components will need supports generated in your slicer:

4-Dice Rack

5-DiceHolder...FAR

6-DiceHolder...NEAR

11-TokenBox

NOTE about the Final Health Token Shuffler (files 1- & 2-):

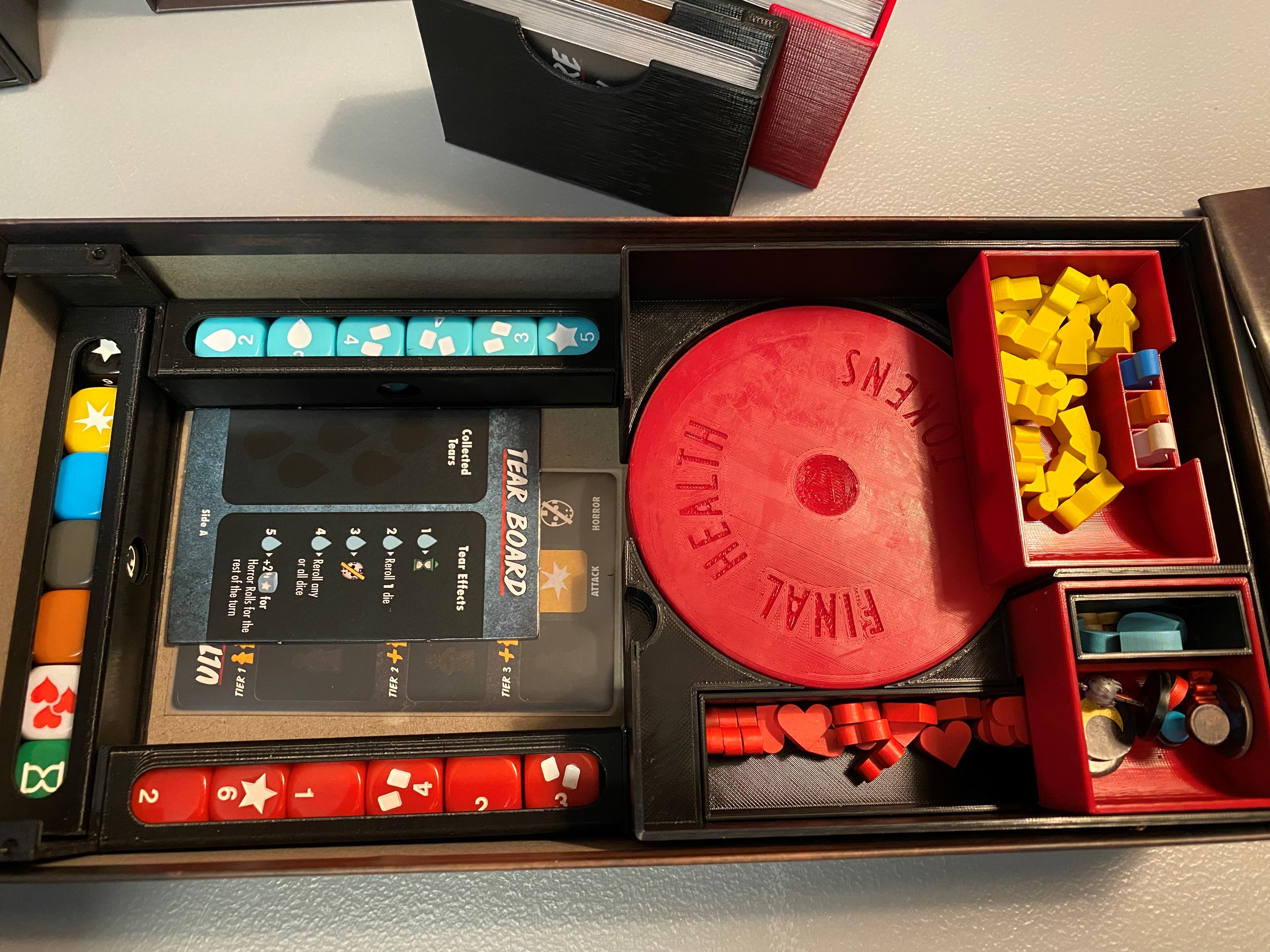

This functions as storage for the Final Health Tokens (from Series 2 Box of Props) but also as a shuffler. To use, remove it from box, turn on its side, spin a few times, and open.

To protect the screen-printing from wear on the printed-PLA texture, I sized it to accept approximately 4mm of padding (2mm per side). Files 1b and 2b are thin printable patterns that you can use to trace and cut a padding material of your choice - foam, felt etc.

If you choose to omit the padding, you can scale the bottom (file "1-...") down in the Z axis by about 20%.
