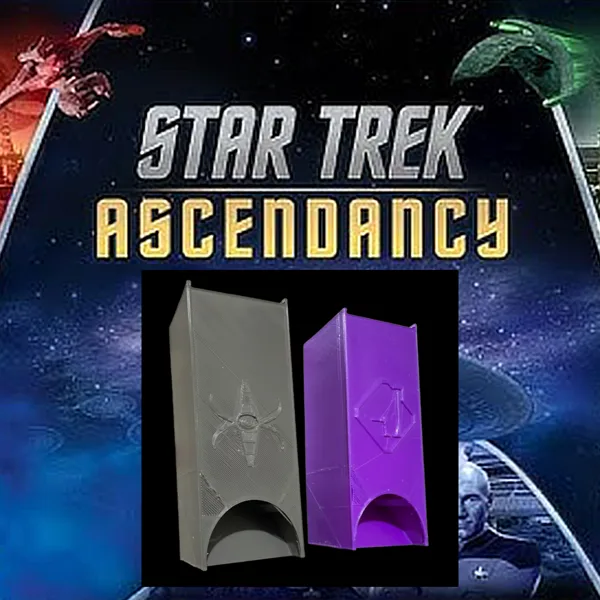

Star Trek Ascendancy: Breen and Dominion Dice Towers

I had made all of the Star Trek Ascendancy box organizers for the game thanks to westph21 on thingiverse https://www.thingiverse.com/thing:4386391

However the new expansions are not supported and despite another maker on thingiverse Bubble_0f_d00m he had only created the lids and not the dice towers because he didn't need them personally https://www.thingiverse.com/thing:5498271

If anyone wants the dice towers, then I have created them for you.

I used the blank dice towers from the organizers and embedded (as well as I could) the symbols for the Dominion and Breen to their respective dice towers.

Previous printing the other dice towers vertically was a bit of a mess without supports, and with supports it filled the inside and I couldn't remove the supports without breaking the tower.

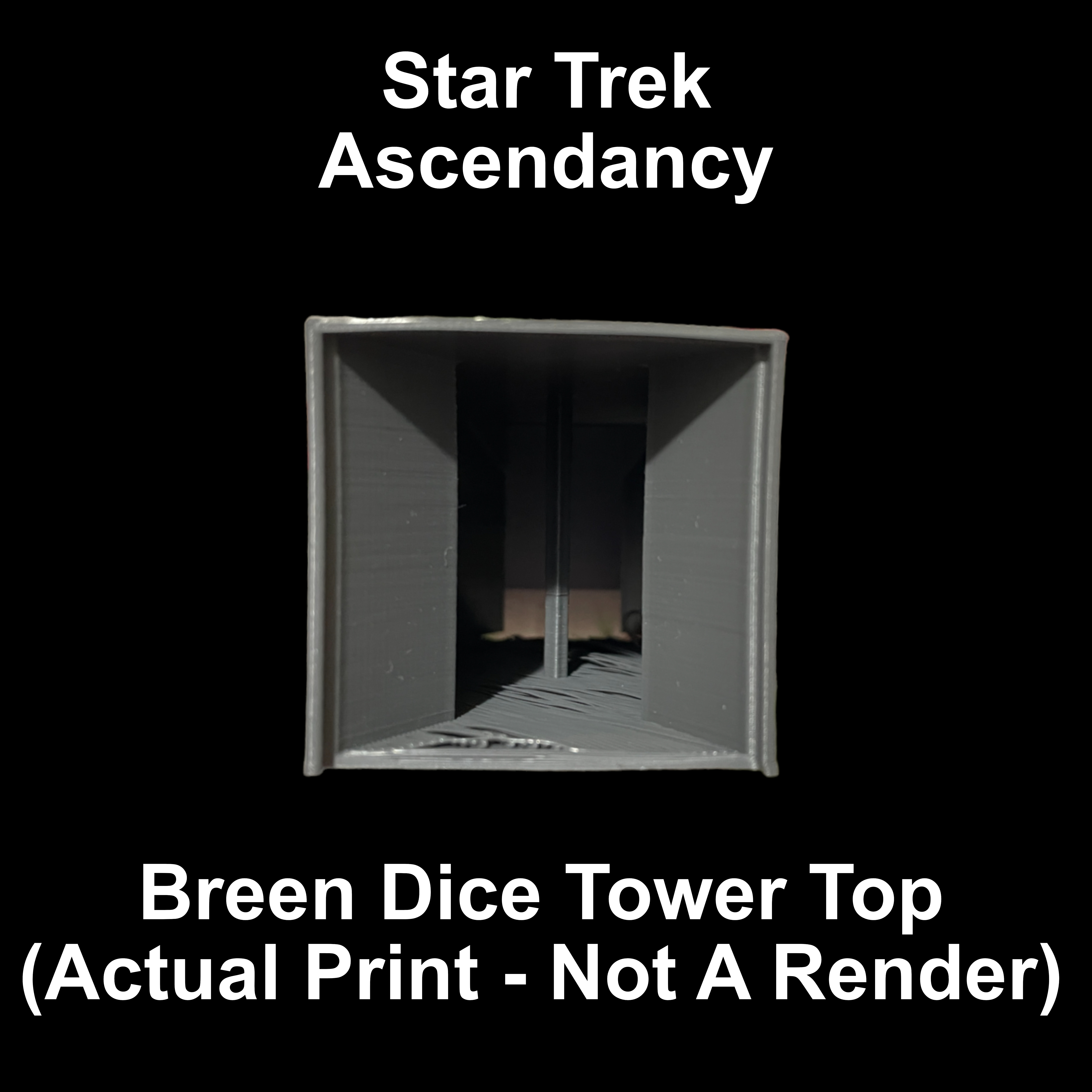

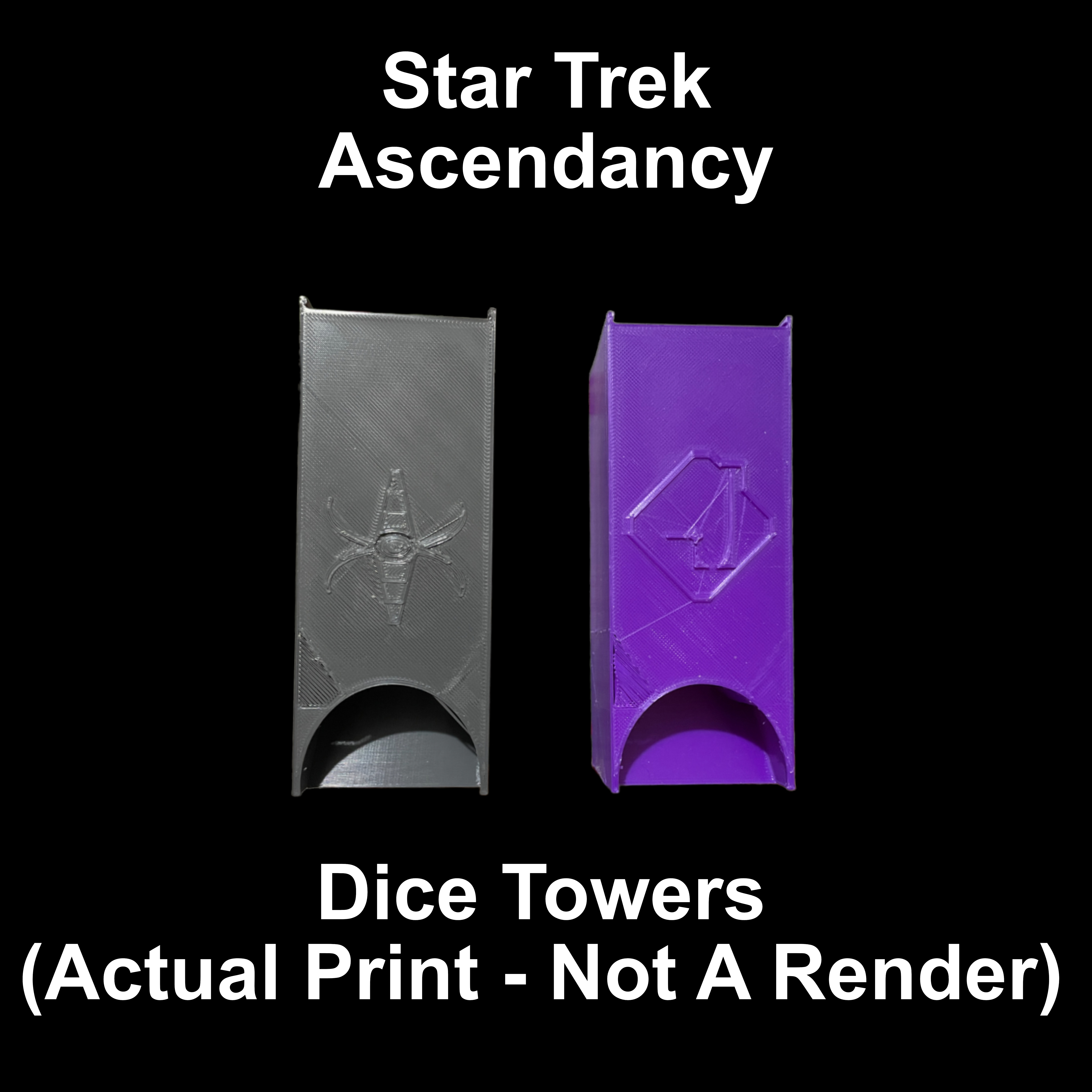

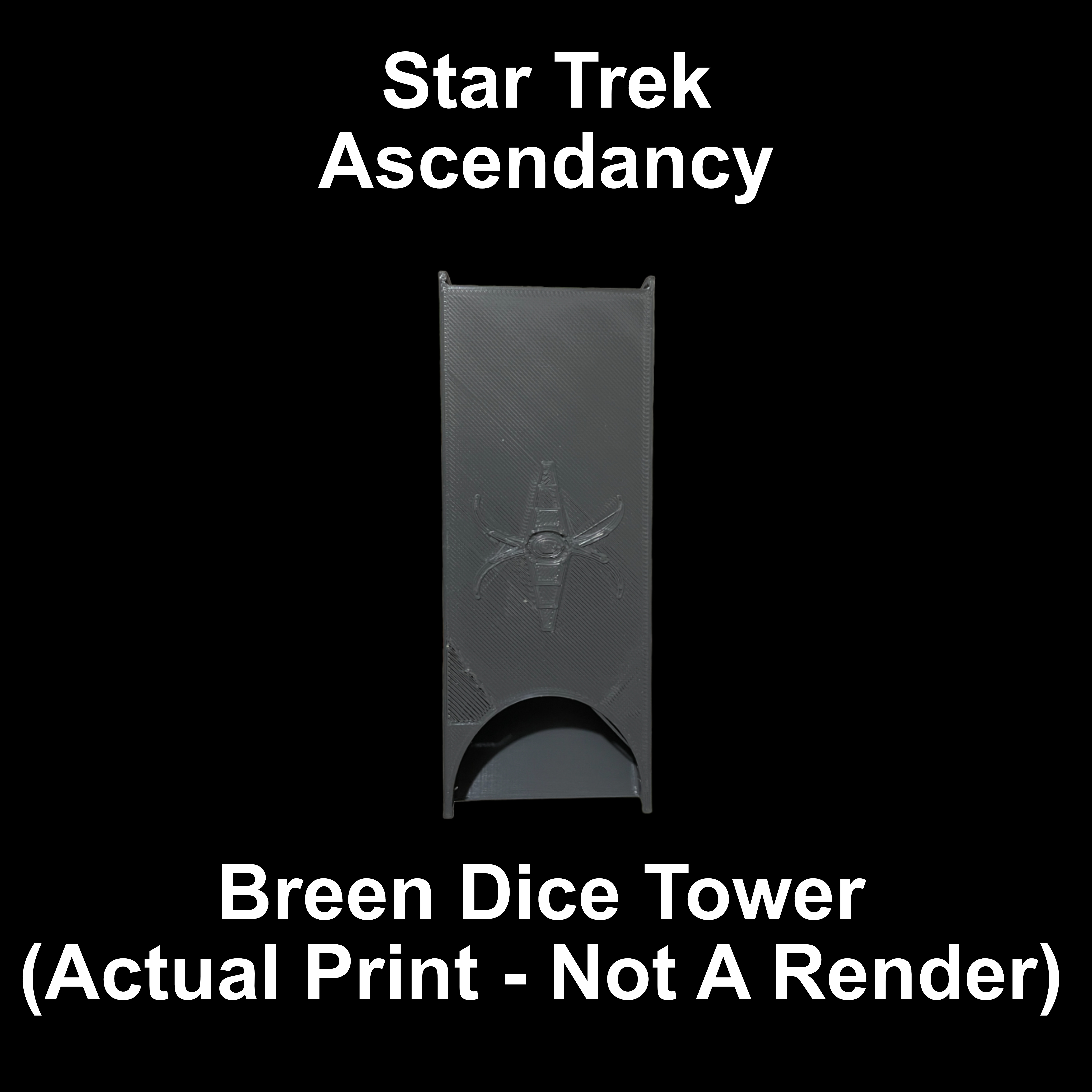

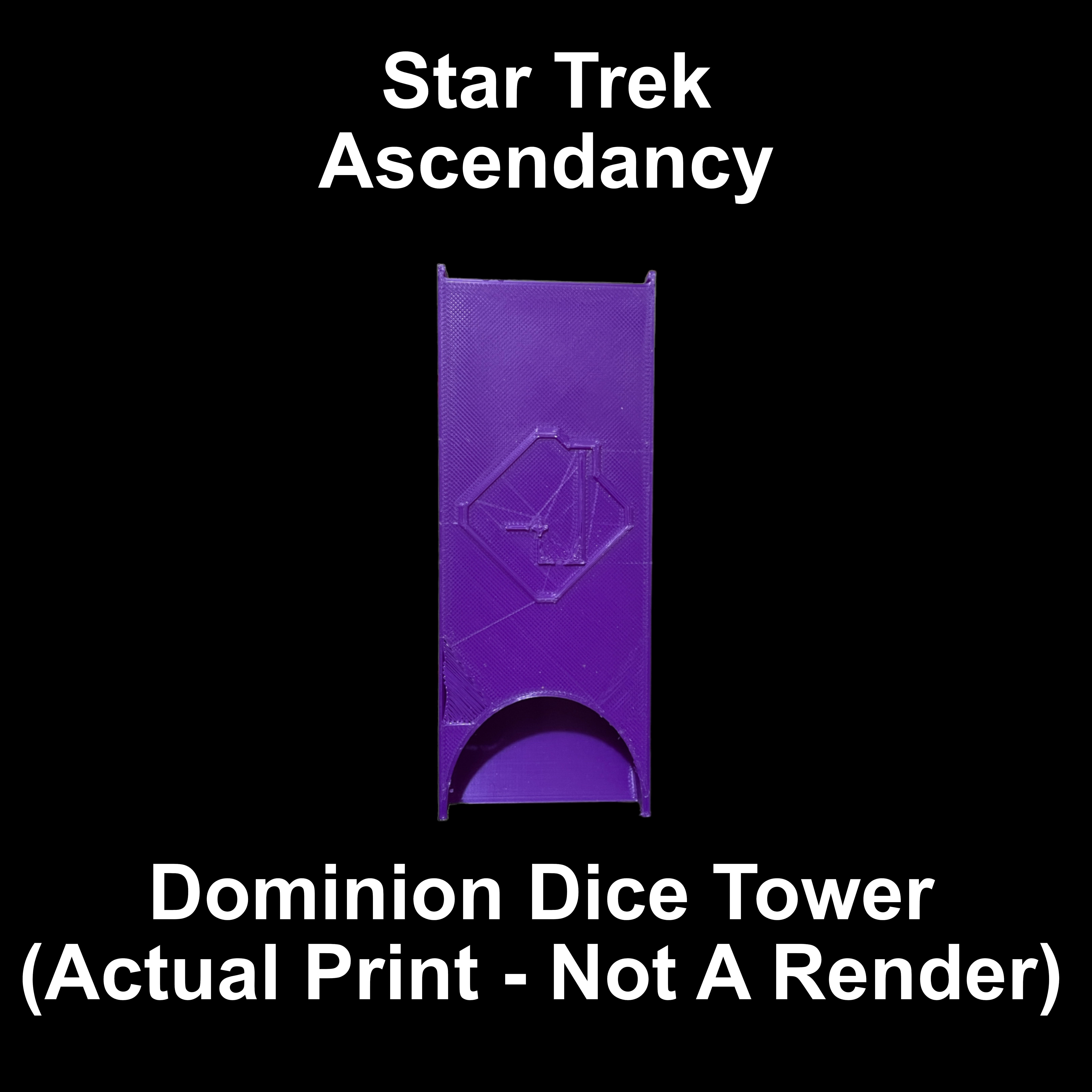

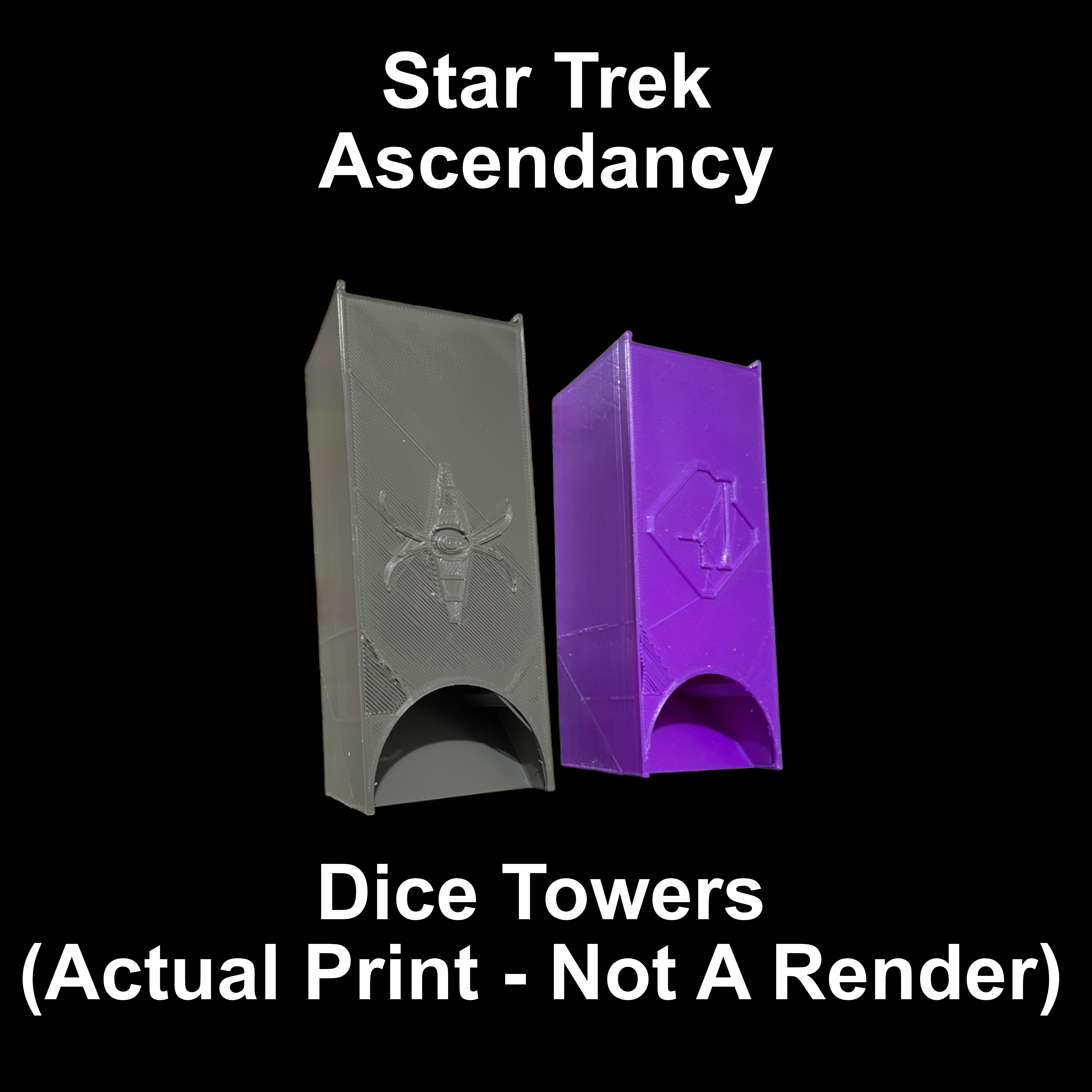

My sollution was this… I tried 2 methods… One was to print the Dominion dice tower on its back with tree supports - It works but needs cleaning up a bit and I recommend Tab corners to stop them curling up - I didn't use these but it printed good enough for me. The other method I used on the Breen dice tower was again printing it on its back with tree supports but I used a raft. This leaves a slightly rough surface on the back but I can cope with that. I used colours that are a good match for the game pieces (Zira Purple for the Dominion and Prima Value Dark Grey for the Breen). These are shown in my photos.

Do you want to be able to sell any or ALL of my prints shown here on Printables.com?
If so, then click on the 'buy me a coffee' link below, (or click here ) and join one of my memberships. This gives you the option of a monthly, yearly or lifetime commercial license, along with a certificate and loyalty bonus models (both commercial and non-commercial). The non-commercial items are 3rd party models that may also interest you, all in one place.
The lifetime membership offers you unique commercial items not available to anyone else as well as all of the loyalty bonus models.

Please click the LIKE (Heart ) Button if you like my models. If you REALLY like them, then please also buy me a coffee at the bottom of the page. Thank you.

Printing Instructions: (Dominion Dice Tower)

I printed these on my Creality CR-6 SE printer with Cura slicer 5.2.1. (Other printers/slicers can be used).

Material: PLA Pro

Manufacturer: Zira

Colour: Purple

Resolution: 0.2

Nozzle: 0.4mm

Print Speed: 80mm/s

Nozzle Temperature: 210 Degrees

Bed Temperature: 60 Degrees

Infill: 20%

Supports: Yes (Tree - Touching Buildplate)

Skirt: No

Brim: No - Use Tabs on the corners

Raft: No

Printing Instructions: (Breen Dice Tower)

I printed these on my Creality CR-6 SE printer with Cura slicer 5.2.1. (Other printers/slicers can be used).

Material: PLA

Manufacturer: Prima Value

Colour: Dark Grey

Resolution: 0.2

Nozzle: 0.4mm

Print Speed: 80mm/s

Nozzle Temperature: 210 Degrees

Bed Temperature: 60 Degrees

Infill: 20%

Supports: Yes (Tree - Touching Buildplate)

Skirt: No

Brim: No

Raft: Yes

Both methods are shown above but you can use whatever is best for you (especially if you have printed other Star Trek Ascendancy dice towers before). I try not to use brims but you can if you get along with them instead of using Tab corners.

Enjoy your prints.
