Wallmount Vallejo style paint rack
Please support TMoS by Liking/Boosting their Print on Printables.

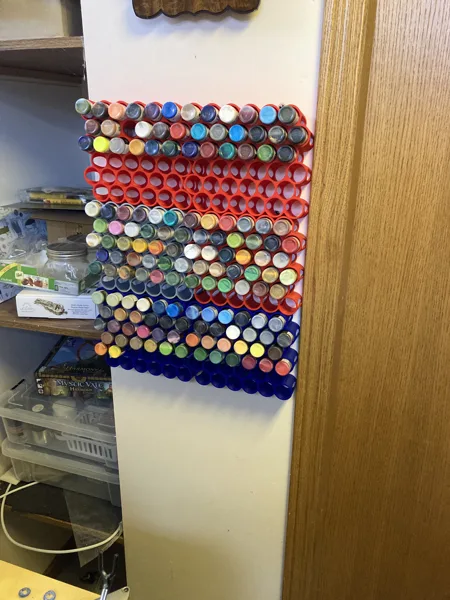

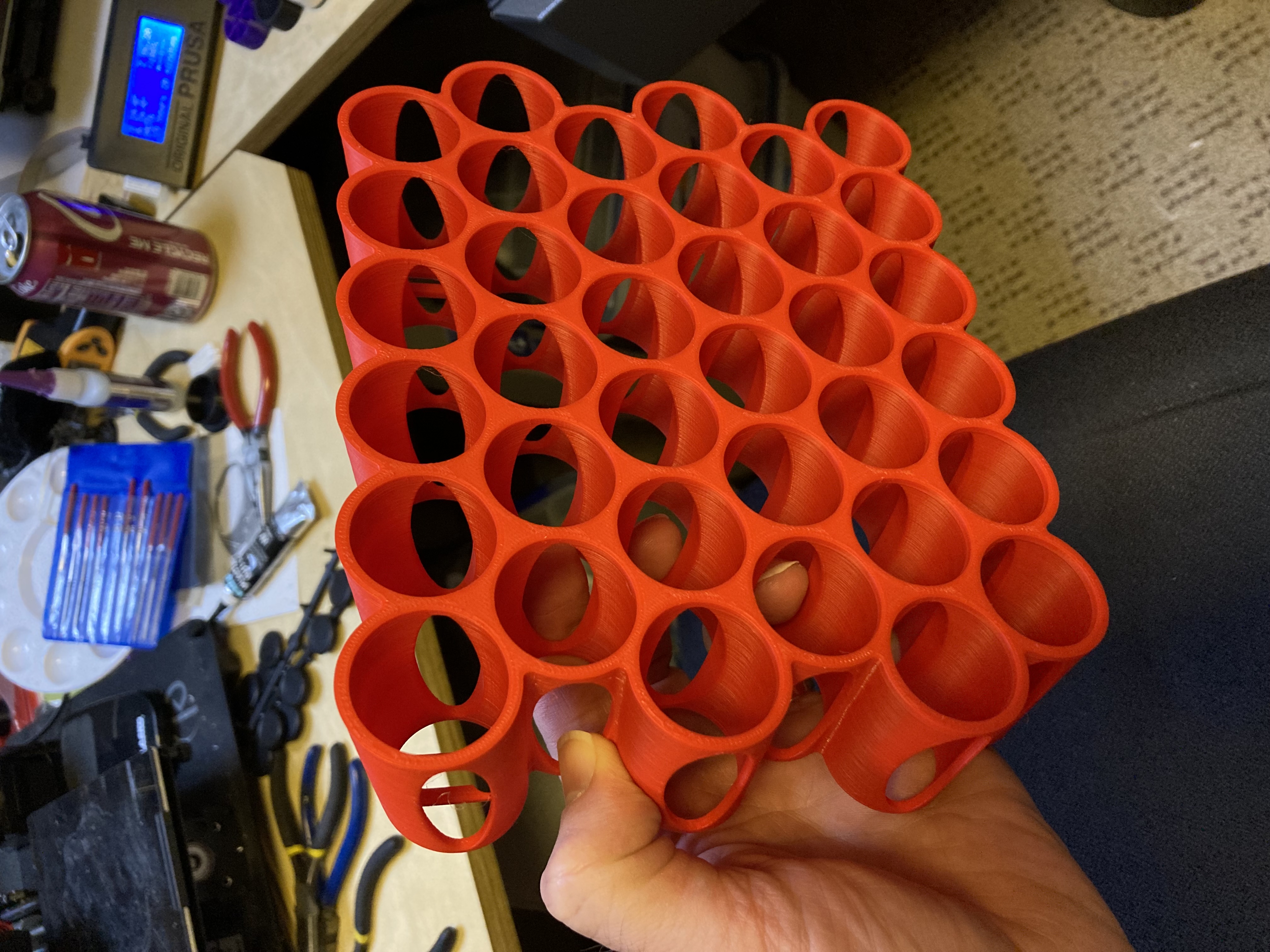

Wallmount paint rack used to store Vallejo/Army Painter size dropper bottles of acrylic paints.
Printing: I've printed this on my Mk2.5S in PLA and PETG, 0.2mm layers, 15%-20% infil is more than enough.
Mounting: The racks can be nestled horizontally and vertically. Note, you need to work from the lowest rack position up to allow for the screw keyhole mounts to drop down over the screws. I suggest mounting the bottom row first, then rest the next row on top of the mounted racks, mark the top of the keyholes in the new row, drill, screw, mount, rinse, repeat.
Onshape Document: Here is a link to the original Onshape document. Feel free to copy and revise as you see fit: https://cad.onshape.com/documents/db647685851403a3ec47a73b/w/e2d74c9ba19786ef7431f4e6/e/5925a9d10b3254f877b8b2bd
