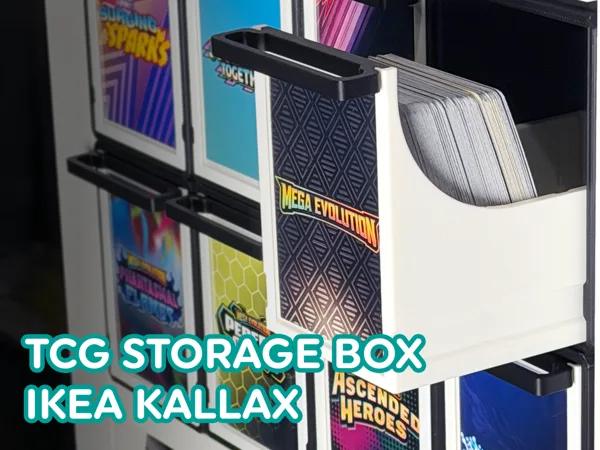

TCG Card Storage Box for IKEA Kallax Modular
Please support TNK Designs by Liking/Boosting their Print on MakerWorld.

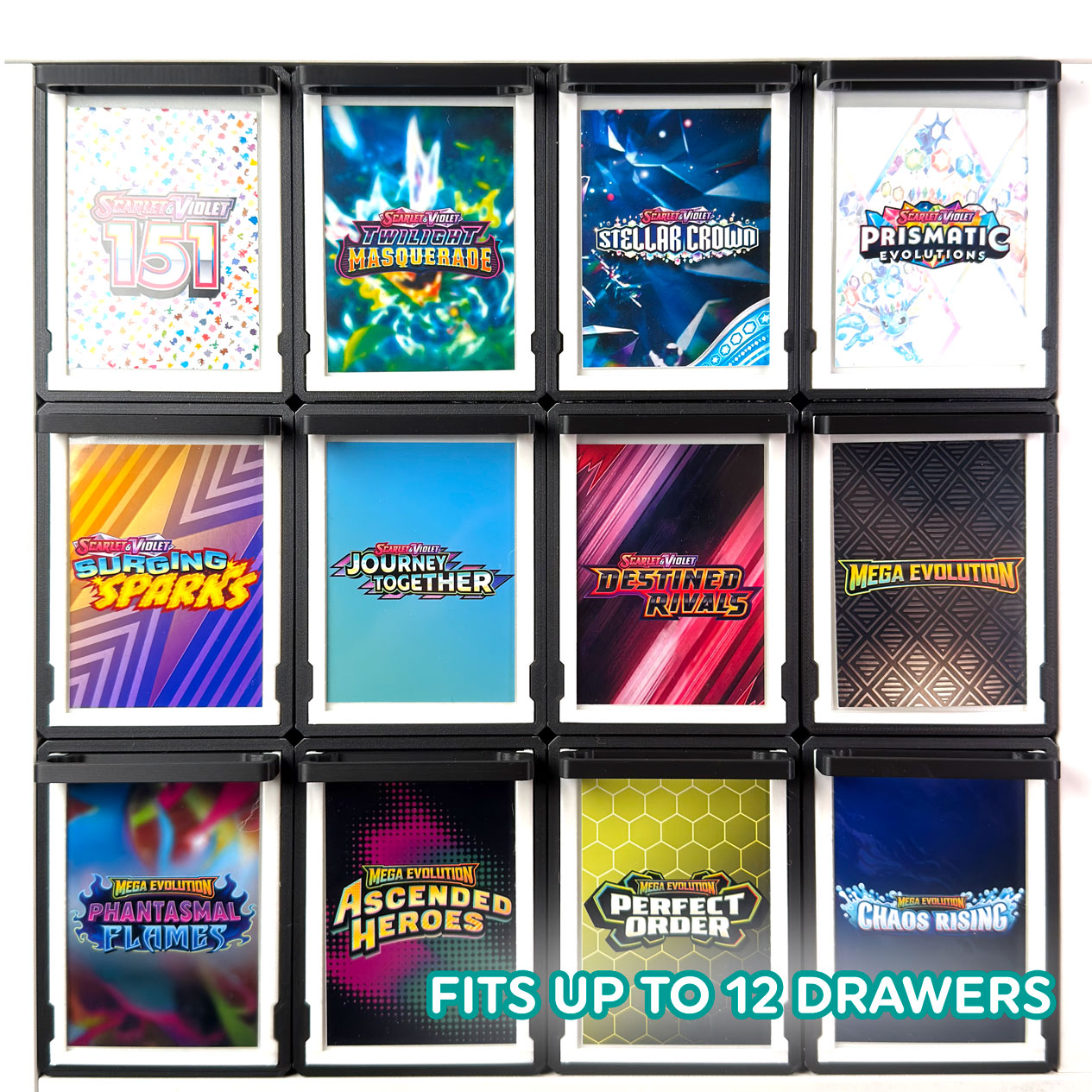

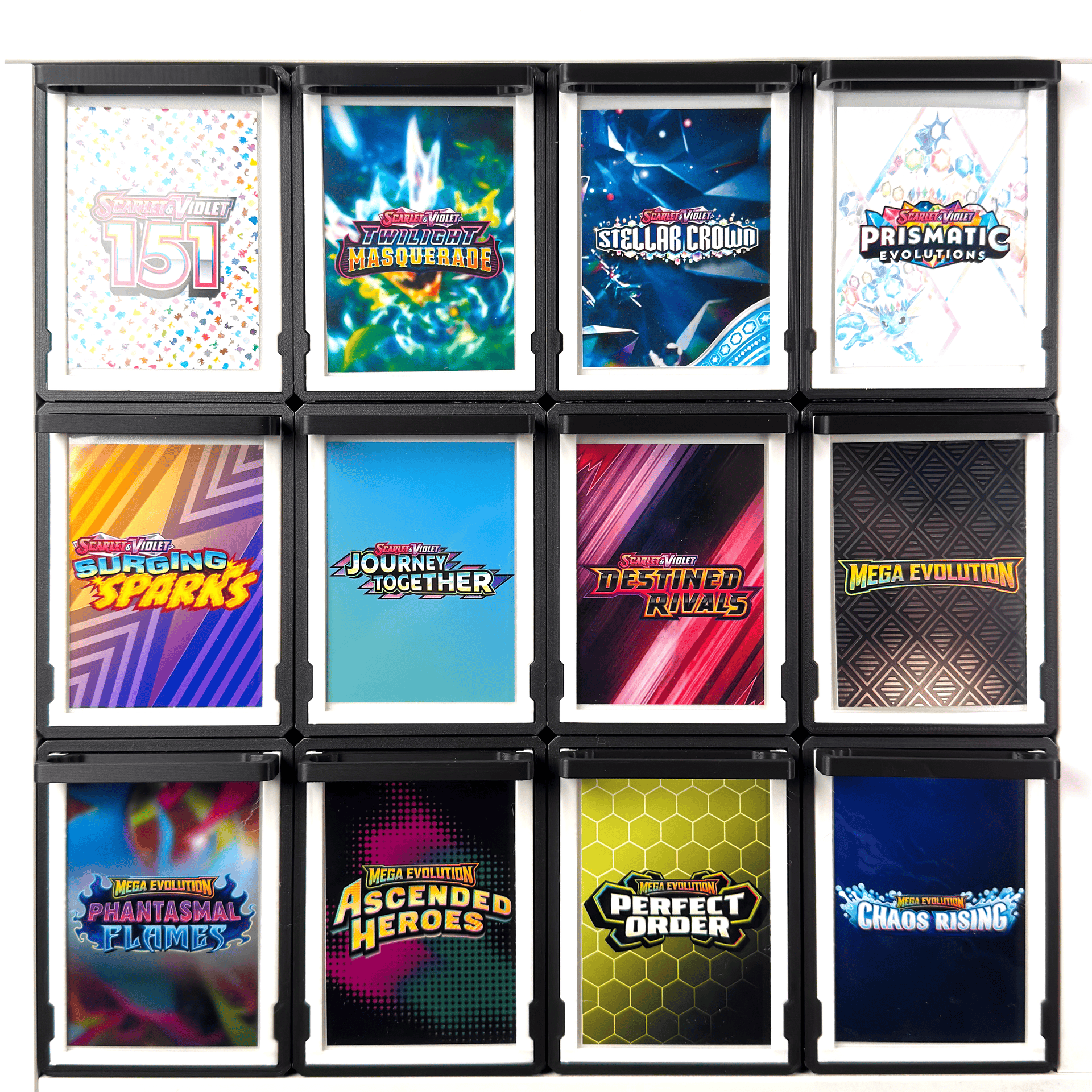

• Kallax Optimized: Fits neatly into IKEA Kallax shelves (supports up to a 4x3 grid or any variation you like).

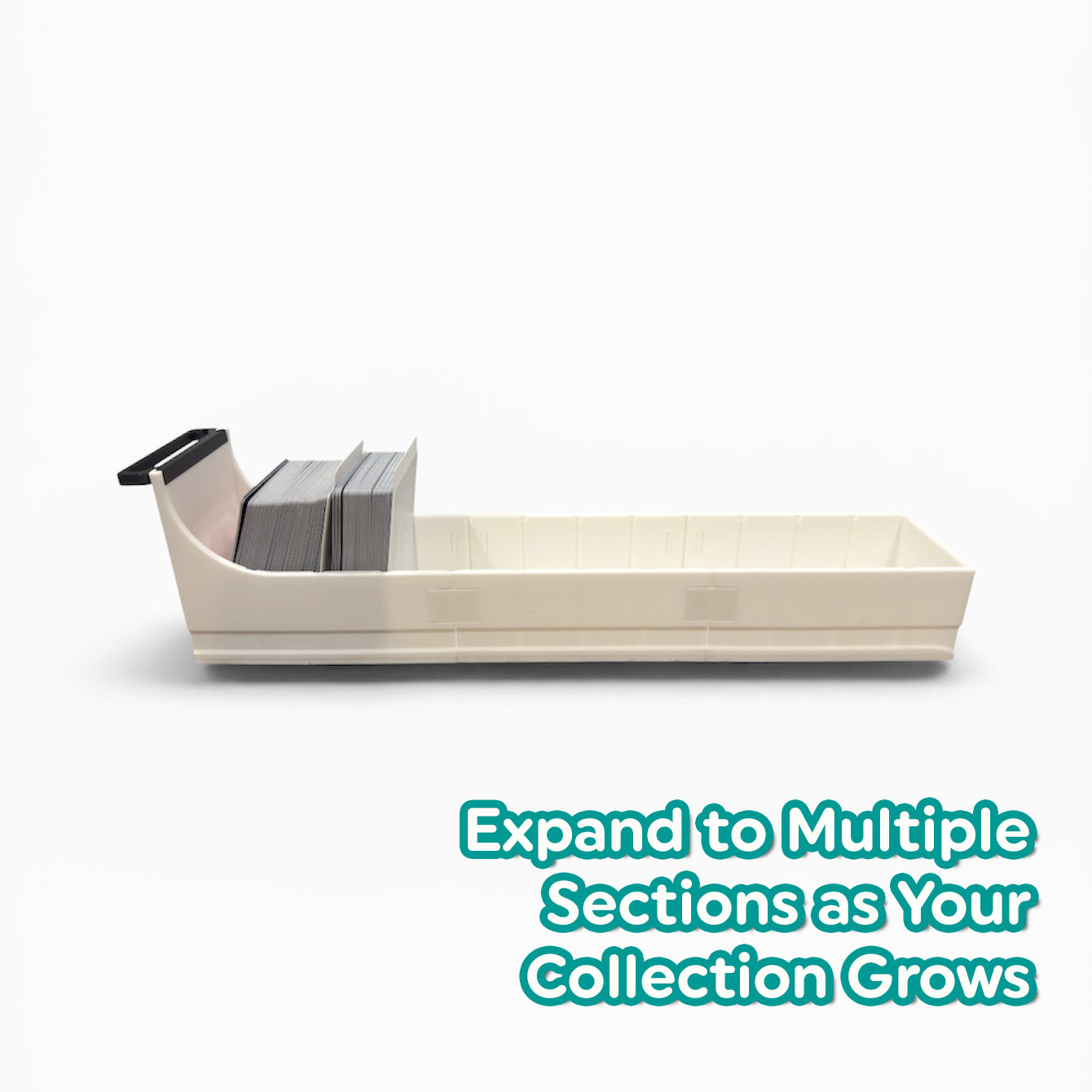

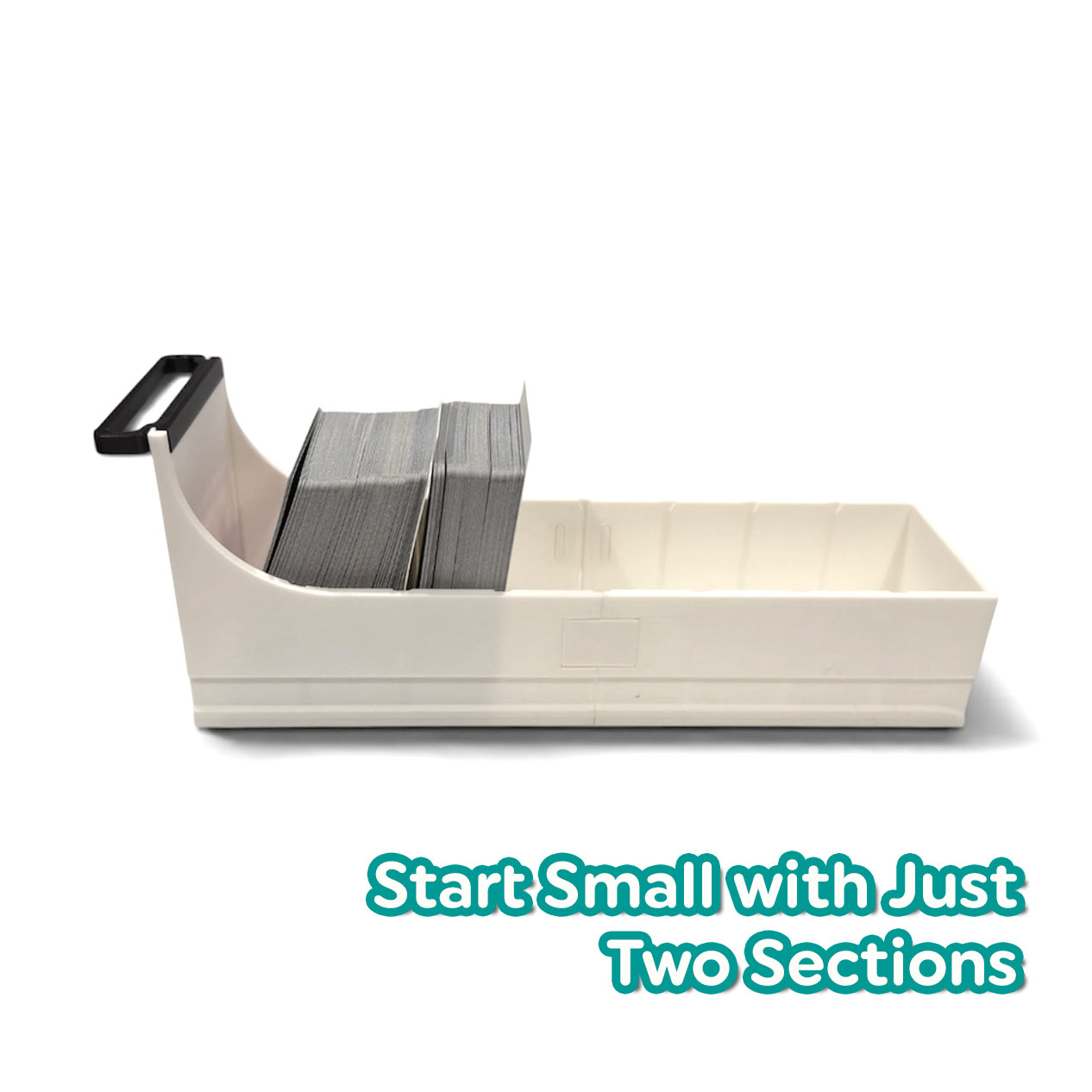

• Modular Depth: Snap together 2 sections for standard storage, or add a 3rd section to utilize the full depth of your Kallax shelf.

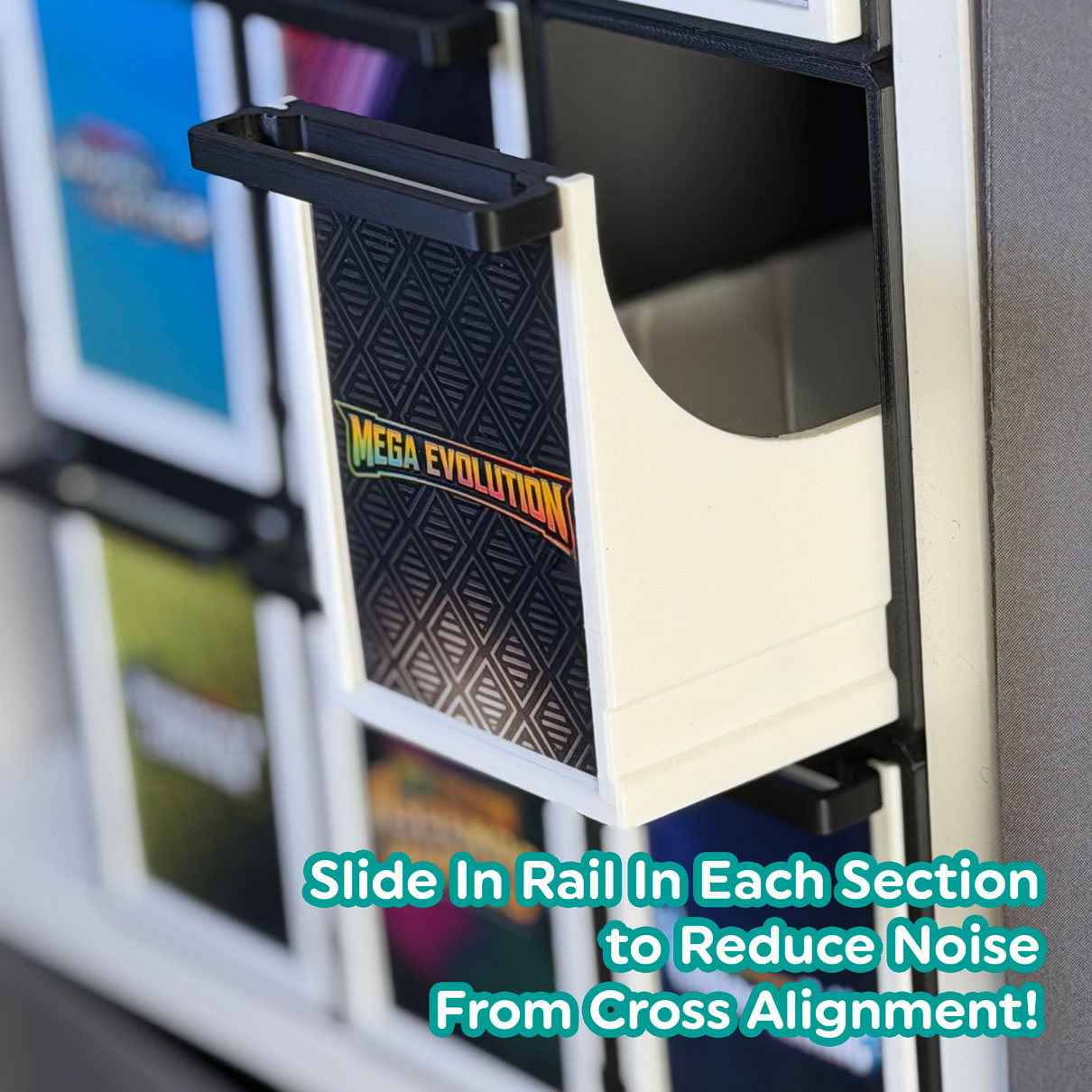

• Quiet-Glide Rails: Includes a specialized rail version to reduce filament friction and scraping noises when sliding the box.

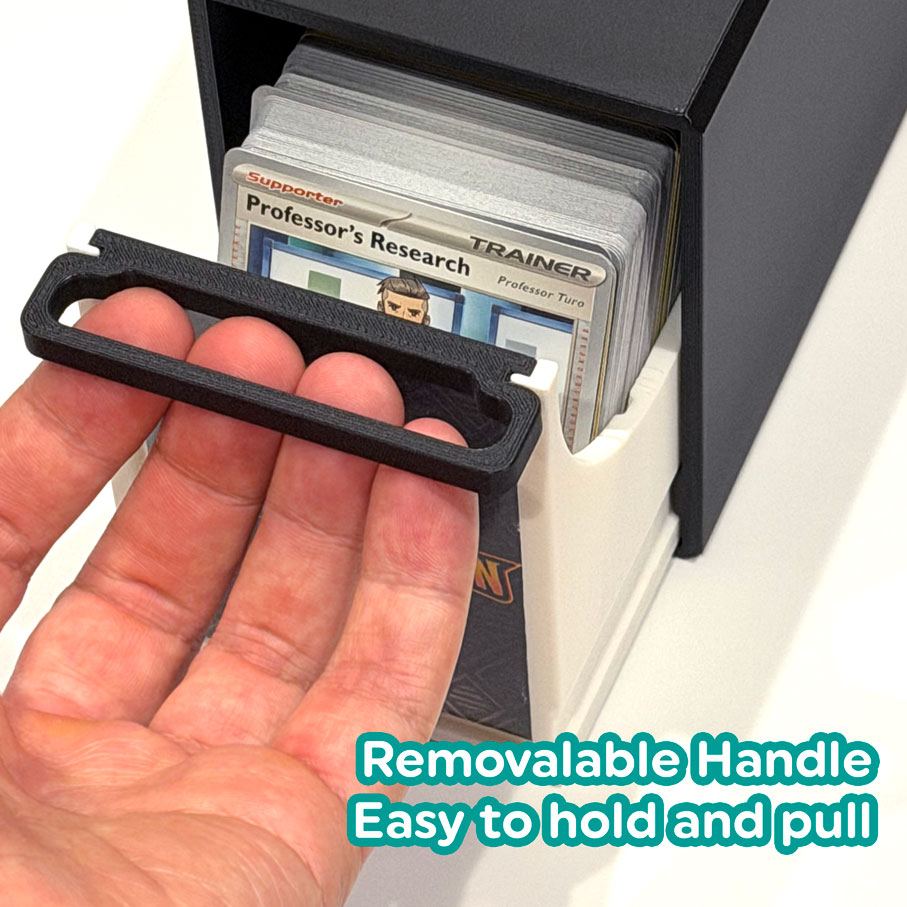

• Custom Art Display: The front handle is completely removable, allowing you to insert and display your favorite card or set artwork.
• Rail Lock System: The rail helps prevent you from being able to pull up the whole drawer and prevents card
• Secure Connectors: Join sections with custom pegs. Print the High Tolerance connector first; switch to the Low Tolerance version if your printer needs more clearance.
• Slide the rails into each of the section (2 rails needed per section)
• Be aware that the front panel piece, the rail can only be installed from the back. This is so it doesn't come off when you slide out. This is by design.
• Use the connectors to connect each section. We recommend printing one of each connector tolerance to try it out before printing all the pieces.
• Material: PLA
• Supports: None required
• Infill: 15% (Gyroid or Grid)
• If there's too much slide, use anti-slip pads/tape or dots to help if necessary. (Not affiliate link)
• Print “Case - No Rail Needed” if you can tolerate the high pitch zippy noise. This will save time on print, but we recommend using our rail system for a quiet and smooth sliding experience.
