Playing Card Holder with Board Game Bits Bins

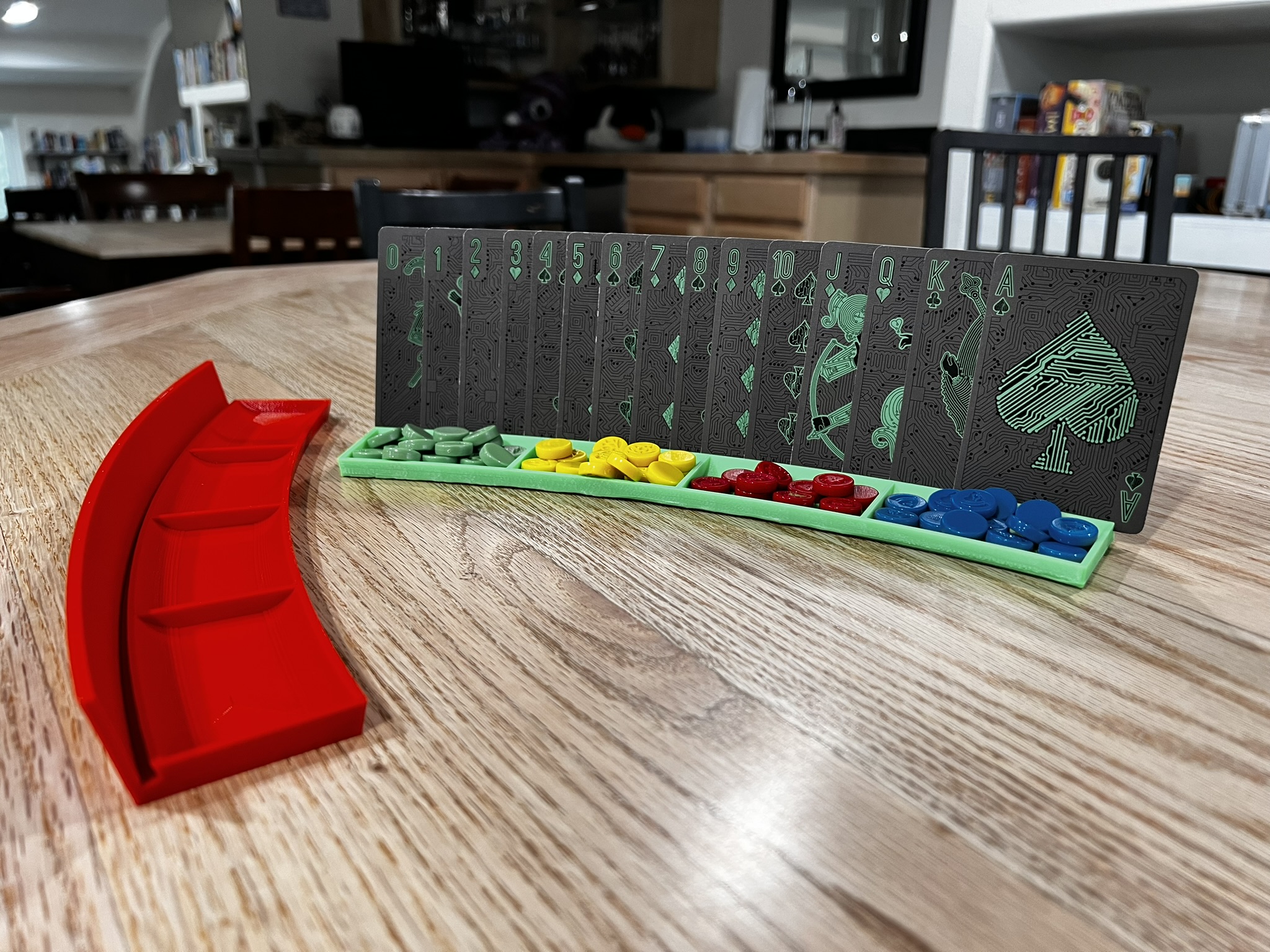

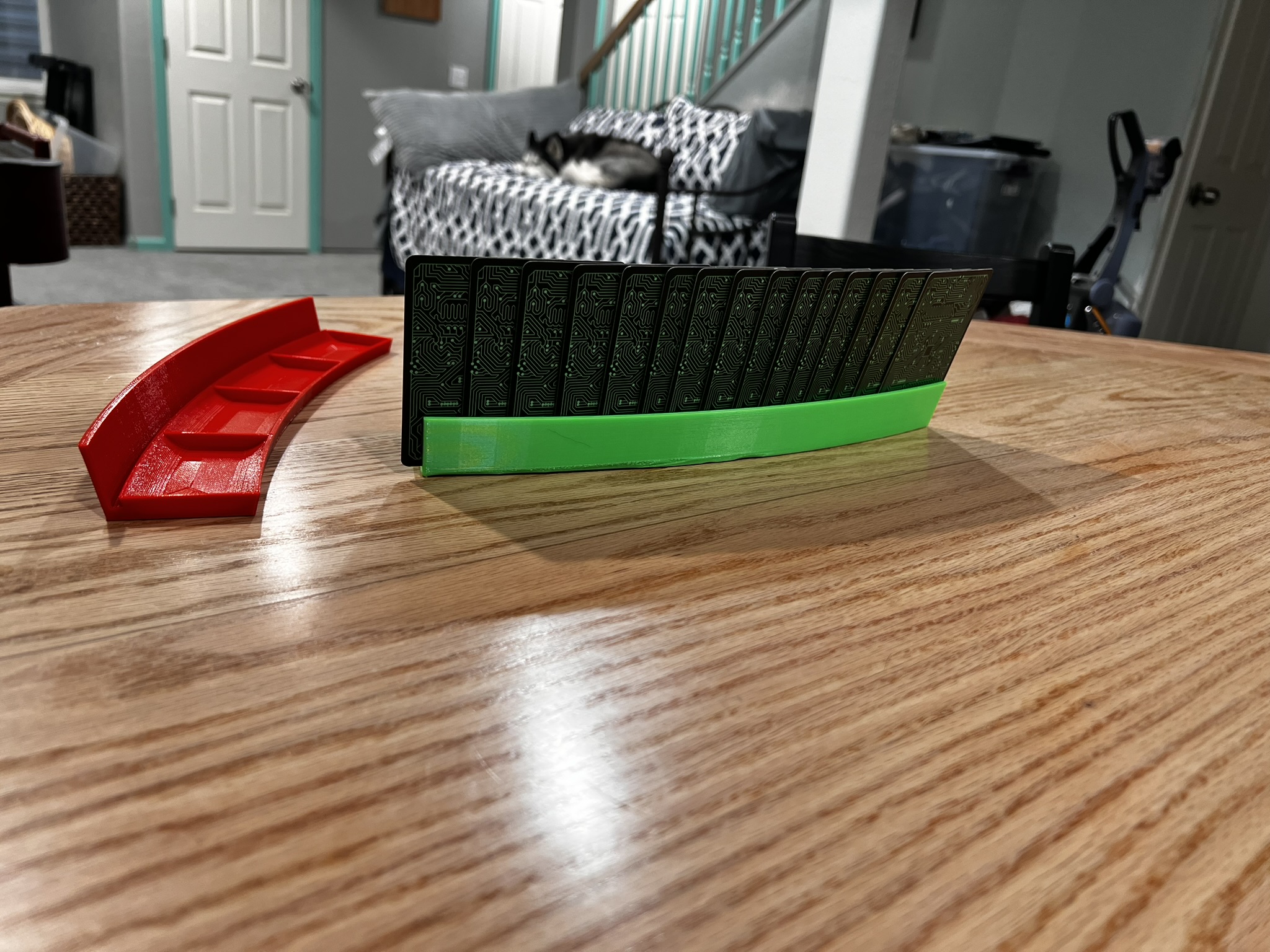

This is a playing card holder that will fit 15 splayed poker-sized cards. I have included models with 1, 2, 4, 5, and 6 sloped bins for board game bits (see file name for number of bins).

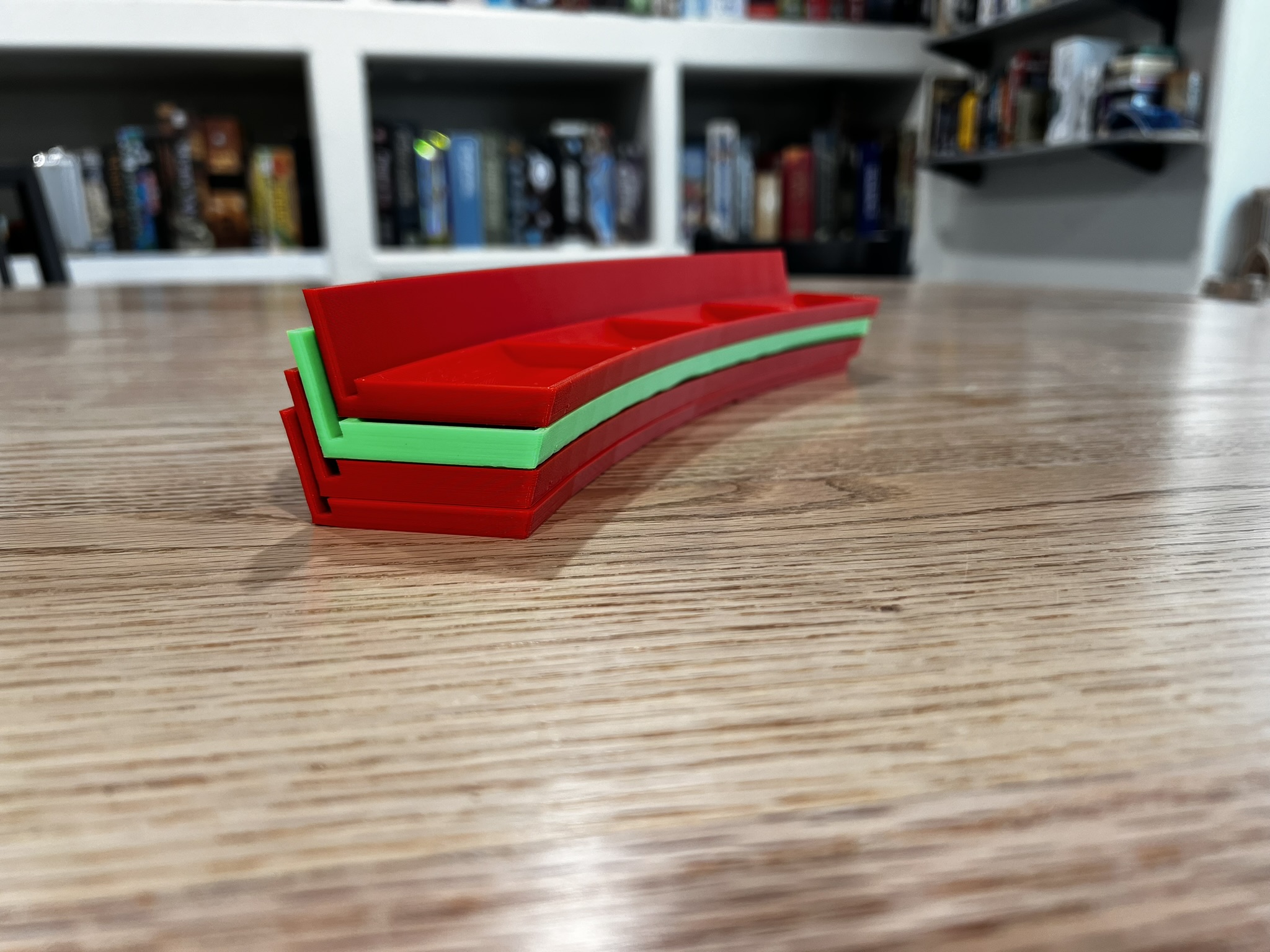

They stack very neatly on each other, so they don't take up much space if you want to print multiple of them.

I have also included the Fusion 360 model file for anyone wanting to remix it to fit their needs.

Support: None

Layer height: 0.3mm is used for printed models in photos. The slopes on bins are adequately smooth for bits to slide out, but if you want an EXTRA smooth slope, you could decrease the layer height to a more standard 0.2mm, which will also increase print time.

Material: PLA was used. Any type should work fine.

Print time: approx 4 - 5 hours

Infill: 0%

Shells: 999 (infinite)

You could decrease the number of shells and add infill to reduce the filament used, but I found in my slicer that infinite shells with no infill printed faster than 2.5 shells with 10% infill. I was willing to sacrifice some extra filament for reduced printing time.
