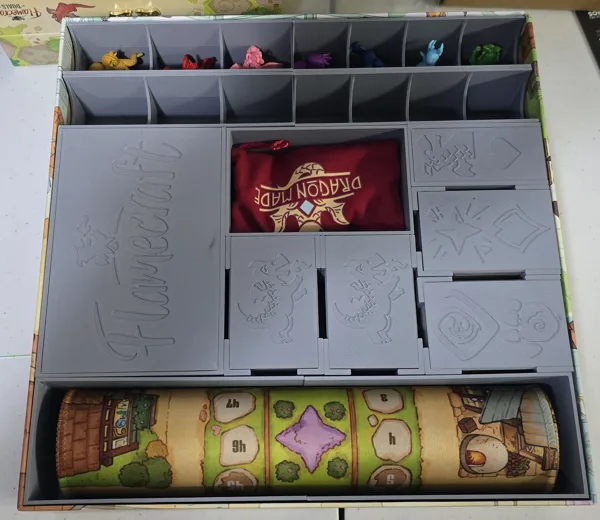

Flamecraft w/ Expansion! - 3D Organizer

Edit: Update to FC_Resources_Bottom_x2 to v5. Rearranged which resource goes where.

Edit: Update to include the Dragons & Dragons Expansion! The Update requires RePrinting of the Middle Section of the Organizer.

Update Instructions:

The Expansion play mat is rolled inside of the original mat!

Print The Following Replacement Parts:

1x FC_EnchantmentUpscaleCards_Top_v3

1x FC_DragonCards_Top_v0 (The Update Needs 2. You can use the old one and 1 New one)

1x FC_FancyDragonCompanion_Top_V3

4x FC_DragonCard_BottomT_X4_v3

1x FC_CoinBoxTS_v3

2x FC_Resources_Top_Thin_X2_v3

2x FC_Resources_Bottom_Thin_X2_v3

1x FC_DragonMeepleHeart_Top_v3

1x FC_DragonMeepleHeart_Bottom_v3

1x FC_ShopCards_BottomT_v3

Or If you Prefer, Download my Bambu File for Update: Bambu_FC_ExpansionAddition_v3

Notes:

•

No Supports necessary.

•

Suggested Settings:

•

15% Cubic Infill.

•

3 Walls

•

5 Tops

•

3 Bottoms

•

This organization system was designed to hold the following:

•

All 14 Dragon Meeples (Gen 1 and Gen 2)

•

The 7 Wooden Dragons, and the Wooden Markers

•

All Metal Coins (Gen 1 and Gen 2)

•

Sleeved Cards (Gamegenic Premium is What I used)

•

Large or small Wooden Resources (If you do it just right, it may hold all of them together but no promises)

•

Dragons & Dragons Expansion!

•

I suggest 12 Magnets 6mm x 3mm (6mm Diameter by 3mm Thickness)

•

NOTE: These are not required and the insert will function without them, but I think they help hold everything together. (I buy mine off eBay Seller - JustCreationUS)

•

The lids are designed with a .01mm offset. That is how they fit best with my printer. (If you would like an adjustment, ask and I will see what I can do.)

With this insert, I have provided both the STLs and my Personal Bambu .3mf for how I printed it. I hope it helps. If you have any questions please do not hesitate to ask. I am always happy to help.

If you are printing for the First Time, Print the following for Organization:

1x FC_EnchantmentUpscaleCards_Top_v3

1x FC_DragonCards_Top_v0 (The Update Needs 2. You can use the old one and 1 New one)

1x FC_FancyDragonCompanion_Top_V3

4x FC_DragonCard_BottomT_X4_v3

1x FC_CoinBoxTS_v3

2x FC_Resources_Top_Thin_X2_v3

2x FC_Resources_Bottom_Thin_X2_v3

1x FC_DragonMeepleHeart_Top_v3

1x FC_DragonMeepleHeart_Bottom_v3

1x FC_ShopCards_BottomT_v3

1x FC_ShopCards_Top_v3

2x FC_MiniLarge_X2_v1

2x FC_MiniSmall_X2_v0

1x FC_Mat_Bottom_v0

1x FC_Mat_Top_v0

2x FC_DragonCards_Top_X2_v0

I designed this to be storable both flat on the bottom and sideways in a Kallax.
