Twilight Imperium galaxy frame off-map tile holder

for Twilight Imperium: Fourth Edition (2017)

unfulvio

Organizers Free

View on MakerWorld 11 8 Added Jun 18, 2026 · Updated Aug 5, 2026 Support unfulvio by Liking/Boosting their model.

Plan Your Print

✓Needs about 78 g From the designer's print profile

Print Profile (3)

0.2mm layer, 2 walls, 5% infill

1 plate 3h 2m 78 g PLA

H2S, A1, H2C, P2S, X2D, A2L, H2D Pro, H2D

If you print this with any of the Bambu Lab sparkle filaments, you can turn on ironing but exclude the shaft piece. The settings I've used are 30% at 60mm/s for the Onyx black variant. I strongly recommend to keep the tree supports on for the shaft, or you risk a print failure if you print too fast.

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1

3h 2m 78 g PLA · 78 g

Wormhole Nexus variant A

1 plate 3h 58m 108 g PLA

H2S, H2C, A2L, H2D Pro, H2D

This profile variant is for allowing the Wormhole Nexus to be positioned on either side. You need to print 2 halves and glue them together. Then, you will be able to flip the “disc” as soon as someone moves in the system as per game rules. Because this has a hole on both ends it will have less friction, but it's intended.

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1

3h 58m 108 g PLA · 108 g

Wormhole Nexsus variant B

1 plate 2h 58m 76 g PLA

H2S, H2C, A2L, P2S, A1, X2D, H2D, H2D Pro

This variant is for the Wormhole Nexus system, so you can flip the tile either way, as per game rules. Note that I have removed the inner notches after printing the model as they weren't perfectly aligned and I figured I may as well remove them altogether for aesthetic reasons.

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1

2h 58m 76 g PLA · 76 g

As sliced by the designer. Your printer, filament, and settings may change these numbers.

Model Description

Boost Me Boost me so I can make more accessories and parts for this tiered interlocking map system for TI!

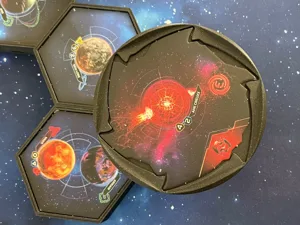

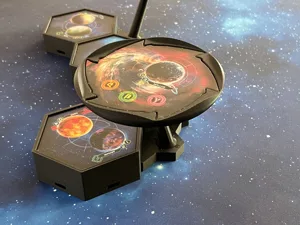

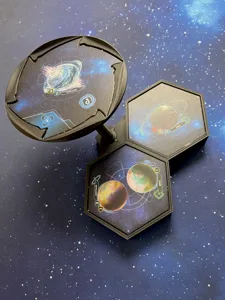

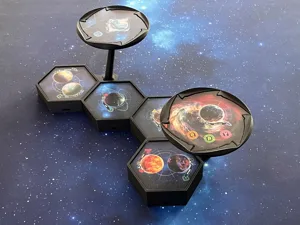

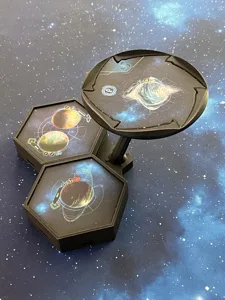

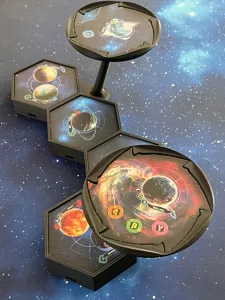

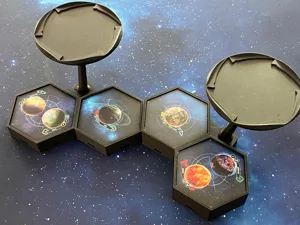

Twilight Imperium tiered galaxy frame off-map system tile holder

This is a holder designed specifically for my TI map frame with tiered interlocking components. This accessory will let you attach the Wormhole Nexus (if you have the Prophecy of Kings expansion) and the Creuss home system as a floating off map tile sitting at about 10cm in height. I plan to add more height variants as print profiles later or upon request. If you have the Thunder's Edge expansion, the Crimson Rebellion home system will fit as well.

The accessory consists of 3 parts:

A base that you can attach using the same OpenLock system to the rest of the frame assembly
A shaft that connects from the base to the off-map system tile
The actual system tile holder, which will appear floating over the main map, but not in a way that protrudes over it, tilted outwards (it's possible to turn it in 4 different positions though).

🏗️ Printing advice

To use this model, please refer to the main model for tips & advice on how to print & connect the pieces together.

🚨 IMPORTANT: enabling supports is strongly advised for the shaft piece only.

You can use Bambu Lab Sparkle filament for a more “galaxy / starry night ” look (especially the black onyx variant). Probably you can use the red one for the Crimson Rebellion, if you'd like, or the purple one for something different than the rest of the base frame.

If you print this with a Bambu Sparkle filament, I have found that 60mm/s 30% worked well in the ironing settings.

🌀 Wormhole Nexus variants

I have added 2 print profiles for the Wormhole Nexus since the standard model has the spiral edges going in one direction only and that wouldn't allow you to flip the tile as per game rules.

Variant A (my favorite) - requires to glue two halves of the tile holder “disc” together: this is very simple, just use some superglue and takes 5 min. This will allow you to flip the whole “disc” and the place the tile accordingly. Since the hole to connect to the shaft goes through, it's a bit more loose, but that's intended.
Variant B - this is like the standard pieces except the tile can move freely inside so it's easy to flip without having to glue pieces, or having to filp the model along with the tile. In fact, you can use this variant also with the Creuss home system or the Crimson rebellion home system if you'd like.
