The Crew: Mission Deep Sea Insert

An insert for the board game "The Crew: Mission Deep Sea" (The Crew 2).

There is one holder for the distress signal token and one holder for the five sonar tokens.

For cards, there are three holders in total. The two small holders are for the 96 task cards, and one of them can be used for tasks that have been completed or skipped. The large holder are for the 40 playing cards (36 color cards, and 4 submarine cards), the 5 reminder cards, and the captain token (which won't be used). The large cards can have up to 100 micron thickness sleeves (tested with Gamegenic Standard American Matte 59x91).

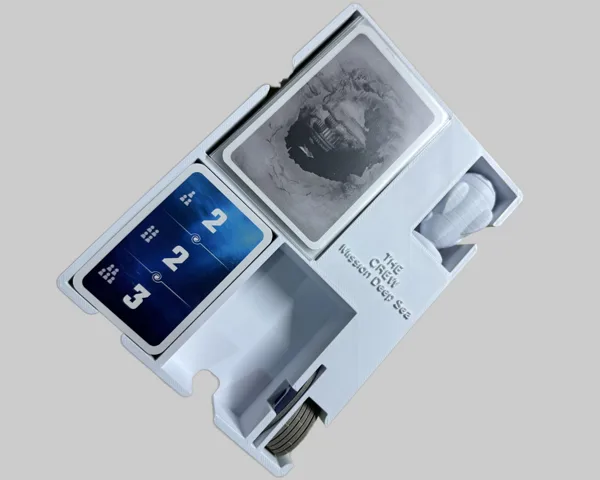

The top right corner is designed to fit Asphalt3D's Twisty Twirl Tub Sub printed in 50% scale, to be used as the captain token. It can only go in one direction (see the cover photo).

Print settings for the insert:

• 0.20mm layer height (variable layer height works fine)

• Wall generator: Arachne (for better embossed characters on the top)

• Sparse infill: 5% is sufficient

Print settings for the commander token (submarine):

• 0.16 mm layer height (variable layer height works better)

• Wall loop: 3

• Sparse infill: 0%

• No support
