Map Aligners for Frosthaven Board and Map Tiles

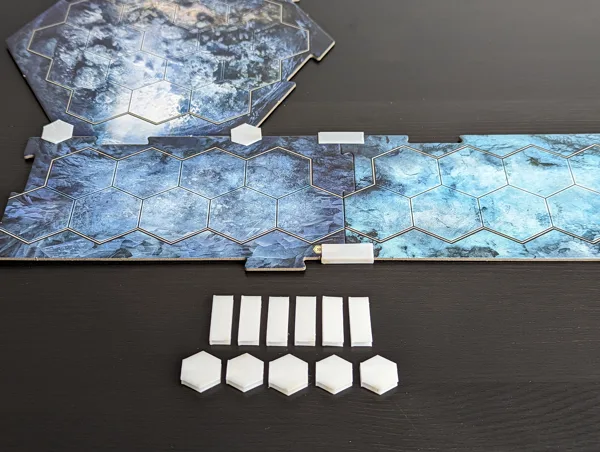

Simple alignment clips for helping to hold the board tiles together, in case you have warped tiles. Works for both Frosthaven dungeon tiles and the Frosthaven campaign map as they have the same thickness (2mm)

Hex aligner version is designed so that one size fits all angle joins - 30, 45, 60, 90 and 120 degree connections between map pieces.

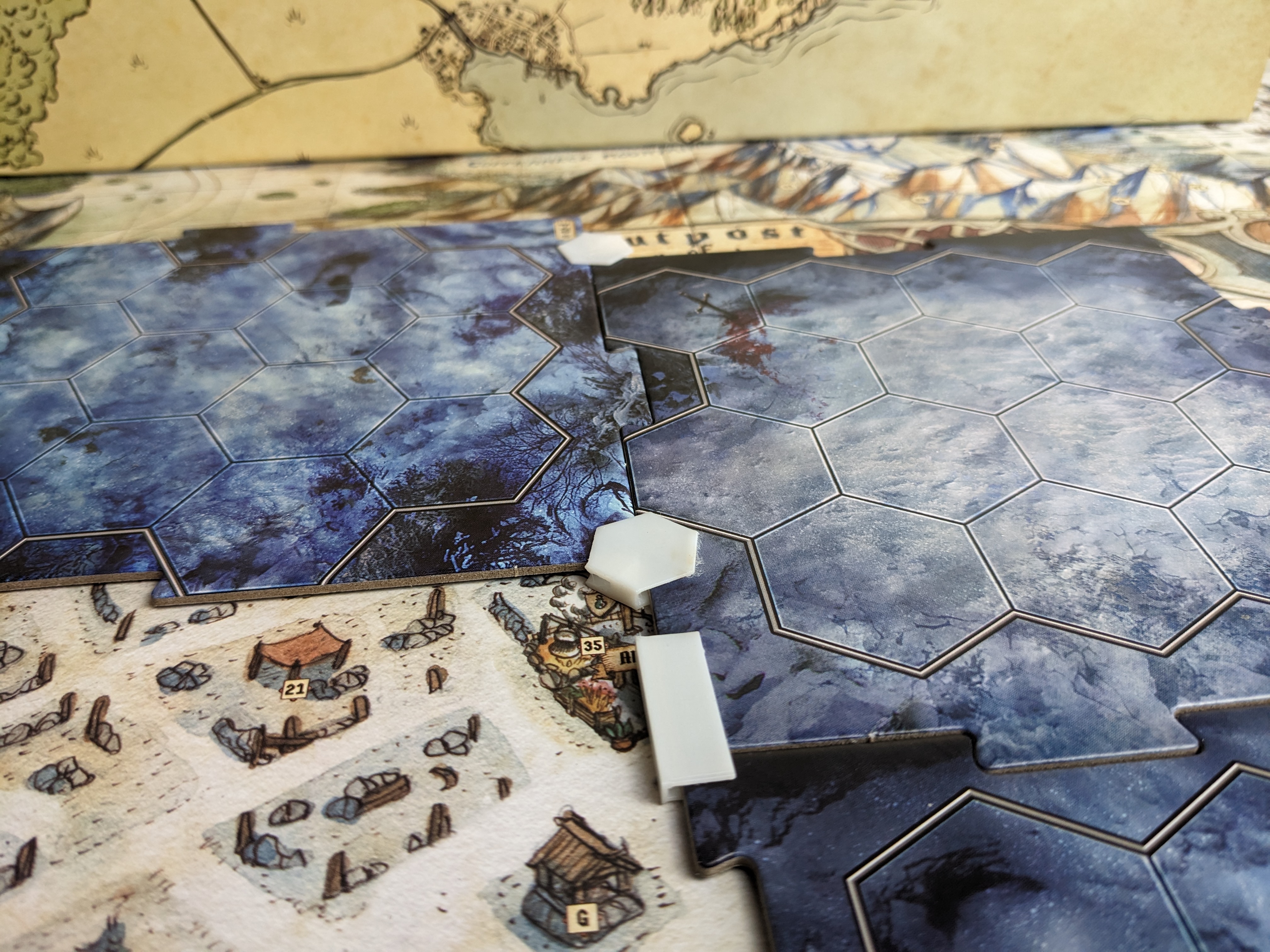

The Linear aligner supports straight connections, and also works well for the campaign map.

Clips are designed to be very thin so that you can still place terrain pieces and minis directly on top with no issue.

Printing Tips

• Print on edge - for Hex piece make sure the filled-in side is pointing downwards towards bed to avoid bridging

• For best results use TPU. I tried with PLA and it turned out to be quite brittle and easily snaps. TPU is great as it is flexible and I am unable to snap them with normal use. PETG may have better results than PLA.

• Photos are using eSun White TPU at 205C and 75C bed temperature printed on a Prusa MK3s.
