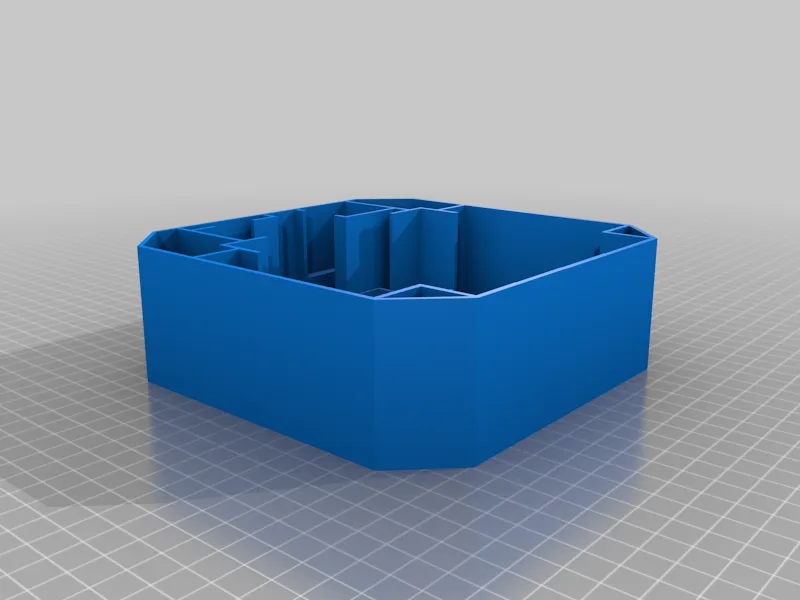

Unsettled Planet Box Insert

An insert for the Unsettled board game Planet Boxes that fits sleeved cards.

Unsettled comes with a number of Planet Boxes and has a pretty good GameTrayz insert for those boxes. Unless you sleeve the cards that come with each box, then the cards (especially the smaller ones) just don't quite fit the original insert; additionally, each box has a different amount of extra tokens and for some boxes, they don't quite fit anywhere, either.

I made this insert to try and alleviate these problems. The insert was designed with minimal need for infill while still maintaining structural integrity.

Print instructions:
Layer height: 0.3mm
Infill: rectilinear 20%

Use and assembly instructions:
1. Put the bottom insert piece in the Planet Box
2. Put the 12 Discovery Token in the token well (top left corner)
3. Put the Anomaly, Distress and Breakthrough cards in each of the 3 small card wells (put the Luna card in with the Breakthrough cards)
4. Put the large planet cards on top
5. Put the top insert piece on top of the bottom insert piece
6. Place manual and any remainder tokens in the top insert piece

The insert has been deliberately designed to leave a bit of a space in the card wells so that future planets which may have a different number of cards can still fit. However, this does mean that excessive shaking or tumbling of the box can cause the small cards to fall out of their wells. To fix this problem, you can optionally print the puck (using same settings as the inserts) and attach it to the bottom of the top insert piece. This will press the large cards down with enough pressure to ensure the small cards stay put.

2021.08.10: Added planet-specific files for each of the 6 current planets. Mostly so that the tokens aren't sliding around in the lid piece.
