Edge of Darkness Guild storage boxes

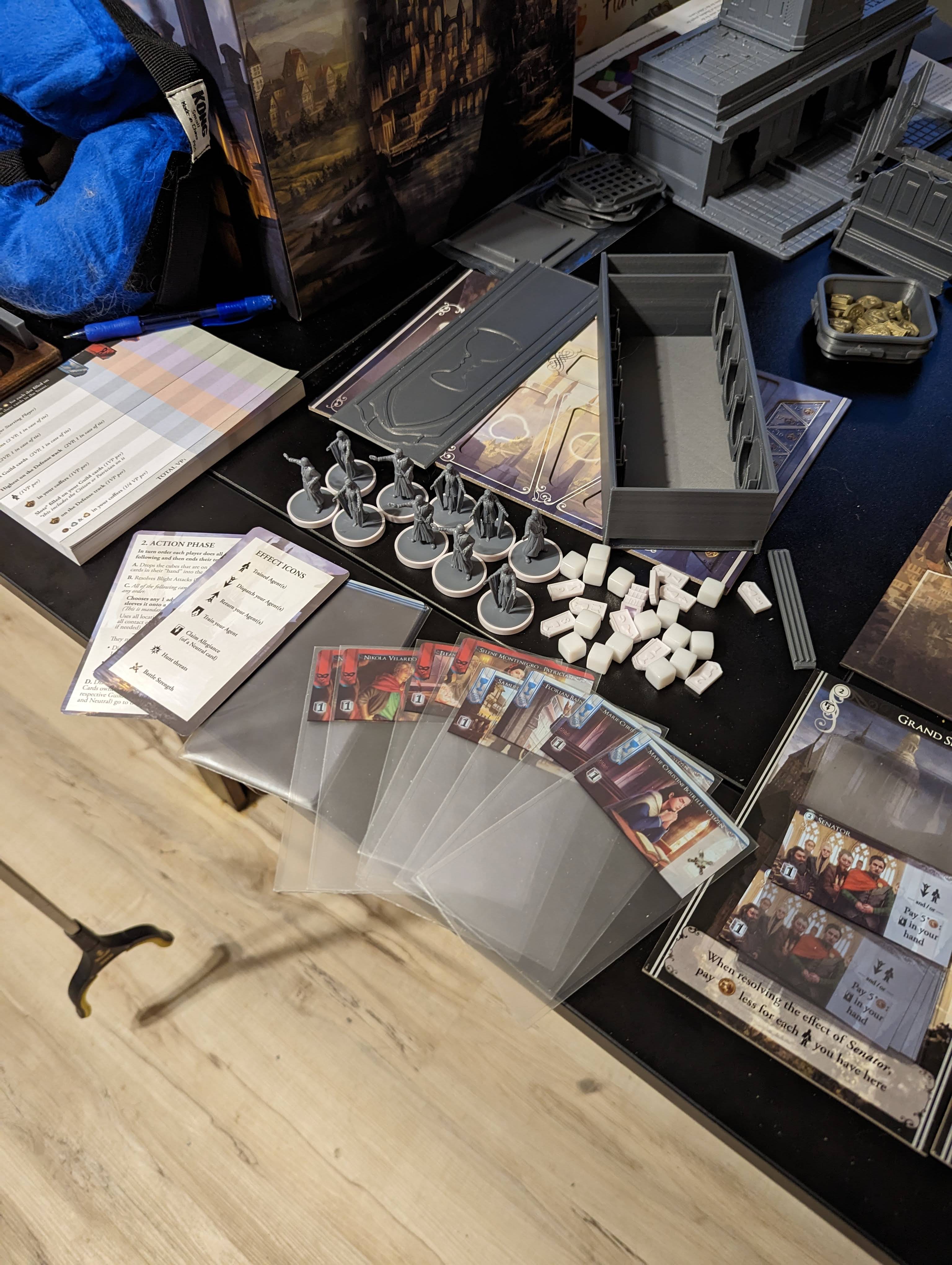

Guild boxes for Edge of Darkness. Fits all the bits, cards, and minis, and two player aids, including the extra starting cards from the guild powers pack expansion.

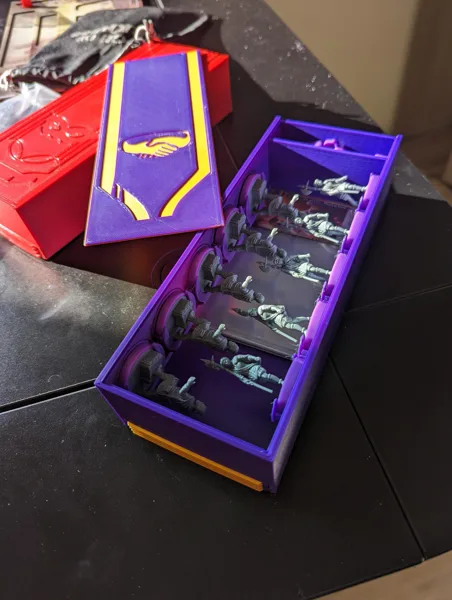

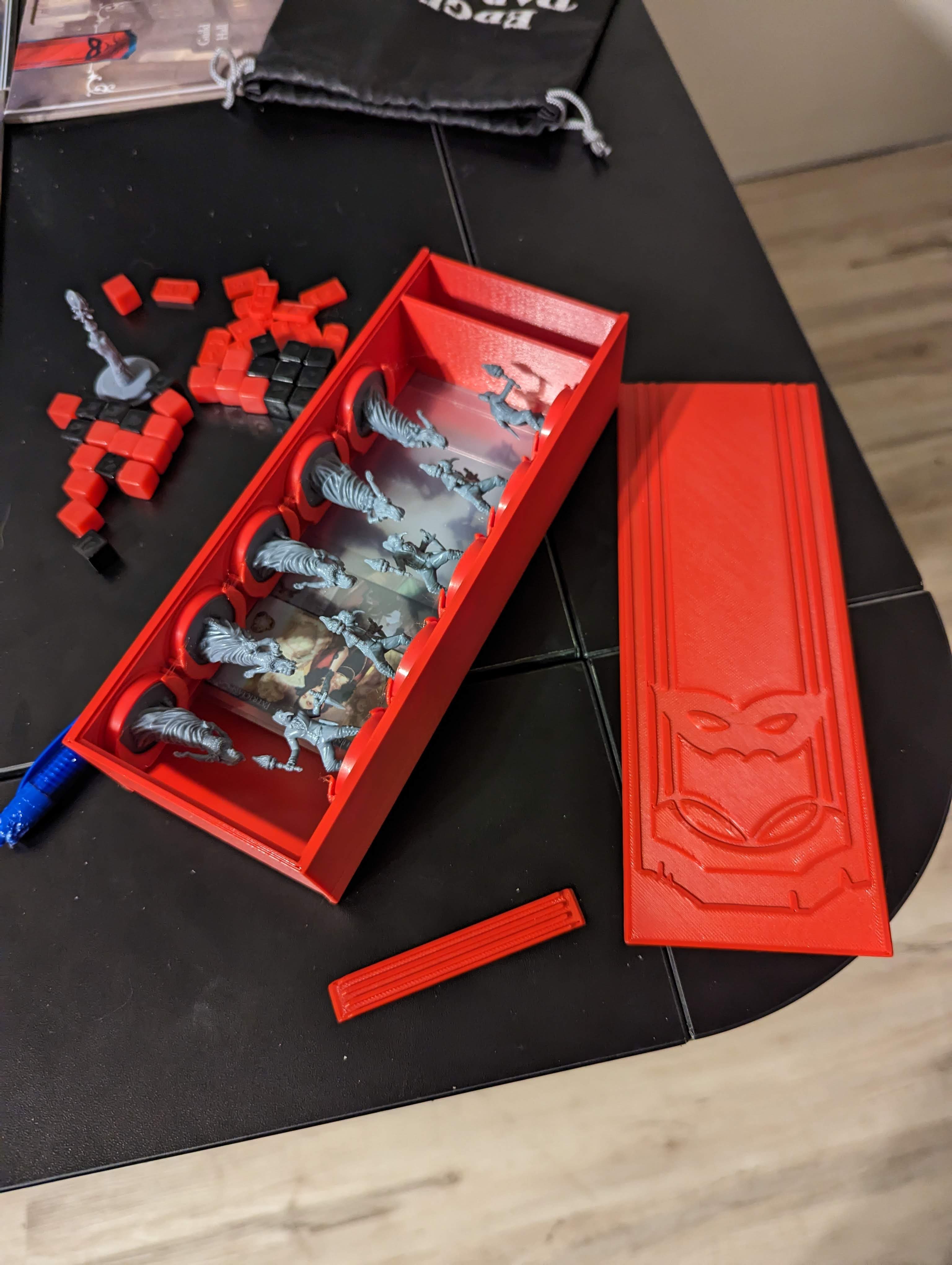

The miniatures all snap into clips that hold them snugly in place even if the box is inverted and shook while open. They are sized to clip in nicely with the colored bases on them as shown in the images. They still work and will stay in place with the lid closed if you want to store them without the bases on, it just is not as nice.

The cards all fit below the minis in a little tray, there is a card slot lid that slides into place from underneath to open/close the slot.

The box is made to print all as one piece, mini clips and all. I would suggest first printing the 'mini clip' file on its own (oriented on it's back so the tips face up, like they are oriented in the box) to make sure your tolerances work out before you commit to printing the entire box. I also included a version of the box called ‘eod box no clips’ that does not have the mini clips, but instead some indentations to help align them. This is in case you want to do the clips and box out of different filaments or colors or whatever reason.

For most people: Just print:

• 4 EoD box onepiece
• Each of the 4 lids
• 4 card slot lids

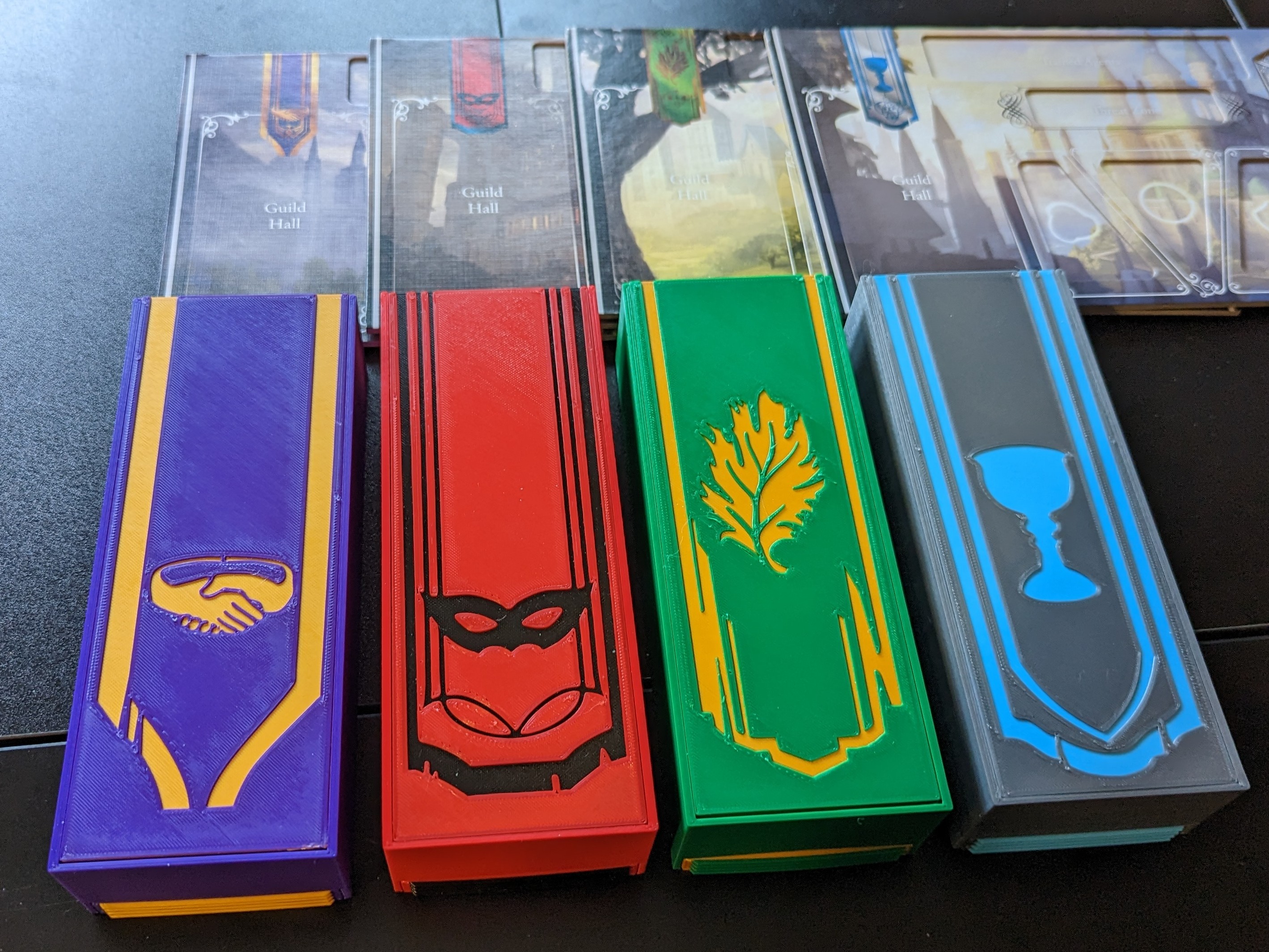

There are 4 top lids for the different guilds included. I am going to go back and redo my lids in two colors, like the Fede Cartel one that is shown in the cover photo, but I am waiting on some filament first. That is also why the gilded leaves are not shown, I am waiting on my green.

The card slot lids are tight tolerance and need to be sanded / filed / trimmed back a little bit to make a nice fit. It is better they print too tight and need to be made a little smaller.

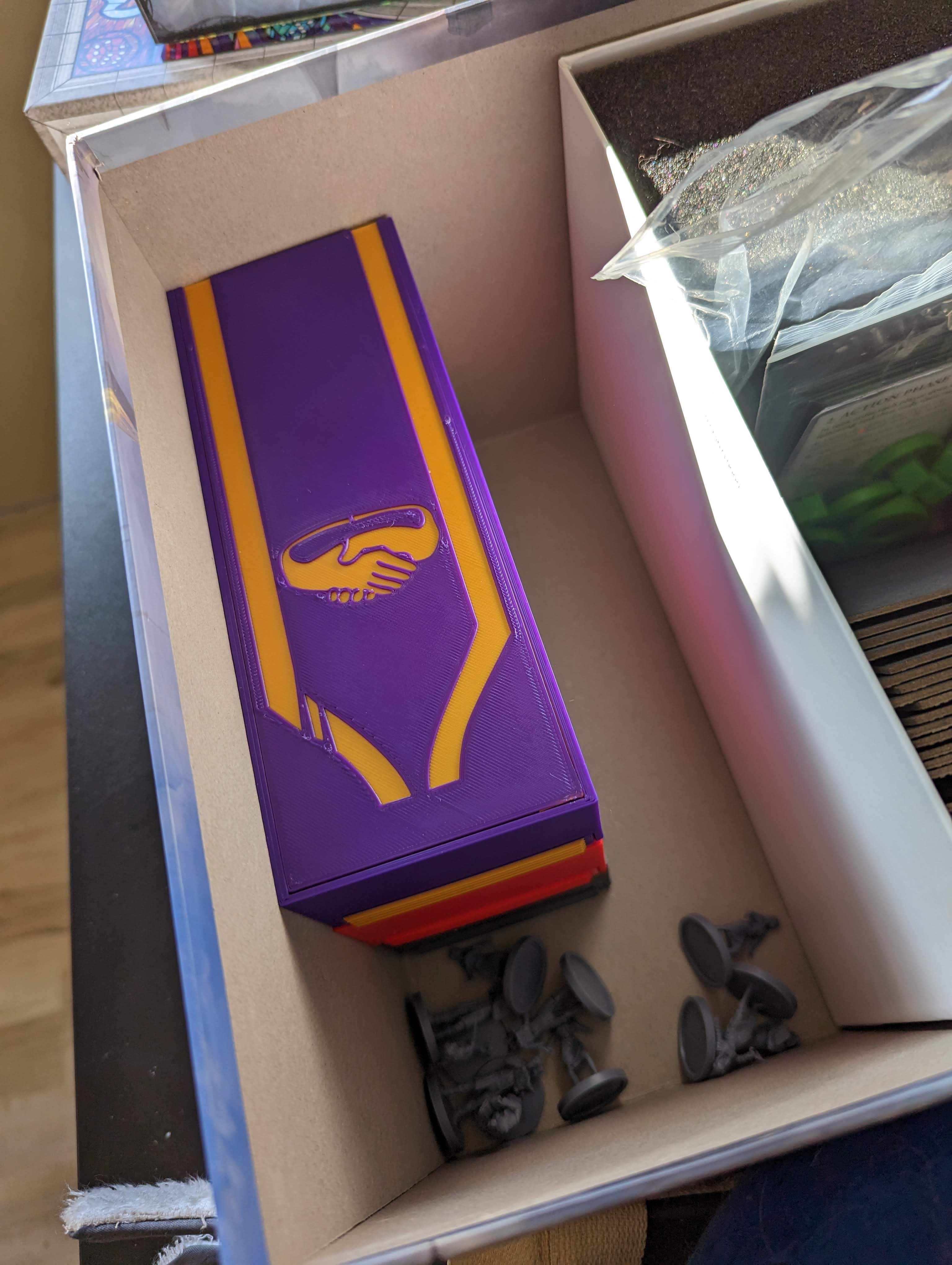

The boxes all fit stacked up in the basegame box for Edge of Darkness. The provided picture does not have Gilded Leaves as I am waiting on filament, but it would fit on top with 1 cm to spare.

Print Settings I used:

• PLA
• 0.3 mm layer height
• 215 C Nozzle 60 C Bed
• 3 perimeters
• 0 infill or lightning infill (infill is fine, it just needlessly slows it down)
