Paleo + Expansion Card Organizer

• Included U: The Caves expansion

• The total length stays the same to fit the box, i.e. the spacing is reduced a little bit

##

The beautiful board game Paleo and the expansions have many cards to sort. This organizer keeps track of the following car sets:

• Paleo (sets 1-5 and A-J)

• Paleo: A New Beginning (additional cards for 3, 4, 5, new card sets: 6, 7, M-R)

• Paleo: The Terror Birds (should be 18 cards, K, estimated, I don't own it)

• Paleo: Initiation rite (card set L)

• Paleo: The Hornets (card set S)

• Paleo: The white whale (card set T)

• Paleo: The Flash of Wit (addition to sets 2 and 5)

• Paleo: The Caves (card set U)

This design is not made for sleeved cards, feel free to remix it!

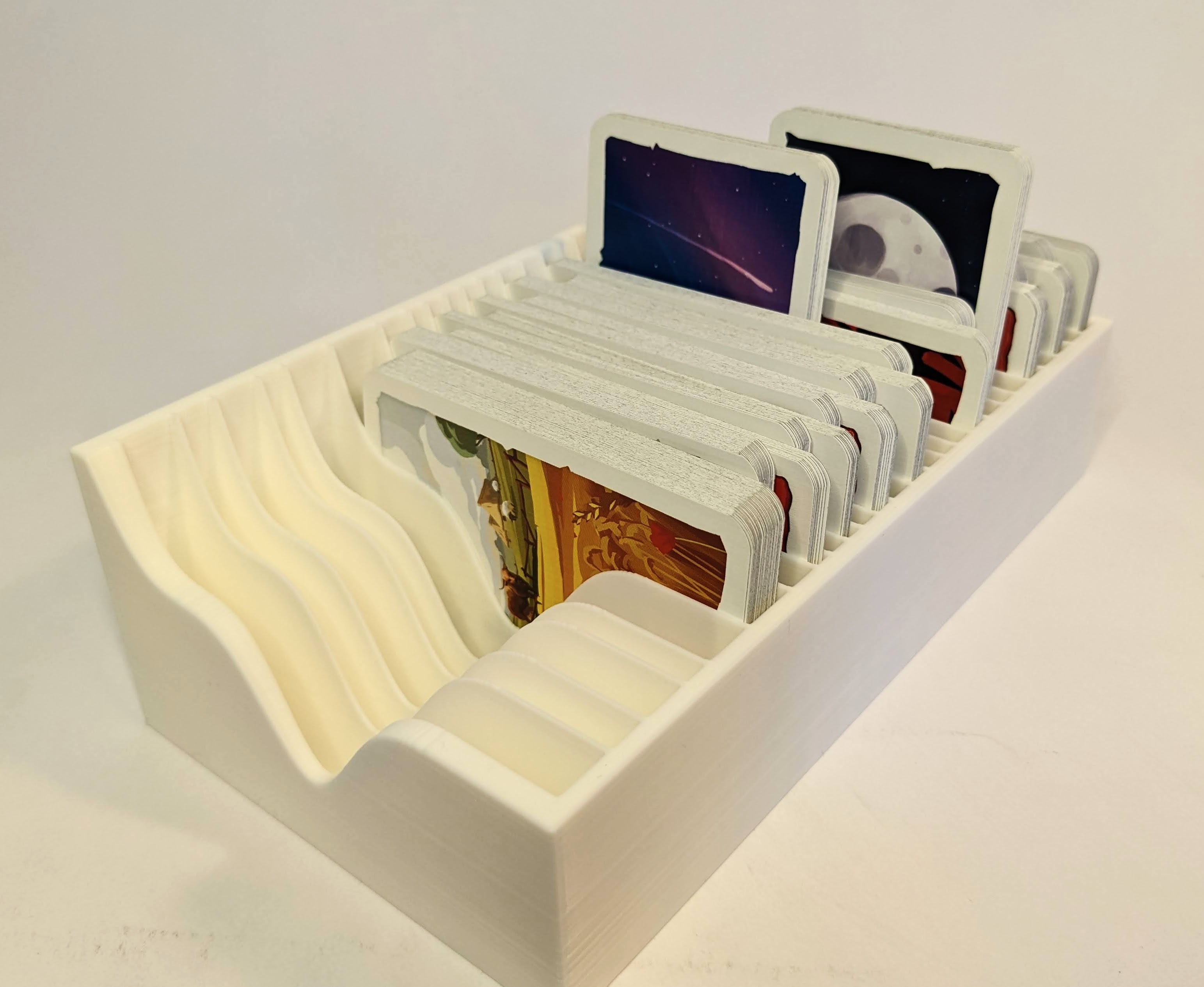

Typical card organizers store the cards very tight and you can't grab the cards in the middle. To avoid this, the slots are alternating up and right, as shown here:

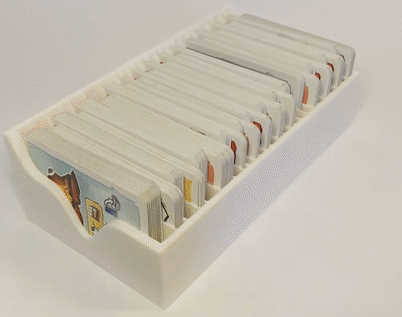

This allows you to either grab the cards on the right side or lift them up, by pushing down the edge. Just watch the gif and you get the idea. ;)

The slots for the card sets are indicated with the corresponding number on the outside.

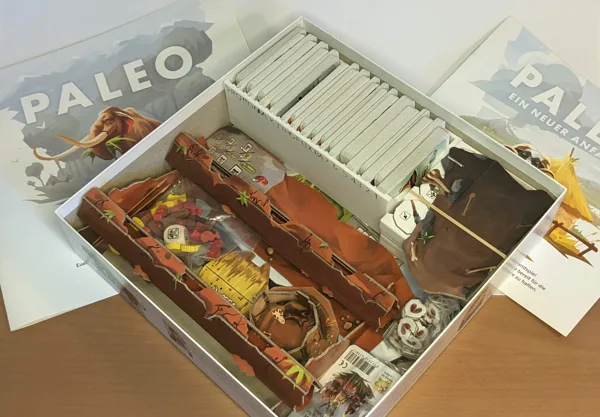

Designed for the main board game box of the german version with 29.4mm x 29.4mm x 6.8mm.

I combine the cards with this token holder:

https://www.printables.com/de/model/504628-paleo-token-holder

Slicing: Draft Mode with 0.24mm layer height. No support needed.

Printing: Printed in white PLA.

Set a color change for the top layers to make the letters visible.

The measured thicknesses of the card sets are attached as a .txt file.

You can remix or download the cad file from onshape:

Link to onshape file V5 with expansion U: The caves

• See file version V4

• Added the white whale expansion!

• Reduced the wall thickness to 0,8 mm

• All slots are completely straight upright

• Added embossed letters for color change
