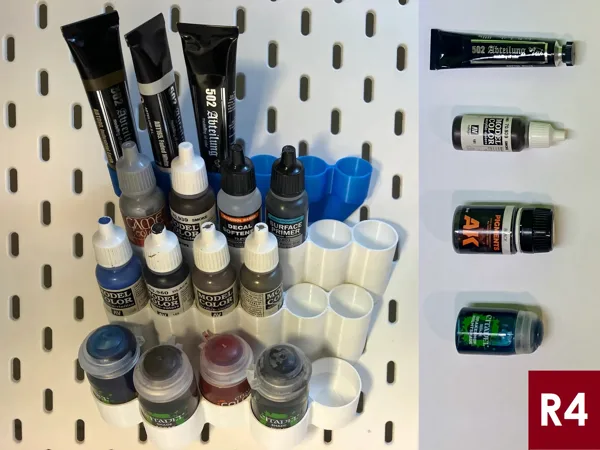

Skadis paint bottle holders

Space efficient Skadis paint bottle holders that create honeycomb layout on the wall and perfectly tessellate.

They are made for four groups of paint bottles:

• Paint dropper bottles as produced by Vallejo, Army Painter, AK, Reaper, etc.

• Citadel paint bottles

• Oilpaints such as Abteilung 502, Tamiya putty etc.

• Large 32-60ml bottles from Vallejo, AK, Mig, Mr.Color, Mr.Hobby

There are 2 versions of each, because the odd and even rows need different hooks for the pegboard to pack them efficiently, so keep this in mind for your layout. The parts themselves are marked to see which is which (odd rows/even rows). Large paint bottles have optional third version with shallower angle, but that one only allows less densely packed square layout.

Print without supports placed holes down.

To prevent blocking of board slots by the upper rows, either start assembling from the bottom rows and continue upwards, or alternatively push all the holders in, before pushing them down starting from the bottom ones.

7-10-2022: Added Revision 2 of dropper bottle holder that prints faster, but it's otherwise functionally identical and compatible. Old one still available.

8-10-2023: Revision 3 - added holder for oilpaint tubes.

15-11-2023: Revision 4 - Large bottle holders

All my work is free and in the public domain when possible. If you find it valuable, you can support me on Ko-fi .

If you are interested in other things for Skadis board from me, have a look at my Skadis collection on Printables.
