Elevated Settlers of Catan Card Trays

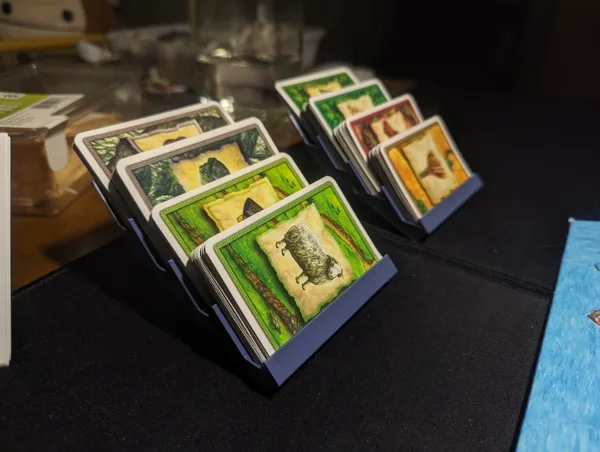

These are elevated card trays for the Settlers of Catan game. They stack the cards at an elevated angle for easy access across the table.

They are made for 54x80mm Catan cards, but can easily be used for other sizes. The tray is 84mm wide.

There are 4, 5 and 6 card variants.
A 5-card tray can hold the resources from the base game.
A 6-card tray holds all of the resource and development cards needed for the base game.

Each can be fitted wth 6x3mm magnets so they can snap together, even different sized trays! Mix and match, and add more later if needed.

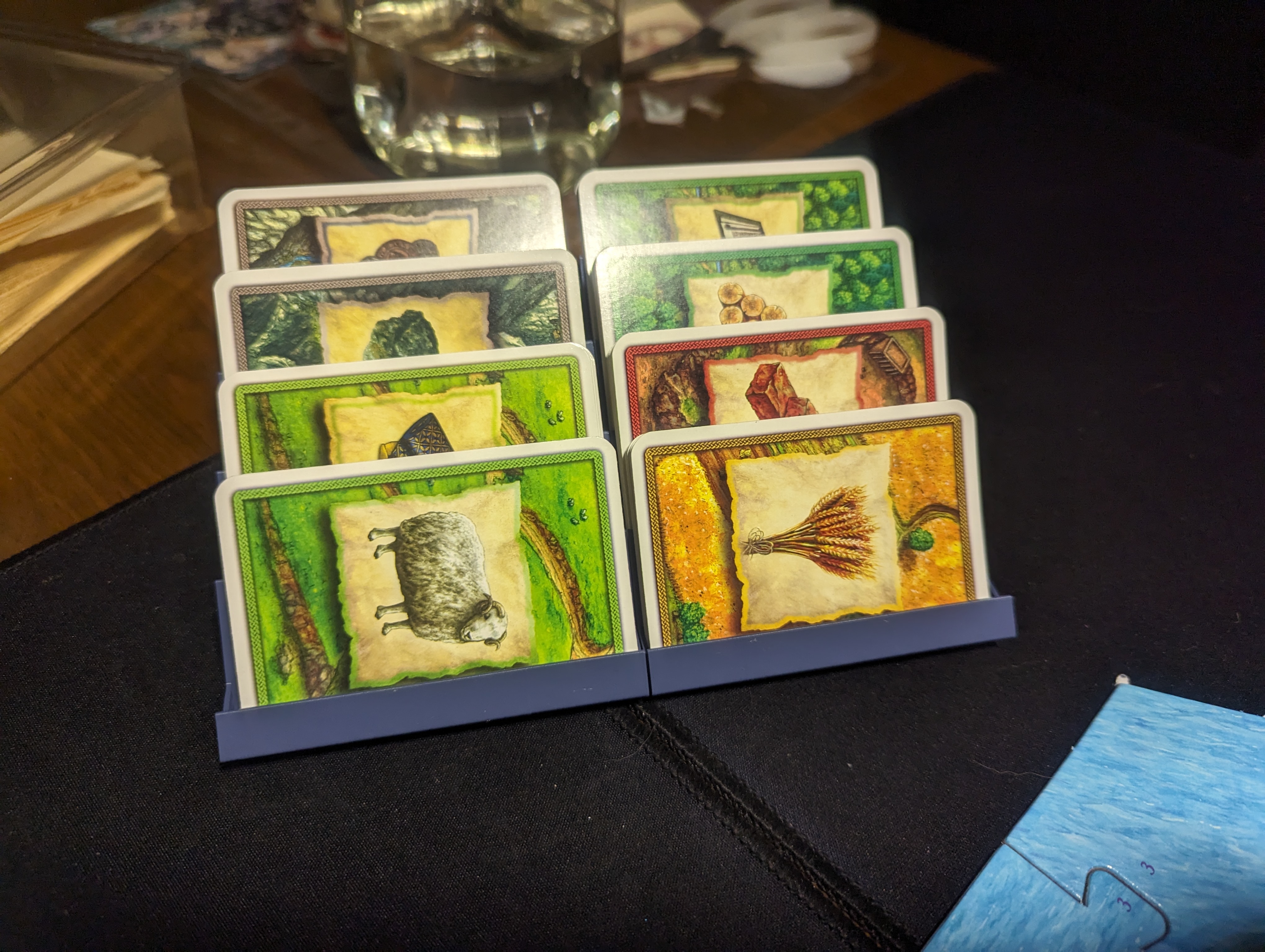

Two 4-card trays can hold all 8 resource and commodity cards of the Cities and Knights expansion.
A 5 and a 6-card tray can hold all 11 different cards from the Cities and Knights expansion.

The trays are large enough to hold the 6-player expanded card sets.

Each tray is only 16mm thick and can easily be disasembled for compact storage.
For example, we have the Cities and Knights and 6-player expansions packed into the base game box, and have plenty of room to fit two or three trays inside.

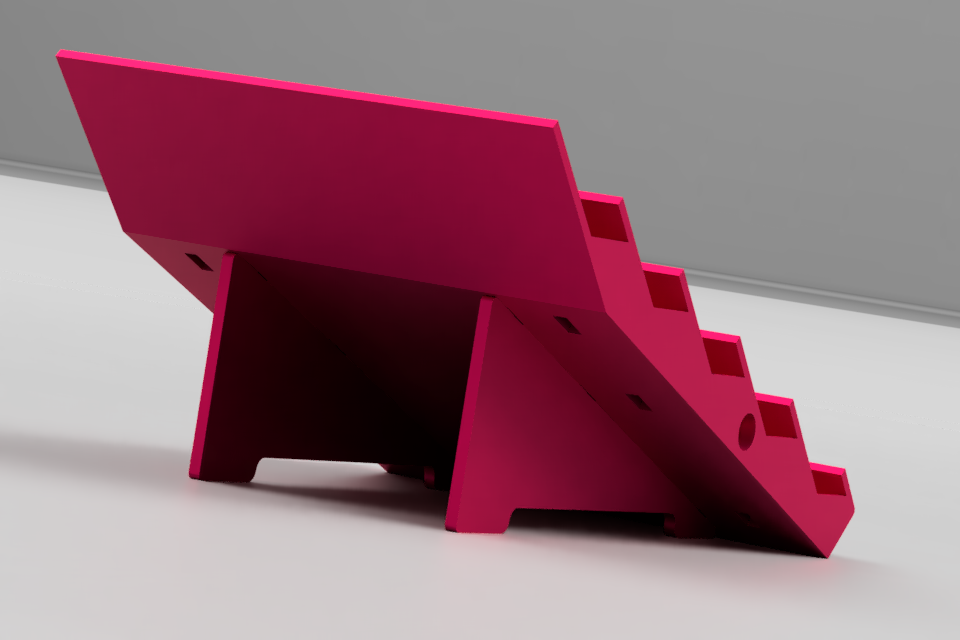

Each tray comes with 2 detachable legs, and there are two positions where they can be attached.

Print the stand and legs on their sides, and as in the pics feel free to use an infill pattern to save plastic.

If you have different card sizes you'd like to use these with, or think you'd want a 3 or 7 card tray, let me know! They don't take much to tweak.

2024-02-08: v2 Update!

I've revised the trays to include 5 and 6-card variants! They are also made to be connected together regardless of size, so you can have a 5 and 6 card tray together for all 11 card types you'd need.

If you had downloaded the previous versions, keep in mind that they may not be compatible with these new ones.
