My Farm Shop Board Game Insert / Organizer

This is an insert / organizer for My Farm Shop. Everything fits tight in the box so you can store the box vertically and it passes the upside-down shake test. It improves setup and teardown times by providing two resource trays that can be placed at each end of the table and used during the game. The transport tiles also have their own tray if you decide to play with the farmer module. The setup trays are separate and can stay in the box if you'd like.

In the card tray, the slots are designed to hold the cards in the following order:

Starting Fields

Level 1 Fields

Level 2 Fields

Level 3 Fields

Level 4 Fields

Level 5 Fields

Level 6 Fields

Yellow Jump Start Cards

Goal Module Cards

Farmer Card

I believe the cards should fit sleeved. The slots are large enought to accommodate the additional height and width that card sleeves add. For the thickness, I measured the actual thickness of the cards, doubled it, and then added 2 mm for each slot. If you sleeve your cards and they fit well (or don't), please let us all know in the comments.

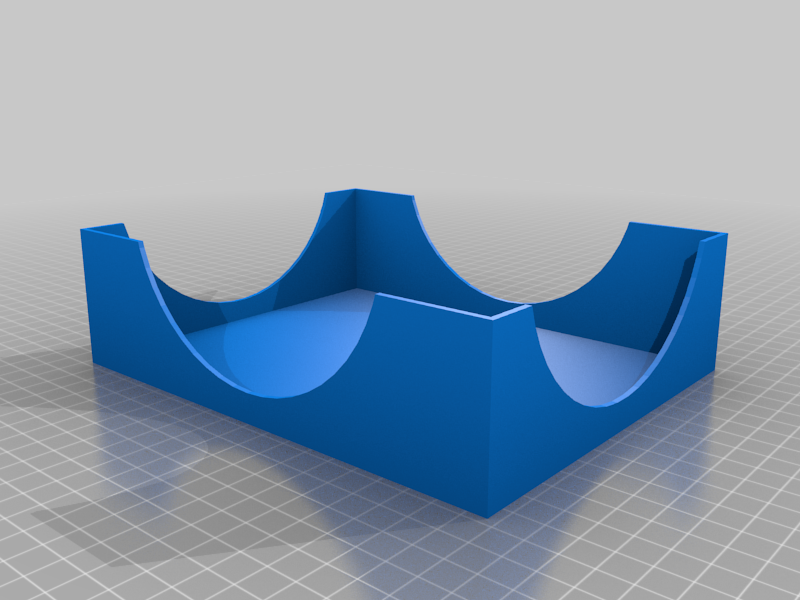

The original cardboard insert didn't fit with my plan, so I replaced it entirely. That is why there are two vertical spacers that help keep everything fitting tight in the box.

To achieve the insert as pictured, print two of "My Farm Shop Resources.stl" and one of everything else. For the two vertical spacers, if you set your infill to honeycomb and use 0 top and bottom layers, you can save on filament and achieve the look in the photos.

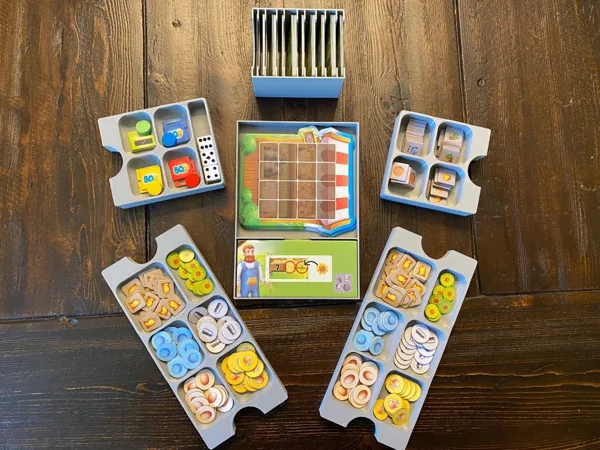

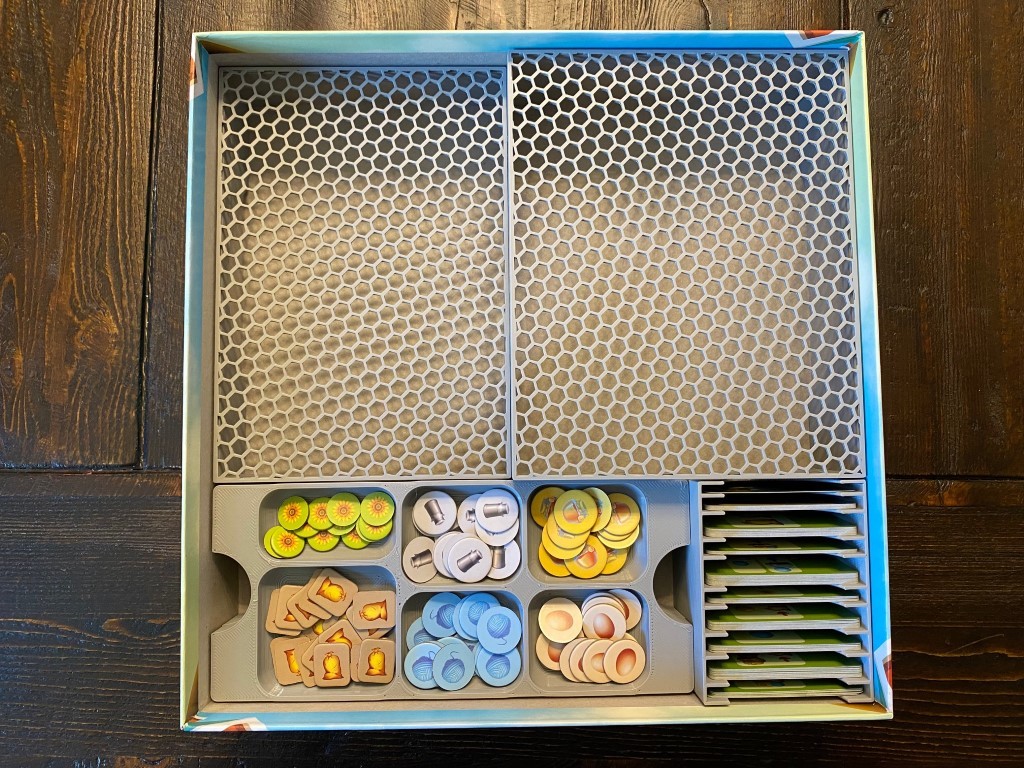

The photos show how to layer everything in the box. The central board, player boards, and two manuals (English and German) go on top. The box closes flush with no lid lift.

I have included the original OpenSCAD files in case someone wants to improve on this design.
