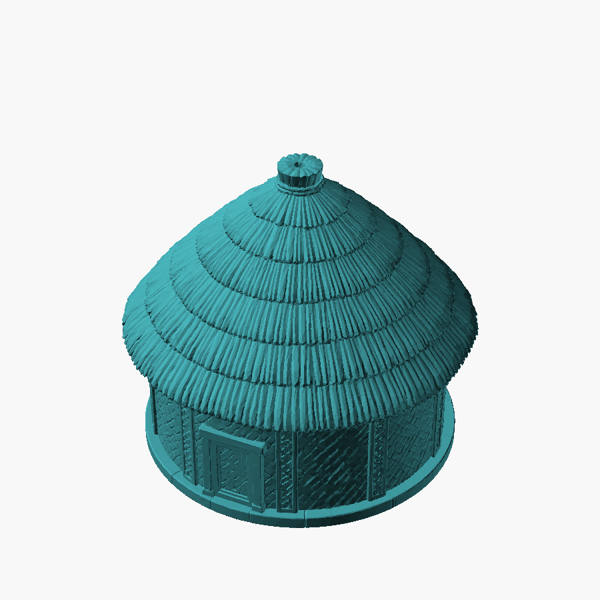

Dahan — Spirit Island Tribal Hut Token (2-Colour, AMS Split-to-Parts)

Replacement tokens for the dahan (Pacific-Islander villagers) in

[Spirit Island](https://boardgamegeek.com/boardgame/162886/spirit-island).

Stylised as miniature tribal huts so each one reads at a glance as a

village, not a wooden cube.

Generated in Meshy from a DALL·E reference (chibi Pacific-Islander

tribal hut with conical thatched roof + woven body + low-relief door),

then sliced into a roof half and a body half for 2-colour printing on

a Bambu AMS.

•

* dahan_combined.stl ** (~27 MB) — 2 named solids dahan_roof +

•

dahan_body ) in one ASCII STL. Bambu workflow: **Import →

•

right-click → Split to Parts** → assign one filament per part.

•

Coordinates locked, no manual alignment.

•

- * dahan_body.stl ** (~1.9 MB) — woven body half only, binary STL.

•

Use this for a single-colour print, or for AMS users who want to

•

assign filaments per-file instead of via Split-to-Parts.

•

- * dahan_roof.stl ** (~2.9 MB) — conical thatched roof half only,

•

binary STL. Mates with the body at z = 8.25 mm.

•

Overall: Ø22 mm × 20 mm tall

•

- Roof / body seam at z ≈ 8.25 mm (vertex-histogram peak — the eave

•

where roof meets wall)

•

- Each hut: ~6 g PLA at standard settings

•

Orientation: flat on bed — the token sits upright with the

•

body's flat bottom on the build plate.

•

- Supports: none.

•

- Layers: 0.2 mm.

•

- Walls: 3.

•

- Infill: 15 %.

•

- Filament: ~6 g per hut.

•

- Print time: ~25 min per hut.

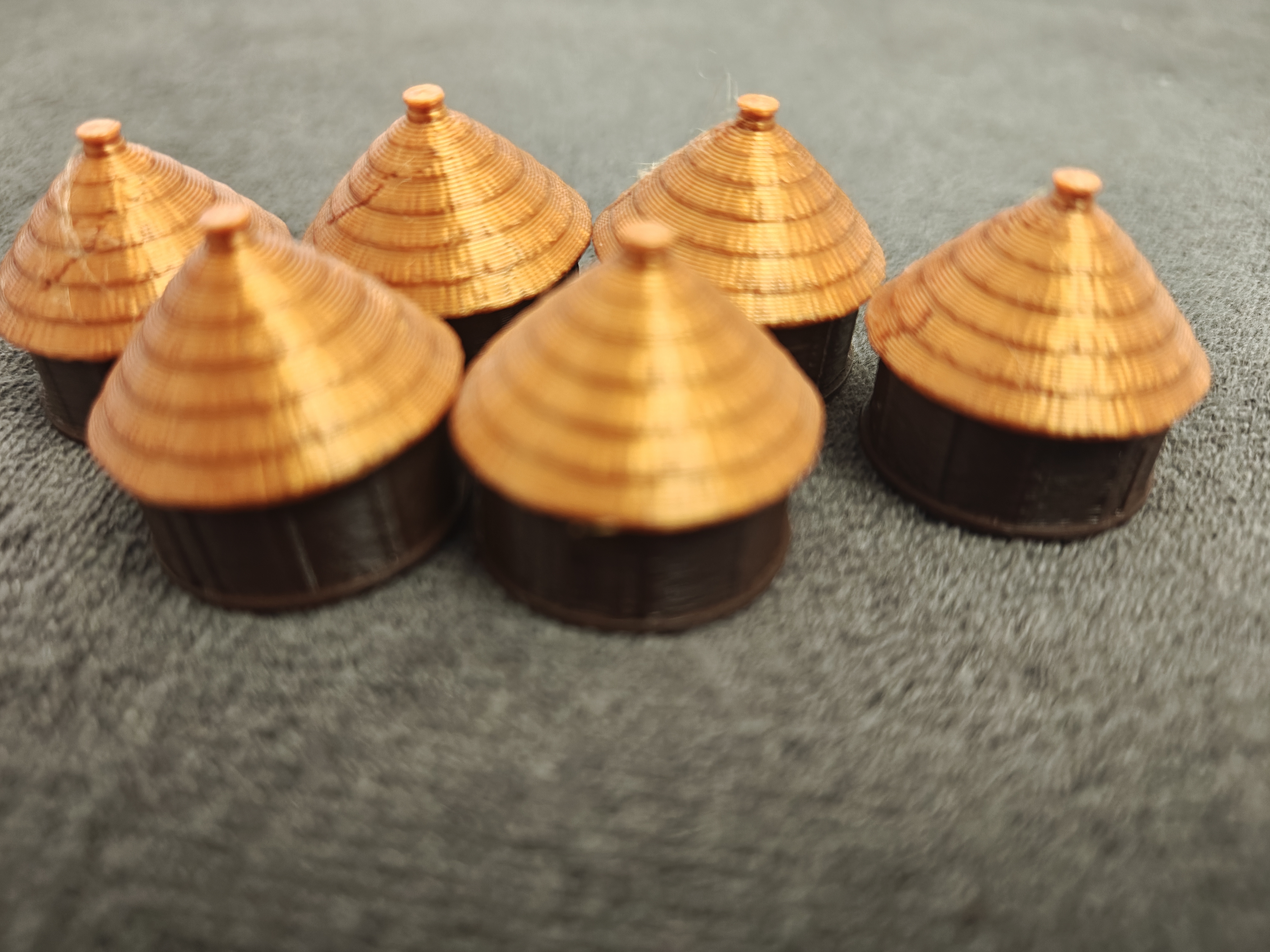

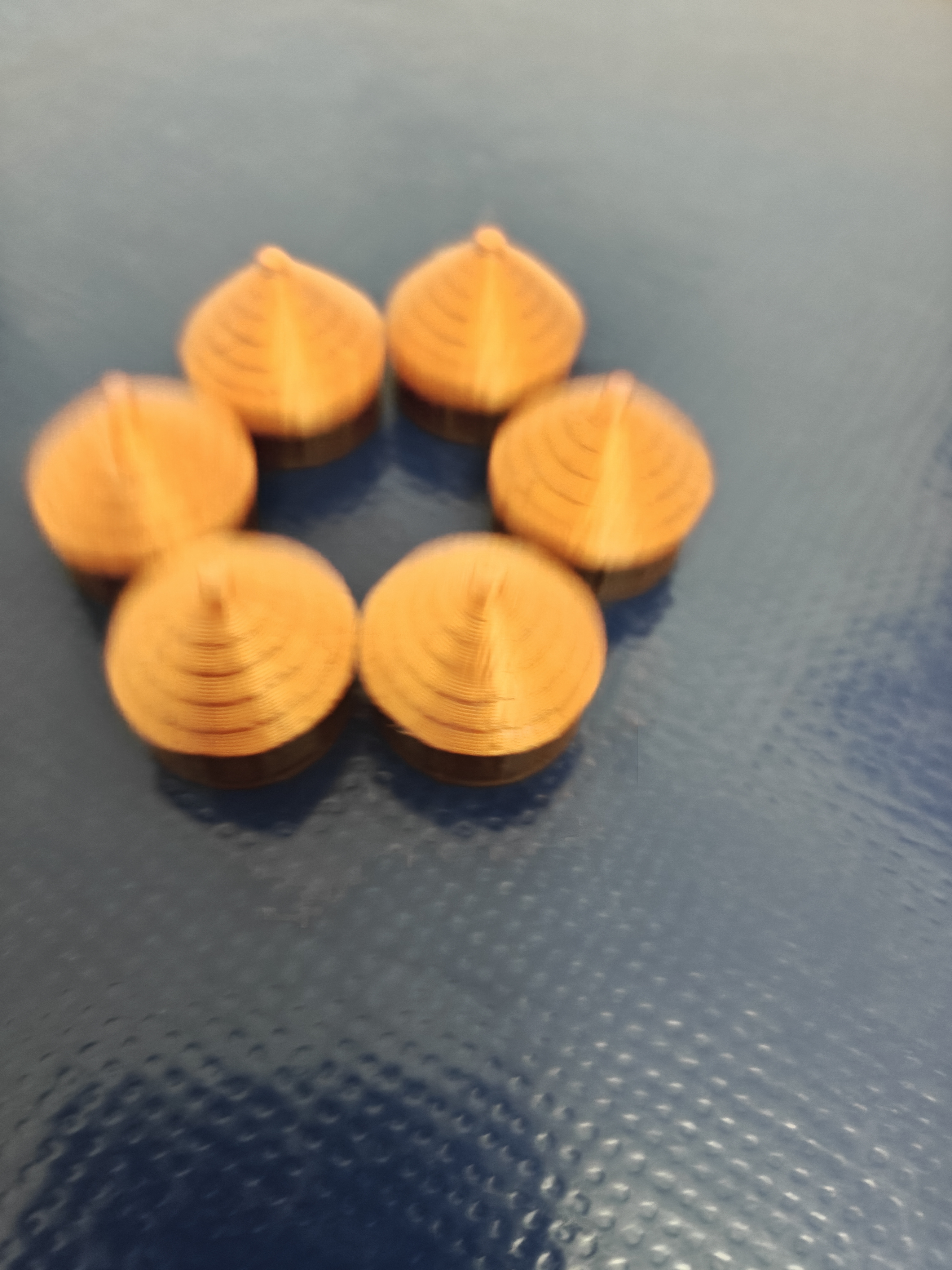

The bundle ships 6 huts on the print bed (one for every dahan slot on

the standard Spirit Island board / per-spirit setup). Tile them in

Bambu Studio if you want fewer / more.

•

Import dahan_combined.stl .

•

2. Right-click the model → Split to Parts . You will see two parts

•

named dahan_roof and dahan_body .

•

3. Assign filament 1 (e.g. thatch tan ) to dahan_roof ,

•

filament 2 (e.g. wall brown ) to dahan_body .

•

4. Slice + print.

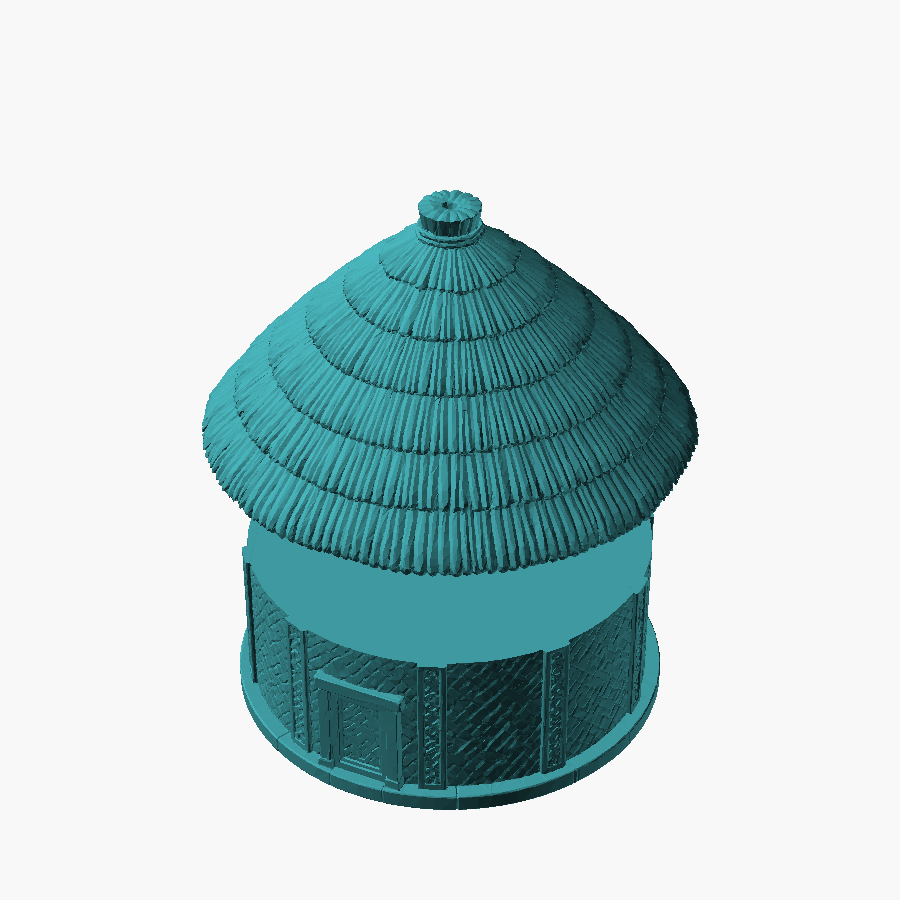

The seam at z = 8.25 mm is the natural eave line — the colour change

lands exactly where the wall meets the overhang of the roof, so it

reads as architecture, not as a slicer artefact.

•

No AMS? Print dahan_body.stl and dahan_roof.stl separately,

•

then glue them at the seam. Or just print the body for a

•

silhouette-only token.

•

- Single-colour MMU users: drop dahan_combined.stl in as a

•

multi-material model directly without Split-to-Parts.

•

- Backup: the combined ASCII is ~5× larger than the binary halves

•

— if your slicer balks at the size, the halves are the same mesh in

•

a leaner format.

•

Designed for Spirit Island (any edition).

•

- The token's footprint fits the dahan slots on the board with margin

•

to spare; multiple huts cluster cleanly inside a single land.

•

- Pairs nicely with my other Spirit Island prints (beast / fist / paw

•

/ mountain / wilds tokens + energy_counter + colonizer) — all in the

•

same chibi visual language.

•

DALL·E for a flat reference image of a chibi tribal hut.

•

2. Meshy image-to-3D, sculpting the figurine to ~100 MB raw STL.

•

3. trimesh to repair the mesh (manifold), find the eave seam via

•

vertex z-histogram, and intersections.slice_mesh_plane(cap=True)

•

to split into roof + body halves.

•

4. Quadric decimation on each half to ship-friendly poly counts.

•

5. sed to rename each half's solid header solid dahan_roof /

•

solid dahan_body ) and concatenate the two ASCII files into the

•

final combined STL. Coordinates preserved exactly.

The raw 100 MB Meshy STL is gitignored; the decimated halves +

combined ASCII are what ships here.
