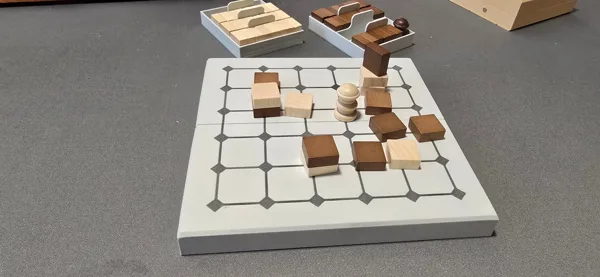

The Journeymini: an Even More Travel-friendly Tak Board with Piece Trays
Please support mtalexander by Liking/Boosting their Print on Thingiverse.
Hey! Thanks for checking out my design.
This is a smaller iteration on my Journeyman travel Tak board, designed to be even more travel-friendly, support up to 6x6 games, and house a full set of 30 Tavern Pieces + capstone per player. As long as your pieces are no larger than 20x20x9.5mm, they should work!
A few printing & construction notes:
Print 2 of each: Half, Inlay (if including), and Piece Tray.
Requires 14 6mm x 3mm circular magnets. I add glue (e6000, clear gorilla glue, etc.) to the hole and shove each magnet in with a little encouragement from a set of pliers.
I've printed this in both PLA and PETG, but definitely recommend PETG if you have it, for the sake of outdoor play / avoiding deformation from sunlight & heat.
You can include or exclude the inlay, but if you choose to include you can either print it with AMS, lining the pieces up with the 'assemble' feature in Bambu Studio (YMMV with other slicers) or print separately and glue the inlay in (I've had worse results with this method, would just recommend going without otherwise).
This should print fine without supports, 'top' of the board facing the print bed. I use 10% infill, but if you want a heftier feeling board feel free to up that!
Let me know if you have any questions, and enjoy!
