Guards of Atlantis II - Full insert, deck box style

This is an insert for the phenomenal, Guards of Atlantis II. The insert components are designed to fit inside deck box carriers, the kind you’d typically see used for collectible card games ( example ). This makes the game easy to carry and quick to set up, and later tear down.

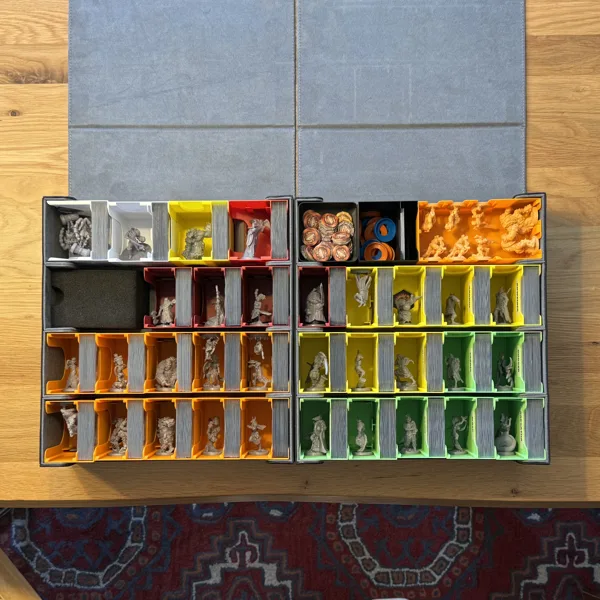

The insert consists of a handful of trays for core box components, and then a separate container for each hero that holds all of the components for that hero (figure + card deck + tokens).

•

Space for sleeving all cards.

•

No magnets.

•

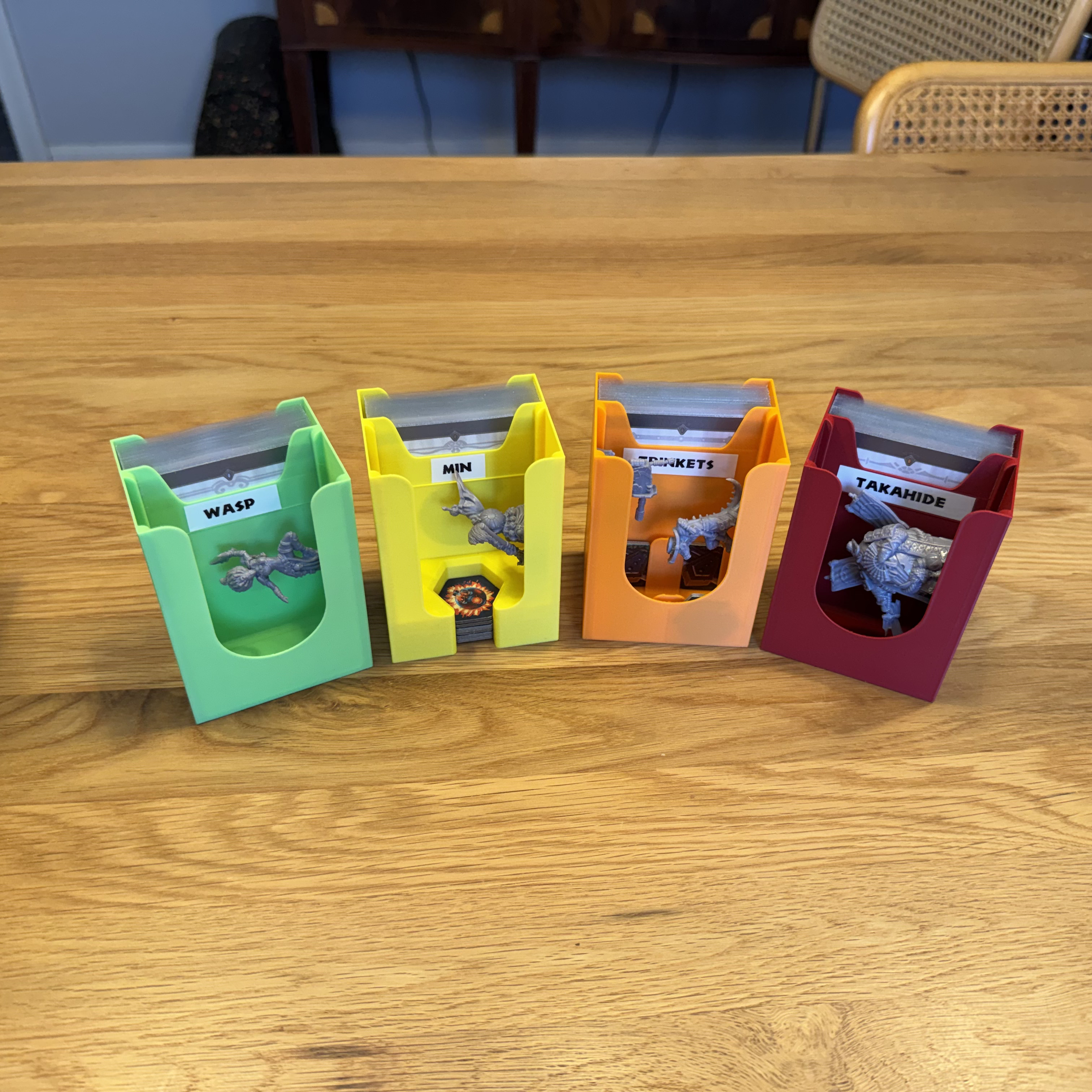

Each hero tray can hold 1 or 2 figures.

•

Razzle has a special tray for her 4 figures (coming soon).

•

Gydion has a special tray for his spell deck (coming soon).

Q: Does this insert have room for sleeves?
A: Yup, you bet. My set is double-sleeved, KMC Perfects inside Dragon Shield Mattes.

Q: Will this insert fit inside the original boxes, either the larger 1st printing box or the smaller 2nd printing box?
A: Short answer: no, not really. This design isn’t meant to go in the original boxes, it’s meant for deck box carriers, the kind that players might carry collectible card games in. If you do want a design intended for the original boxes, consider my previous design .

Q: Can I store this insert on its side, or carry it on its side in a back?
A: No. Figures and tokens are held in place by gravity, so on its side you run the risk of things falling out.

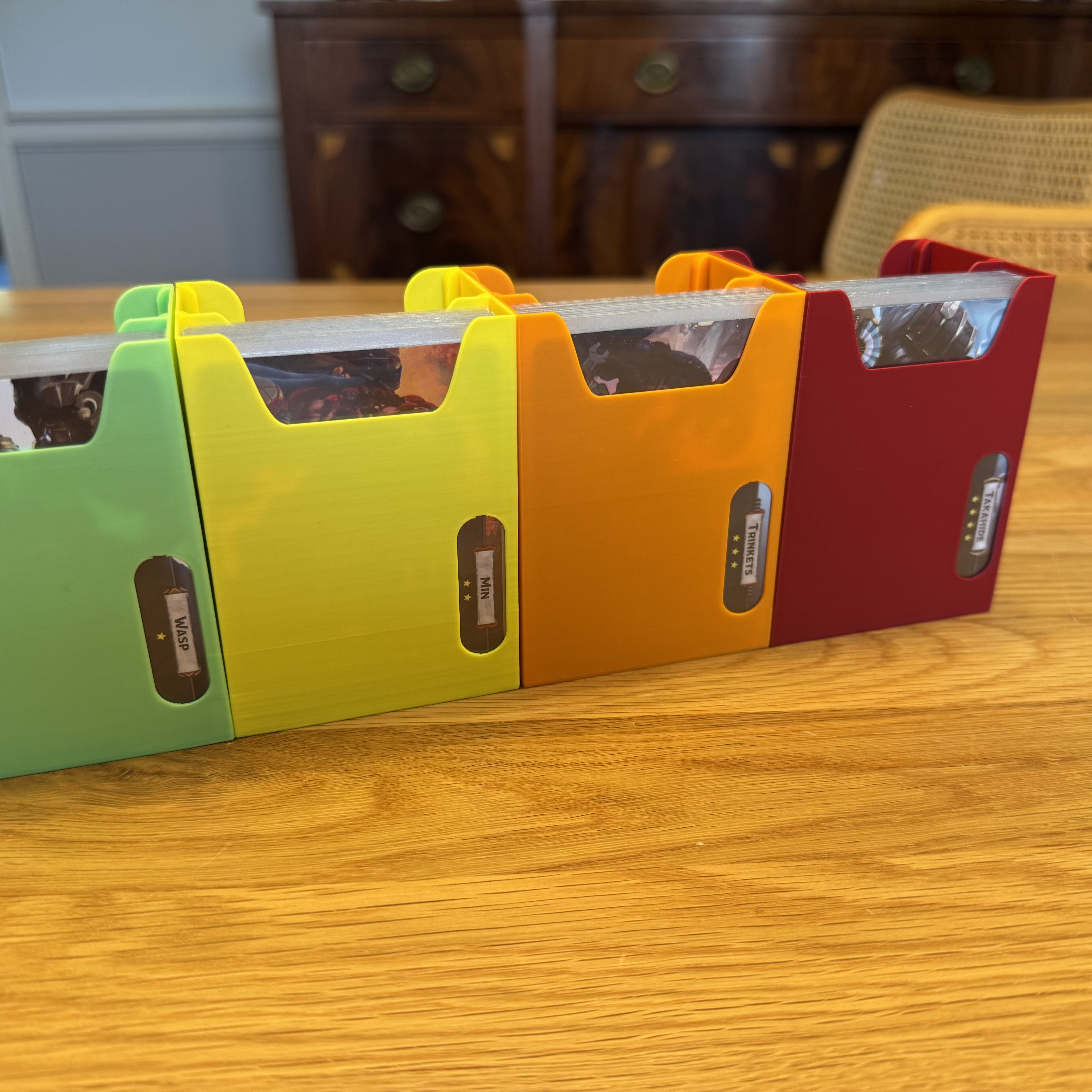

Q: What size labels can fit on the “label shelf” on the hero trays?
A: Up to 12mm tall. I used a basic Brother label maker that comes with 12mm label tape, but that tape also comes in sizes as short as 3.5mm.

Q: Will this design fit the next wave of heroes?
A: It can, because this design is easily expandable into more, or larger, deck box carriers. I fit my 32 heroes into two 4-row carriers, but Amazon also has 5-row carriers.

Q: How much does this storage solution cost?
A: It varies, but let me share a breakdown of the costs for my own setup.

•

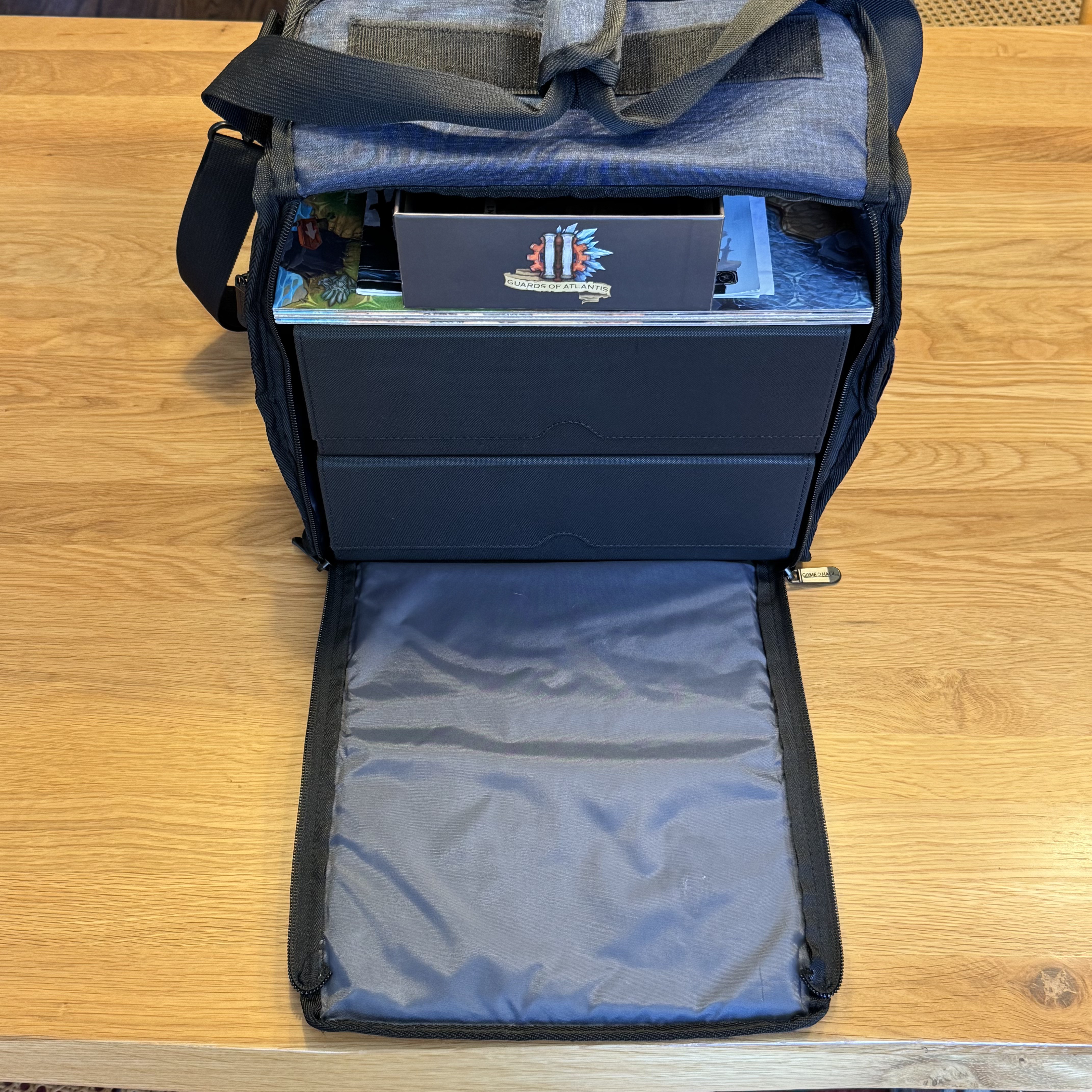

The bag - Game Haul Game Night bag $50
NOTE: For a cheaper option, try their tote bag for $15. You don’t really need a padded bag since the components are in padded deck boxes.

•

The deck carriers - UAONO 4 row box ~$30 (2x) NOTE: I’ve seen similar options on Amazon on sale for as low as $18

•

The filament - I think I used a bit less than 1.5kg of PLA. Cost can vary quite a bit based on filament and printer settings.

•

Labels, sleeves (both optional of course)

Print everything below, the number of times specified.

•

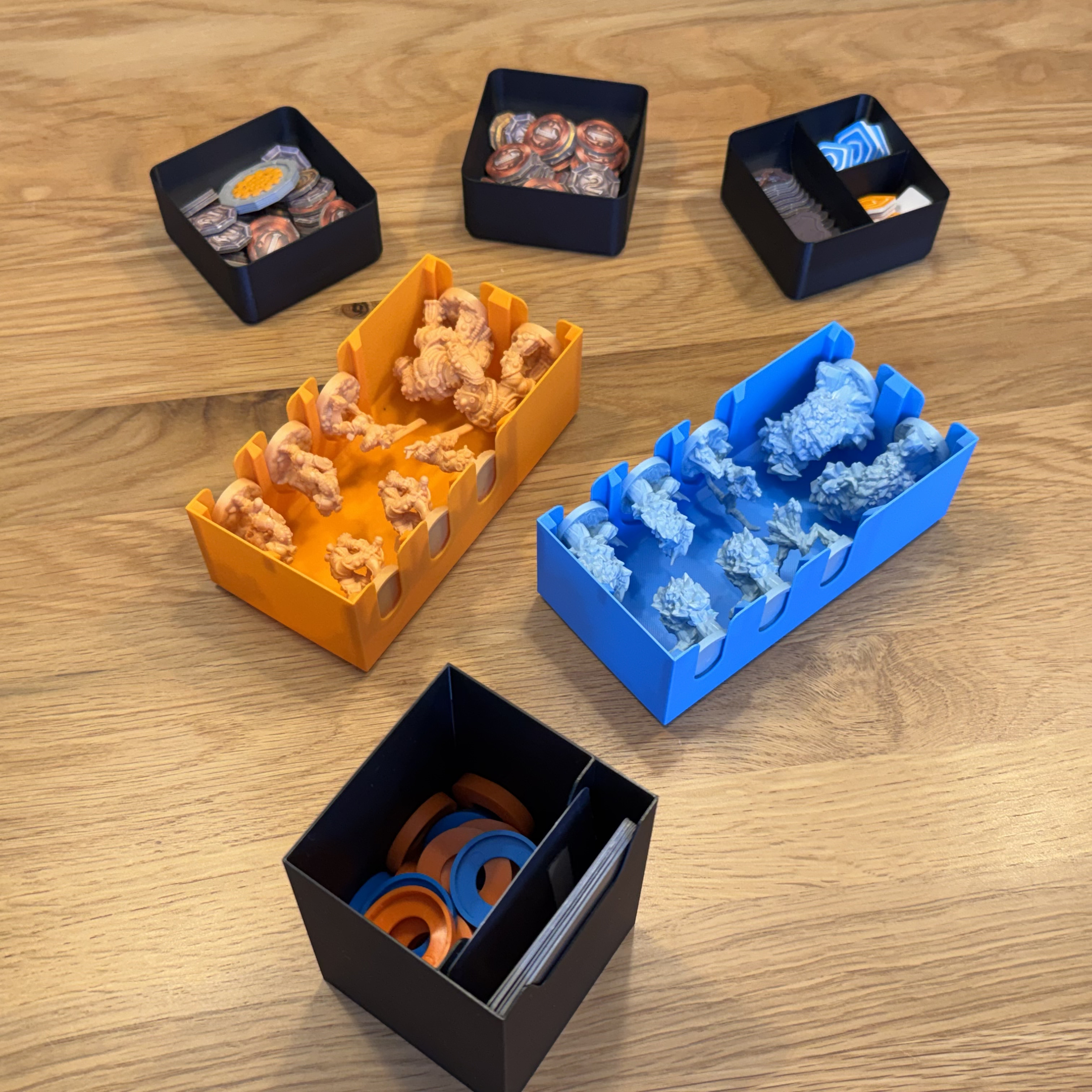

2x Minion tray

•

2x Token tray

•

Token tray, sectioned

•

Base rings + level cards + hero cards

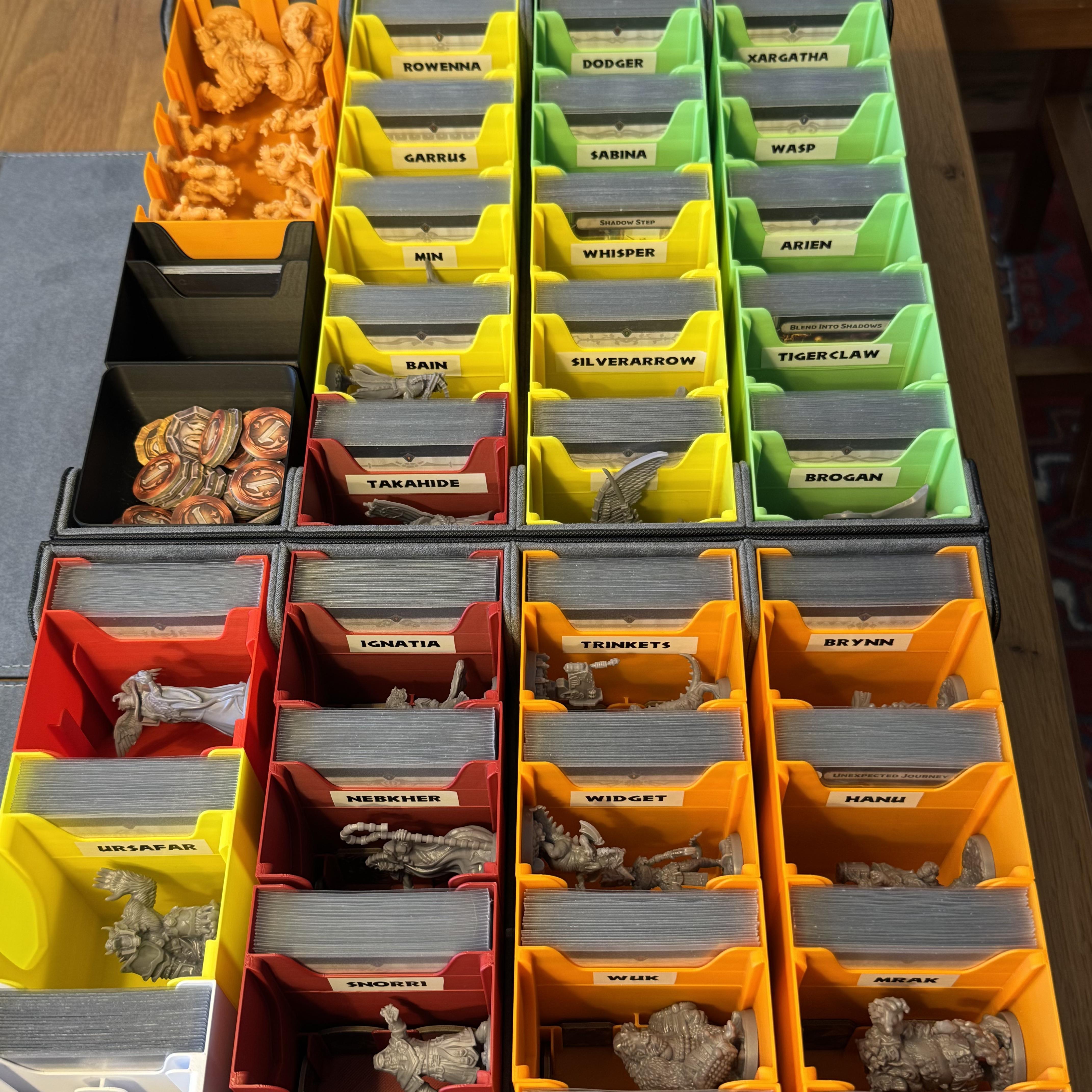

Reference this table to know which tray to print for each hero.

HERO

FILE

Arien

default

Brogan

default

Tigerclaw

tokens, hex

Wasp

default

Sabina

default

Xargatha

default

Dodger

default

Rowenna

default

Garrus

default

Bain

tokens, hex

Whisper

default

Misa

default

Ursafar

default, wide

Silverarrow

default

Min

tokens, hex

Mrak

tokens, hex

Cutter

default

Trinkets

tokens, hex

Tali

tokens, hex

Swift

default

Wuk

tokens, hex

Hanu

default

Brynn

default

Mortimer

tokens, hex

Widget

default

Snorri

tokens, circle

Razzle

razzle (TBD)

Gydion

gydion (TBD)

Nebkher

tokens, hex

Ignatia

tokens, hex

Takahide

default

Emmitt

tokens, wide

•

.2mm layer height (though most heights should be fine)

•

2 wall loops

•

3 top shell layers

•

0mm top shell thickness

•

3 bottom shell layers

•

0mm bottom shell thickness

•

15% sparse infill density

•

Use lightning sparse infill pattern. Don't worry. It's strong enough and will save you a lot of filament.

•

Consider printing the hero trays in different colors, by complexity.
