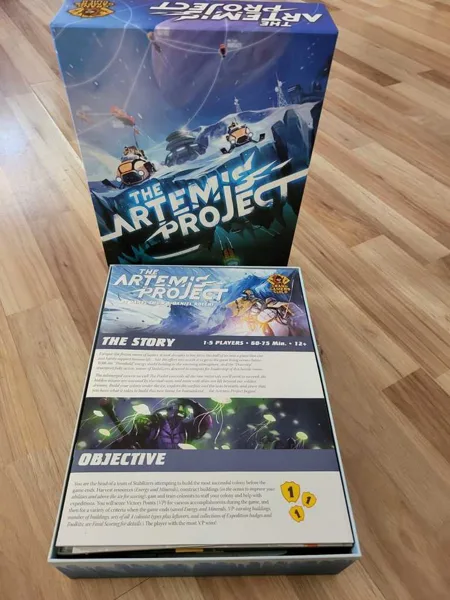

The Artemis Project Insert

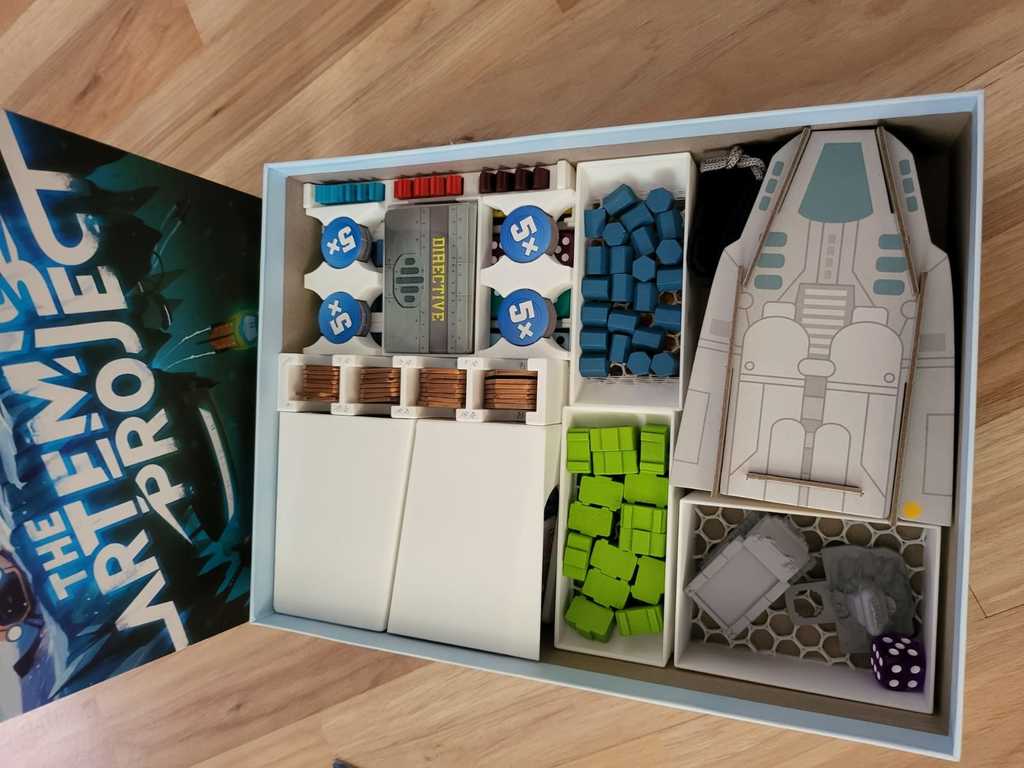

My contribution for an Insert for The Artemis Project (Kickstarter Edition of the Base game).

As for other inserts I create I aim for the following (in priority order):

• Enhance setup and tear-down part

• No need for covers of boxes but designed for horizontal and vertical storage

• Opted to store sleeved cards (as unsleeved cards will fit as well)

• Try to be as lightweight and resourceful as possible.

I hope I have achieved my goal.

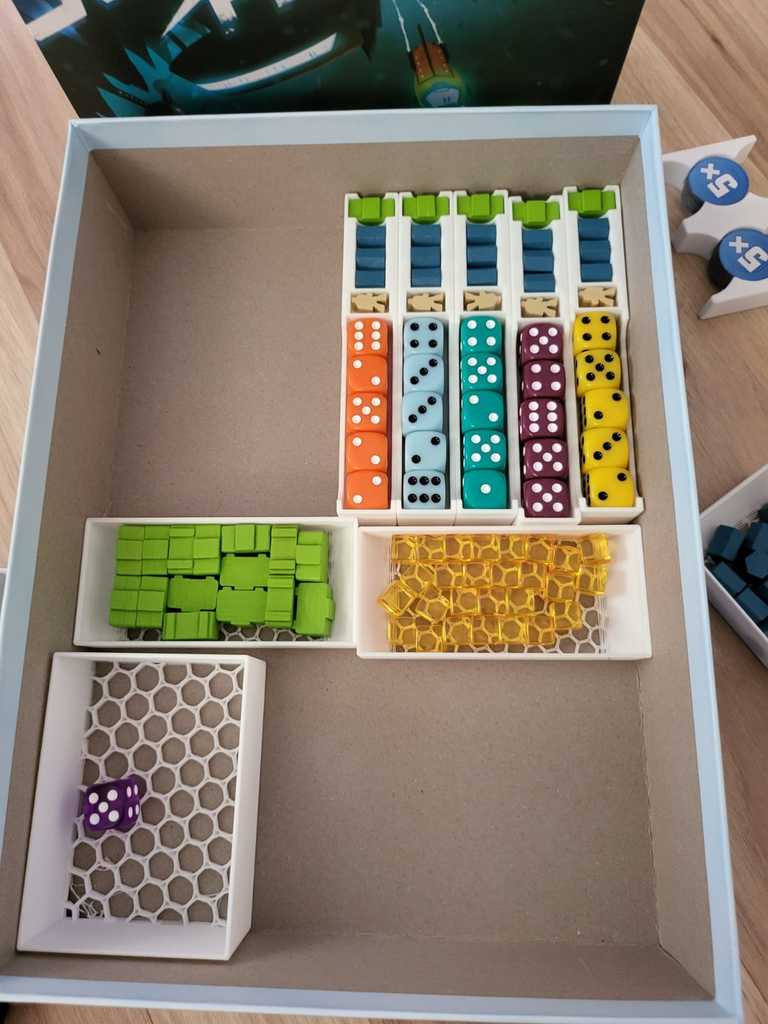

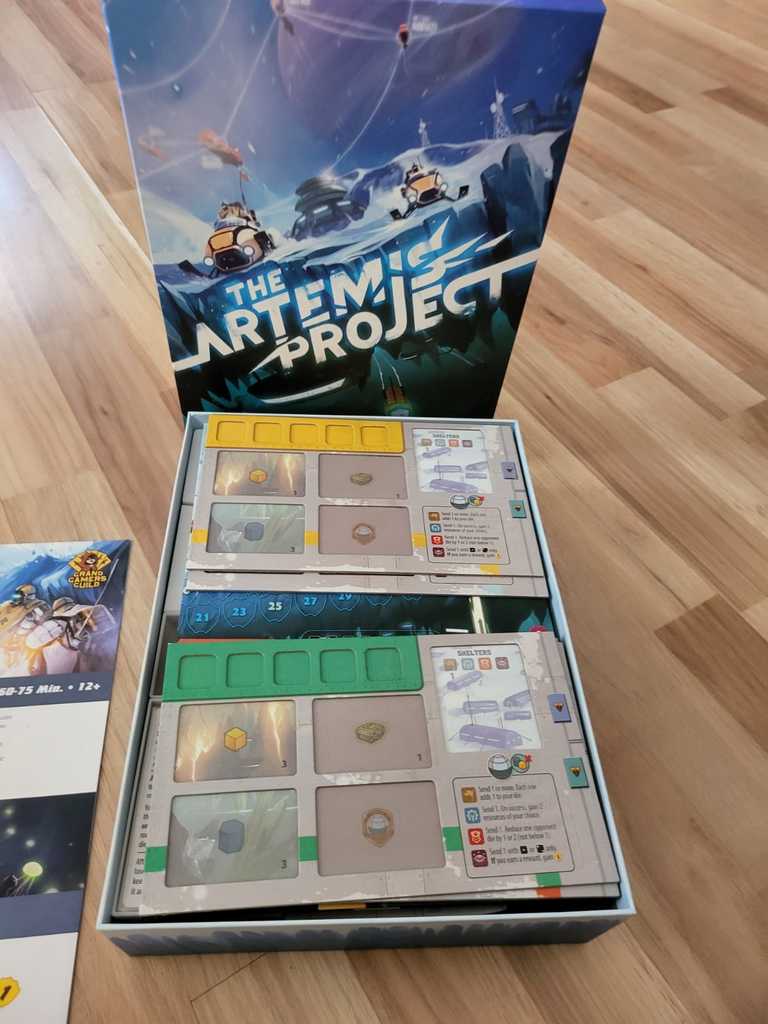

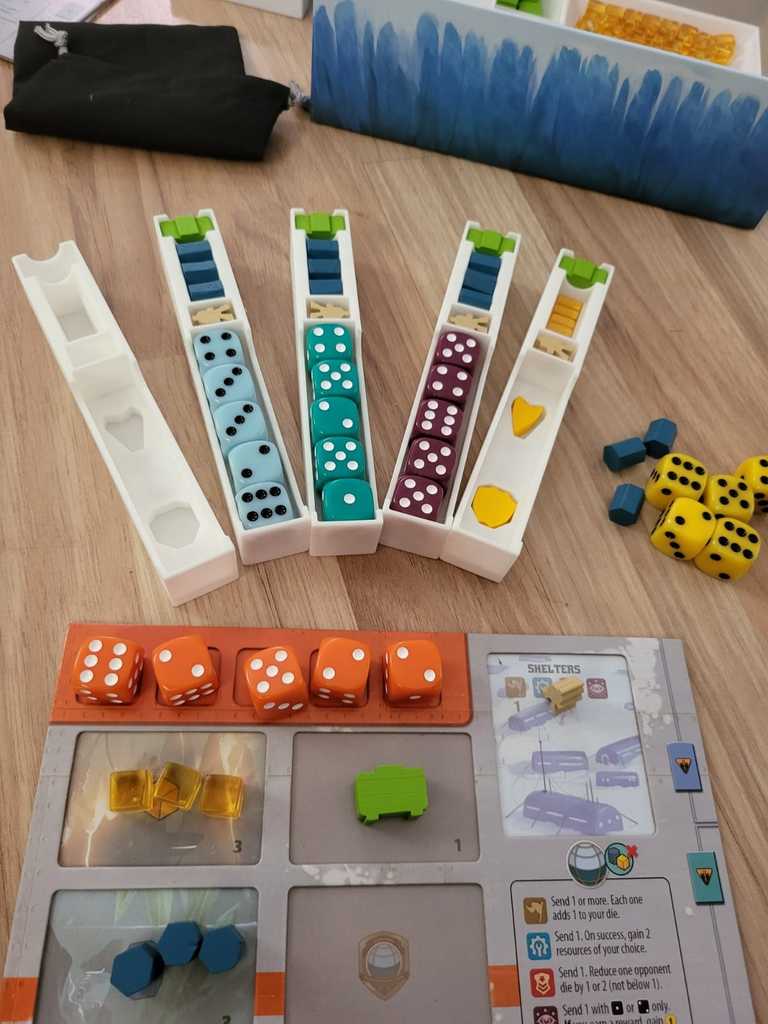

For the enhanced setup phase I created individual player trays for each player that contains all required pieces including the starting resources. In addition, I added a tray for populating the academy - so you don't have to search and pull them from the bag/ship.

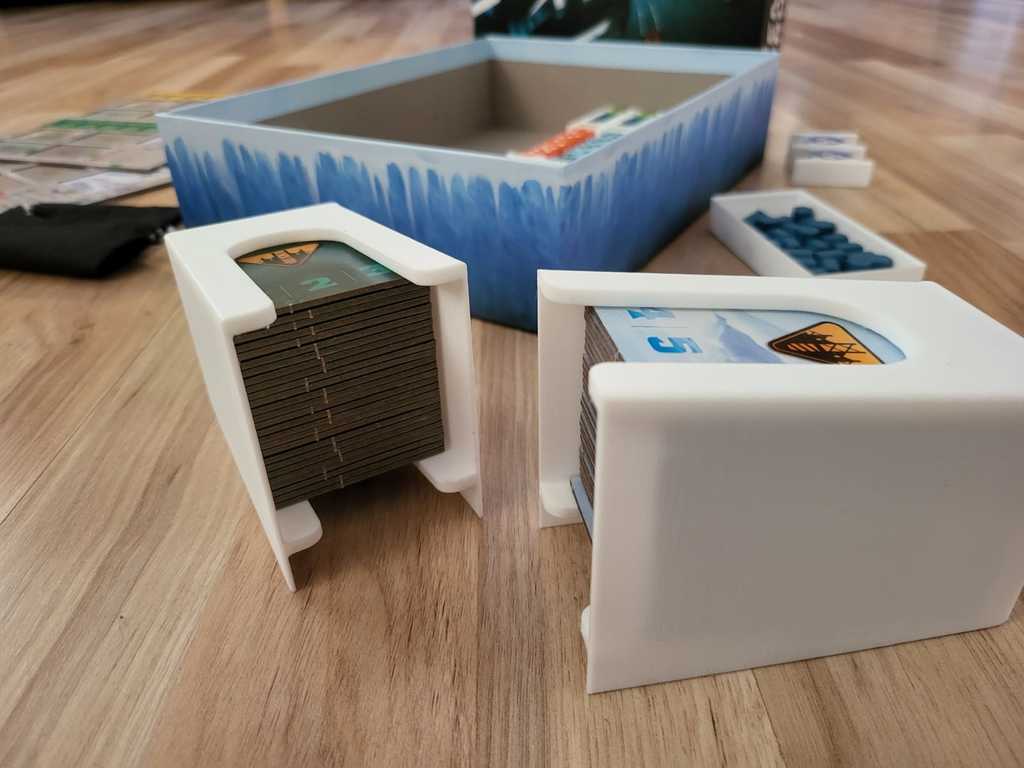

If the different buildings and cards are shuffled at the end of each game, the trays can be put 'as-is' on the table. For the building trays (in case of a 2-player game) I suggest putting the non-2-player tiles away once drawn.

The total amount of filament should be below 400g of your preferred filament.

For some trays (as they don't require a lot of strength) I printed them with no top or bottom layer and 10% honeycomb infill:

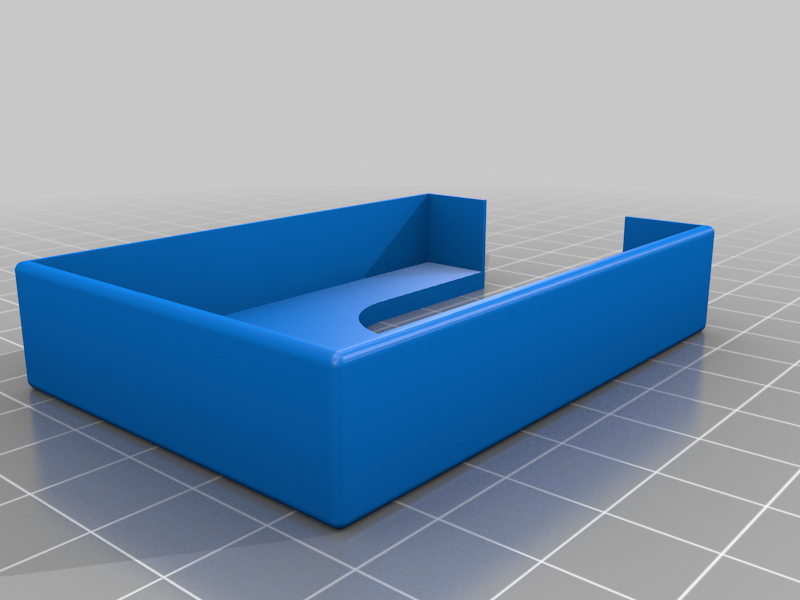

• Directive, Event, and Exploration card trays

• the Markers & Alien Relic Die (which can all the time stay in the box)

The 6 resource trays were printed with 15% infill (no bottom or top layer) to avoid the pieces being more prone to falling through.

For the Buildings and Multiplier Tokens, I added a Range Modifier from 0 - 4mm for 10% Honeycomb and no top/bottom layer, afterward regular printing profile (e.g. Lightning Infill with 2 Top layers).

Update 30.12.2022:

Uploaded PlayerTray v2 - should fit the 2 playerdiscs from the standard version of the game.

I'm open to suggestions & feedback

Have fun printing

Printer Brand:

MK3

Printer:

Prusa i3

Rafts:

Doesn't Matter

Supports:

No

Resolution:

0,2

Infill:

Mix of Honeycomb & Lightning

Filament: GST3D PLA# White

Category: Games
