Hello,

for those that don't know my ‘insert philosophy’ - I am creating modular inserts that are focused on reducing setup and space on table, filament consumption is not my highest priority, but of course I'm trying to save some material where I can.

• major redesign, all files replaced with new ones. Old files are in Version 1 folder,
• 17 models resulting in 17 parts (25 including 9 card dividers) in old design vs 11 models resulting in 17 parts (25 including 9 card dividers). Although there is the same amount of parts, teardown should be a lot easier as it's 1 layer insert (well, more like 1.25),
• around 777g on my current settings needed for 1st version vs 705g for 2nd version. 72g lighter! Not a lot, but on the other hand it's much more functional!
• I combined few holders into setup holder,
• I increased space for dices, resources,
• I added player holders - now everything related to 1 player is stored in one holder.

• vertical storage ,
• sleeves - 70 micron,
• Western Sea expansion ,
• deluxe resources ,
• should be enough space to hold also upgraded player components.

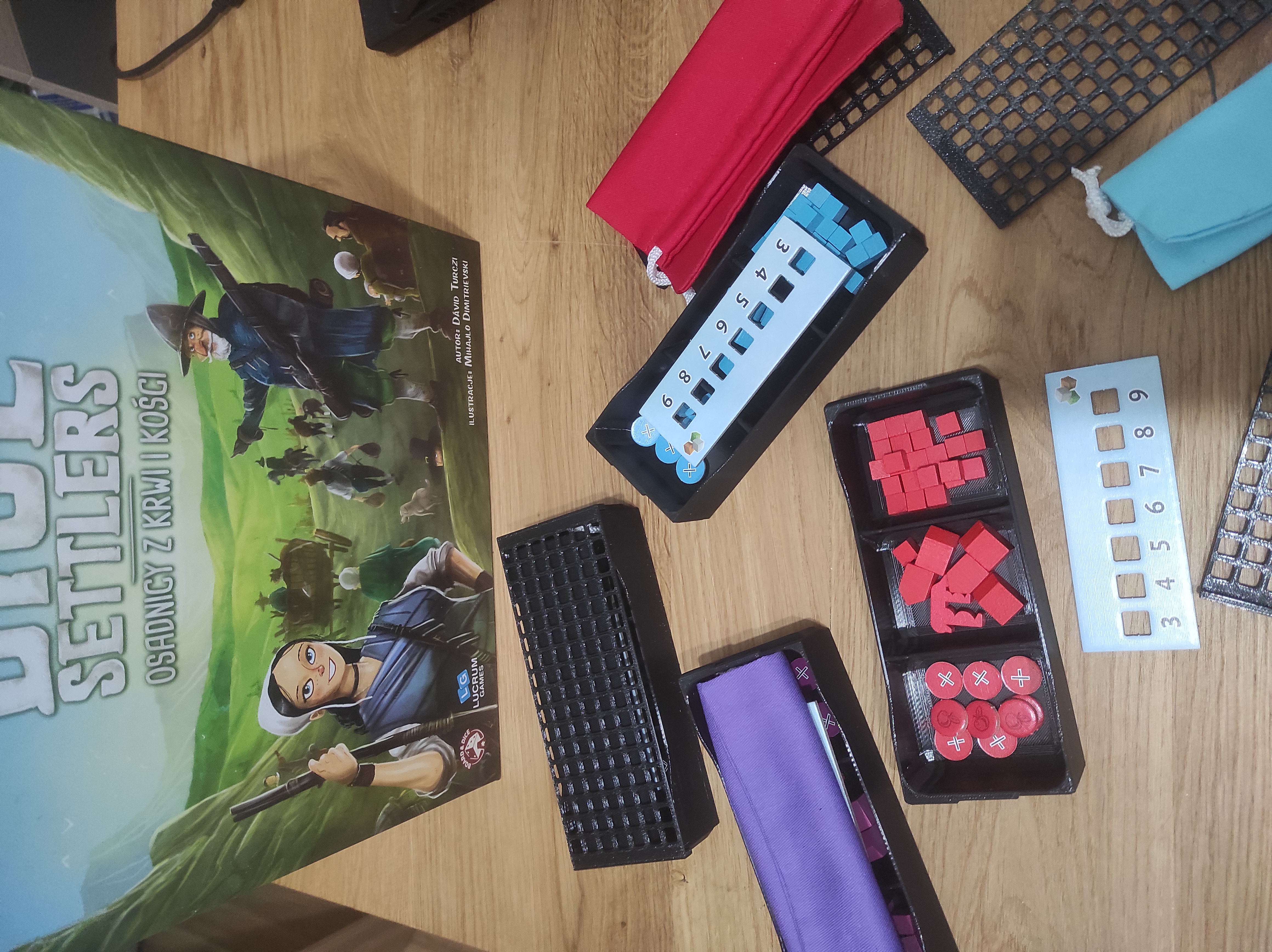

• 4 player holders - one for each player. It holds everything related to the the player, so cubes, houses, markers, small board, bag,

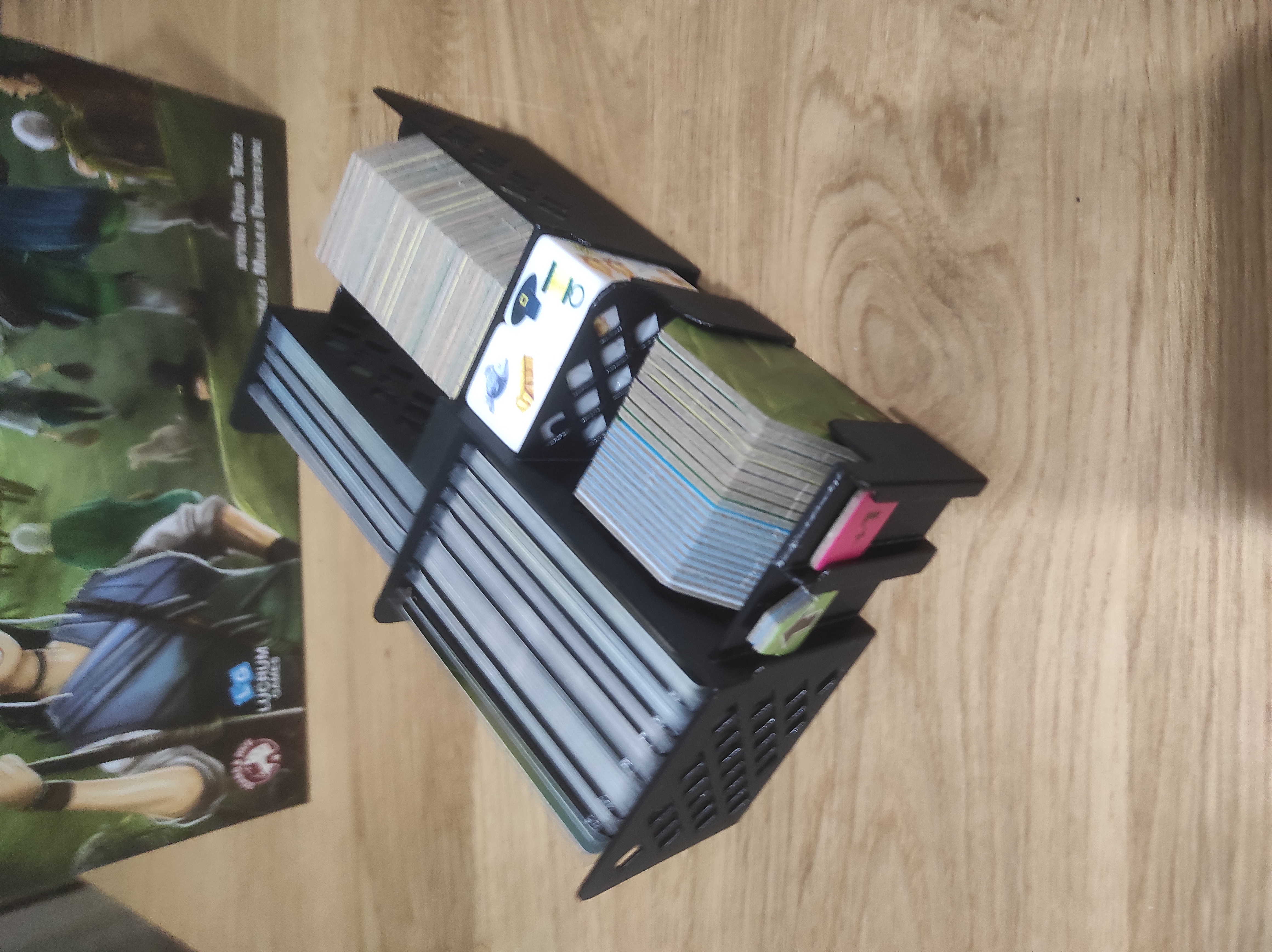

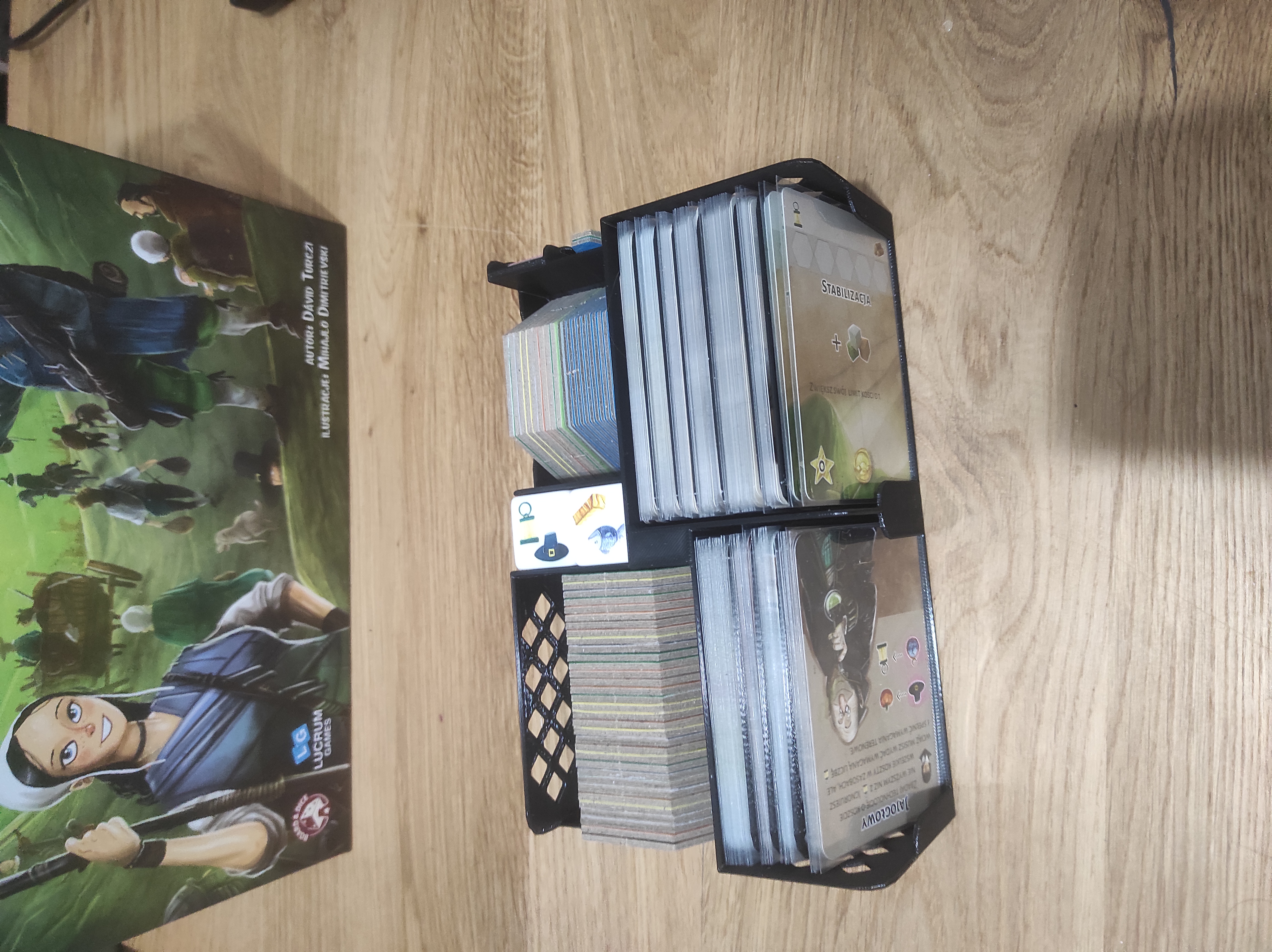

• setup holder - holds cards, tiles, large dices,

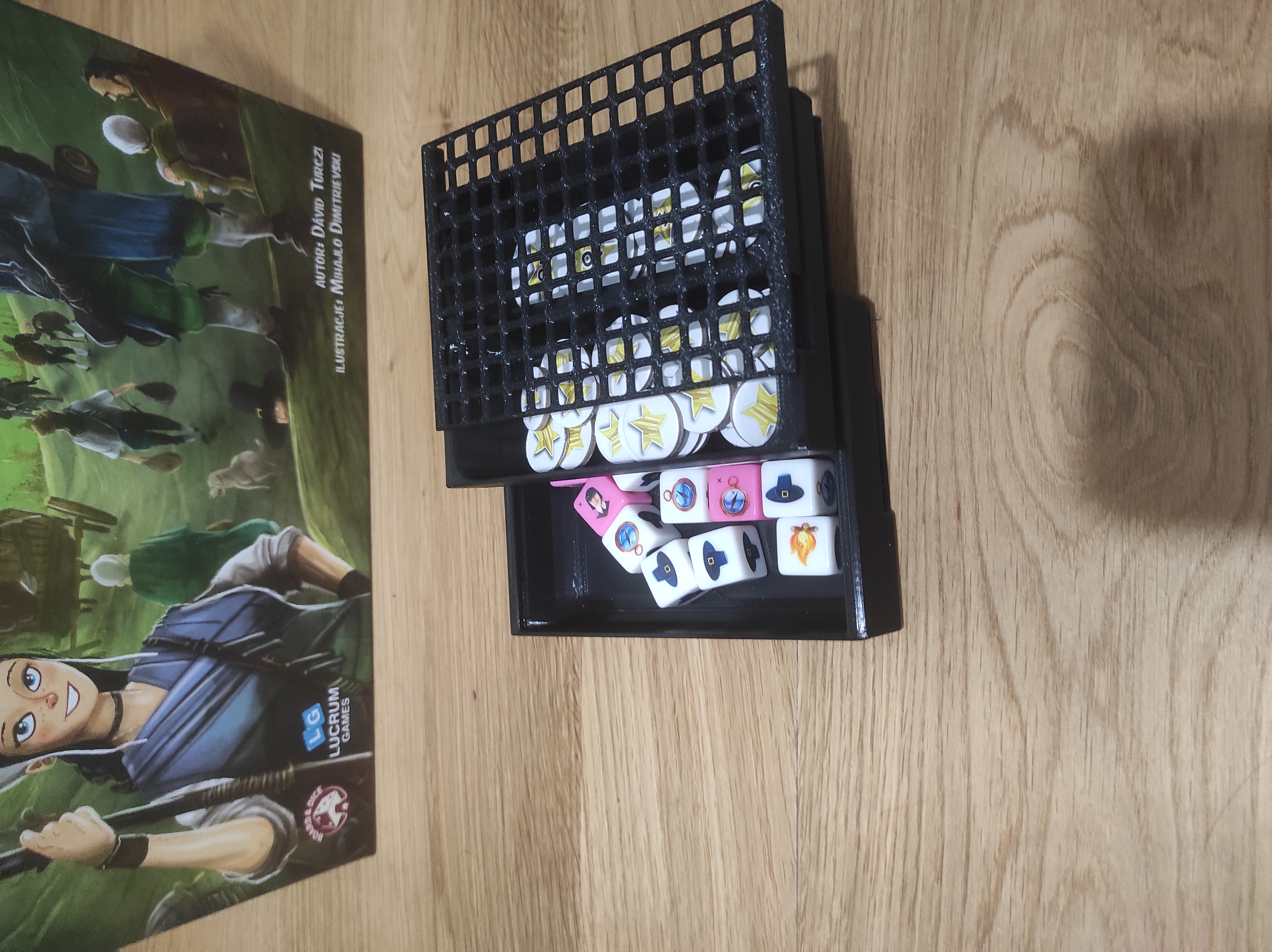

• setup dices and stars holder - holds setup dices and stars,

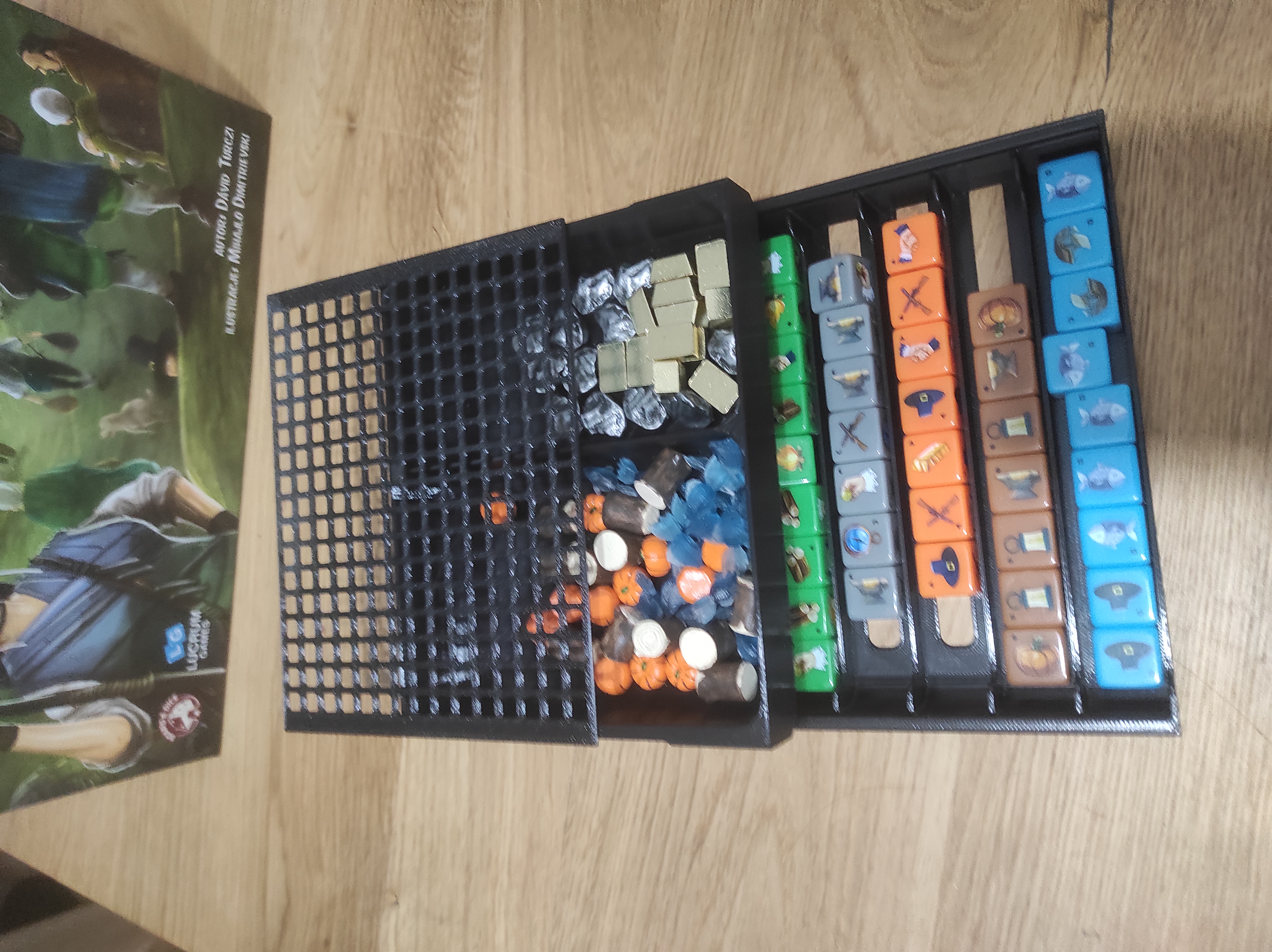

• dices and resources holder - holds resources and dices,
• spacer large tiles holder - holds large tiles.

• about 705g of filament (depends on your settings, I printed with 15% gyroid infill, 2 walls, 5 top and 3 bottom layers).
• at least 196mm x 134mm print bed.

Supports - no supports required.

• every file ended with xX (for example x16) - print X times (in given example - 16 times),

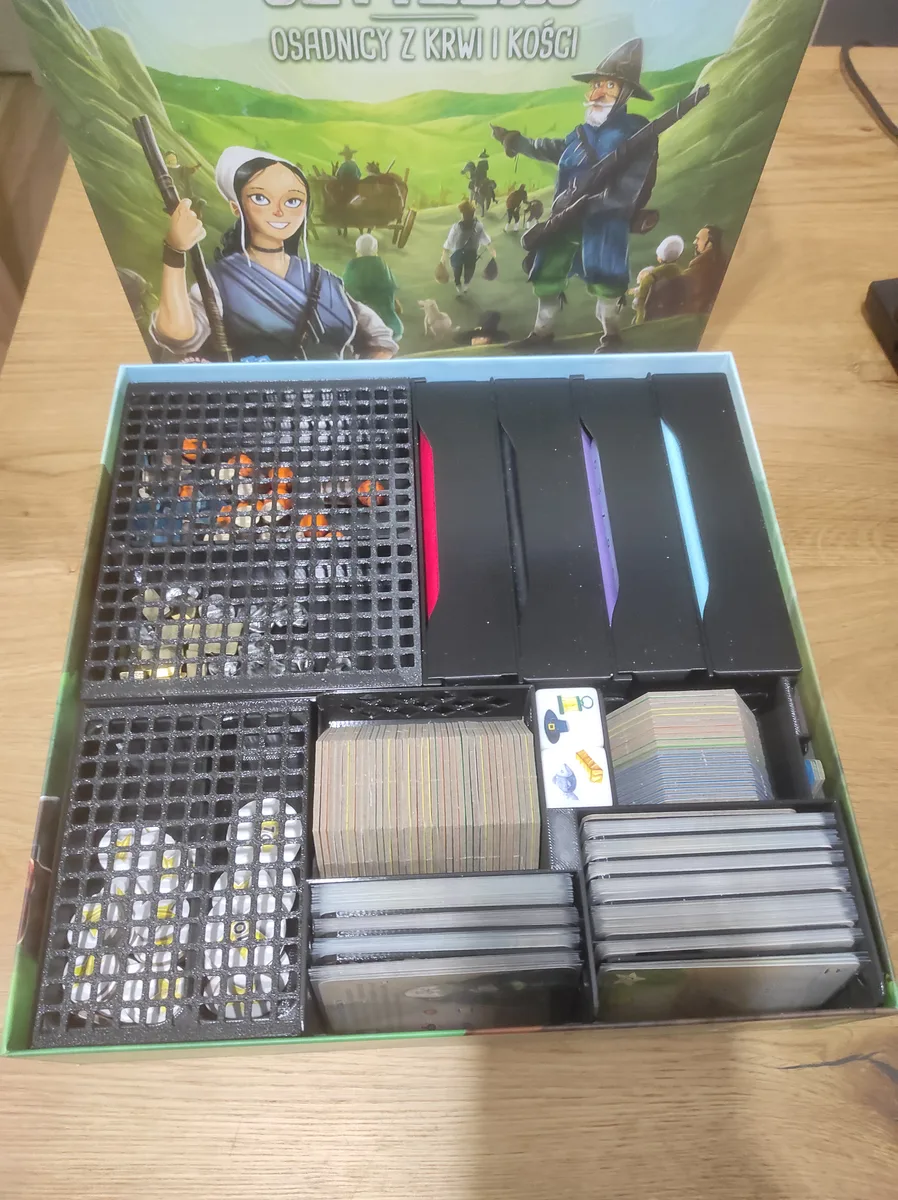

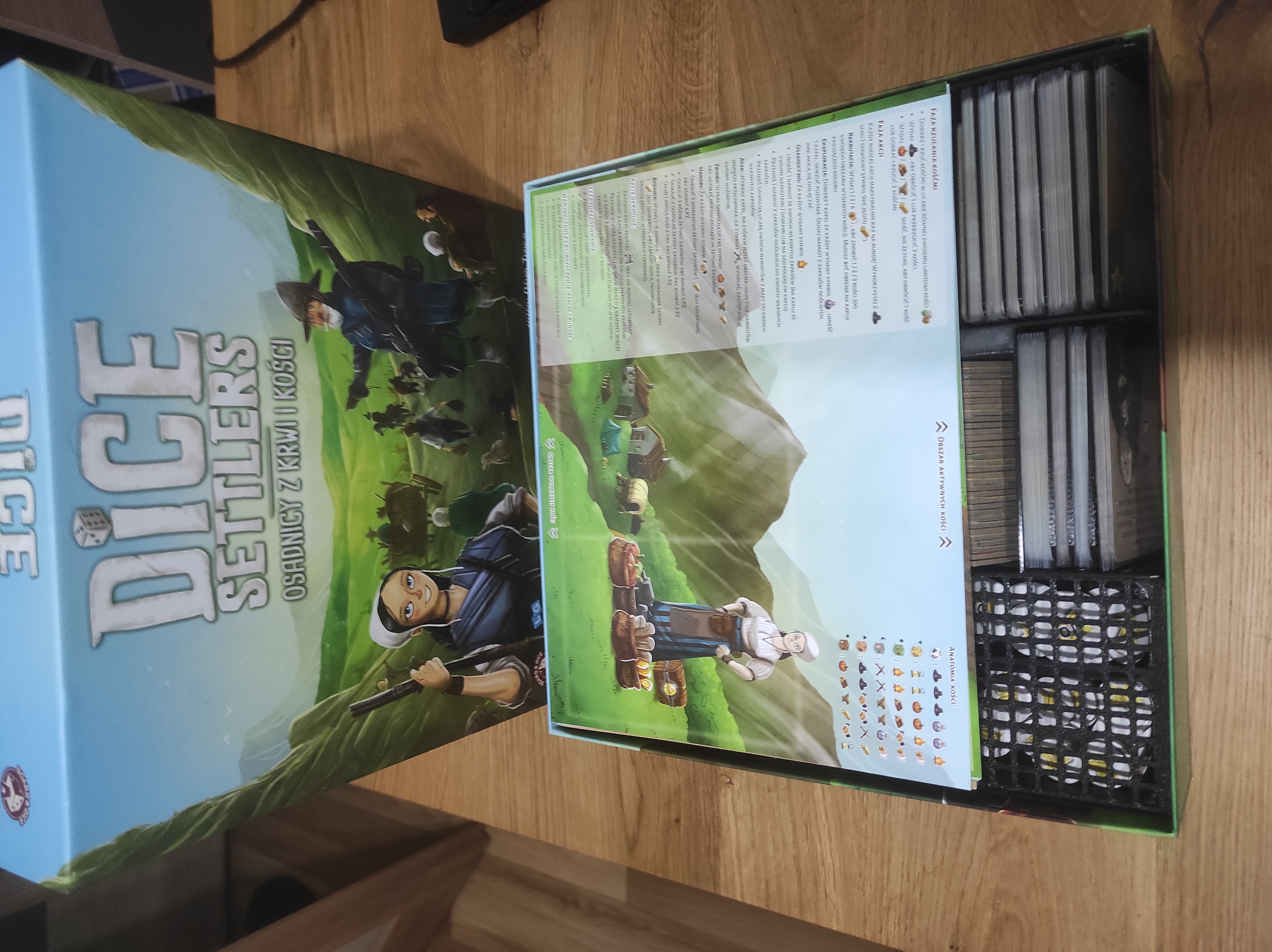

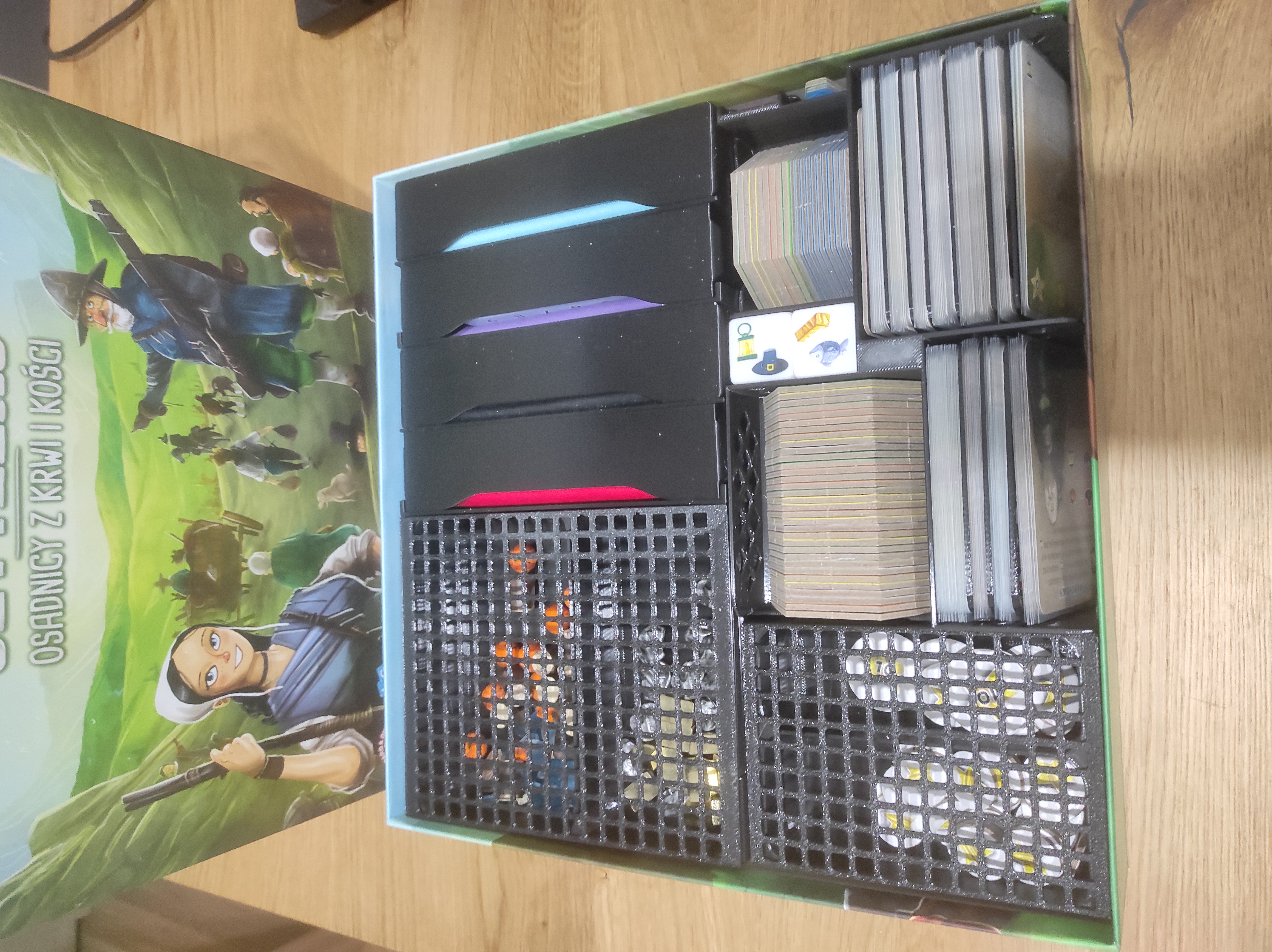

• refer to pictures how to organize the box,
• Spacer_Large_Tiles_Holder, Card_Divider - 4 walls, no top & bottom, honeycomb infill 10%.

##

• I think this insert is done.

Enjoy!
