Dig your way out insert organizer vertical and sleeves compatible

I designed this insert because I could not close the box with sleeved cards.

It comes with a few "enhancements" compared to the vanilla box:

• Gang cards holders, in order to make it more readable across the table
• Cards holders that can be put on the board directly
• Compatible with sleeved cards
• Compatible for vertical storage

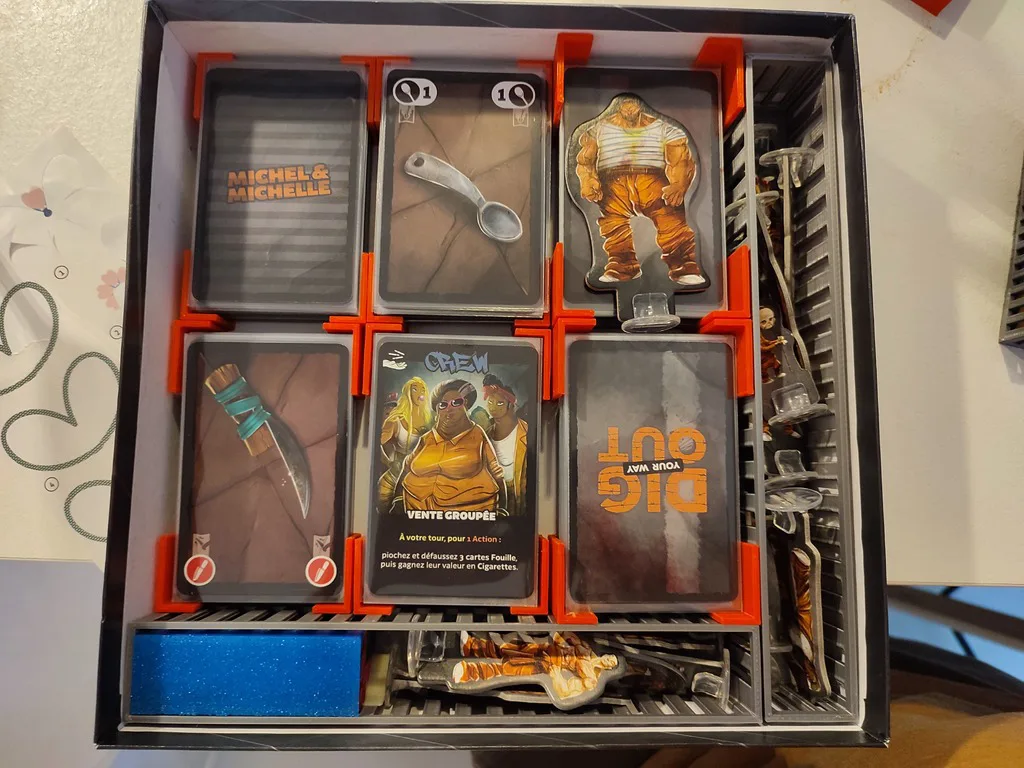

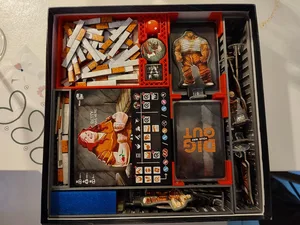

Here is what to print and how to store:

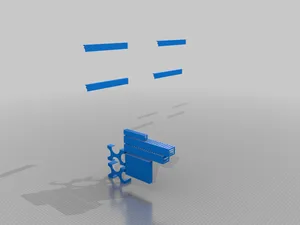

/!\ DYWO-org is not made to be print, just to display all of the pieces

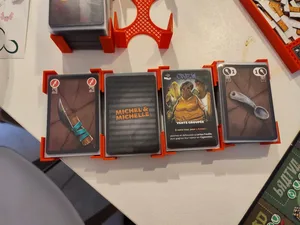

4 "half sized" cards holders that fit in the bottom / corner of the box.

• One for the gang's cards
• One for the past / Michel[le] cards
• One for the knives
• One for the spoon / pickaxe / shovel

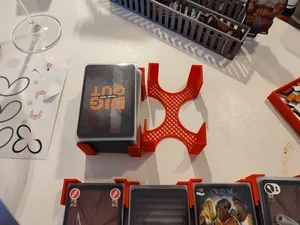

2 "full sized" cards holders that fit in the same direction as previous cards holders just besides. They are make to hold the "search" cards. One can be used to hold discarded cards

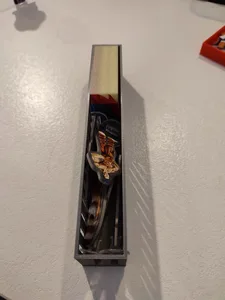

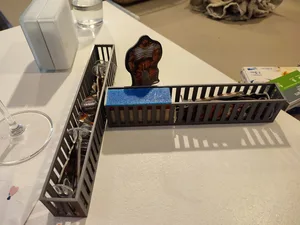

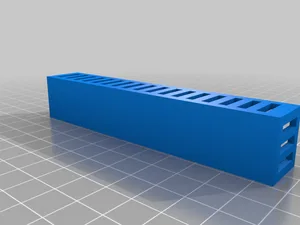

Made to look like a prison and hold part of the prisonners. To be stored besides the cards holders.

Made to look like a prison and hold part of the prisonners and the gang holders. To be stored besides the cards holders.

I designed an holder for the player board but it's pretty useless because they hold themselves pretty tight anyway.

You can put the player boards directly on top of the 4 small cards holders, in the corner.

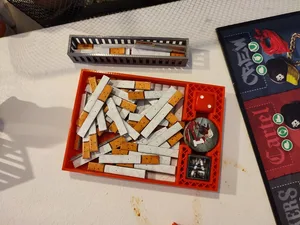

This will fit below the player bords, on top of the small cards holders.

It it made to hold the tokens and the dice.

Fitting all the cigarettes can be challenging, one will need to put the "5 cigs" tokens first and then the other ones on top.

I may designed a top part in the future if it becomes messy.

This is a small part to fit besides the player boards and avoid space and movement.

There is nothing to specifically fit in this part but you can put extra cigs.

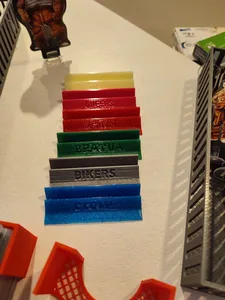

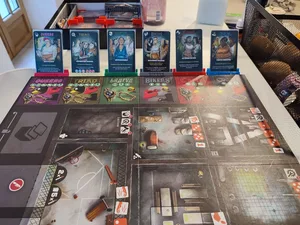

I designed this because with sleeved cards and light reflection I could not see well cards across the table.

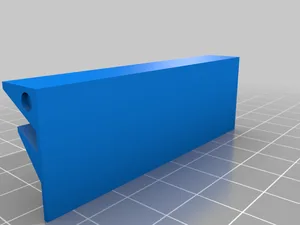

One piece is made to hold all of one gang's cards.

There is a plane part that goes underneath the board in order to avoid tipping over.

It comes in 2 flavor :

• One by one -> Print Cartel / Crew / Bikers / Bratva / Queers / Triad once each (you can use different colors :) )
• Three by Three -> Print Bikers-cartel-crew and Queers-triad-bratva once each

I designed small holes for 3mm(diam)x1mm(depth) magnets.

This is if you want them to "stuck" together.

Theses can be stored in the cells, in you print the One by One version, all 6 of them can be stored on top of each others.

Printer Brand:

Creality

Printer:

CR10S PRO

Rafts:

No

Supports:

No

Resolution:

0.2

Infill:

10-20

Filament:
GST3D PLA+
Orange and Grey mostly

Notes:

No specific instruction on this side, it is quite simple to print.

Some pieces are big because I Have a 30x30cm printer.

But the box is 22.5cm x 22.5cm so all can fit on most printers

Conception

I used Fusion360 and tried to make it economic.

For cards holders I used the no bottom / top wall settings on cura so it saves a bit of PLA.
