Beyond the horizon - Insert

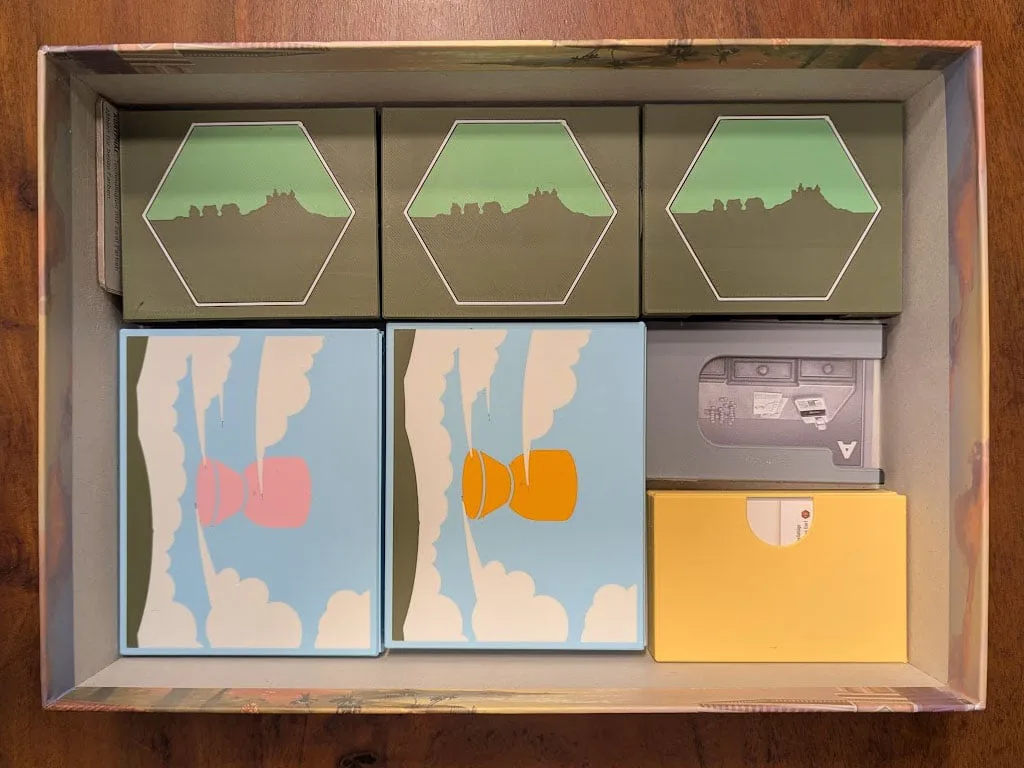

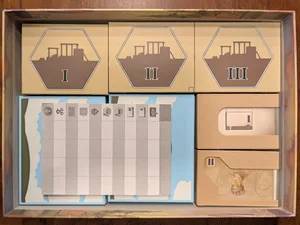

This is an insert for Beyond the Sun, desigend for the German version of PD with (internal) dimensions of approx. 300 x 210 x 76mm. There seem to be differences in size between the Cranio Creations Games Edition and the Capstone Games Edition, but I don't know their dimensions. Maybe someone can confirm in the comments which edition it fits?

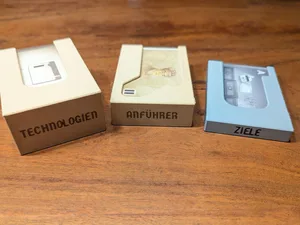

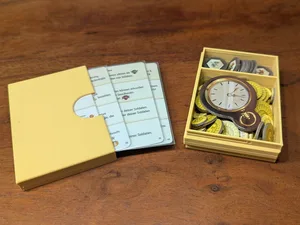

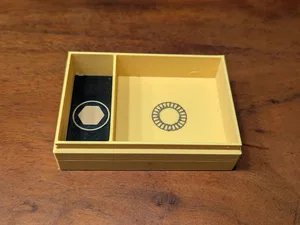

All card trays fit premium sleeves. The mini expansion also fits into the hextrays.
There are models with German text (DE) and English text (EN) for the cards.

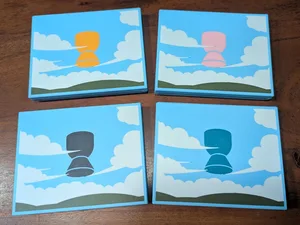

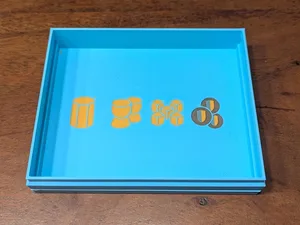

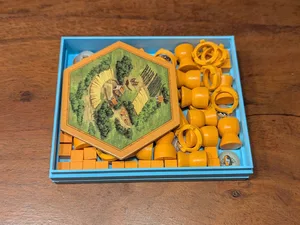

The player trays have to be printed 4 times, for the corresponding lids you can choose the variant you like better. One model shows only the meeple, one model shows a stylised horizon.

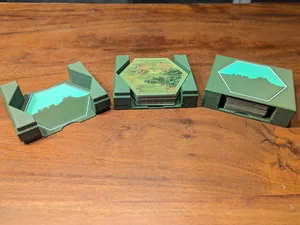

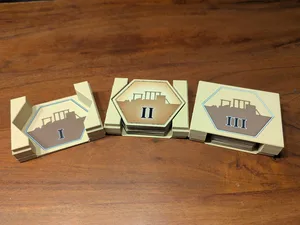

Hex trays for territories must be printed 3 times. There are also 3 trays for the Constructions, but these are labelled differently so that only one of each variant needs to be printed.

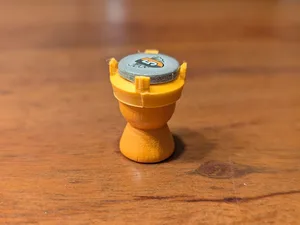

There are attachments for the meeple to make handling easier, I called them Crown. 8 to 10 in each player colour should be sufficient, alternatively of course 32 to 40 in a neutral colour. I recommend a test print with both variants, then decide for yourself which variant you are more comfortable with. The ones with "teeth" provide a stronger grip, which I personally prefer. Adjustments should be made in +- 1% in the X and Y axis.
I highly recommend printing with 0,15mm layer height, since models are designed for that height in mind (with 0.2mm for first layer)
As always, you will find the Fusion 360 file attached. Feel free to remix.
If you own an AMS or other Multicolor device, you can finde the optimized files here: https://makerworld.com/de/models/1193418-beyond-the-horizon-board-game-insert
