Spare Parts & Tools Organizer

Organizers Free

View on MakerWorld 301 404 Added Oct 9, 24 | Updated Aug 29, 26 Support Chad The Dad by Liking and Boosting their model.

Plan Your Print

About 1,173 g of filament From the designer's print profile

Print Profile (2) 0.2mm layer, 2 walls, 15% infill 28h 24m 1,173 g PLA

0.2mm layer, 2 walls, 15% infill

4 plates 28h 24m 1,173 g PLA

X1 Carbon, P1S, P1P, X1, X1E, A1, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L

.20mm layer height 15% sparse infill density Gyroid infill on main body/extension body Grid infill on drawer boxes Supports enabled for Extension body- you will need to slightly pry off the bottom support for detail face (very easy & satisfying)

Plate Details (4)

0.4 mm nozzle, all plates

Plate 1

12h 42m 513 g PLA · 513 g

Plate 2 · EXTENSION

11h 39m 465 g PLA · 465 g

Plate 3

1h 39m 90 g PLA · 90 g

Plate 4 · EXTENSION

2h 23m 105 g PLA · 105 g

0.2mm layer, 2 walls, 15% infill

3 plates 2h 16m 107 g PLA

X1 Carbon, X1, A1, P1S, A1 mini, X1E, H2D, P1P, H2D Pro, H2S, P2S, H2C, X2D, A2L

.20 Layer height 2 walls these will fit in any of the cubbies made for the boxes Enjoy!

Plate Details (3)

0.4 mm nozzle, all plates

Plate 1

1h 4m 53 g PLA · 53 g

Plate 2

41m 32 g PLA · 32 g

Plate 3

31m 22 g PLA · 22 g

As sliced by the designer. Your printer, filament, and settings may change these numbers.

Designer's Description

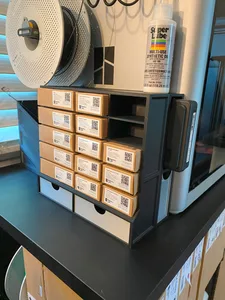

Spare Parts & Tools Organizer is a very robust unit that can clean up your workspace and give those Bambu boxes a home-

Dimensions:

(Main body) 249x223x69

(Extension body) 249x223x49

(Main body small drawer) 108x62x37

(Main body large drawer) 126x62x37

(Extension body drawer) 241x92x36

Features:

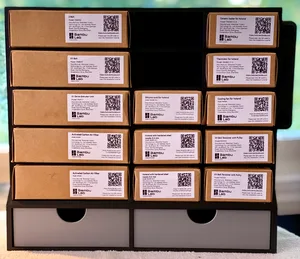

(x10) small cardboard box holders

(x5) large cardboard box holders

(x2) front drawer boxes (great for loose baggies/spare hot ends/etc.)

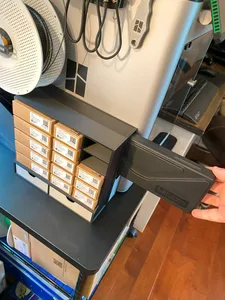

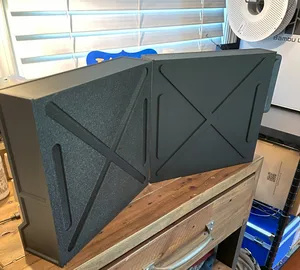

(x1) extension body (to hold side drawer & digital caliper case)

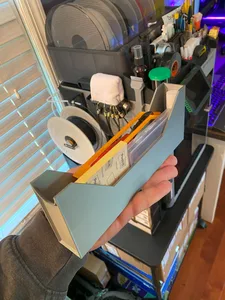

(x1) extension body drawer box (great for pliers/post-it notes/ small cases/ etc.)

-Built in joint for super glue if you want the extension body permanent

-pre sized drawer boxes (no need to scale down)

*YOU DO NOT NEED TO PRINT THE EXTENSION BODY/EXTENSION BODY DRAWER BOX TO SAVE TIME & FILAMENT*

Filament used:

-Bambu Black PLA Basic

-Bambu Silver PLA Basic

Attention:

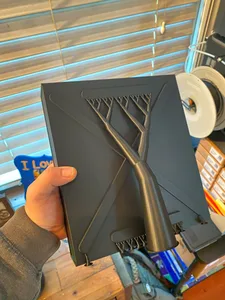

-I highly recommend using the supports that are pre-loaded for easy removal

-I left the fans on and door closed when printing all parts--not sure how impactful this is

-Clean, grease and calibrate your machine if you are due-- this print uses the entire bed so ensure your machine is in good order

- Super Glue the recessed joint and press the extension body into its designated spot if you want it permanent

--Tread carefully changing infill/walls, I'm not sure how any of these parts will handle a negative change--

I plan on making a smaller version of this to be compatible with smaller build plates. I spent many hours revising this to try and make printing easier for the people downloading this, I have been a victim of files with poor settings, so rest assured I made this with love and care with you in mind. Any discrepancies seen in the photos is due to trial and error. Please give me feedback and show photos of your prints, I have many designs I would like to upload. This is the hypothetical “toe in the water”.

Thank you very much for checking this out and happy printing!

-Chad the dad
