Blood Bowl Team Storage Box

for Blood Bowl: Second Season Edition (2020) Layer by Layer

Storage & Containers Free

View on MakerWorld 83 152 Added Dec 15, 24 | Updated Aug 7, 26 Support chapman_Ken by Liking and Boosting their model.

Plan Your Print

About 533 g of filament From the designer's print profile

Print Profile (2) 0.2mm layer, 2 walls, 15% infill 15h 31m 533 g PLA

0.2mm layer, 2 walls, 15% infill

9 plates 15h 31m 533 g PLA

P1S, P1P, X1, X1 Carbon, X1E, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L

.20 Layer Height for box, .16 for football used in inlay.

Plate Details (9)

0.4 mm nozzle, all plates

Plate 1 · Base 8U with football inlay

6h 8m 248 g PLA · 248 g

Plate 2 · Inlay footballs need 2, use .12 res

25m 6 g PLA · 2 g PLA · 1 g PLA · 3 g

Plate 3 · Handle and Draw Latches

56m 25 g PLA · 25 g

Plate 4 · Smooth lid 1U with inlay and name

3h 54m 144 g PLA · 142 g PLA · 2 g

Plate 5 · Bins 9U height, trun off supports

1h 11m 52 g PLA · 52 g

Plate 6 · Extra Draw Latches

44m 17 g PLA · 17 g

Plate 7 · Instructions

1h 19m 22 g PLA · 10 g PLA · 12 g

Plate 8 · Inlay and 5mm Magnet stls

9m 1 g PLA · 1 g

Plate 9 · Stacking Latch (Optional)

46m 18 g PLA · 18 g

0.16mm layer, 2 walls, 15% infill

11 plates 20h 10m 545 g PLA

P1S, X1 Carbon, X1, P2S, H2S, H2C, H2D, P1P, H2D Pro, A1, X1E, X2D, A2L

This is a non-stacking version of the box, reducing filament use and I found the previous box really didn't have the correct stacking grids anyway. If you want to edit or try and make your own boxes, you can find the generator here: https://gridfinity.perplexinglabs.com/pr/gridfinity-rugged-box/0/0 Make sure you change the text on Plate 4 for your team name! Cheers!

Plate Details (11)

0.4 mm nozzle, all plates

Plate 1 · Base 8U with football inlay

7h 1m 241 g PLA · 241 g

Plate 2 · Inlay footballs need 2, set for .12 res

37m 8 g PLA · 3 g PLA · 2 g PLA · 3 g

Plate 3 · Handle and Draw Latches

1h 15m 26 g PLA · 26 g

Plate 4 · Smooth lid 1U with inlay and name

5h 21m 151 g PLA · 148 g PLA · 3 g

Plate 5 · Bins 9U height, Supports are off

47m 20 g PLA · 20 g

Plate 6 · Extra Draw Latches

59m 17 g PLA · 17 g

Plate 7 · Instructions

1h 43m 29 g PLA · 10 g PLA · 5 g PLA · 14 g

Plate 8 · Inlay and 5mm Magnet stls

10m 1 g PLA · 1 g

Plate 9 · Game Ball

31m 7 g PLA · 3 g PLA · 2 g PLA · 2 g

Plate 10

1h 1m 33 g PLA · 33 g

Plate 11 · Latches, pick a style need 2

45m 12 g PLA · 12 g

As sliced by the designer. Your printer, filament, and settings may change these numbers.

Designer's Description

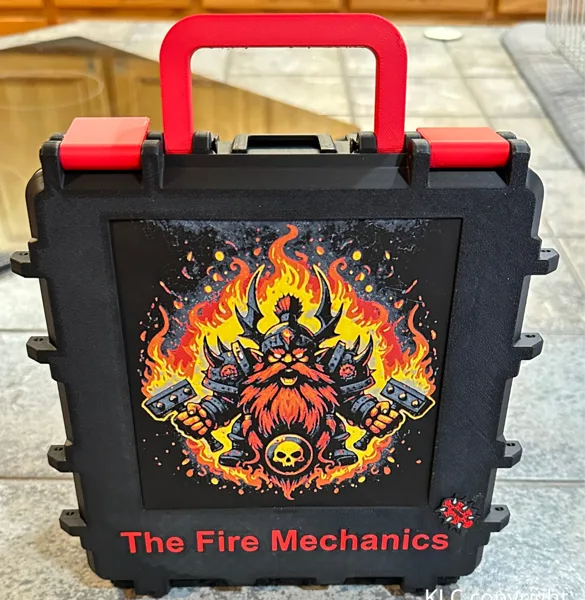

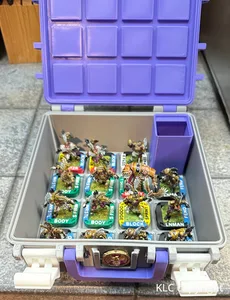

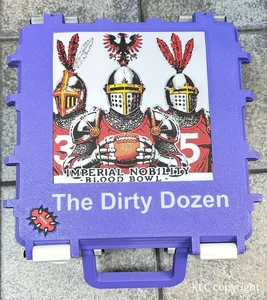

This is a design I created using https://gridfinity.perplexinglabs.com for my Blood Bowl team box which has a inlay area built in for a Hueforge art piece (the art pictured are not included). There is 16 spaces for players, each with a center magnet hole 5x5x2 sized. The picture of my team in the box shows a bin which I use to hold my turn tokens, footballs and such, also in the plates.

Steps:

Change team name to your choice, and select your colors. Prints were with .4 nozzle at .20 resolution for box, and .16 for the little footballs.
Create a hueforge art 125 x 125 x 2mm
Assemble with (4) M3 x 40mm and (2) M3 x 30mm hex socket flat head screws

The Skills rings on my players are a design by Blaths and can be found here: https://makerworld.com/en/models/99576#profileId-106135
