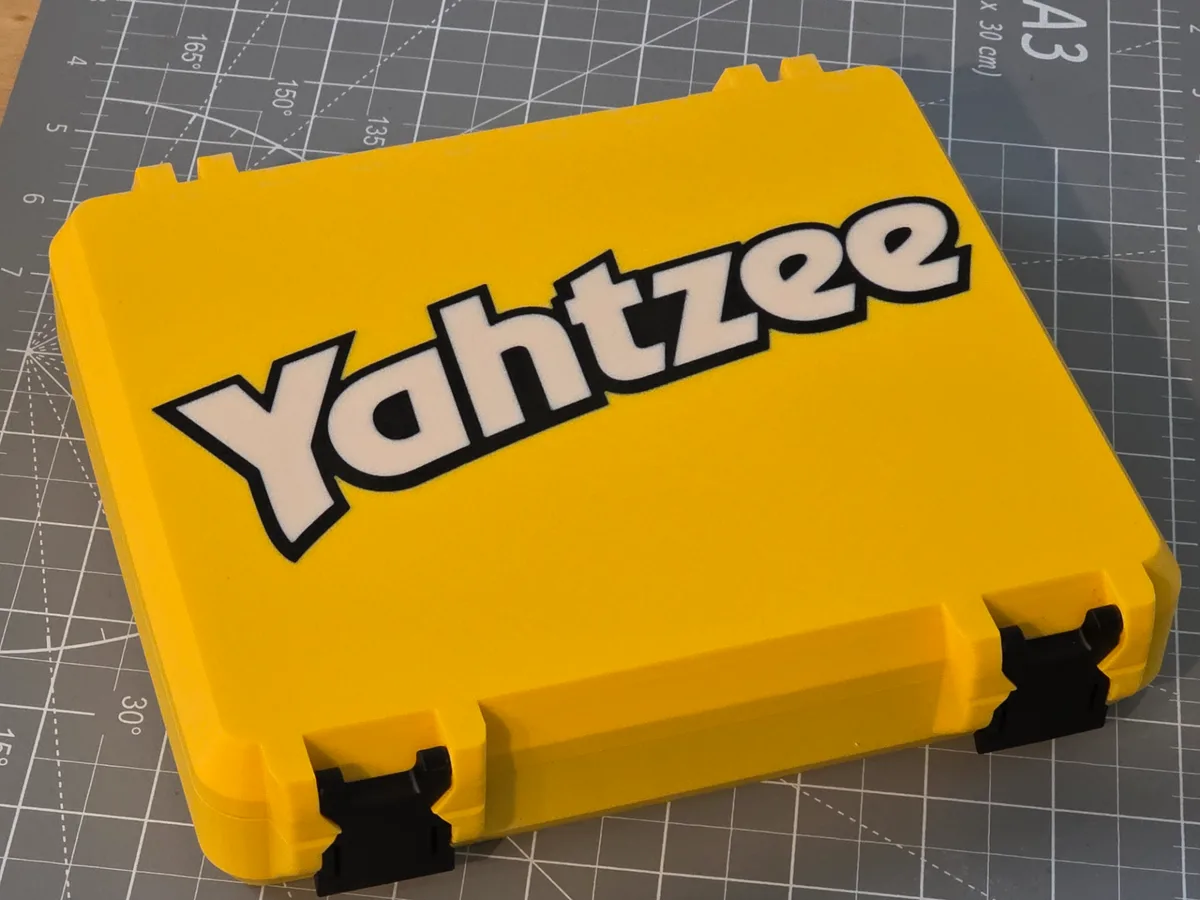

Yet another Yahtzee Box

for Yahtzee (1956) Layer by Layer

Free

View on MakerWorld 37 99 Added Apr 25, 26 | Updated Sep 3, 26 Support Charles Forsyth Design by Liking and Boosting their model.

Remix View the original model

Plan Your Print

About 450 g of filament From the designer's print profile

Print Profile (2) Complete box with parts on separate plates 9h 47m 450 g PLA, PETG

Complete box with parts on separate plates

5 plates 9h 47m 450 g PLA, PETG

P1S, X1, P2S, X2D, H2D, H2S, A1, H2C, P1P, H2D Pro, X1E, X1 Carbon, A2L

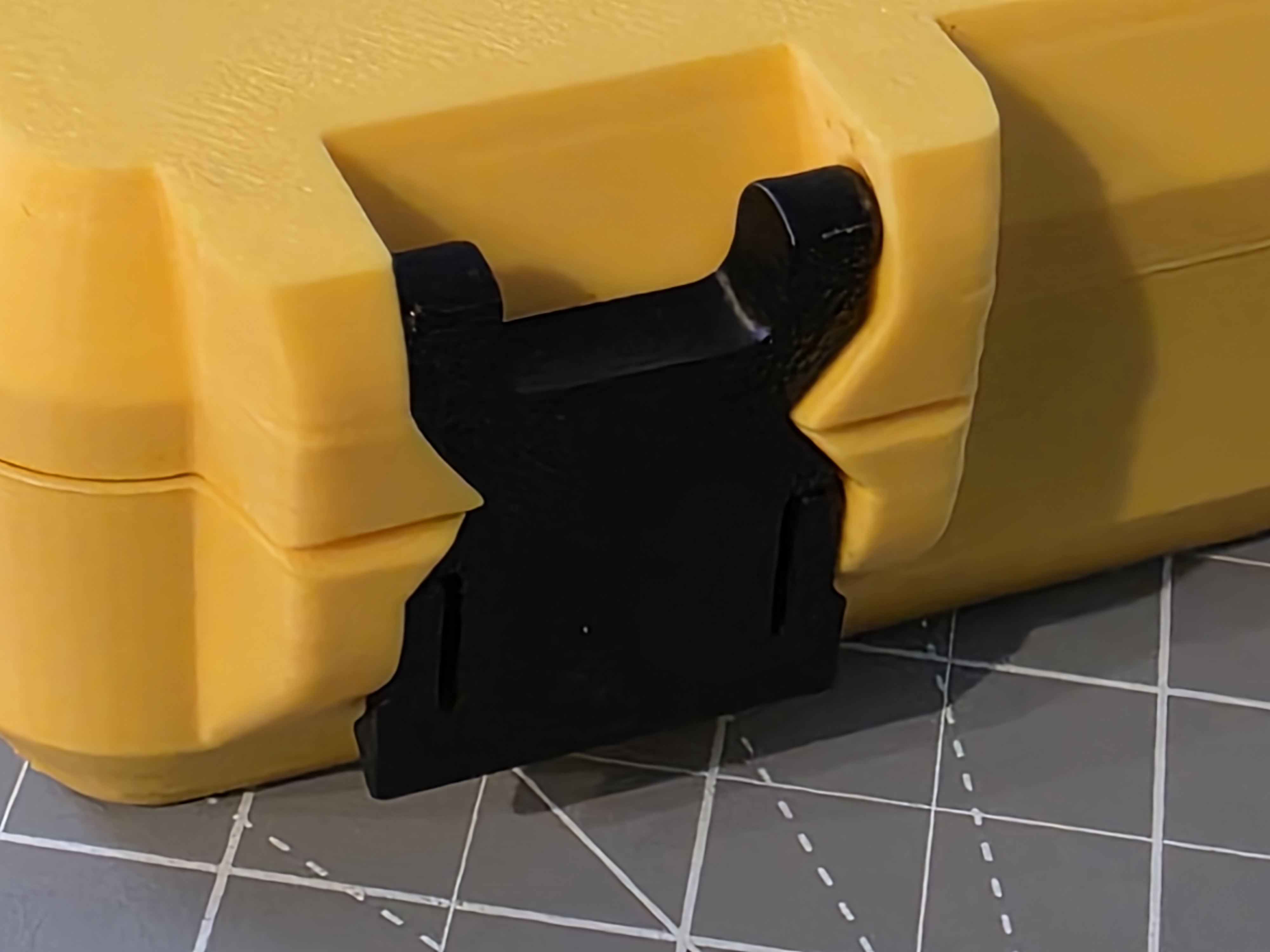

0.2mm layer, 2 walls, 15% infill Contains lids both with and without the graphic. I recommend printing clasps in PETG HF as it has more flexibility and may last longer than PLA.

Plate Details (5)

0.4 mm nozzle, all plates

Plate 1 · Main Body

2h 34m 121 g PLA · 121 g

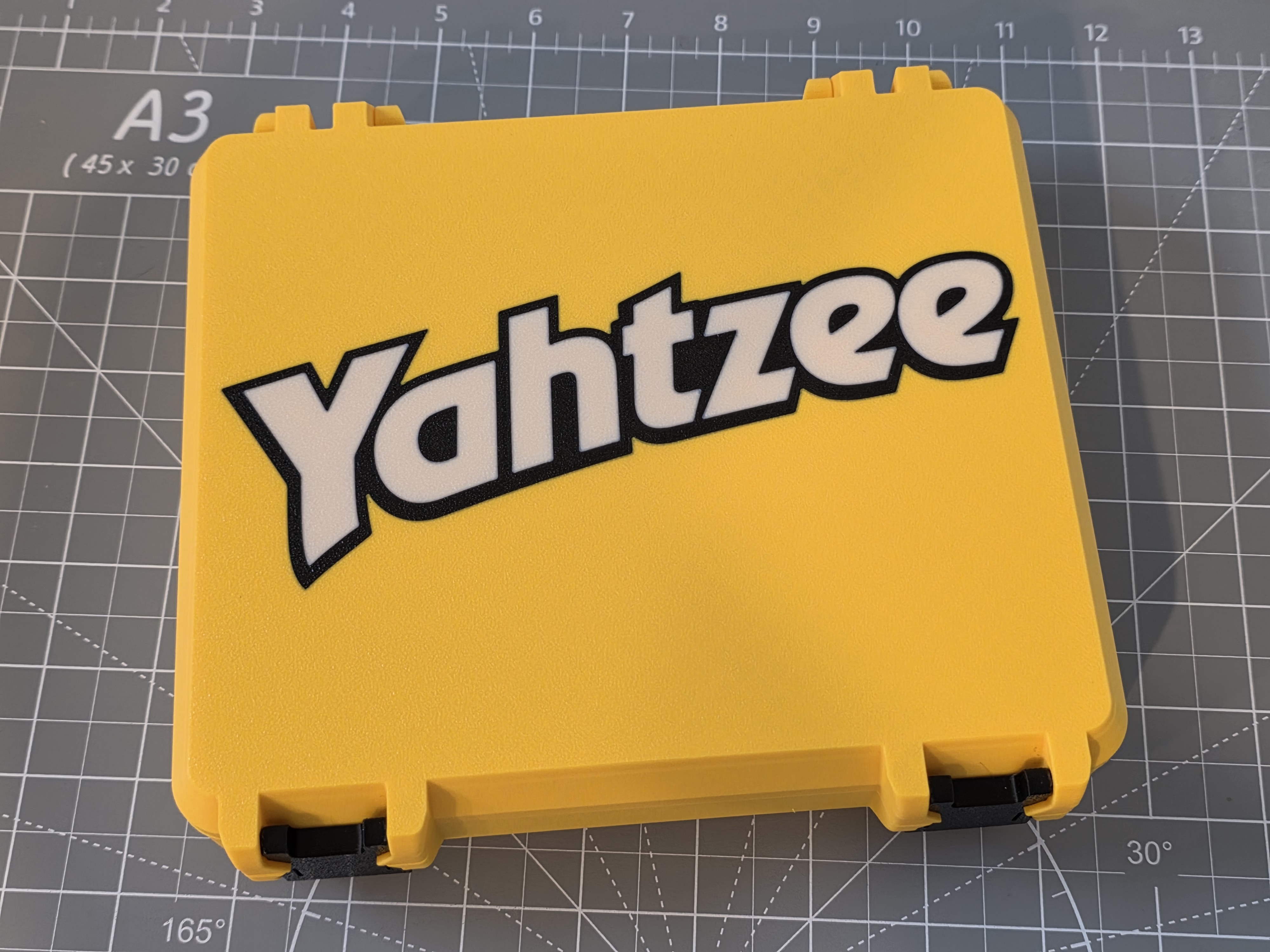

Plate 2 · Lid with Logo

2h 22m 102 g PLA · 2 g PLA · 96 g PLA · 4 g

Plate 3 · Clasps (PETG HF)

17m 6 g PETG · 6 g

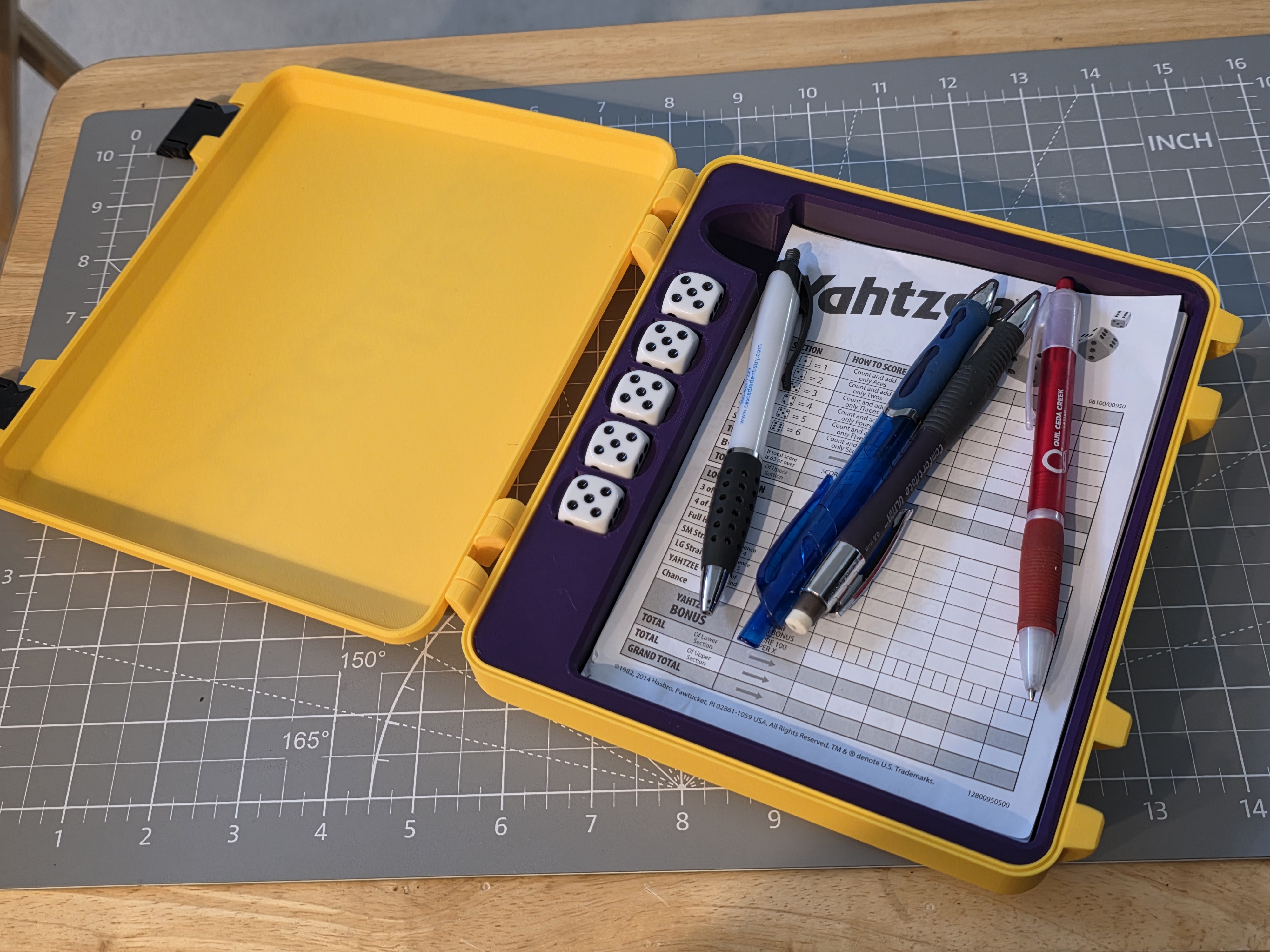

Plate 4 · Insert

2h 27m 122 g PLA · 122 g

Plate 5 · Optional Blank Lid

2h 6m 99 g PLA · 99 g

Alternative Insert [179mm x 137mm x 23.5]

1 plate 2h 19m 116 g PLA

P1S, A1, X1E, X1, P2S, H2D Pro, P1P, H2D, H2S, H2C, X2D, X1 Carbon, A2L

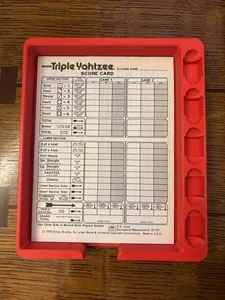

Larger space for Triple Yahtzee® pads Dimensions of pad space: 179mm x 137mm x 23.5 Bambu Studio settings 0.2mm layer, 2 walls, 15% infill, supports not needed

Plate Details (1)

0.4 mm nozzle, all plates
