40k Scoreboard

for Tabletop Accessories Layer by Layer

Coops

Scoring & Tracking Free

View on MakerWorld 196 362 Added Apr 4, 26 | Updated Sep 2, 26 Support Coops by Liking and Boosting their model.

Plan Your Print

About 67 g of filament From the designer's print profile

Print Profile 3h 22m 67 g PLA

What it takes

3 plates 3h 22m 67 g PLA

H2D, H2D Pro, A1, P1P, X1, X1 Carbon, H2S, P1S, X1E, P2S, H2C, A1 mini

• 0.2mm layer height for front panel, axels, and box. 0.12mm layer height for number wheels. • Arachne wall generator is required for number wheel braces.

Plate Details (3)

0.4 mm nozzle, all plates

Plate 1 · Cover Plate

28m 10 g PLA · 9 g PLA · 1 g

Plate 2 · Number Wheels

1h 25m 18 g PLA · 15 g PLA · 3 g

Plate 3 · Case and Axels

1h 29m 39 g PLA · 39 g

Designer's Description

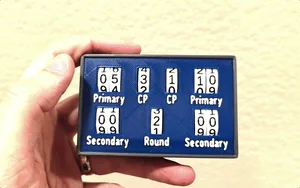

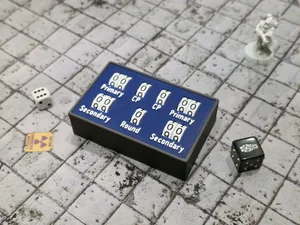

Scoreboard for 40k using snapping scroll wheels. Keeps track of victory points (both primary and secondary), Command Points (CP), and battle round. This design uses number wheels that will ‘snap’ gently to center numbers, and is 100% printed (no extra hardware required).

Assembly is straight forward:

6 wheels on one axel for the top half

5 wheels on the other axel for the bottom half

Axels snap in by sliding in on the right first (may need to push two of the scroll wheels all the way to the right to fit in before sliding in the axel), then pushing down until they click in.

Panel snaps in with some force, but once it pops in it's nice and secure.

Note: Make sure the wheels are lined up before pushing in the axels or putting on the panel - the wheels are easy to damage if they're forced down on the axel.

Enjoy!
