CATAN card holder box

for Catan (1995) Lift the Lid

Card & Tile Holders Free

View on MakerWorld 2,101 2,812 Added Jan 26, 26 | Updated Sep 17, 26 Support craichi by Liking and Boosting their model.

Plan Your Print 3 makers

✓ Fits sleeved cards

About 139 g of filament

Print Profile (10) 【V4_A】 67×43mm 3h 59m 124 g PLA

【V4_A】 67×43mm

3 plates 3h 59m 124 g PLA

X1 Carbon, P2S, P1S, H2S, H2D, X1, X1E, X2D, H2D Pro, H2C, A2L, A1, P1P

This is a fourth A version of card case for Catan . The card size it fits is 67 mm × 43 mm . I am printing it using PLA , but you can choose any color you like !

Plate Details (3)

0.4 mm nozzle, all plates

Plate 1

2h 33m 84 g PLA · 84 g

Plate 2

21m 6 g PLA · 6 g

Plate 3

1h 5m 34 g PLA · 3 g PLA · 31 g

【V4_A】 80 x 54mm

3 plates 5h 1m 162 g PLA

X1 Carbon, H2S, X1, X1E, P2S, P1P, X2D, A1, H2D Pro, H2C, A2L, P1S, H2D

This is a fourth A version of card case for Catan . The card size it fits is 80 mm × 54 mm . I am printing it using PLA , but you can choose any color you like !

Plate Details (3)

0.4 mm nozzle, all plates

Plate 1

3h 19m 113 g PLA · 113 g

Plate 2

1h 19m 43 g PLA · 3 g PLA · 40 g

Plate 3

22m 6 g PLA · 6 g

【V4_B】 67×43mm

4 plates 4h 31m 144 g PLA

X1 Carbon, A1, P1P, P2S, H2C, H2D, H2S, X1, A2L, H2D Pro, X2D, X1E, P1S

This is a fourth B version of card case for Catan . The card size it fits is 67 mm × 43 mm . I am printing it using PLA , but you can choose any color you like !

Plate Details (4)

0.4 mm nozzle, all plates

Plate 1

1h 50m 61 g PLA · 61 g

Plate 2

1h 8m 37 g PLA · 37 g

Plate 3

21m 6 g PLA · 6 g

Plate 4

1h 11m 40 g PLA · 37 g PLA · 3 g

【V4_B】 80 x 54mm

3 plates 5h 27m 180 g PLA

X1 Carbon, A1, P1P, P2S, H2C, H2D, H2S, X1, A2L, H2D Pro, X2D, X1E, P1S

This is a fourth B version of card case for Catan . The card size it fits is 80 mm × 54 mm . I am printing it using PLA , but you can choose any color you like !

Plate Details (3)

0.4 mm nozzle, all plates

Plate 1

3h 40m 127 g PLA · 127 g

Plate 2

1h 25m 46 g PLA · 42 g PLA · 4 g

Plate 3

22m 7 g PLA · 7 g

【V3】 67×43mm

3 plates 4h 5m 135 g PLA

X1 Carbon, H2D Pro, P1S, A2L, H2S, H2D, A1 mini, H2C, P2S, X2D, P1P, X1, X1E, A1

This is a third version of card case for Catan . The card size it fits is 67 mm × 43 mm . I am printing it using PLA , but you can choose any color you like !

Plate Details (3)

0.4 mm nozzle, all plates

Plate 1

21m 6 g PLA · 6 g

Plate 2

2h 40m 94 g PLA · 94 g

Plate 3

1h 4m 35 g PLA · 3 g PLA · 32 g

【V3】 80 x 54mm

3 plates 4h 16m 177 g PLA

X1 Carbon, X1E, P2S, H2C, H2D, A2L, X2D, H2D Pro, P1P, H2S, X1, P1S, A1

This is a third version of card case for Catan . The card size it fits is 80 mm × 54 mm . I am printing it using PLA , but you can choose any color you like !

Plate Details (3)

0.4 mm nozzle, all plates

Plate 1

2h 49m 126 g PLA · 126 g

Plate 2

1h 8m 45 g PLA · 4 g PLA · 41 g

Plate 3

19m 6 g PLA · 6 g

【V2】 67×43mm

2 plates 3h 41m 141 g PLA

X1 Carbon, P2S, X1E, X2D, H2D Pro, A1, P1P, H2D, P1S, A2L, H2C, H2S, X1

This is a second version of card case for Catan . The card size it fits is 67 mm × 43 mm . I am printing it using PLA , but you can choose any color you like !

Plate Details (2)

0.4 mm nozzle, all plates

Plate 1

2h 13m 94 g PLA · 94 g

Plate 2

1h 28m 47 g PLA · 35 g PLA · 12 g

【V1】 67×43mm

2 plates 3h 5m 139 g PLA

X1 Carbon, A1, P1P, P2S, H2C, H2D, H2S, X1, A2L, H2D Pro, X2D, X1E, P1S

This is a card case for Catan . The card size it fits is 67 mm × 43 mm . I am printing it using PLA , but you can choose any color you like !

Plate Details (2)

0.4 mm nozzle, all plates

Plate 1

1h 17m 64 g PLA · 64 g

Plate 2

1h 48m 75 g PLA · 75 g

【V1】 80 x 54mm

3 plates 4h 14m 192 g PLA

X1 Carbon, X1E, X1, H2D Pro, P2S, P1P, A1, H2D, P1S, H2C, X2D, A2L, H2S

This is a card case for Catan . The card size it fits is 80 mm × 54 mm . I am printing it using PLA , but you can choose any color you like !

Plate Details (3)

0.4 mm nozzle, all plates

Plate 1

2h 17m 105 g PLA · 105 g

Plate 2

1h 39m 81 g PLA · 81 g

Plate 3

19m 6 g PLA · 6 g

0.2mm layer, 2 walls, 15% infill

3 plates 4h 57m 135 g PETG

P2S, X1E, H2C, H2D, A2L, X1 Carbon, X2D, H2D Pro, P1P, H2S, X1, P1S, A1

He probado el perfil de impresión 【V4_A】 de 67 × 43 mm, tal y como se indica en las instrucciones para cartas con funda, pero no entran, ya que con la funda las cartas miden aproximadamente 48 × 70 mm. He escalado el perfil básico para que las cartas entren con funda y, además, siguen siendo compatibles los tornillos M3 × 20 mm.Recomiendo utilizar PETG o un PLA de buena calidad para evitar que las pestañas se rompan al instalar los flejes o el cierre. También recomiendo calentar los tornillos con un mechero o un soldador para que se genere correctamente la rosca. Añado el perfil de impresión al resto.

Plate Details (3)

0.4 mm nozzle, all plates

Plate 1

3h 7m 90 g PETG · 90 g

Plate 2

23m 6 g PETG · 6 g

Plate 3

1h 27m 39 g PETG · 5 g PETG · 34 g

As sliced by the designer. Your printer, filament, and settings may change these numbers.

Designer's Description

This is designed for cards f or 67×43mm cards and 80×54mm

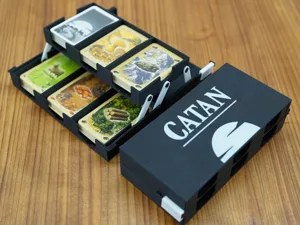

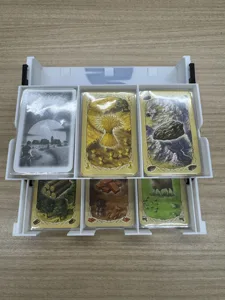

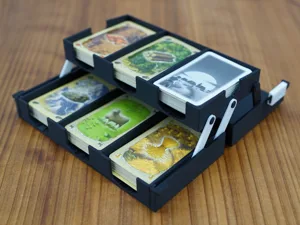

Six angled holders for resource and development card decks. It makes the decks easy to see during gameplay and store after play.

Before printing, please check the size of your cards and choose the appropriate model.

Boost Me

=========================【V4】=========================

version 4, the changes are as follows:

Added support for sleeved cards (tested with sleeves sized 68×45 mm).
Added guides to the Rod attachment points on the bottom.

This should make the rods less likely to come off and allow smoother opening and closing.

Added a protrusion to the hinge to reduce unintentional opening and closing, which makes the hinge slightly stiffer.

Printing model quick guide — for reference only.

No sleeved card

With sleeved card

CATAN Standard box

【V4_A】67×43mm

【V4_A】80×54mm

【V4_A】67×43mm

【V4_A】80×54mm

Catan Standard box with Expansion pack

【V4_A】67×43mm

【V4_A】80×54mm

【V4_ B 】67×43mm

【V4_ B 】80×54mm

Parts Description

3 Large Structural Parts

Bottom
Top Outer Panel (has protrusions on the inner side walls)
Top Inner Panel (has three protrusions on the side walls)

8 Additional Large Parts

Rods ×6 (used to connect the large parts. The holes on the two ends of each rod are slightly different — one side has a step/ridge, the other does not.)
Lid hinge parts ×2 (parts for the opening/closing mechanism)

Assembly Instructions

0. Print all parts.

1. Attach rods to the front two protrusions of the Top Inner Panel (4 connection points total).
At this time, use the hole with the step on the rod, and attach it so that the step remains visible. Hooking it in place helps with attachment.

2. Attach the other end of the rods from Step 1 to the protrusions on the Bottom (4 connection points total).

3. Attach the lid hinge parts to the Top Outer Panel . This step may require a bit of force.

4. Attach rods to the protrusions on the Top Outer Panel from Step 3.
This time, use the side of the rod without the step , and attach it so the stepped side faces outward and remains visible.

5. Connect the protrusions from Step 4 to the remaining protrusions on the Top Inner Panel.

6. Attach the outer screws.
M3 × 20 screws seem to fit well.

======================================================

=========================【V3】=========================

version 3, the changes are as follows:

The outer corners have been slightly rounded (improves the feel of the edges).
Updated the "CATAN" text design.

==========================================================================

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝【V2】＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

version 2, the changes are as follows:

The Bottom Outer Panel and Bottom Inner Panel have been integrated into a single panel.

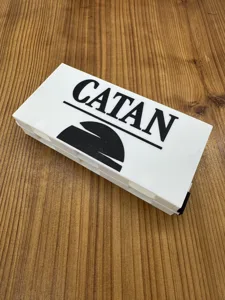

The “CATAN” text has been added to the Top Outer Panel .

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝【V1】＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

Parts Description

4 Large Structural Parts

Bottom Outer Panel (has two indentations on the inner side walls)
Bottom Inner Panel (has two protrusions on the side walls)
Top Outer Panel (has protrusions on the inner side walls)
Top Inner Panel (has three protrusions on the side walls)

8 Additional Large Parts

Rods ×6 (used to connect the large parts. The holes on the two ends of each rod are slightly different — one side has a step/ridge, the other does not.)
Lid hinge parts ×2 (parts for the opening/closing mechanism)

Assembly Instructions

0. Print all parts.

2. Attach the other end of the rods from Step 1 to the protrusions on the Bottom Inner Panel (4 connection points total).

3. Attach the Bottom Outer Panel to the Bottom Inner Panel from Step 2.
Be careful, as the rods may come loose easily at this stage.

4. Attach the lid hinge parts to the Top Outer Panel .This step may require a bit of force.

5. Attach rods to the protrusions on the Top Outer Panel from Step 4.
This time, use the side of the rod without the step , and attach it so the stepped side faces outward and remains visible.

6. Connect the protrusions from Step 5 to the remaining protrusions on the Top Inner Panel.

7. Attach the outer screws.
M3 × 20 screws seem to fit well.

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
