Ta Yü board and tiles

Board and tiles for the board game Ta Yu.

## Board

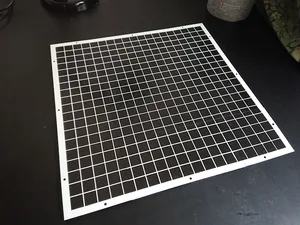

If you have the luxury of a huge print area (or hate magnets) you can print the board as one piece using *tayu board - one piece.stl*. In this case you don't need the other board files.

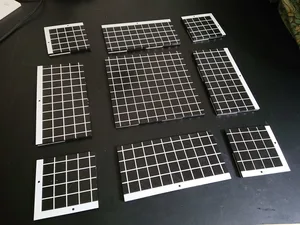

The other board files are for the various board parts. There are 4 corners [Co], 4 sides [Si] and 1 center [Ct] peace. To get the full place them in a 3x3 pattern like this
`[Co] [Si] [Co]`
`[Si] [Ct] [Si]`
`[Co] [Si] [Co]`

One version exists with holes for magnets, one is without. Magnet size is 3mm diameter, 2mm height.

I've glued the magnets so that I can join the 4 edges to form a small board, about 1/4th the size of the normal board.
`[Co] [Co]`
`[Co] [Co]`

I've also printed one sub-set of tiles in different color, so I can play a quick/tiny version of the game (*board small.JPG*).

The board designs have an extruding grid on the top plane. This makes it easy to place the tiles precisely and prevents them from moving.

## Tiles

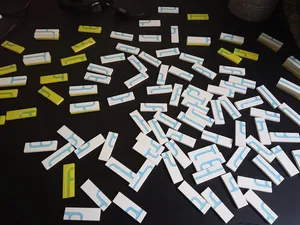

The tiles come in 2 files - one for the tiles' body (*tayu tiles - body.stl*) and one for the "water" (*tayu tiles - water.stl*). I printed the body and water parts separately with different filaments then glued them together.

The files contain all the 28 variations. The game needs every variation 4 times -> print the files 4x to get a total of 112 tiles (28 different types x 4 each).
