Trajan Board Game Insert

for Trajan (2011) Lift the Lid

dagoon

Inserts Free

View on MakerWorld 2 5 Added Oct 11, 26 | Updated Oct 20, 26 Support dagoon by Liking and Boosting their model.

Plan Your Print

✓ Stores vertically

About 623 g of filament

Print Profile 17h 49m 623 g PLA

What it takes

9 plates 17h 49m 623 g PLA

X1 Carbon, H2D, P2S, H2C, H2S, X1E, A1, P1P, X1, X2D, H2D Pro, A2L, P1S

Bambu Lab X1C, PLA, 0.4 mm nozzle, 0.2 mm layer height, 2 walls, 15 % infill, no supports. Parts already oriented (boxes on their bottom, lids top face down). 9 plates: plates 4–7 = one player box with lid each (print in the player colours). Player Box + lid ×4, Trajan/Bonus Tray lid ×2.

Plate Details (9)

0.4 mm nozzle, all plates

Plate 1 · 01 Setup Tray Lid, 05 Tile Box with Lid

2h 33m 83 g PLA · 83 g

Plate 2 · 01 Setup Tray, 06 Card Tray, 09 Ship Box with Lid

4h 23m 154 g PLA · 154 g

Plate 3 · 03 Trajan Tile Tray, 04 Bonus Tile Tray, 2 Lids

3h 26m 115 g PLA · 115 g

Plate 4 · 02 Player Box 1 with Lid

1h 18m 44 g PLA · 44 g

Plate 5 · 02 Player Box 2 with Lid

1h 18m 44 g PLA · 44 g

Plate 6 · 02 Player Box 3 with Lid

1h 18m 44 g PLA · 44 g

Plate 7 · 02 Player Box 4 with Lid

1h 18m 44 g PLA · 44 g

Plate 8 · 10 Forum Tile Box with Lid

1h 34m 55 g PLA · 55 g

Plate 9 · 07 Bag Holder

42m 40 g PLA · 40 g

Designer's Description

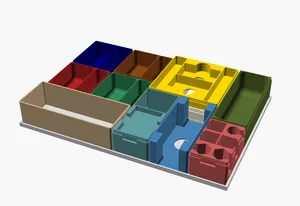

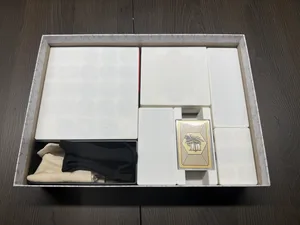

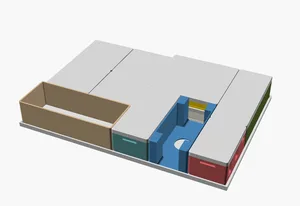

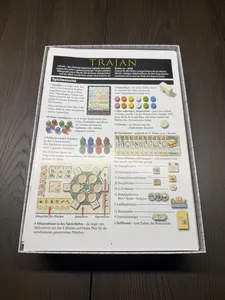

Insert for Trajan (Stefan Feld, Ammonit / HUCH!, 2nd edition, inner box size 305 × 215 × 65 mm). The game box can be stored vertically: every box has a clip-on lid, nothing falls out or mixes.

The lids clip onto the top rim of each box. During play, simply clip the lid onto the bottom of the box – the rim is the same at the top and the bottom.

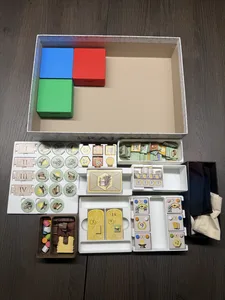

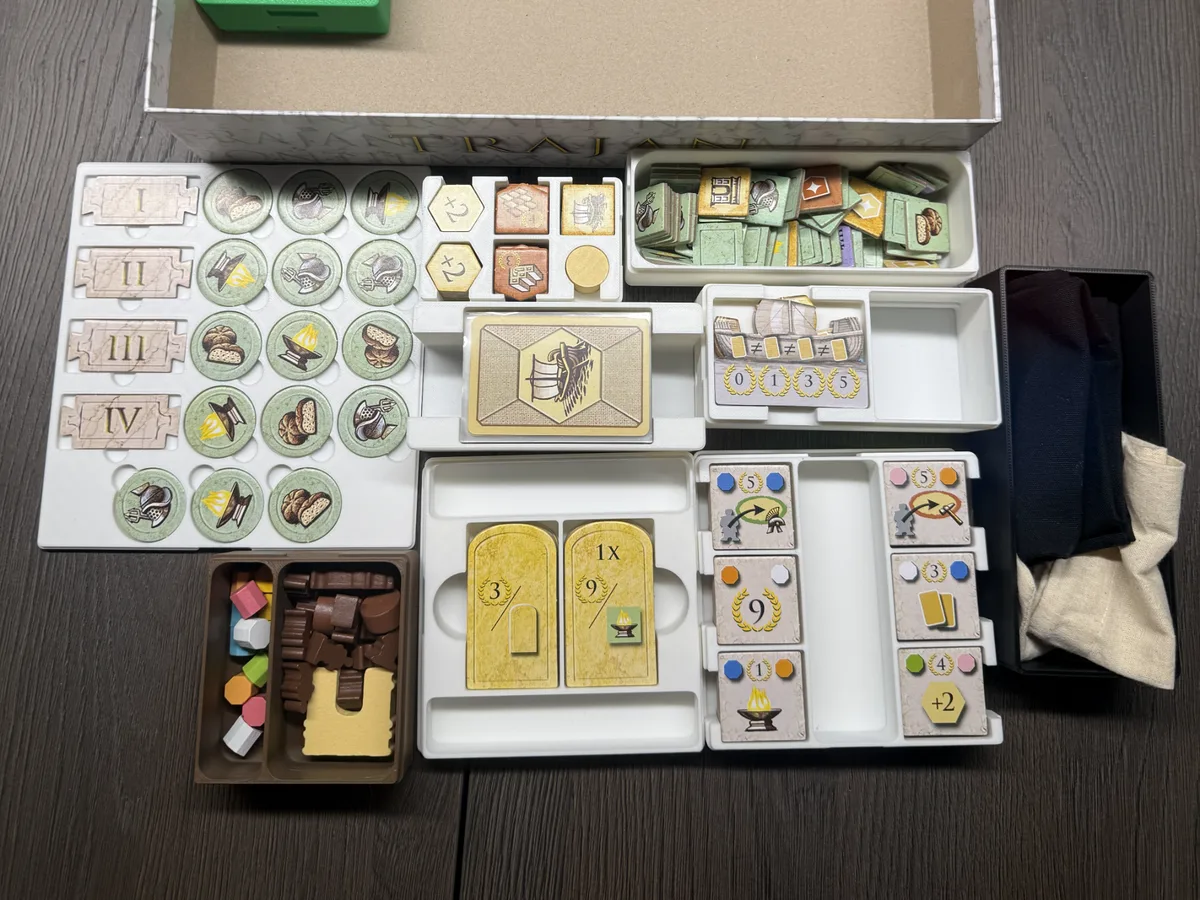

Boxes:

Setup Tray: 4 quarter markers and the 15 demand tiles (3 per quarter, 3 out of the game)
Player Box ×4: 15 figures, general, 2 discs, 12 action markers, Trajan arch

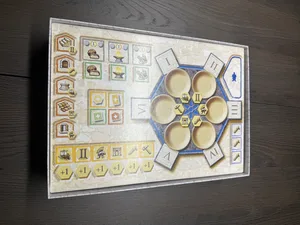

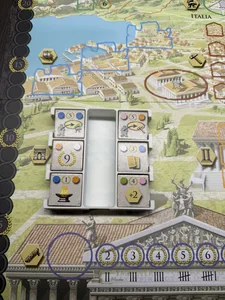

Trajan Tile Tray: 54 Trajan tiles in 6 stacks – placed directly onto the 6 Trajan spaces of the board
Bonus Tile Tray: 12 bonus tiles
Tile Box: extra action tiles, building tiles, [+2] markers, time marker in shaped pockets
Forum Tile Box: 70 forum tiles, loose – pour them straight into the bag
Ship Box: 3 ship tiles
Card Tray: 60 sleeved commodity cards (49 × 71 mm), ready-to-play draw pile
Bag Holder: 2 cloth bags

The PDF guide (assembly guide below) shows the parts, the packing order and how to use the trays during setup.
