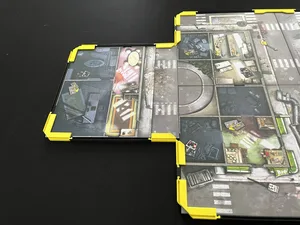

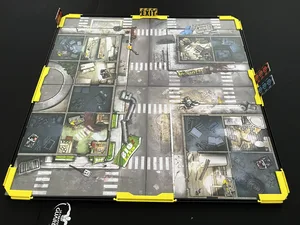

Zombicide Tile Edge System V2 - Reworked & Fixes

Tile Edge System designed for Zombicide, to stop the tiles from sliding apart etc.

Works with any board game that has 250 x 250 mm tiles with a recommended max tile height of 2.7 mm (there is a 3mm space in the design).

Update (2026/05/08):

• Changed length of the special Straight for train tracks to 6mm shorter due to feedback from user.
• The length is now based on a tile size of 250mm x 84 mm.

The Undead or Alive update (2026/04/25):

@jonogo asked if I could add support for the train track tiles in Undead or Alive... Well, of course!

• Added .stl and print plate with two new straight-piece for the train tiles in Undead or Alive .
• I don't own Undead or Alive so:
• I have based the measurements on data from a friendly user, thank you @jonogo (Tiles should be 250mm x 90mm for the new straight to match)
• I have based my choices on the missions from the Undead or Alive rule book.
• See image with simulated tile, you can find it in the model pictures.
• I have no way of testing. PLEASE let me know If you have any issues!

New in V2:

• Increased the space for tiles to avoid tiles being damaged (pinched) when assembling the set.

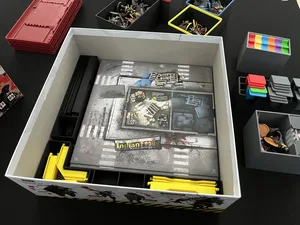

• Added in-box storage (inserts). The boxes are slightly higher than the stack of tiles, which is on purpose to ensure space for the parts.
• Removed the need for clips to reduce complexity of assembly and use. The new system should be solid enough for plenty of uses.

Designed for:

• Comfort of play
• No more tiles that gets displaced or shifted during moving of zombie hordes.
• Spawn markers and Exit markers are easily seen by players.
• Low cost
• Fast print
• Durability

Print instructions:

• Print the parts you need.
• Keep supports on for the inverted corner pieces.
• Add brims if you are not confident in your build plate.
• KEEP BRIMS on the Undead or Alive straights (StraightTrainTracks)

Usage Instructions:

The system has been designed for easy use if you follow these guides.

• Assembly: When assembling your tiles, put on the Corners and the Straights first, then add Connectors afterwards.
• Disassembly: When disassembling, remove the Connectors first.
