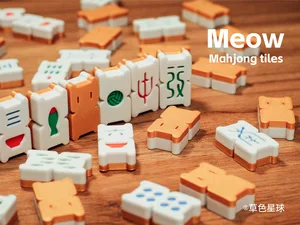

Meow mahjong tiles

for Mahjong (1850) Layer by Layer

草色星球

Inserts Free

View on MakerWorld 122 95 Added Feb 6, 26 | Updated Aug 13, 26 Support 草色星球 by Liking and Boosting their model.

Plan Your Print

✓ Optional multicolor profile The designer also offers a multicolor way to print this (an MMU/AMS profile or per-color parts)

About 522 g of filament From the designer's print profile

Print Profile (3) 5-color version 19h 7m 522 g PLA

5-color version

10 plates 19h 7m 522 g PLA

A1, H2D Pro, X1, X1 Carbon, X1E, P2S, P1S, H2D, P1P, H2C, H2S, X2D, A2L

Weight： First tray filled with 15% (default): 9.6g/piece First tray filled with 30%: 10g/piece First tray filled with 50%: 12g/piece First tray filled with 70%: 14g/piece First tray filled with 100%: 16g/piece

Plate Details (10)

0.4 mm nozzle, all plates

Plate 1 · Tile base(5-color version ) 36 pics (print 4 times)

5h 50m 182 g PLA · 182 g

Plate 2 · Basic tiles(print 4 times)

4h 18m 117 g PLA · 117 g

Plate 3 · Flower tiles(print 1 time)

1h 7m 28 g PLA · 28 g

Plate 4 · Blue color board(print 4 times)

54m 24 g PLA · 24 g

Plate 5 · Green color board(print 4 times)

57m 24 g PLA · 24 g

Plate 6 · Red color board(print 4 times)

40m 16 g PLA · 16 g

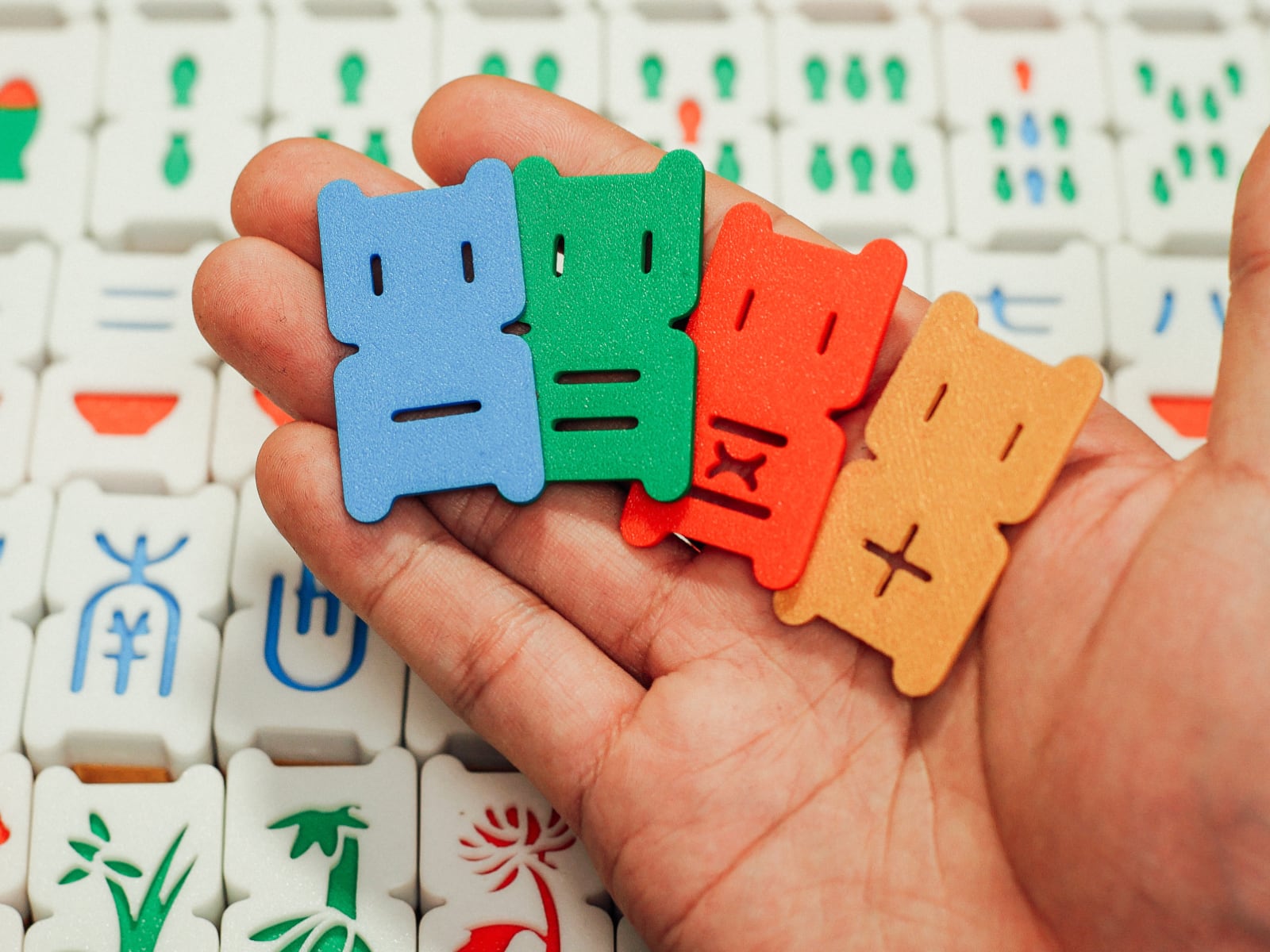

Plate 7 · Token 1(15pics)

1h 16m 33 g PLA · 33 g

Plate 8 · Token 2(15pics)

1h 20m 33 g PLA · 33 g

Plate 9 · Token 5(15pics)

1h 25m 32 g PLA · 32 g

Plate 10 · Token 10(15pics)

1h 19m 33 g PLA · 33 g

2-color version

7 plates 17h 17m 481 g PLA

A1, X1 Carbon, H2D, P2S, H2S, H2C, X1E, P1P, X1, H2D Pro, P1S, X2D, A2L

Plate Details (7)

0.4 mm nozzle, all plates

Plate 1 · Tile base(2-color version ) 36 pics (print 4 times)

6h 31m 205 g PLA · 205 g

Plate 2 · Basic tiles(print 4 times)

4h 18m 117 g PLA · 117 g

Plate 3 · Flower tiles(print 1 time)

1h 7m 28 g PLA · 28 g

Plate 4 · Token 1(15pics)

1h 16m 33 g PLA · 33 g

Plate 5 · Token 2(15pics)

1h 20m 33 g PLA · 33 g

Plate 6 · Token 5(15pics)

1h 25m 32 g PLA · 32 g

Plate 7 · Token 10(15pics)

1h 19m 33 g PLA · 33 g

Organized for A1 Mini

12 plates 19h 18m 525 g PLA

A1 mini, P1S, H2D Pro, P1P, A1, X1E, P2S, H2C, X1 Carbon, H2D, H2S, X1, X2D, A2L

Same settings as original Organized to fit the A1 Mini

Plate Details (12)

0.4 mm nozzle, all plates

Plate 1 · Tile base(5-color version ) 21 pics (print 4 times)

3h 27m 107 g PLA · 107 g

Plate 2 · Tile base(5-color version ) 15 pics (print 4 times)

2h 30m 76 g PLA · 76 g

Plate 3 · Basic tiles 1 (print 4 times)

2h 19m 62 g PLA · 62 g

Plate 4 · Basic tiles 2 (print 4 times)

2h 6m 56 g PLA · 56 g

Plate 5 · Flower tiles(print 1 time)

1h 6m 28 g PLA · 28 g

Plate 6 · Blue color board(print 4 times)

54m 24 g PLA · 24 g

Plate 7 · Green color board(print 4 times)

57m 24 g PLA · 24 g

Plate 8 · Red color board(print 4 times)

40m 16 g PLA · 16 g

Plate 9 · Token 1(15pics)

1h 15m 34 g PLA · 34 g

Plate 10 · Token 2(15pics)

1h 19m 33 g PLA · 33 g

Plate 11 · Token 5(15pics)

1h 25m 32 g PLA · 32 g

Plate 12 · Token 10(15pics)

1h 18m 33 g PLA · 33 g

As sliced by the designer. Your printer, filament, and settings may change these numbers.

Designer's Description

A long time ago,

I posted a " Laying-down Cats Jenga " .

Now, these lying-down cats have finally stood up and turned into mahjong tiles!

Features:

Since I didn't have a multi-head machine,

and didn't want to waste AMS color changing,

I came up with this clever method:

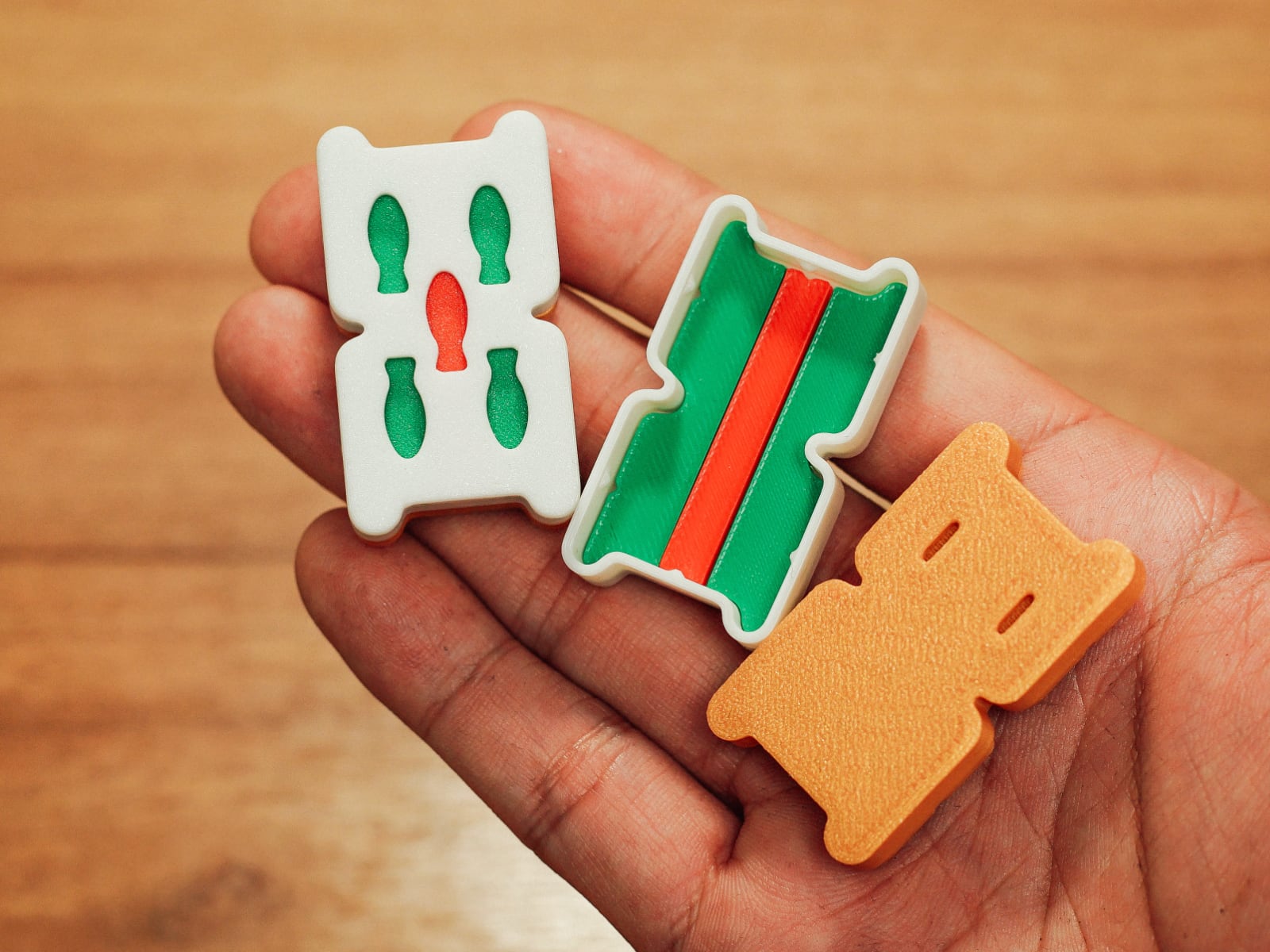

Color separation + assembly

2-color version:

5-color version:

Comparison of the two versions：

The 2-color version is very easy to assemble.

Just pay attention to the orientation of the pattern, making sure the cat's head is facing upwards.

Then press firmly.

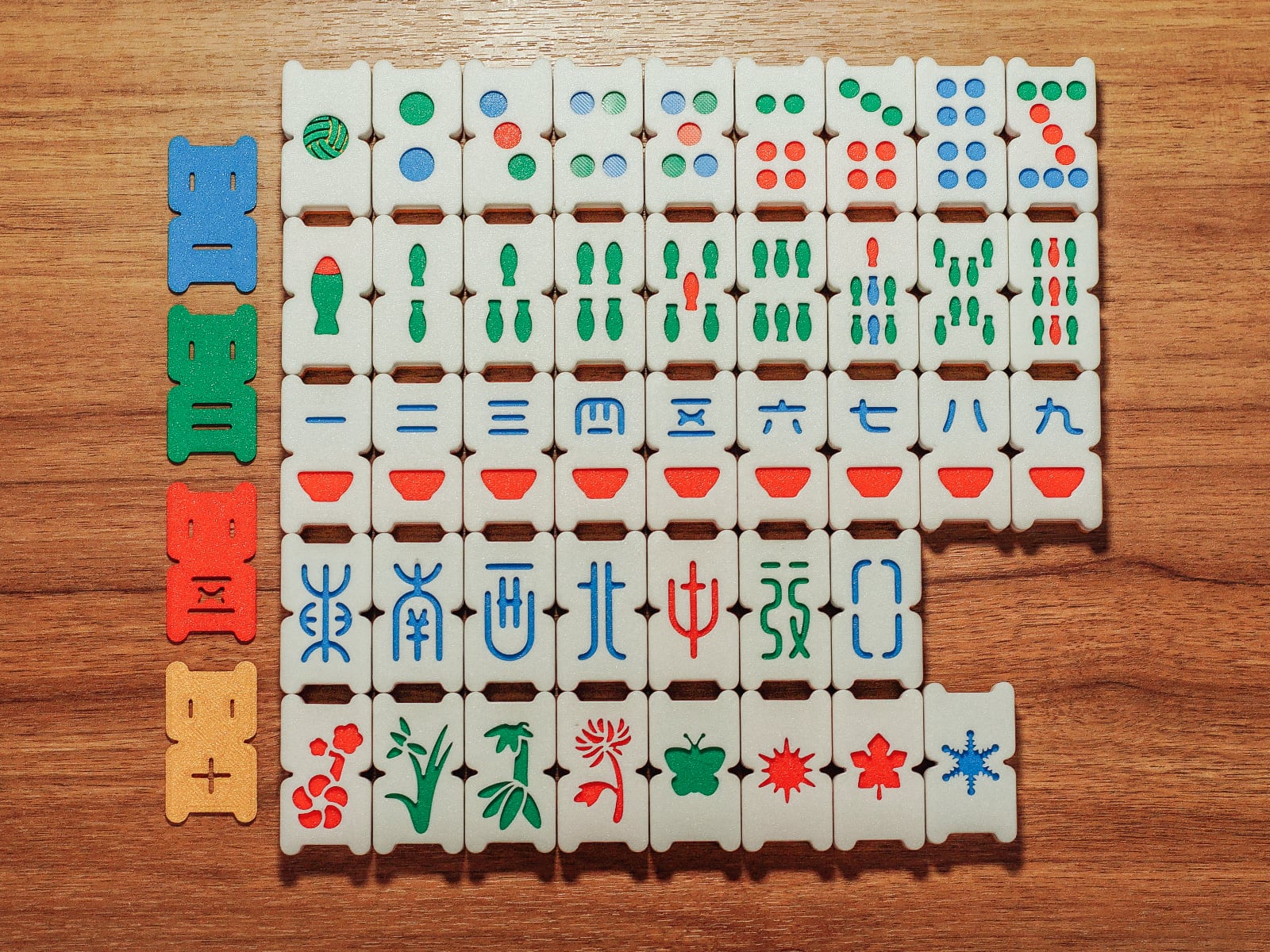

This is a diagram of the 5-color version assembly.

The first row is for the dots tiles ,

the second row for the bamboo tiles ,

and the third row for the character tiles ,

arranged in order from 1 to 9.

After printing, arrange them as shown,

then attach the cat's base piece.

Weight：

5-color version

First tray filled with 15% (default): 9.6g/piece

First tray filled with 30%: 10g/piece

First tray filled with 50%: 12g/piece

First tray filled with 70%: 14g/piece

First tray filled with 100%: 16g/piece
