Magnetic Catan Player Pieces Box (Base Set)

for Catan (1995) Lift the Lid

Donrix

Free

View on MakerWorld 114 557 Added Sep 16, 25 | Updated Sep 17, 26 Support Donrix by Liking and Boosting their model.

Remix of View the original model (MakerWorld)

Plan Your Print

✓ Covers Catan: Seafarers

✓ Uses magnets

About 80 g of filament

Print Profile (4) 0.16mm layer, 2 walls, 15% infill 3h 41m 80 g PLA

0.16mm layer, 2 walls, 15% infill

1 plate 3h 41m 80 g PLA

A1, P1S, H2S, H2D Pro, X2D, X1 Carbon, H2C, X1E, P1P, A1 mini, X1, H2D, P2S, A2L

• 0.16mm layers • 2 colors, adjust player color as needed • no supports

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1

3h 41m 80 g PLA · 68 g PLA · 12 g

Optimised - 3W 12% Infill, Ironing, Patterned

3 plates 8h 49m 262 g PLA

P1S, P1P, X1, X1 Carbon, X1E

Loved this design over the original, and decided to take it a step further with profile optimisation. Aim was to improve overall quality, minimise colour changes and minimise filament. Can confirm magnets (3x6mm) can be pushed in, no need for glue. • Top Piece: New text font - more true to the Catan font (Minion Pro), optimised so there's no gaps in the text. Reduced text layers from 5 to 2 to minimise colour changes. • Bottom Piece: Concentric bottom layer for the Base (shown in red base photo). Added ironing to topmost surface only (preference only) • All: Smoothed bottom layer - 0.32mm makes text and lines cleaner. Reduced infill. One wall on first layer. Smoothed top layers. Top piece on Diamond Textured Plate, bottom piece on a Supertack Smooth Plate. Black is Elegoo Rapid PLA+, other colours are Bambu. To get a solid bottom layer (with legible text) calibrating flow rate is important. To save filament I recommend printing top and bottom pieces on different plates. I printed 2x top pieces simultaneously (can do 3x), and 2x bottom pieces with print by object.

Plate Details (3)

0.4 mm nozzle, all plates

Plate 1 · 1x Top and Bottom (Inefficient)

3h 5m 89 g PLA · 78 g PLA · 11 g

Plate 2 · 2x Top

2h 17m 67 g PLA · 64 g PLA · 1 g PLA · 2 g

Plate 3 · 2x Bottom (Print by object)

3h 27m 106 g PLA · 90 g PLA · 8 g PLA · 8 g

Deutscher Text, +0,1 auf die Löcher , optimiert für H2C

1 plate 11h 44m 298 g PLA

H2C, H2D, H2D Pro, H2S, A2L

Text in Deutsch. Text, Unterseite und Innenseite in jeweils einer Farbe abgesetzt. +0,1mm auf XY Hole Compensation, damit man die Magnete auch rein bekommt. First Layer für bessere Ergebnisse in Geschwindigkeit reduziert. Ideal für den H2C

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1

11h 44m 298 g PLA · 234 g PLA · 16 g PLA · 16 g PLA · 16 g PLA · 16 g

Deutscher Text, Multi-Drucker-Kompatibel

1 plate 3h 44m 85 g PLA

A1, X1E, P2S, H2C, H2D, A2L, X1 Carbon, A1 mini, X2D, H2D Pro, P1P, H2S, X1, P1S

0.2mm layer, 2 walls, 15% infill

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1

3h 44m 85 g PLA · 63 g PLA · 22 g

As sliced by the designer. Your printer, filament, and settings may change these numbers.

Designer's Description

Catan Player Piece Boxes for the 3D Version of the Board game

WITH MAGNETS

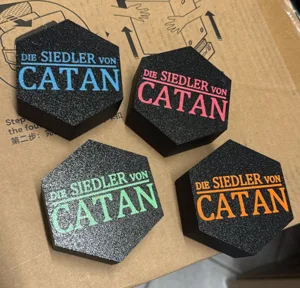

The uploaded file is in English, text can be modified in Bambu Studio (although fotos are in German).

This is a redesign of https://makerworld.com/de/models/724977-catan-player-pieces-box-base-set-and-seafarers#profileId-657095 to fit some magnets in to hold bottom and top together. Intended for the printed pieces, the ones I used are these: https://makerworld.com/de/models/573919-the-settlers-of-catan-3d-board-improved#profileId-2225407 , but I believe most you can find have the same size and fit as well.

I remodelled everything from scratch using the original measurements, gave the cavities a tighter fit to squeeze in 3 magnets on each part (6 in total per box).

Some of the coloring was reduced in order to lessen filament changes (modify to your liking in BambuStudio or keep it simple as it is).

The 3 x 6 mm magnets used for the board game (3 mm diameter, 6 mm length) fit right in. It is supposed to be a tight fit, so no glue needed.

Connection is strong enough to hold the pieces together even when carried on the lid or bottom only.

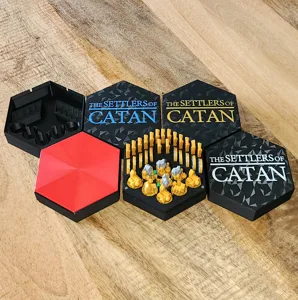

Boxes in the photos were printed with Sunlu PLA+.
