Cthulhu Death May Die Insert through S4

for Cthulhu: Death May Die (2019) Layer by Layer

Dumah

Inserts Free

View on MakerWorld 123 322 Added Jan 26, 25 | Updated Aug 5, 26 Support Dumah by Liking and Boosting their model.

Plan Your Print

✓ Covers Cthulhu: Death May Die – Unspeakable Box Expansions this print stores alongside the base game

About 4,575 g of filament From the designer's print profile

Print Profile (2) 0.2mm layer, 2 walls, 15% infill 95h 36m 4,575 g PLA

0.2mm layer, 2 walls, 15% infill

24 plates 95h 36m 4,575 g PLA

X1 Carbon, P1S, P1P, X1, X1E, A1, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L

Plate Details (24)

0.4 mm nozzle, all plates

Plate 1

3h 18m 145 g PLA · 145 g

Plate 2

3h 18m 145 g PLA · 145 g

Plate 3

3h 18m 145 g PLA · 145 g

Plate 4

3h 18m 145 g PLA · 145 g

Plate 5

3h 18m 145 g PLA · 145 g

Plate 6

3h 18m 145 g PLA · 145 g

Plate 7

3h 18m 145 g PLA · 145 g

Plate 8

3h 19m 145 g PLA · 145 g

Plate 9

3h 19m 145 g PLA · 145 g

Plate 10

3h 19m 145 g PLA · 145 g

Plate 11

3h 19m 145 g PLA · 145 g

Plate 12

3h 19m 145 g PLA · 145 g

Plate 13

3h 19m 145 g PLA · 145 g

Plate 14

3h 19m 145 g PLA · 145 g

Plate 15

5h 18m 289 g PLA · 289 g

Plate 16

6h 11m 330 g PLA · 330 g

Plate 17

6h 28m 320 g PLA · 320 g

Plate 18

2h 12m 112 g PLA · 112 g

Plate 19

57m 47 g PLA · 47 g

Plate 20

4h 25m 231 g PLA · 231 g

Plate 21

3h 144 g PLA · 144 g

Plate 22

3h 1m 145 g PLA · 145 g

Plate 23

12h 14m 639 g PLA · 639 g

Plate 24

5h 34m 288 g PLA · 288 g

Cthulhu Death May Die - No Split

3 plates 133h 2m 1,051 g PLA

H2C, H2D Pro, H2S, H2D, A2L

This is a set meant to replace the previously glued split pieces of the original insert for those with larger print beds.

Plate Details (3)

0.2 mm nozzle, all plates

Plate 1 · Print 1

68h 13m 554 g PLA · 554 g

Plate 2 · Print 1

31h 37m 248 g PLA · 248 g

Plate 3 · Print 7

33h 12m 249 g PLA · 249 g

As sliced by the designer. Your printer, filament, and settings may change these numbers.

Designer's Description

Updates:
2/9/2025 - Changed the Overlay Dashboard Left & Right by opening up 2mm to allow room for 5 full dashboard overlays to be printed

This is a board game insert for Cthluhu Death May Die

https://boardgamegeek.com/boardgame/253344/cthulhu-death-may-die

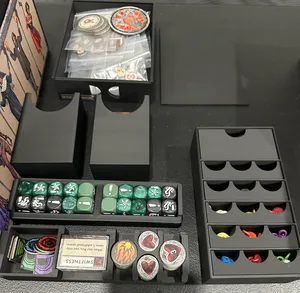

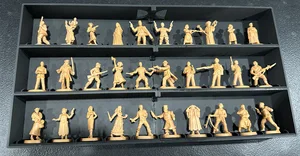

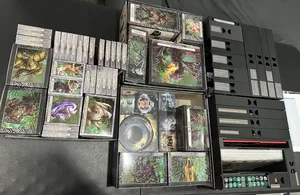

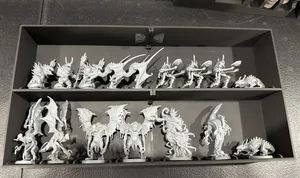

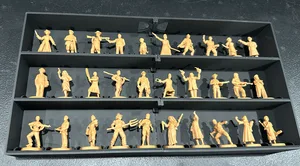

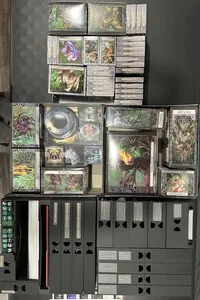

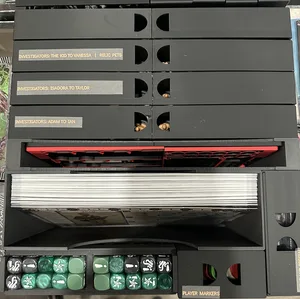

My goal with this design was to create a single box to organize all investigator models and player setup components in one box and a second box for all monsters not directly within a EO or Episode box. I also wanted to minimize the need to dig into the boxes so that content could easily be found. To do so, I used large boxes that do create box lift, but allows for content to come out vertically.

NOTE: While I did some planning for S5 / S6 such as with player markers, this will need to be adjusted later with the new content. I expect to need to spill over some unknown monsters into another box, but investigators should be possible with a single box setup still. Also, I don't own the Unspeakable box or any of the promos. However, since the monsters are kept in scenario boxes the content doesn't change for the monsters and there's plenty of room as I've shown for the extra investigators.

I have a video overview of what this content if you'd like to watch:

Things to note:
1) This takes 4.5 rolls of filament. It's a lot, but I didn't feel the two boxes were that heavy after everything.
2) The way I've oriented everything in the 3mf file nothing needs supports. It's a lot of plates which is unavoidable due to the sizes.
3) There are 10 total pieces to be glued together. The process I use makes this really simple. You can follow this video I made here

But the basic process is:
I use this activated adhesive: https://a.co/d/8laYAcL
I apply the glue to one side then put them together. There are connection points to make it easy to keep in place. I wipe off the excess. I spray the activator at the seams and just enough gets in that it's immediately connected and ready to use.

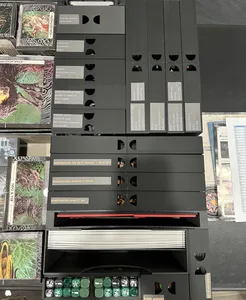

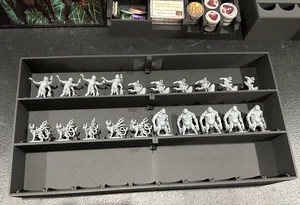

4) I'm including the labels I used. You can use the photos to help find where the monsters go to line up with them. The investigators you may need to adjust if you have more of the content.

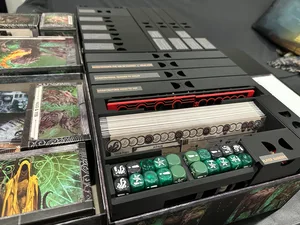

The specific overlay for the player dashboards I printed is:
https://cults3d.com/en/3d-model/game/cthulhu-death-may-die-player-dashboard
