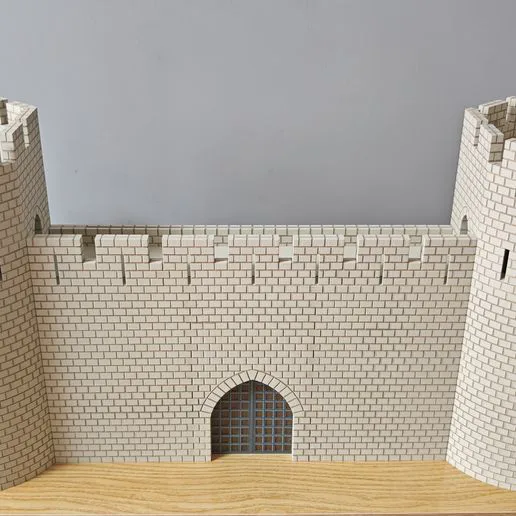

GM Screen for TTRPG
I modeled this screen primarily for myself, but maybe someone else will like it.

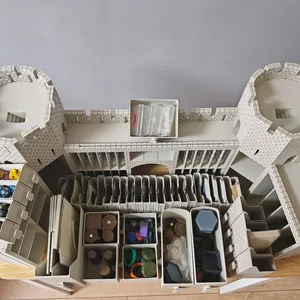

It has 2 dice towers, an initiative tracker and plenty of storage space for everything. The idea is to have everything needed during a game session at hand. I use paper miniatures ~60mm high and 88x60mm cards (items/spells/ets).

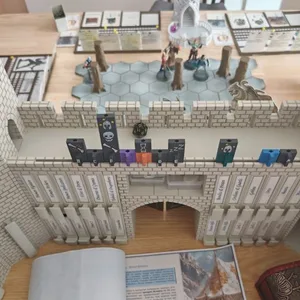

The dices from the dice towers rolls out onto the wall.

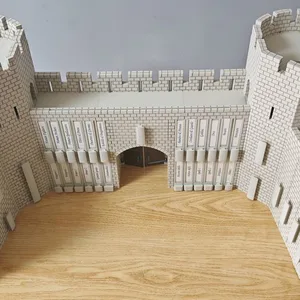

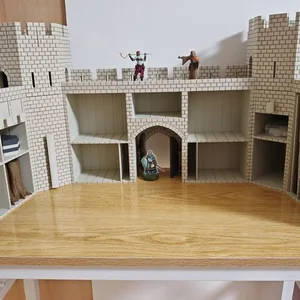

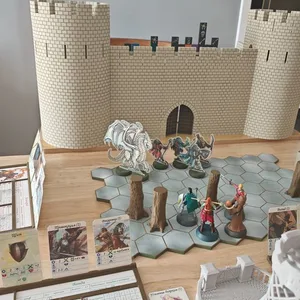

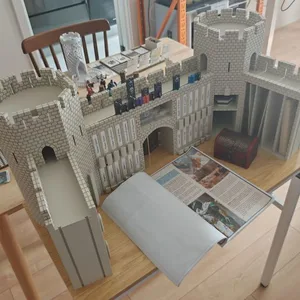

The photos show my screen configuration, but if you wish, you can make a different configuration for yourself. If you need additional block or box of a certain size, write me a message and I will probably add it. Changes in length should be multiples of 6mm, changes in height should be multiples of 8mm (but preferably 16mm, so that there are no problems with the texture of the bricks).
Since I reprinted the same blocks several times during the design process, I don't know exactly how much filament is required to print the whole screen, but definitely at least 6kg and a lot of time. Then you have to glue some parts and paint the seams (I did it with an acrylic marker), so think twice (or more) whether you really need it.

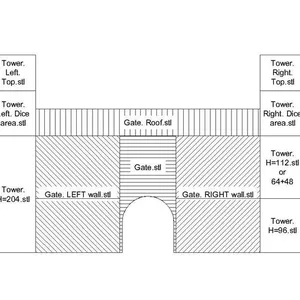

The "left" and "Right" in the file names means that the block can only be used on one side. If no side is specified, then the block can be used from either side. Left and right determine from the condition that you are sitting behind the screen.
The partitions in the central wall are separate and can be installed at will.
The tiles for initiative tracker can be obtained here:
https://cults3d.com/en/3d-model/game/gm-screen-dice-tower-storage-initiative-tracker
