Deluxe Arcs Board Game Token Sleeves
Print Profile (2) Lids (0.2mm nozzle) 31h 20m 173 g PLA
Plate Details (10)
Plate Details (4)

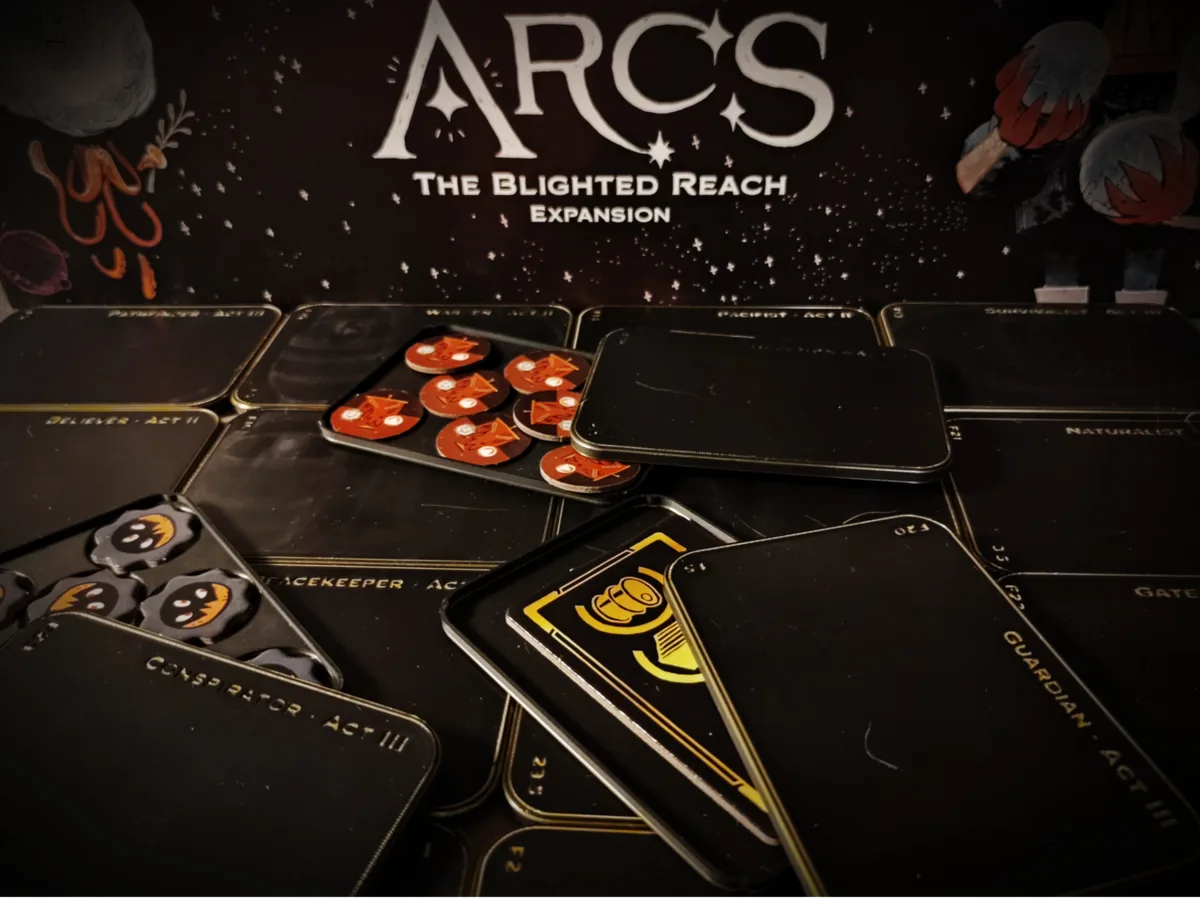

Introducing Duluxe Token boxes for the Arcs Blighted Reach Campaign! These boxes are designed to be slotted directly into fate decks so the tokens can be handed to players with their cards significantly reducing upkeep time. Each box has a fate name, a fate number, and even a card number so players know where to slot the box in their deck. This way, players are only introduced to the tokens when they become relivant.
Boost Me Getting this design to a place where it could reliably be printed at such a small scale took weeks of effort. help me keep making cool things
- I reccomend printing with Matte black, Silk Gold, and a smooth build plate but you're welcome to experiment.
- For the lids, a 0.2mm nozzle is mandatory to get good text resolution
- I found that in order to achieve consistent text, I needed to drop the flow rate. Unfortunately, lower flow rate makes for very brittle prints so to compromise, The .3mf files have two black filament settings. Drop the flow rate of color 1, but leave color 2 at the default. On the AMS print screen, you can map both colors to black. This will print the text with a lower flow rate but the walls with a normal flow rate.
- The Bottoms can be printed with 0.2 or 0.4mm. There's a loss of quality at 0.4 but personally I didn't find it to be large enough to matter.
- There's a few different kinds of bottoms. Most have 8 circles and are 1 token deep. Print 15 of those. Also print 2 short boxes with no circles, and 2 tall boxes with no circles. These are for Naturalist, Guardian, Survivalist, and Gate Wraith respectively.
Personally, I use a neoprene map so I don't store the board in the box. This leaves a bit of extra space above the cards so I also printed some blocks to go underneath the cards and raise them up to fill the space. I find this makes it easier to take them out. If this describes you, you're welcome to do the same. I included the riser model in the downloads.
