Leaning Dice Tower of Pisa

for Tabletop Accessories Layer by Layer
Frameworks
Dice Towers & Trays Free
View on MakerWorld 787 1,761 Added Mar 5, 24 | Updated Aug 29, 26 Support Frameworks by Liking and Boosting their model.
Plan Your Print
About 265 g of filament From the designer's print profile
Print Profile (2) 0.2mm layer, 2 walls, 15% infill 11h 4m 265 g PLA
0.2mm layer, 2 walls, 15% infill
1 plate 11h 4m 265 g PLA
P1S, P1P, X1, X1 Carbon, X1E, A1, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L
DO NOT USE SUPPORTS - or you'll have a terrible time trying to remove everything… and the inside might not work anymore! This profile uses lightning infill at %15. However, features on this model are so small that most of it doesn't need infill anyway. So dealers choice when it comes to that! I chose this just to speed past the tray portion. I also recommend not using sport or ludicrous mode as it can cause deformations/stringing/failure in the many columns on the way up. So for best results use standard speed at minimum and dry that filament !
Plate Details (1)
0.4 mm nozzle, all plates
Plate 1
11h 4m 265 g PLA · 265 g
0.2mm layer, 4 walls, 15% infill - A1 mini Optimized
1 plate 7h 3m 166 g PLA
A1 mini, P1S, P1P, X1, X1 Carbon, X1E, A1, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L
small dice for it can be found here: https://makerworld.com/en/models/249280#profileId-265560 0.2mm layer, 4 walls, 15% infill - A1 mini Optimized, it was scaled down to 70%,
Plate Details (1)
0.4 mm nozzle, all plates
Plate 1
7h 3m 166 g PLA · 166 g
As sliced by the designer. Your printer, filament, and settings may change these numbers.
Designer's Description

DO NOT USE SUPPORTS - or you'll have a terrible time trying to remove everything… and the inside might not work anymore!

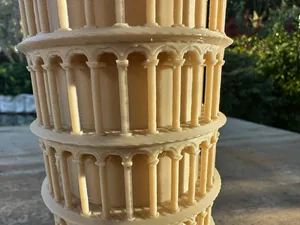

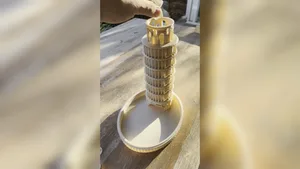

Combining my wife's love for Italy with mine for D&D! The Leaning Dice Tower of Pisa! It was a fun challenge trying to see how much detail I wanted to fit into this model knowing that it would need to be printed without supports, but I'm pretty happy with the results! So much so I had to go get some better color filament to complete the look… Inside the tower are two conical ramps to help spin the dice as it goes down, and one more ramp to shoot the dice out the bottom.

Be warned! The print can be fairly challenging with all the small details, but it's fun to watch these bambu printers crush all the bridging and overhangs on this model! I may make a second version with some dice storage but please enjoy this fun little project!
